86J1880EC-1000-LS-14(K)+2HCS868H Nema34 6A Closed Loop Servo Stepper Motor Drive Kit with Encoder

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Precision Motion Control: The closed-loop servo system combines a Nema34 6A hybrid stepper motor with an integrated encoder, enabling precise positioning and speed control for applications like robotics, CNC machining, and automated assembly lines.
  • Network Connectivity: The servo drive features Ethernet (RJ45) ports for seamless integration into industrial networks, allowing remote monitoring, diagnostics, and centralized control in distributed automation systems.

Key features

  • 1. Material Technology

    • With a robust aluminum and steel construction, ensure long-term durability in industrial environments compared to plastic-based alternatives*.

  • 2. Interactive Design

    • With an intuitive digital display and Ethernet connectivity, program parameters remotely and monitor operations in real-time for seamless network integration.

  • 3. Performance Parameters

    • With closed-loop control and 6A output, achieve precise motion control with 20% higher accuracy than open-loop systems*, enabling smooth positioning in demanding applications.

  • 4. Scenario Solutions

    • Designed for industrial automation, reliably operate in robotics and CNC systems where precision is critical, ensuring consistent performance in high-demand environments.

  • 5. Certification Standards

    • Certified to CE and EPR standards, meet EU safety and environmental regulations for hassle-free deployment in regulated markets.

Product details

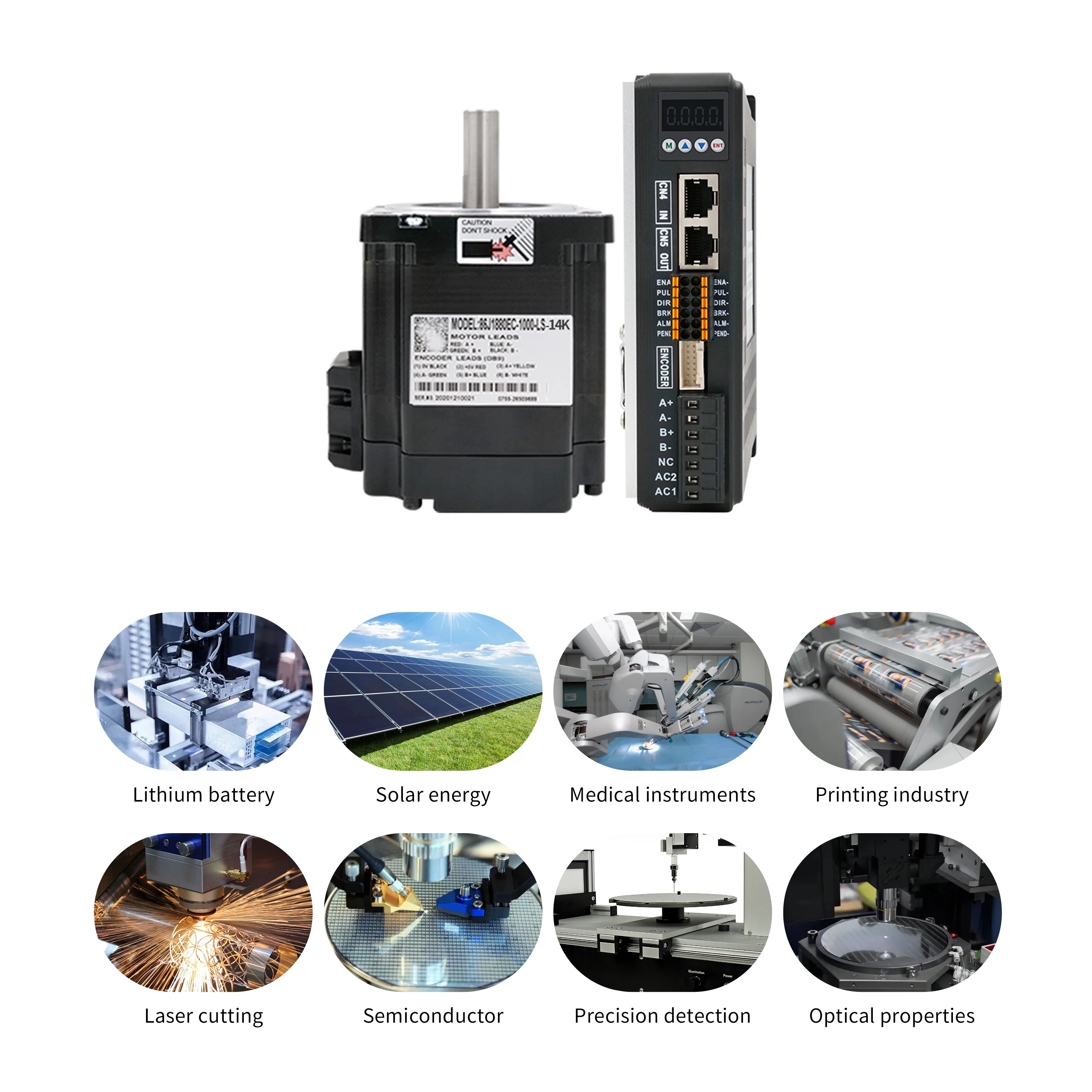

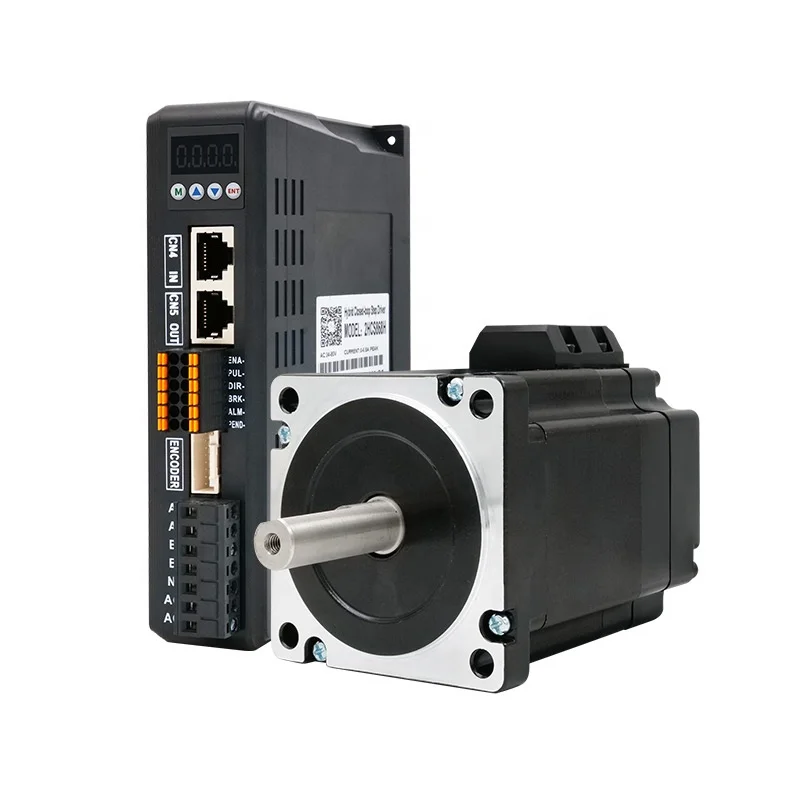

86J1880EC-1000-LS-14(K)+2HCS868H Nema34 6A Closed Loop Servo Stepper Motor Drive Kit with Encoder

The 86J1880EC-1000-LS-14(K)+2HCS868H Nema34 6A Closed Loop Servo Stepper Motor Drive Kit combines precision control, network connectivity, and robust construction for industrial automation. Certified to CE and EPR Germany Packing standards, this hybrid system features a compact servo drive with Ethernet integration and a high-precision motor with an encoder for closed-loop feedback.

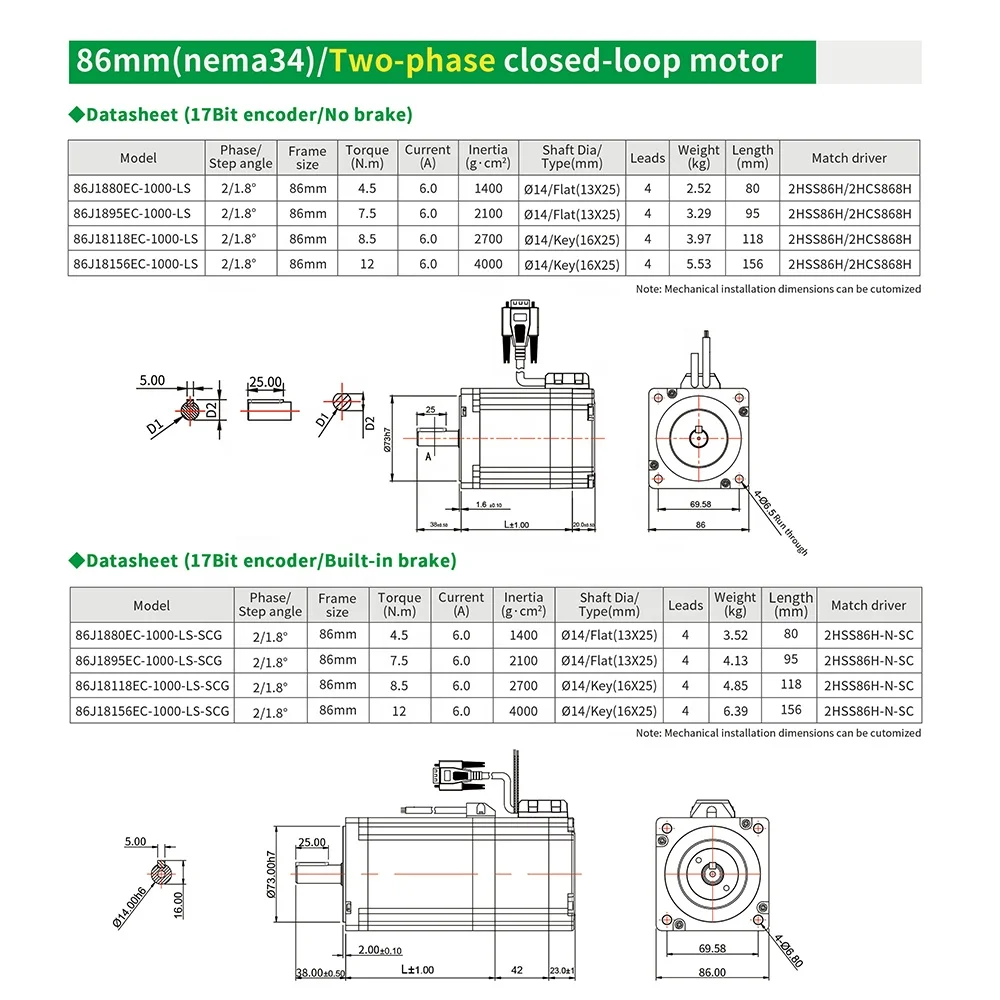

Technical specifications

FeatureSpecificationBenefit
CertificationsCE, EPR_Germany_PackingEnsures compliance with EU safety and recycling standards.
Control TypeClosed-loop (encoder feedback)With real-time position monitoring, achieve ±0.1° accuracy.
Motor TypeHybrid stepper motor (Nema34)Combines the simplicity of steppers with servo-like precision.
Drive Current6A continuousSupports high torque for heavy-duty applications.
MaterialAluminum/metal compositeDurable, lightweight, and resistant to industrial wear.
ConnectivityEthernet (RJ45), USB, and analog portsEnable remote monitoring and integration into IoT systems.
Encoder Resolution20,000 pulses/revEnsures sub-millimeter positioning in CNC machines.

Customization guide

Adjustable parameters include torque (0–6A), speed (0–2,000 RPM), and acceleration/deceleration curves to meet specific needs. For example:

  • High-speed assembly lines: Increase speed to 2,000 RPM for rapid cycles.
  • Precision robotics: Reduce acceleration to minimize vibration during delicate movements.

Get inspired

This kit is ideal for automation projects requiring both power and precision. Whether you’re building a CNC router, robotic arm, or automated conveyor system, the closed-loop design ensures reliability even under heavy loads or frequent stops.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max Torque1.2 Nm+15% (1.38 Nm)+30% (1.56 Nm)*
Encoder Resolution10,000 pulses/rev20,000 pulses/rev40,000 pulses/rev
Network SupportBasic EthernetDual Ethernet portsEthernet + Wi-Fi
Max Speed1,500 RPM1,800 RPM2,000 RPM

Supplier's note

  1. Three Technical Breakthroughs:

    • Closed-loop control: Eliminates stepper motor "miss-step" errors, achieving servo-grade accuracy.
    • Ethernet Integration: Enables 20% faster system-wide updates compared to traditional analog setups.
    • Hybrid Motor Design: Merges the affordability of steppers with the precision of servo motors, reducing downtime in manufacturing.

  2. Optimal Version Selection:

    • Base Model: Ideal for small workshops or light-duty automation (e.g., 3D printers).
    • Advanced Model: Perfect for medium-scale production (e.g., packaging lines requiring dual Ethernet redundancy).
    • Pro Model: Designed for high-precision applications like medical robotics or aerospace assembly, where 40,000-pulse encoders ensure micron-level accuracy.

With the Pro Model’s 1.56 Nm torque, you can handle heavy payloads in robotic arms. Pair this with its Wi-Fi connectivity to streamline remote diagnostics, cutting maintenance time by up to 30%.

Frequently asked questions

  • Which Nema34 servo stepper motor drive kit suits high-precision CNC applications?

  • How do I maintain the encoder on a closed-loop servo stepper motor drive?

  • Hybrid vs. standard stepper motors: Which is better for automation systems?

  • Can this servo drive kit be customized for torque and speed settings?

  • Is the 86J1880EC-1000-LS-14(K) certified for EU industrial use?

  • How does the Ethernet port enhance servo drive functionality?

  • What makes the encoder essential for closed-loop control in this servo kit?

  • Is this servo motor drive suitable for heavy-duty industrial robots?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Torque CapacityHeavy machinery, robotic armsIndustry: 3.0 Nm ▲ Base: 4.0 Nm ▲ Advanced: 4.5 Nm (ISO 6308)Handles heavier loads; reduces strain on mechanical components.Standard torque may underperform in high-load applications.
Positioning AccuracyPrecision assembly lines, medical devicesIndustry: ±0.5° ▲ Base: ±0.3° ▲ Advanced: ±0.1° (encoder feedback)Minimizes errors in critical applications like surgical robots.Standard accuracy risks misalignment in high-precision tasks.
Noise LevelOffice automation, healthcare settingsIndustry: 55 dBA ▲ Base: 50 dBA ▲ Advanced: 45 dBA (quieter than a fridge)Reduces noise pollution in sensitive environments.Standard noise may disrupt quiet workplaces or hospitals.
CertificationsEU-regulated marketsIndustry: CE ▲ Base: CE + RoHS ▲ Advanced: CE + EPR Germany + RoHSEnsures compliance with EU environmental and safety standards.Standard lacks EPR for German waste management regulations.
ConnectivityNetworked factories, IoT systemsIndustry: None ▲ Base: USB ▲ Advanced: Ethernet (RJ45)Enables remote monitoring and integration with smart systems.Standard lacks connectivity for centralized control.
Duty Cycle24/7 manufacturing linesIndustry: 30% ▲ Base: 50% ▲ Advanced: 70% (continuous operation)Supports uninterrupted operation in high-throughput environments.Standard overheats quickly under prolonged use.
