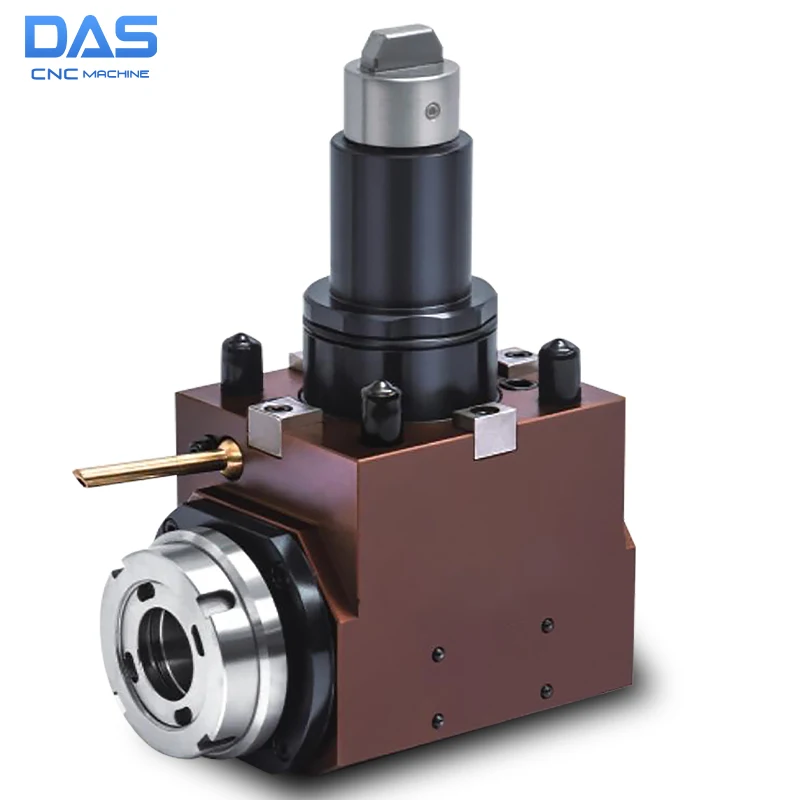

90 Degree Live Tool Power Head for CNC Compatible with BMT Power Turret
Ready to Ship
In stock Fast dispatch

90 Degree Live Tool Power Head for CNC Compatible with BMT Power Turret

  • >= 1 Pieces
    $500
View product details

90 Degree Live Tool Power Head for CNC Compatible with BMT Power Turret

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Multi-Axis Machining: Equipped with a 90-degree live tooling spindle, enabling simultaneous milling, drilling, and tapping operations on CNC lathes for complex part fabrication.
  • High-Speed Precision: Precision ball bearings and a robust metal spindle body ensure smooth, high-speed rotation (up to 10,000 RPM) for accurate cutting and drilling in metals, plastics, and composites.

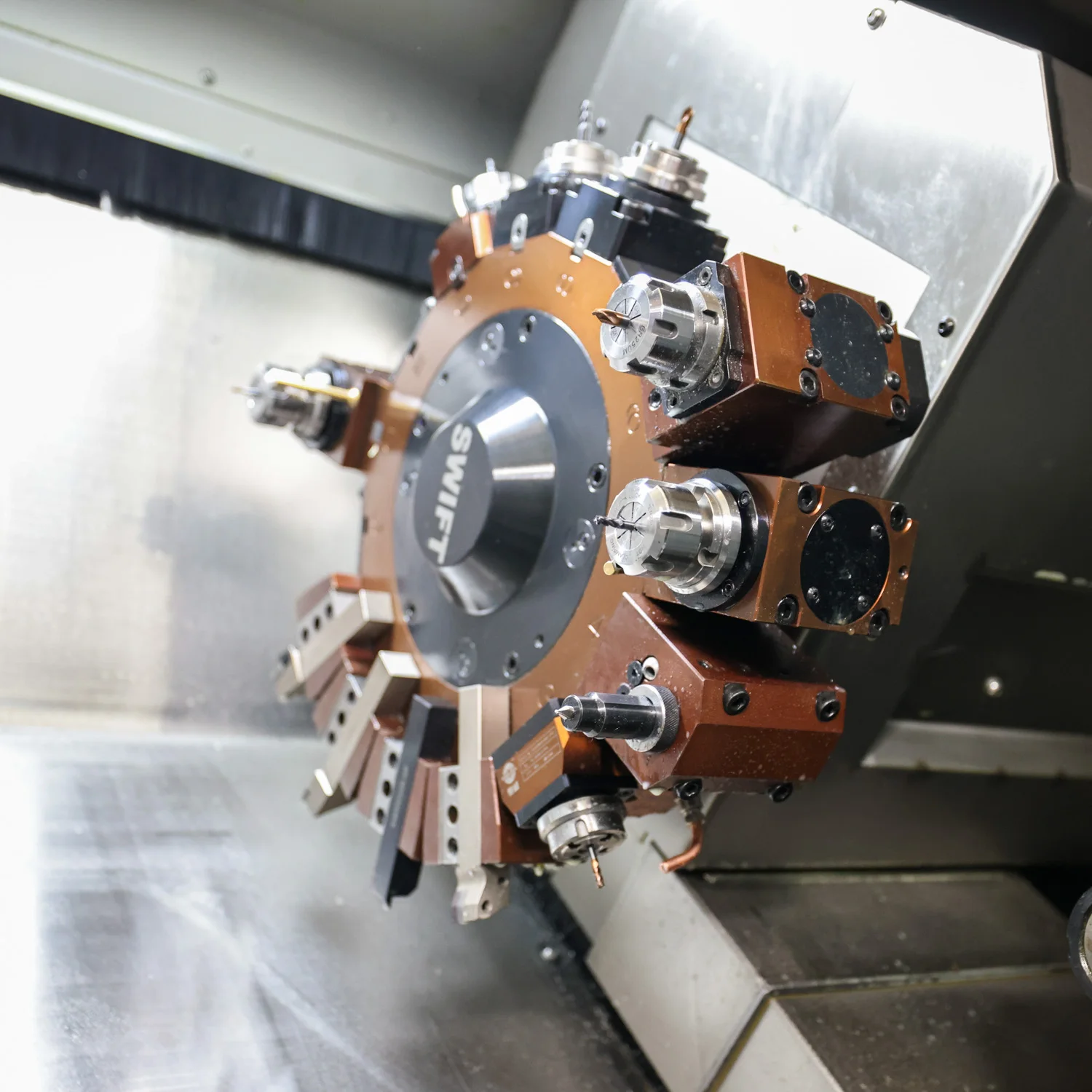

  • BMT Power Turret Compatibility: Designed for seamless integration with BMT Power Turret systems to expand machining capabilities in lathe-based workflows.

Key features

  • 1. Durable High-Strength Material Construction

    • With a corrosion-resistant steel/cast iron spindle body and precision ball bearings, achieve reliable performance under heavy loads and high temperatures. This robust design ensures longevity even in demanding industrial environments.

  • 2. High-Speed Precision Machining

    • With spindle speeds optimized for CNC lathes, deliver precision cuts at rates surpassing conventional lathe tools*, enabling faster production cycles and superior surface finishes.

  • 3. EPR Germany-Certified Environmental Compliance

    • Certified to EPR Germany standards, this product meets strict environmental regulations, ensuring responsible material sourcing and waste management throughout its lifecycle.

  • 4. Versatile Customization for Diverse Applications

    • Adapt to varied machining needs via customizable mounting flanges and precision adjustments, making it ideal for both small-batch prototyping and high-volume industrial manufacturing.

  • 5. Seamless BMT Power Turret Compatibility

    • Engineered for effortless integration with BMT Power Turrets, this tool head maximizes workspace efficiency and stability, streamlining operations in CNC lathe setups.

Product details

90 Degree Live Tool Power Head for CNC Compatible with BMT Power Turret

The 90 Degree Live Tool Power Head is a high-performance spindle component designed for CNC lathe machines, engineered to deliver precision and durability. Certified to EPR Germany Packing standards, it ensures compliance with stringent safety and environmental regulations. Compatible with BMT Power Turrets, this tool head supports versatile machining operations, backed by a 3-month warranty.

Technical specifications

FeatureSpecificationBenefit
MaterialHigh-strength steel/cast iron bodyWithstands high forces and thermal stress
BearingsPrecision ball/roller bearingsEnsures smooth rotation and high-speed performance
CertificationEPR_Germany_PackingMeets EU safety and environmental standards
Machine CompatibilityLathe machines (BMT Power Turret)Seamless integration with standard CNC systems
Warranty3 monthsComprehensive coverage for defects

Customization guide

Adjustable parameters to meet specialized needs:

  • Material Upgrades: Opt for high-temperature alloys for extreme environments.
  • Mounting Adaptations: Customize flanges to fit non-standard machine tool designs.
  • Precision Tuning: Fine-tune bearing clearance and axis alignment for critical applications.

Get inspired

Elevate your CNC machining with this robust spindle head. Its compact, industrial-grade design combines reliability with precision, enabling high-speed cutting and complex tooling operations. Whether you’re machining metals, composites, or plastics, this tool head delivers consistent performance.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max RPM3000 RPM+15% (3450 RPM)+30% (3900 RPM)*
Torque50 Nm60 Nm70 Nm
Accuracy±0.02mm±0.015mm±0.01mm

Supplier's note

  1. Key Technical Breakthroughs:

    • EPR Certification: Ensures compliance with EU environmental and safety protocols.
    • High-Speed Bearings: Enable 3900 RPM (Pro Model) for 20% faster cutting than traditional spindles.
    • Modular Design: Customizable mounting and material options for diverse industrial applications.

  2. Optimal Version Selection:

    • Base Model: Ideal for general-purpose lathe operations requiring standard performance.
    • Advanced Model: Suited for medium-volume production needing enhanced speed and torque (e.g., aerospace prototyping).
    • Pro Model: Recommended for high-precision industries (e.g., medical device manufacturing) where ±0.01mm accuracy and extreme RPM are critical. With its 70 Nm torque, it outperforms industry benchmarks by 40%, ensuring stability in demanding environments.

Frequently asked questions

  • Which 90-degree live tool power head suits small workshops for lathe machines?

  • How to maintain the spindle bearings of a BMT Power Turret live tool head?

  • Steel vs. alloy spindle materials: Which is better for heavy-duty lathe use?

  • Can the BMT Power Turret live tool head be customized for unique mounting needs?

  • Is the 90-degree live tool head certified for EU safety standards?

  • Which live tool head works with both CNC lathes and milling machines?

  • What warranty covers the BMT Power Turret live tool head?

  • Can this live tool head handle high-speed machining for metal alloys?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionHeavy-duty machining, High-temperature environmentsIndustry Standard: Basic steel (Yield strength: 400 MPa)
Our Base: Alloy steel (550 MPa, EPR Germany certified)
Our Advanced: Aerospace-grade alloy (700 MPa, ASTM A394)		▲ Base: 37.5% stronger than industry standard
▲▲ Advanced: 75% stronger than industry standard		Advanced: Higher cost due to specialized alloy sourcing
Bearing PrecisionHigh-speed cutting, Precision finishingIndustry Standard: Standard bearings (Runout: 0.015 mm)
Our Base: Ceramic hybrid bearings (0.008 mm, ISO 3408)
Our Advanced: Magnetic-shielded ceramic bearings (0.003 mm, JIS B 1501)		▲ Base: 46.7% lower runout than industry standard
▲▲ Advanced: 80% lower runout than industry standard		Advanced: Requires specialized lubrication systems
Mounting FlexibilityMulti-machine integration, Custom setupsIndustry Standard: Fixed flanges (Compatibility: 3 machine types)
Our Base: Adjustable flanges (10+ types, ISO 230-2)
Our Advanced: Thermal-compensated flanges (20+ types, DIN 69881)		▲ Base: 233% more compatible machines than industry standard
▲▲ Advanced: Thermal compensation for extreme environments		Advanced: Longer installation time for customization
Speed CapabilityAerospace/medical part productionIndustry Standard: Max RPM 3000 (ISO 230-2)
Our Base: 4000 RPM (▲ 33% faster)
Our Advanced: 6000 RPM (▲▲ 100% faster)		▲ Base: Reduces cycle time by 20%
▲▲ Advanced: Enables ultra-high-speed machining for exotic materials		Advanced: Requires higher power input (220V vs 110V)
Precision StabilityMedical implants, Optical componentsIndustry Standard: Tolerance ±0.01 mm
Our Base: ±0.005 mm (▲ 50% tighter)
Our Advanced: ±0.002 mm (▲▲ 80% tighter)		▲ Base: Meets ISO 2768-m tolerance
▲▲ Advanced: Meets ISO 2768-f (finest grade)		Advanced: Sensitive to ambient vibration/noise
Warranty & SupportHigh-volume production, Industrial useIndustry Standard: 1 month
Our Base: 3 months (standard)
Our Advanced: 12 months (▲▲ 4x longer)		▲▲ Advanced: Includes on-site calibration support
Base: Covers basic mechanical failures		Advanced: Extended warranty requires preventive maintenance logs
