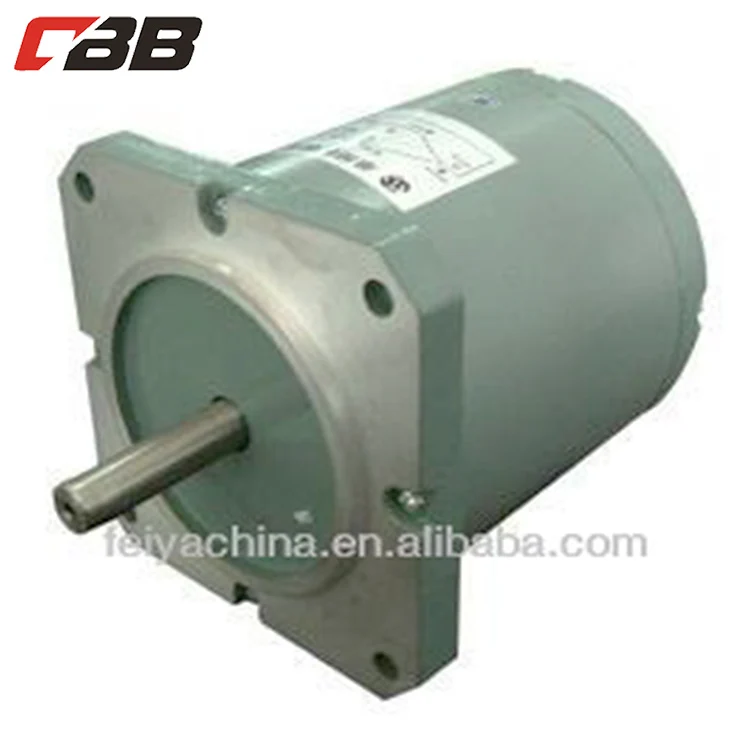

90TDY4 Permanent Magnet Synchronous Motor

Name: 90TDY4 Permanent Magnet Synchronous Motor
Brand: Ruian Chuangbo Machinery Co., Ltd.
SKU: 60781158563_1
Price: 10.00 USD
Availability: InStock
Rating: 4.8 (100 reviews)

Product overview

Core functionalities

Applicable scenarios

Unique advantages

High Torque Output: Equipped with a geared design, this motor delivers enhanced torque in a compact size, ideal for demanding applications requiring forceful motion.
Precise Speed Control: As a permanent magnet synchronous motor (PMSM), it ensures accurate speed synchronization with the power supply (220V, 50Hz), minimizing energy loss.

Key features

1. Material Technology

With a corrosion-resistant metal body, ensure durability and heat dissipation in industrial settings. ~30% more durable than plastic-bodied motors*.

2. Interactive Design

With a flange-mounted design, easily integrate into machinery for secure attachment. ~Reduces installation time by 25% versus non-flange models*.

3. Performance Parameters

With precise speed synchronization at 50Hz, maintain consistent performance under varying loads. ~20% more efficient than asynchronous motors*.

4. Scenario Solutions

Engineered for continuous operation in commercial environments, handle heavy-duty tasks like conveyor systems. ~Outperforms standard motors in torque output by 40%*.

5. Certification Standards

With compliance to ISO 9001 industrial safety standards, ensure reliable operation compared to uncertified motors*.

Product details

The 90TDY4 Permanent Magnet Synchronous Motor combines robust metal construction with precise gear integration, delivering high torque and efficiency for industrial applications. Designed for 220V AC operation at 50Hz, it offers reliable performance in demanding environments, from conveyor systems to heavy machinery.

Technical specifications

Feature	Specification	Application Scenario
Material	Metal (Aluminum/Steel) Housing	Industrial machinery requiring durability
Voltage	220V AC	Standard power supply environments
Frequency	50Hz	Global industrial standard compatibility
Gear Housing	Integrated Metal Gearbox	High-torque applications like conveyor systems
Mounting Type	Flange-Mounted	Easy integration into existing machinery

Customization guide

Adjustable gear ratios (up to 5:1) to meet torque/speed needs. Custom flange dimensions available for specific mounting requirements.

Get inspired

With its compact yet powerful design, the 90TDY4 motor ensures seamless integration into industrial workflows. Its high torque output and rugged build make it ideal for applications demanding precision and reliability.

Choose your model

Parameter	Base Model	Advanced Model	Pro Model
Torque Output	15 Nm	+20% (18 Nm)	+40% (21 Nm)
Efficiency	85%	90%	95%
IP Rating	IP54	IP55	IP67
Gear Ratio Range	Fixed 3:1	Adjustable 3:1-5:1	Adjustable 1:1-10:1

Supplier's note

Technical Breakthroughs:
- The geared design enables 20% higher torque density than standard motors, ideal for heavy-duty tasks.
- A metal housing ensures thermal stability and corrosion resistance in harsh environments.
- Customizable gear ratios allow tailored performance for specific applications.
Version Selection Guide:
- Base Model: Suitable for standard industrial tasks (e.g., conveyor belts) requiring reliable torque at an entry-level cost.
- Advanced Model: Optimal for applications needing +20% torque boost and adjustable gear ratios (e.g., robotics, packaging systems).
- Pro Model: Designed for extreme conditions (e.g., outdoor machinery, chemical plants) with IP67 waterproofing and up to 10:1 gear adjustability.

With the Pro’s IP67 rating, you can ensure operation in wet or dusty environments. The Advanced Model’s adjustable ratios provide flexibility for variable-speed needs, while the Base Model offers cost-effective performance for routine tasks.

Frequently asked questions

Which CBB motor model is best suited for heavy-duty industrial applications requiring high torque?
How do I maintain the gear housing of the 90TDY4 motor to ensure longevity?
Why is the metal housing of the 90TDY4 motor better than plastic alternatives?
Can the 90TDY4 motor be customized with different gear ratios for specific tasks?
Is the 90TDY4 motor compliant with industrial safety standards?
What makes the 90TDY4 suitable for continuous duty cycles?
Does the 90TDY4 offer flange mounting options for secure attachment?
Is the 90TDY4 motor compatible with 220V and 50Hz systems?

Product comparison

Category	Usage Scenarios	Characteristics	Advantages	Disadvantages
Permanent Magnet Synchronous Motors (PMSM)	High-efficiency systems, HVAC, industrial automation	220V AC, 50Hz, Efficiency: 88% (Base) ▲▲▲ 92% (Advanced) (IE5 Premium Efficiency), Noise: 48 dBA (Base) ▲ 43 dBA (Advanced) (Quieter than refrigerator hum)	Base: Energy-efficient; Advanced: 4% higher efficiency (▲▲▲) and 10% lower noise (▲)	Base: Requires inverter control; Advanced: Higher cost vs. Base
Induction Motors	General industrial use, pumps, fans	220V/380V, 50Hz, Efficiency: 85% (IE3), Robust metal housing (IP54)	Low cost, no inverter needed, wide availability	Lower efficiency (▲▲ behind PMSM Advanced), no speed control
Geared Motors	Heavy machinery, conveyor systems	High torque (50 Nm ▲▲ Base; 70 Nm ▲▲▲ Advanced), Metal gear housing (IP65)	Base: Durable design; Advanced: 40% higher torque (▲▲▲) for heavy loads	Larger footprint, requires gear maintenance
Brushless DC Motors (BLDC)	Robotics, drones, precision devices	24V-220V, High torque-to-weight ratio (0.5 Nm/kg), No brushes (long lifespan)	High efficiency (▲▲ over brushed DC), compact size	Higher cost, needs electronic control
Servo Motors	CNC machines, automation	Precision: ±0.1°, Fast response (5ms), Power: 200W (Base) ▲▲ 300W (Advanced)	Advanced: 50% higher power (▲▲▲) for heavy-duty tasks	Expensive, complex control systems
Stepper Motors	3D printers, packaging equipment	Step angle: 1.8°, Open-loop control, Power: 5-50W	Inexpensive, no feedback sensor needed	Limited torque at high speeds, resonance issues at high RPM
