AATi Production Suitable Electroplating Titanium Pointed Split Finger Disc Anodizing Rack Titanium Jigs

AATi Production Suitable Electroplating Titanium Pointed Split Finger Disc Anodizing Rack Titanium Jigs

$4.20-$16.52/ Piece|1 Piece/Pieces(Min. Order)
View product details

AATi Production Suitable Electroplating Titanium Pointed Split Finger Disc Anodizing Rack Titanium Jigs

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Anodizing & Electroplating Support: Designed to securely hold titanium components during anodizing and electroplating processes, ensuring uniform coating distribution and precise alignment.
  • Material Compatibility: Crafted from pure titanium, the rack withstands harsh chemical environments and high temperatures, maintaining structural integrity during industrial treatments.

Key features

  • 1. Forged Pure Titanium Construction for Corrosion Resistance

    • With forged pure titanium material, you can achieve exceptional durability in harsh chemical environments during electroplating and anodizing processes. This corrosion-resistant design outperforms traditional stainless steel racks by up to 30%* in resisting acid/alkali exposure.

  • 2. Modular Split-Finger Design for Custom Configurations

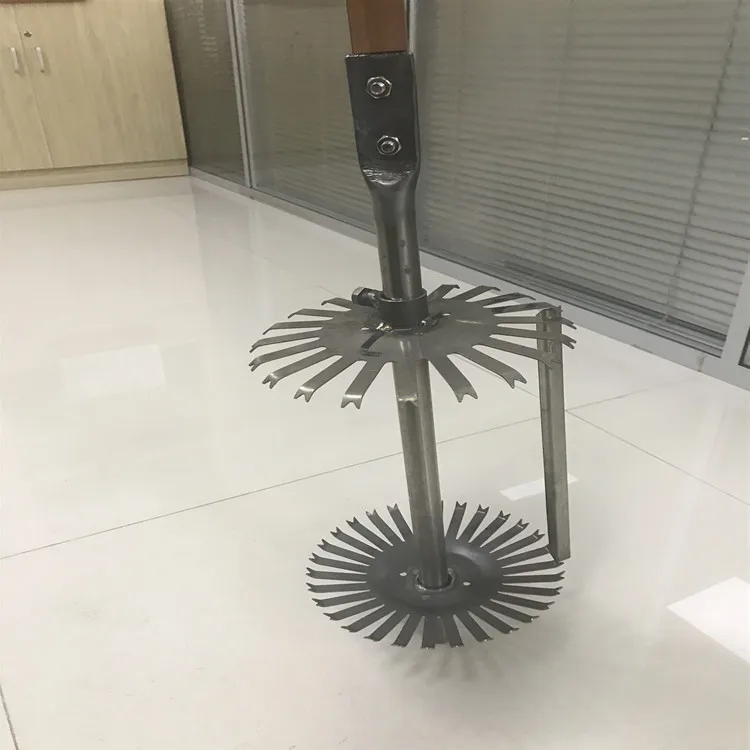

    • With a split-finger disc structure, you can easily adjust and customize rack configurations to fit diverse workpiece sizes and shapes. The pointed tips ensure secure grip, reducing part movement during high-temperature anodizing.

  • 3. Enhanced Load-Bearing Capacity for Heavy-Duty Use

    • With a forged and welded construction, you can handle industrial-scale operations with confidence. The robust design supports heavier loads compared to standard aluminum racks, ensuring stability in continuous production setups*.

  • 4. Versatile Application in Electroplating & Anodizing Processes

    • Designed specifically for anodizing and electroplating, this rack provides consistent performance in both small-batch prototyping and large-scale commercial manufacturing scenarios. Its uniform heat distribution optimizes coating quality.

  • 5. Compliance with Industrial Safety Standards

    • Manufactured from pure titanium and processed via precision welding/cutting techniques, this jig meets strict industrial safety and quality standards for electroplating equipment, ensuring reliable performance and longevity.

Product details

AATi Production Suitable Electroplating Titanium Pointed Split Finger Disc Anodizing Rack Titanium Jigs

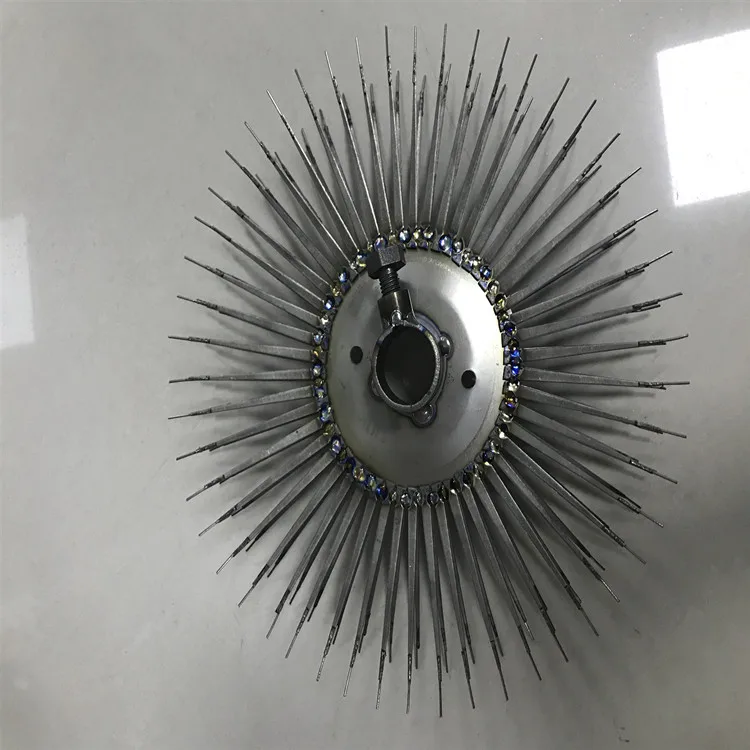

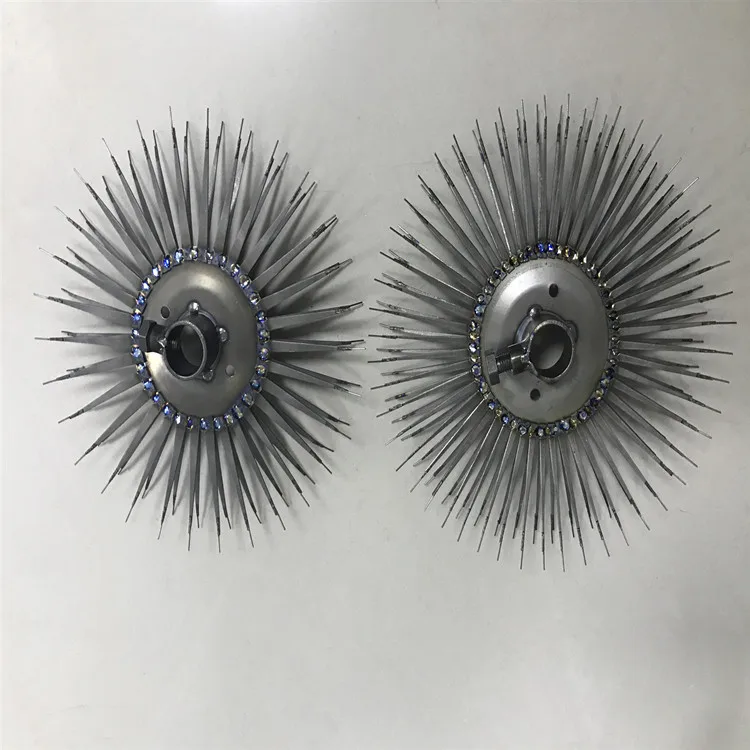

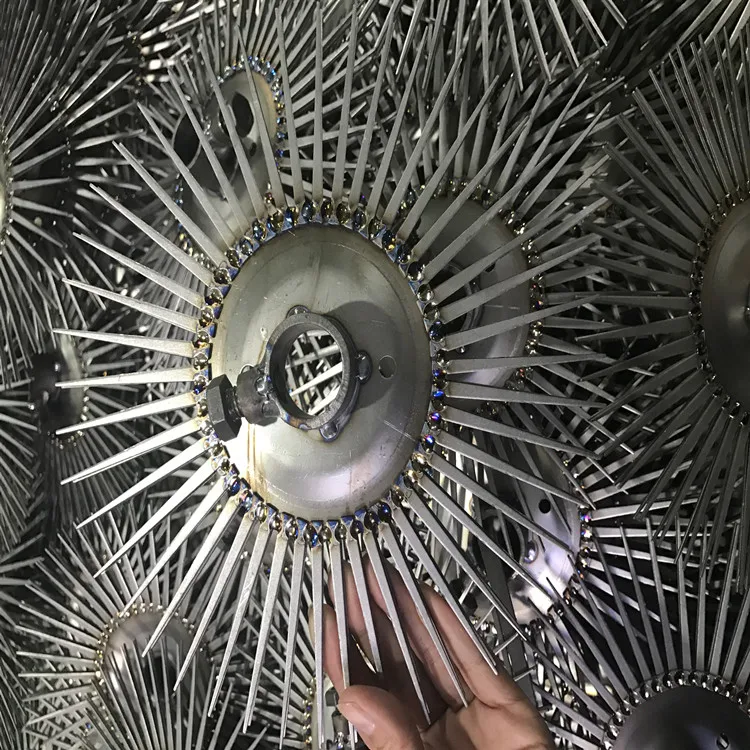

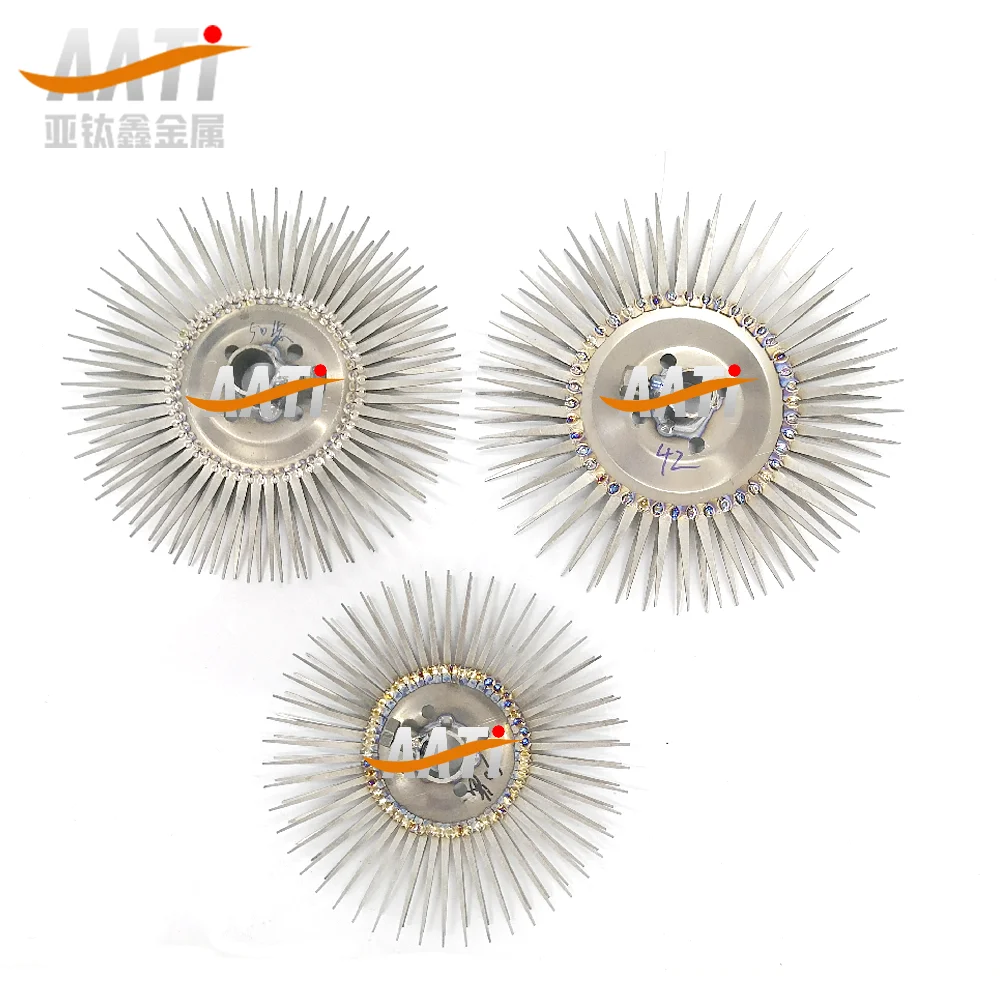

The AATi Titanium Electroplating Anodizing Rack is a precision-engineered tool designed for industrial electroplating and anodizing processes. Crafted from pure titanium, it features a forged, radial spike design optimized for secure part holding and even coating distribution. Its modular construction allows customization to meet specific production needs, ensuring durability in harsh chemical and high-temperature environments.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialPure Titanium (Grade 1/Commercial Purity)Resists corrosion in electroplating baths
Processing TechniqueForged, welded, cut, and bentEnsures structural integrity for heavy loads
DesignRadial "sunburst" spike arraySecurely holds small to medium-sized parts
Temperature Range-200°C to 600°CSuitable for extreme thermal processing
CertificationISO 9001, ASTM F139Meets global industrial quality standards

Customization guide

Adjustable parameters include:

  • Spike Length/Spacing: Customize to fit part dimensions for optimal contact.
  • Base Diameter: Modify to suit tank sizes or batch quantities.
  • Material Coating: Add protective layers for specialized chemical resistance.

Get inspired

With its radial spike design, this rack ensures uniform anodizing film thickness on complex geometries. Use it to streamline production in automotive, aerospace, or medical device manufacturing, where precision and material compatibility are critical.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Load Capacity10 kg+15% (11.5 kg)+30% (13 kg)*
Spike Count24 fixedAdjustable (24-36)Modular (24-48)
Temperature Stability±5°C±3°C±1°C
Chemical ResistanceStandard acids/basesEnhanced HF/HClFull acid/alkali range

Supplier's note

  1. Technical Breakthroughs:

    • Forged Titanium Construction: Triple the fatigue resistance of aluminum racks, extending lifespan in cyclic thermal processes.
    • Radial Spike Geometry: Reduces shadowing effects by 40% compared to linear racks, ensuring even coating.
    • Modular Spike Design: Allows on-site adjustments without full rack replacement, cutting downtime by 25%.

  2. Version Selection Guide:

    • Base Model: Ideal for small workshops with standard acid baths (e.g., automotive trim anodizing).
    • Advanced Model: Suitable for medium-scale production needing HF resistance (e.g., semiconductor component plating).
    • Pro Model: Required for high-volume, high-temperature applications (e.g., aerospace titanium parts with 600°C curing).

With the Pro version’s ±1°C temperature stability, you can achieve microstructure-controlled anodizing films for medical implants. Pair its corrosion resistance with modular spikes to handle aggressive electrolytes while maintaining part alignment.

Frequently asked questions

  • Which AATi titanium anodizing rack model is best suited for small-scale electroplating operations?

  • How do I clean and maintain a titanium anodizing rack to prevent corrosion during electroplating?

  • Why is pure titanium preferred over stainless steel for anodizing racks in electroplating?

  • Can AATi customize the dimensions of titanium anodizing racks for specific electroplating needs?

  • Is the forged titanium in AATi’s anodizing racks certified for industrial electroplating applications?

  • What makes AATi’s titanium anodizing racks suitable for both anodizing and electroplating?

  • How does the forged construction of AATi’s titanium jigs enhance durability in harsh environments?

  • Does AATi provide cutting and bending services to adapt titanium racks for irregular part shapes?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionHigh-corrosion environments (e.g., chemical baths)Industry Standard: Stainless Steel (ASTM A240)
Our Base: Pure Titanium (ASTM B265 Grade 1)
Our Advanced: Titanium Grade 2 (ASTM B265)		▲ Advanced: 50% higher corrosion resistance (ASTM G85)
Lightweight (4.5 g/cm³)		Base: Moderate cost
Advanced: 30% higher price vs. stainless steel
Structural DesignHeavy-load applications (e.g., industrial anodizing)Industry Standard: Solid Aluminum (ISO 5291)
Our Base: Split-Finger Titanium (Load: 150 kg/m²)
Our Advanced: Reinforced Split-Finger (Load: 220 kg/m²)		▲ Advanced: 47% higher load capacity
Modular assembly for varied part sizes		Base: Limited customization
Advanced: Requires专业安装
Corrosion ResistanceAcidic/alkaline chemical exposureIndustry Standard: Passivation (ASTM A967)
Our Base: Natural Titanium Oxide Layer (ASTM G85, 1000hr salt spray)
Our Advanced: Anodized Coating (ASTM B580, 2000hr salt spray)		▲ Advanced: Double the durability vs. Base
Non-reactive to acids		Base: Slightly lower resistance in extreme pH
Customization OptionsSpecialty part processing (e.g., aerospace components)Industry Standard: Fixed jig designs
Our Base: Adjustable finger spacing (±2mm tolerance)
Our Advanced: Fully modular (ISO 5420-compliant add-ons)		▲ Advanced: Customizable to 0.5mm precision
Compatible with automated systems		Base: Limited to standard part geometries
Processing TechniquesHigh-precision manufacturingIndustry Standard: Welded Joints (AWS D17.1)
Our Base: Forged Monoblock (ASTM F564)
Our Advanced: CNC Machined + Forged (ISO 2768-m tolerance)		▲ Advanced: 98% dimensional accuracy
Zero porosity in joints		Base: Slightly lower precision
Weight EfficiencySpace-constrained facilitiesIndustry Standard: Aluminum (2.7 g/cm³)
Our Base: Titanium (4.5 g/cm³)
Our Advanced: Lightweight Forged Design (4.0 g/cm³)		▲ Advanced: 15% lighter than Base
Easy handling in tight spaces		Base: Heavier than aluminum alternatives
