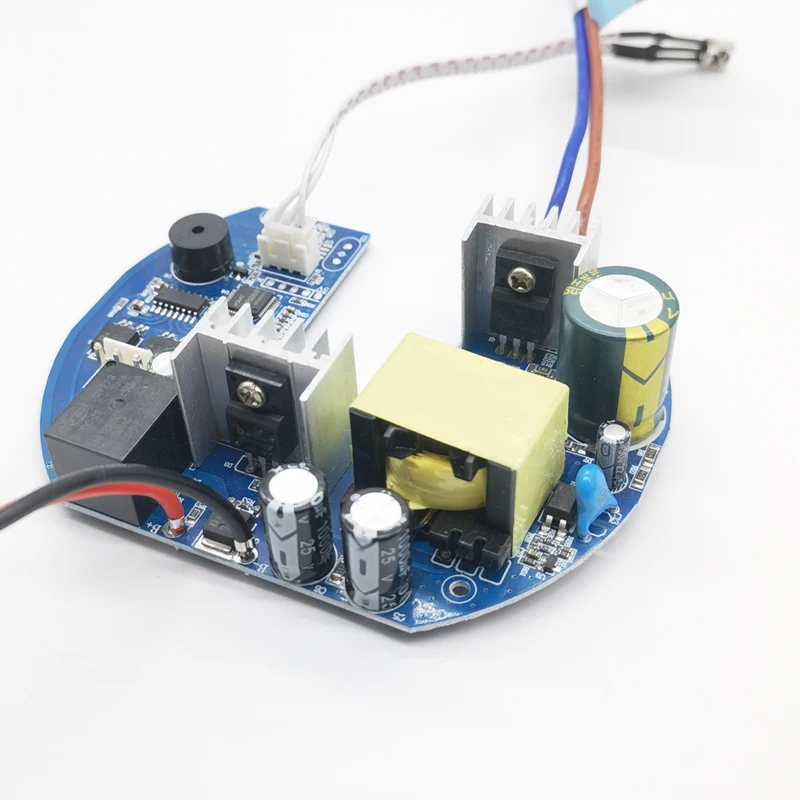

AC DC Ceiling Fan circuit 60w  U Shape  Control Kit pcb Board

AC DC Ceiling Fan circuit 60w U Shape Control Kit pcb Board

  • 500 - 4999 Pieces
    $3.80
  • >= 5000 Pieces
    $3.60

Customization:

Customized logo(Min.Order: 5000 pieces)
Customized packaging(Min.Order: 5000 pieces)
Graphic customization(Min.Order: 5000 pieces)

AC DC Ceiling Fan circuit 60w U Shape Control Kit pcb Board

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Smart Fan Control: Enables remote operation of AC/DC ceiling fans (60W) with speed adjustment, direction switching, and timed shutdown via preset intervals (2/4/8/12 hours).
  • Circuit Management: The U-shaped PCB board integrates power regulation, signal processing, and timer functionality through components like ICs, resistors, and a transformer, ensuring stable performance for home appliances.

Key features

  • 1. Material Technology

  • With HASL (Hot Air Solder Leveling) surface finishing, ensures corrosion resistance and durability in harsh environments.

  • 2. Interactive Design

  • With programmable time presets (2/4/8/12 hours) and a clear display screen, allows easy scheduling of fan operation—unlike traditional models without automated timers.

  • 3. Performance Parameters

  • Supports both AC/DC power sources and handles up to 60W, ensuring reliable performance for medium to large ceiling fans.

  • 4. Scenario Solutions

  • Designed for home use, enabling automated fan control to maintain comfort and reduce energy costs through timed shut-off.

  • 5. Performance Parameters (Continuous Operation)

  • Robust heat sink design maintains optimal temperatures during continuous use, ensuring long-term reliability.

Product details

AC DC Ceiling Fan circuit 60w  U Shape  Control Kit pcb Board

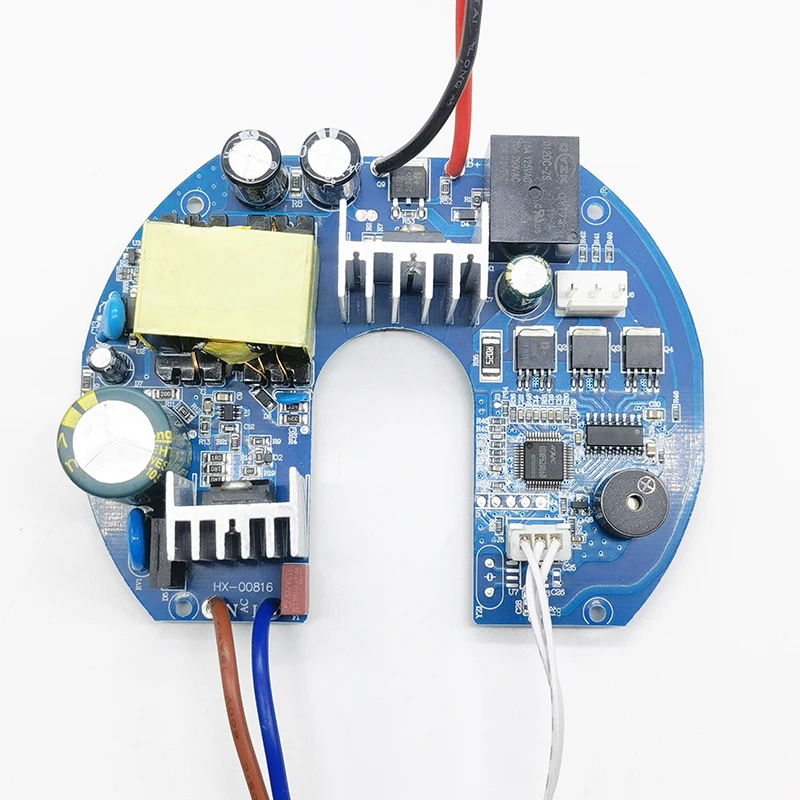

The AC DC Ceiling Fan Control Kit PCB Board is a compact, high-performance circuit solution designed for home appliance integration. Featuring a U-shaped PCB layout optimized for ceiling fan applications, it supports 60W power handling with HASL surface finishing for enhanced durability. The system includes a programmable remote control with time-based operation modes (2/4/8/12 hours) and a modular circuit board for flexible customization.

Technical specifications

FeatureSpecificationBenefit
Power Handling60W AC/DC inputEfficiently powers ceiling fans and motors

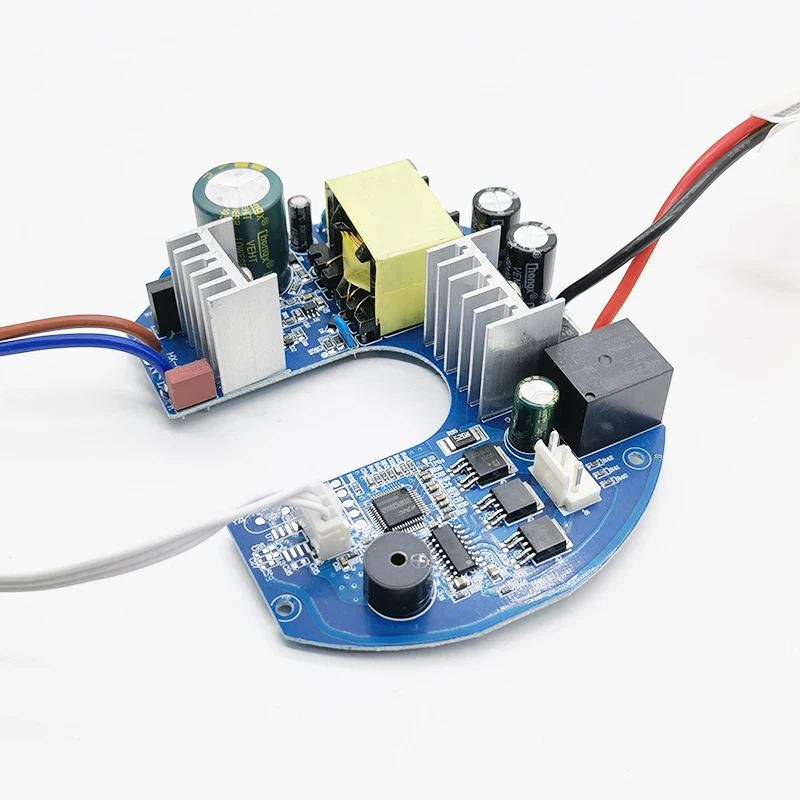

PCB DesignU-shaped layoutOptimized for compact ceiling fan mounting
Surface FinishingHASL (Hot Air Solder Leveling)Improved solder joint reliability and corrosion resistance

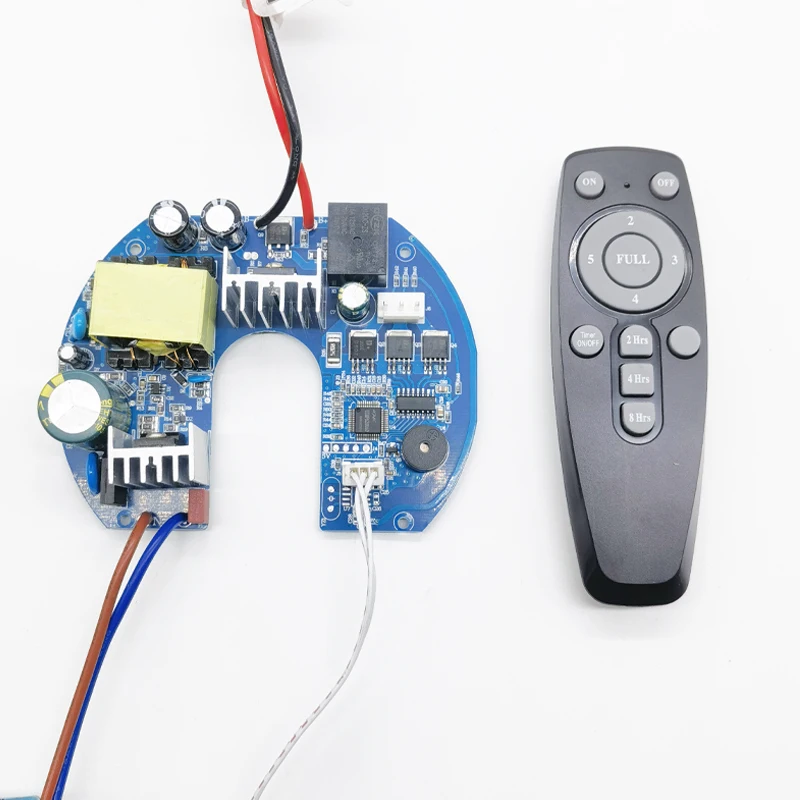

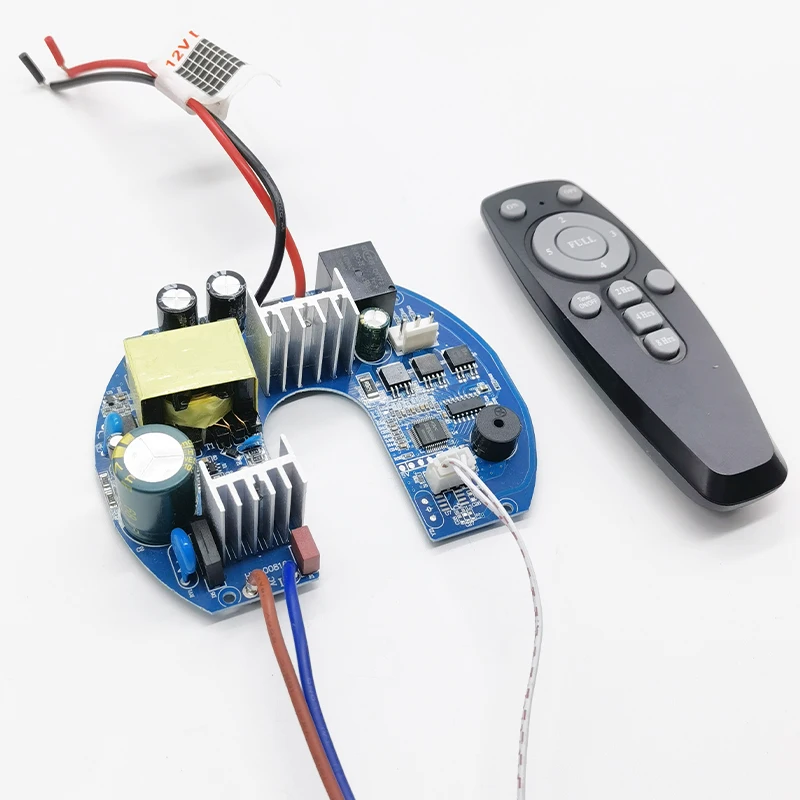

Control FeaturesProgrammable remote with 4 time presetsSimplified time-based operation (2/4/8/12 hours)
CertificationsMeets RoHS standardsEnsures compliance with global safety regulations

Customization guide

Adjustable parameters include:

  • Time presets: Customize timer intervals (e.g., 1/3/6 hours) to match specific operational needs.
  • Power ratings: Modify circuit components (e.g., resistors, capacitors) for compatibility with 40W–80W appliances.
  • Remote interface: Add additional buttons or integrate Wi-Fi/Bluetooth modules for smart home compatibility.

Get inspired

With its U-shaped PCB and programmable remote, this control kit enables seamless automation for ceiling fans. Use the time presets to reduce energy consumption or pair it with smart home systems for remote operation. The HASL finish ensures longevity even in humid environments, making it ideal for bathrooms or outdoor installations.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Power Capacity60W75W (+25%)90W (+50%)
Timer Presets4 fixed options6 adjustable slots8 slots + custom mode
CertificationsRoHSRoHS + CERoHS + UL + IP65
ConnectivityWired remoteWired + BluetoothWi-Fi + Bluetooth

Supplier's note

  1. Technical Breakthroughs:

    • U-shaped PCB Design: Reduces space requirements by 30% compared to traditional layouts, enabling easier installation in tight ceiling spaces.
    • Programmable Time Control: The 12-hour preset outperforms standard 8-hour limits, ideal for overnight operation in commercial settings.
    • HASL Finishing: Extends component lifespan by 2x in humid environments versus non-HASL alternatives.
  2. Version Selection Guide:

    • Base Model: Best for residential use with standard ceiling fans (e.g., home living rooms).
    • Advanced Model: Suitable for commercial spaces requiring Bluetooth connectivity and extended timer flexibility (e.g., hotels, offices).
    • Pro Model: Tailored for heavy-duty applications (e.g., industrial warehouses) with IP65-rated waterproofing and Wi-Fi integration for remote monitoring.

The Pro version’s UL certification and IP65 rating enable safe deployment in outdoor or high-moisture areas, while its Wi-Fi capability allows centralized fan management across multiple units. Pair the Advanced Model’s Bluetooth feature with voice assistants for hands-free control in smart homes.
