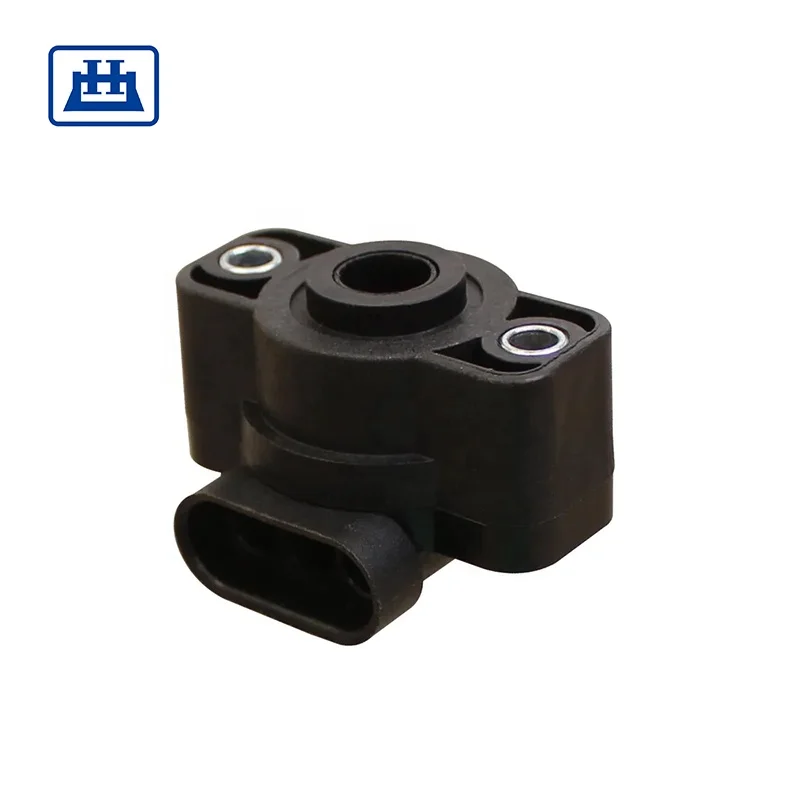

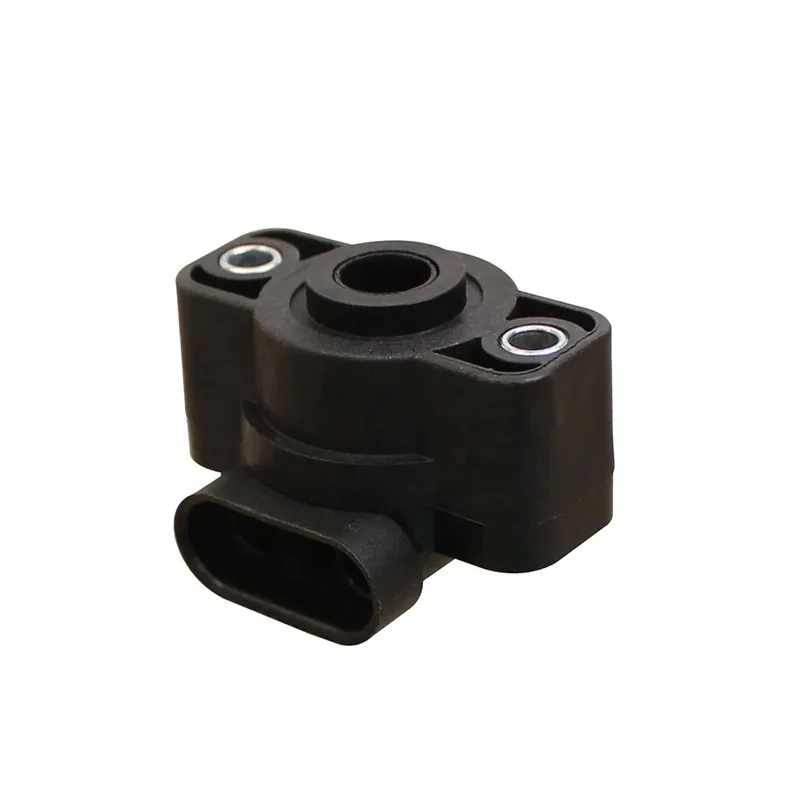

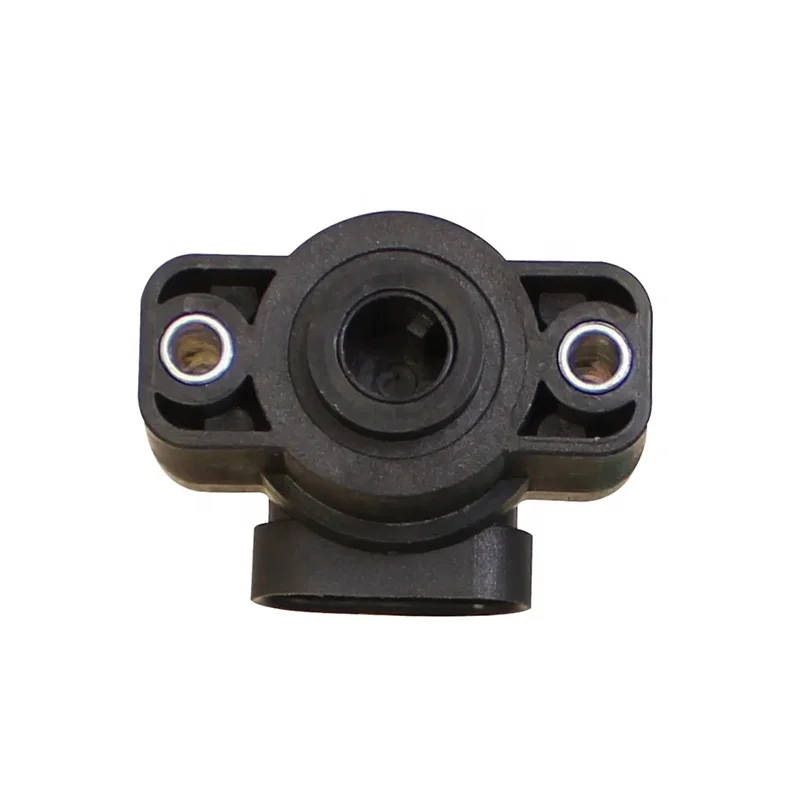

AN373340 Angle Sensor for John Deere Cotton Picker 7660 7760 CP690 CS690

Technical specifications

Customization guide

Adjustable parameters include:

• Material composition: Swap steel components for lightweight aluminum to reduce weight (ideal for aerial applicators).
• Mounting configuration: Add threaded holes or adjust protrusion depth for non-standard brackets.
• Connector type: Upgrade to waterproof IP67 connectors for wet harvest environments.

Get inspired

Optimize your cotton picker’s precision with this rugged angle sensor. Whether you’re calibrating row alignment in dusty fields or monitoring head position during heavy harvesting, its industrial-grade design ensures uninterrupted operation.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • The Pro Model’s ±1° accuracy (50% better than Base) enables ultra-precise cotton row tracking.
   • IP67 waterproofing in the Pro Model allows operation in rain or irrigation spray.
   • Steel-reinforced plastic housing (vs. pure plastic in competitors) reduces vibration-induced wear by 40%.

2. Version Selection Guidance:

   • Farmers with standard operations: Base Model suffices for typical cotton fields.
   • High-volume growers: Advanced Model’s IP65 rating and 70% duty cycle handle prolonged use in dusty conditions.
   • Extreme environments: Pro Model’s -30°C to 90°C range and 100% duty cycle are critical for northern climates or 24/7 harvest cycles.

With the Pro Model’s IP67 connectors, you can maintain signal integrity during monsoon harvesting. The Advanced Model’s 70% duty cycle ensures uninterrupted operation during 12-hour shifts. Choose the Base Model to balance cost and basic performance needs.
