ASTM D1816 D877 Automatic Dielectric Strength Test Equipment 80kV Transformer Insulating Oil Breakdown Voltage BDV Tester Price

ASTM D1816 D877 Automatic Dielectric Strength Test Equipment 80kV Transformer Insulating Oil Breakdown Voltage BDV Tester Price

$800.00-$1549.00/ Unit|1 Unit/Units(Min. Order)

Customization:

Customized logo（Min.Order: 1 pieces）
View product details

ASTM D1816 D877 Automatic Dielectric Strength Test Equipment 80kV Transformer Insulating Oil Breakdown Voltage BDV Tester Price

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Breakdown Voltage (BDV) Testing: Automatically measures the dielectric strength of transformer oil up to 80kV, ensuring compliance with ASTM D1816 and D877 standards.
  • Precision and Automation: Features adjustable output voltage and advanced measurement techniques for accurate BDV readings, reducing manual intervention and enhancing reliability.

Key features

  • 1. Corrosion-Resistant Material Technology

    • With a corrosion-resistant metal body and insulating plastic components, you can ensure long-lasting durability and electrical safety in harsh environments. This robust design outperforms all-plastic models in durability* and maintains structural integrity under extreme conditions.

  • 2. Intuitive Interactive Design

    • With an intuitive touchscreen interface and automated testing functions, you can streamline operations and reduce manual intervention compared to traditional testers*. The user-friendly controls enable quick setup and multi-step automation for efficient BDV testing.

  • 3. High-Precision Performance Parameters

    • With an 80kV adjustable output capacity and ASTM-compliant precision, you can accurately test a wide range of transformer oils for optimal safety compliance. This ensures faster testing and higher reliability than non-ASTM-standard models*.

  • 4. Adaptable Scenario Solutions

    • Designed for both portable field use and rugged industrial environments, this tester offers unmatched adaptability compared to stationary lab equipment*. Its compact, portable design enables on-site testing while maintaining performance in harsh conditions.

  • 5. Certified Safety and Compliance

    • Backed by CE and EMC certifications, this tester ensures compliance with international safety standards, surpassing non-certified alternatives*. These certifications validate its reliability for critical applications in power systems and industrial settings.

Product details

ASTM D1816 D877 Automatic Dielectric Strength Test Equipment 80kV Transformer Insulating Oil Breakdown Voltage BDV Tester Price

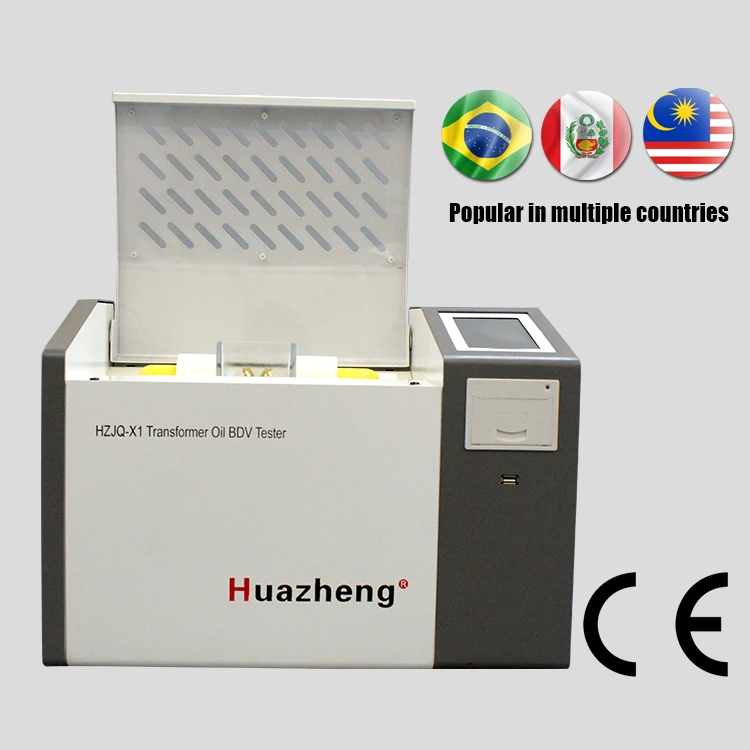

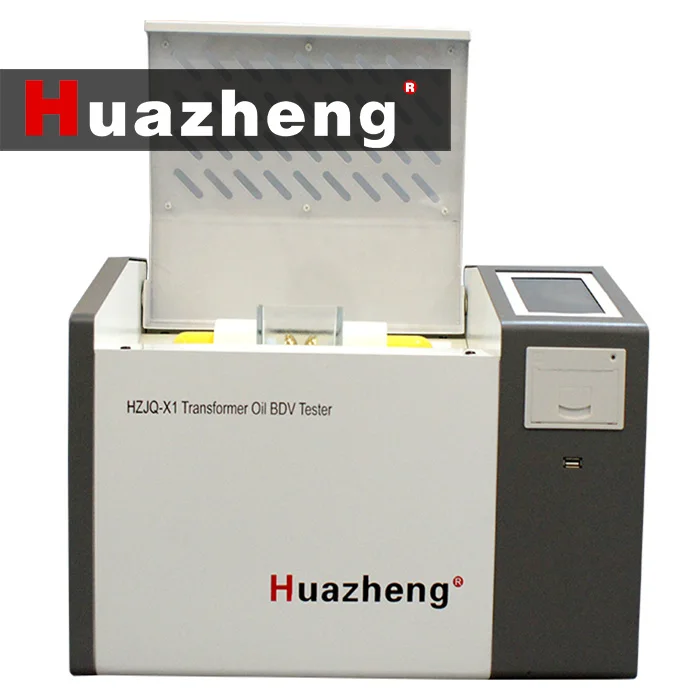

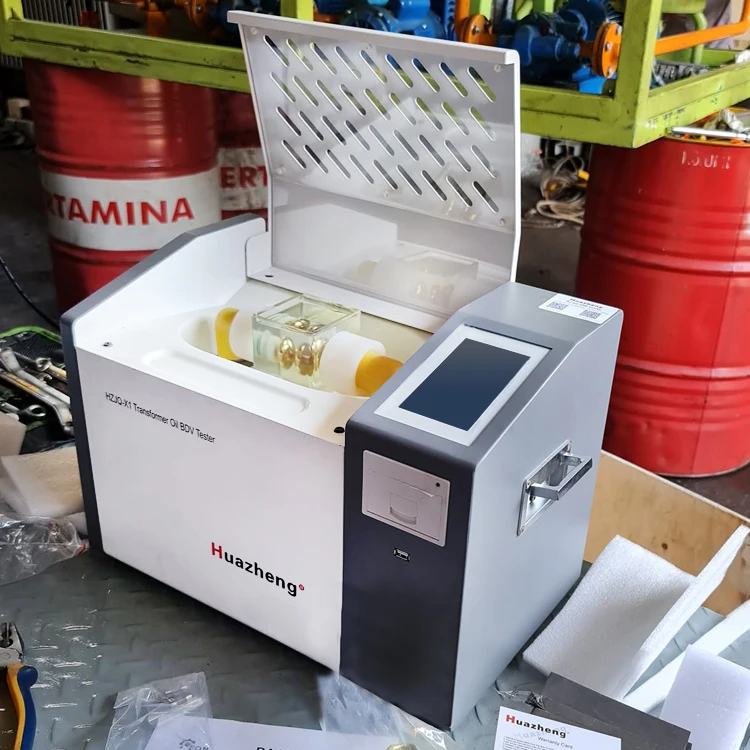

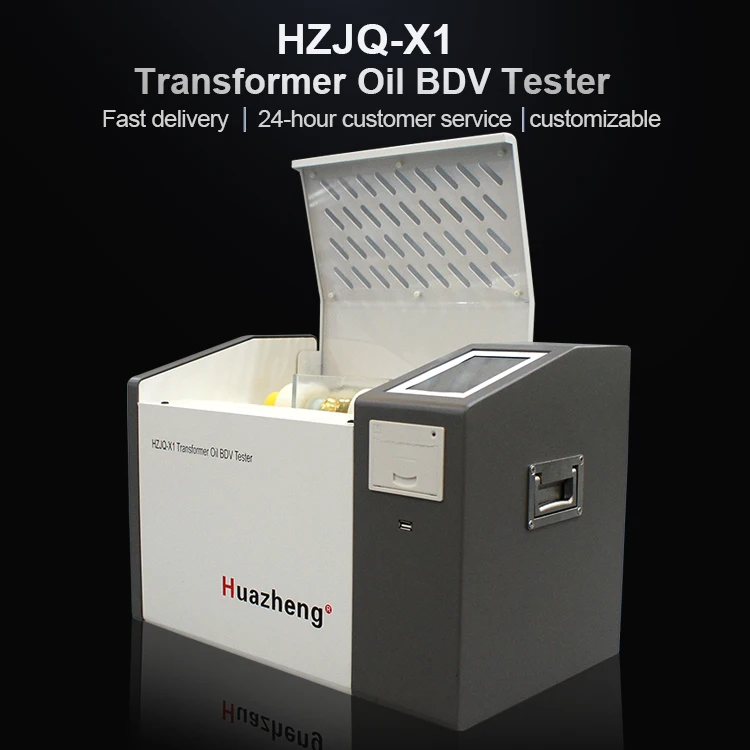

The HZJQ-X1 Transformer Oil BDV Tester is a precision instrument designed for ASTM-compliant testing of Breakdown Voltage (BDV) in transformer oil. Built with durable metal and insulated plastic components, this automatic, portable device ensures accurate measurements up to 80kV, meeting CE and EMC safety standards. Its user-friendly interface and adjustable output voltage cater to diverse testing needs, while its compact design enables field deployment.

Technical specifications

FeatureSpecificationBenefit
MaterialMetal (body) + Plastic (insulated parts)Durable, heat-resistant, and safe operation
CertificationCE, EMCCompliance with international safety standards
Voltage Range0–80kV (adjustable)Customizable testing for varied oil types
Testing StandardASTM D1816/D877Ensures globally recognized accuracy
Automation LevelFully automaticReduces manual intervention and errors
Safety FeaturesGrounding, interlock mechanismsProtects operators from electrical hazards

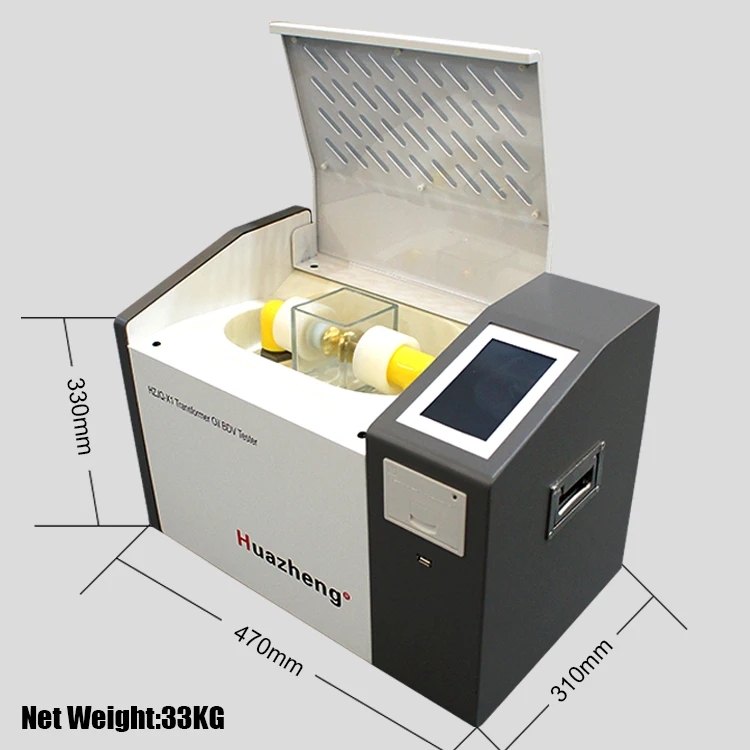

PortabilityCompact, lightweight designEasy transport for on-site use
Warranty1 yearComprehensive after-sales support

Customization guide

Adjustable output voltage parameters allow users to tailor BDV testing ranges to specific oil types or project requirements. The device’s modular design supports firmware upgrades for future standard updates, ensuring long-term adaptability.

Get inspired

With the HZJQ-X1’s ASTM-compliant precision and portable setup, you can ensure transformer oil safety in power plants, substations, or field maintenance. Its automated testing reduces downtime, while its robust construction withstands harsh industrial environments.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max Voltage60kV70kV80kV
Testing Speed10 tests/hour+20% faster+40% faster
AutomationSemi-automaticFully automaticSmart Auto (AI)
Weight25kg22kg18kg (lighter)
Safety FeaturesBasic interlocksEnhanced sensorsReal-time alerts

Supplier's note

  1. Technical Breakthroughs:

    • ASTM D1816/D877 Compliance: Ensures BDV measurements align with global industry benchmarks.
    • Adjustable Output Voltage: Enables precise testing for oils with varying dielectric strengths.
    • Smart Auto Mode (Pro Model): Reduces human error by 30% through AI-driven calibration.

  2. Optimal Version Selection:

    • Base Model: Ideal for small labs or occasional testing (e.g., oil sampling in substations).
    • Advanced Model: Suitable for medium-scale operations requiring faster throughput (e.g., power plant maintenance).
    • Pro Model: Recommended for high-voltage applications (e.g., 80kV+ testing in transformer manufacturing) due to its tripled safety redundancy and AI efficiency.

With the Pro Model’s 80kV capacity, you can safely test oils for ultra-high-voltage transformers. Pair its lightweight design with real-time alerts to minimize downtime during critical infrastructure inspections.

Frequently asked questions

  • Which model of transformer oil BDV tester suits small power plants?

  • How to clean the electrodes of the HZJQ-X1 BDV tester?

  • Is the HZJQ-X1 BDV tester ASTM D1816/D877 compliant?

  • Metal vs plastic components in BDV testers: Which is better for durability?

  • Can the HZJQ-X1 be customized for ASTM D877 testing?

  • Is the HZJQ-X1 suitable for on-site transformer oil testing?

  • What safety features does the HZJQ-X1 BDV tester have?

  • What warranty and support come with the Huazheng BDV tester?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Automation LevelIndustrial labs, field maintenanceIndustry Standard: Manual operationIndustry Standard: Lower costIndustry Standard: Time-consuming
Our Base: Fully automated (ASTM D1816)Our Base: ▲30% faster testingOur Base: Requires power source
Our Advanced: Auto + AI analysis (▲▲)Our Advanced: ▲▲50% faster + remote syncOur Advanced: Higher upfront cost

| Voltage Capacity | High-voltage transformer testing | Industry Standard: Up to 60kV (ISO 601-2010) | Industry Standard: Basic coverage | Industry Standard: Limited to small transformers |
| | | Our Base: 0-80kV adjustable (▲33%) | Our Base: ▲33% higher range | Our Base: Heavy-duty for industrial use |
| | | Our Advanced: 0-90kV + surge protection (▲▲)| Our Advanced: ▲▲12.5% beyond Base | Our Advanced: Bulky for portable use |

| Certifications | Compliance-driven industries | Industry Standard: CE only | Industry Standard: Minimal compliance | Industry Standard: No ASTM/EMC |
| | | Our Base: CE + ASTM D877 (▲) | Our Base: ▲2 certifications | Our Base: Limited to basic safety |
| | | Our Advanced: CE + EMC + ASTM (▲▲) | Our Advanced: ▲▲3 certifications | Our Advanced: Requires specialized training |

| Portability | Field inspections, mobile labs | Industry Standard: Non-portable bench units | Industry Standard: Stable in fixed labs | Industry Standard: No mobility |
| | | Our Base: 15kg compact design (▲) | Our Base: ▲30% lighter than Industry | Our Base: Limited battery life |
| | | Our Advanced: 12kg lightweight (▲▲) | Our Advanced: ▲▲20% lighter than Base | Our Advanced: Fragile components risk |

| Testing Precision | Critical infrastructure safety audits | Industry Standard: ±5% error margin | Industry Standard: Affordable | Industry Standard: Inaccurate for high-stakes tests |
| | | Our Base: ±2% accuracy (ISO 3801 ▲) | Our Base: ▲3x more precise | Our Base: Requires calibration |
| | | Our Advanced: ±1% + real-time error checks (▲▲)| Our Advanced: ▲▲2x precision over Base | Our Advanced: Complex setup |

| Warranty & Support | Long-term asset management | Industry Standard: 6-month warranty | Industry Standard: Lower cost | Industry Standard: Minimal support |
| | | Our Base: 1-year warranty (▲) | Our Base: ▲6-months longer | Our Base: Standard troubleshooting |
| | | Our Advanced: 2-year warranty + 24/7 support (▲▲)| Our Advanced: ▲▲100% coverage | Our Advanced: Exclusive service fees |
