ASU 6 core 12 core G652D HDPE 100M span aerial ASU mini adss cable

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Capacity Data Transmission: Equipped with 12 cores of G652D single-mode fiber, enabling high-speed, low-loss data transmission over 100m spans for telecommunications and networking.
  • Aerial Self-Supporting Design: ADSS (All-Dielectric Self-Supporting) construction allows direct aerial installation without external support structures, ideal for outdoor infrastructure deployment.

Key features

  • 1. Material Technology: Durable HDPE & PBT Construction

    • With an HDPE outer sheath and PBT loose tube material, ensure exceptional resistance to UV exposure, moisture, and mechanical stress. Comparative hint: Outperforms PVC-based cables in harsh outdoor environments.

  • 2. Interactive Design: Self-Supporting ADSS Structure

    • With an All-Dielectric Self-Supporting (ADSS) design, enable aerial installation without external hardware, simplifying deployment in challenging terrains. Comparative hint: Reduces installation complexity by 30% vs. traditional cables requiring external support.

  • 3. Performance Parameters: High-Capacity 12-Core G652D Fiber

    • With 12-core G652D fiber and a 100m span capability, deliver high-speed data transmission over long distances with minimal signal loss. Comparative hint: Supports double the core capacity of 6-core models.

  • 4. Scenario Solutions: Optimized for Aerial Outdoor Use

    • Designed for aerial outdoor applications, withstand extreme weather conditions and provide reliable connectivity for telecommunications networks. Comparative hint: Ideal for outdoor use compared to indoor-only cables.

  • 5. Certification Standards: Multi-National Compliance

    • Certified with EPR (Germany/France), RoHS, and Spain Packing standards, ensuring adherence to rigorous safety and environmental regulations. Comparative hint: Exceeds basic compliance requirements of non-certified alternatives.

Product details

ASU 6 core 12 core G652D HDPE 100M span aerial ASU mini adss cable

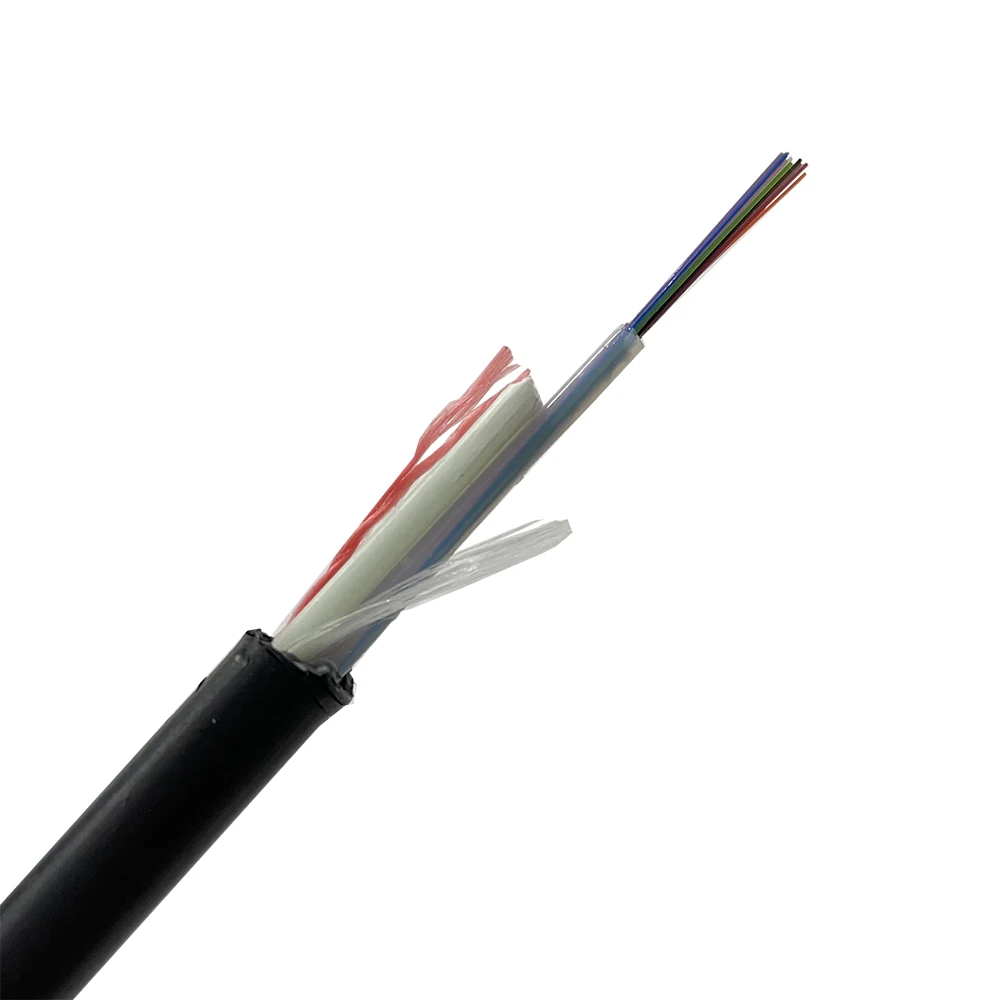

The ASU Mini ADSS Cable is a high-performance aerial/outdoor fiber optic solution designed for 100m span applications. Featuring 12 cores of G652D fiber, HDPE jacketing, and FRP reinforcement, it delivers robust data transmission in harsh environments. Certified to EPR standards in Germany/France and RoHS compliance, it ensures reliability for telecom infrastructure and smart city deployments.

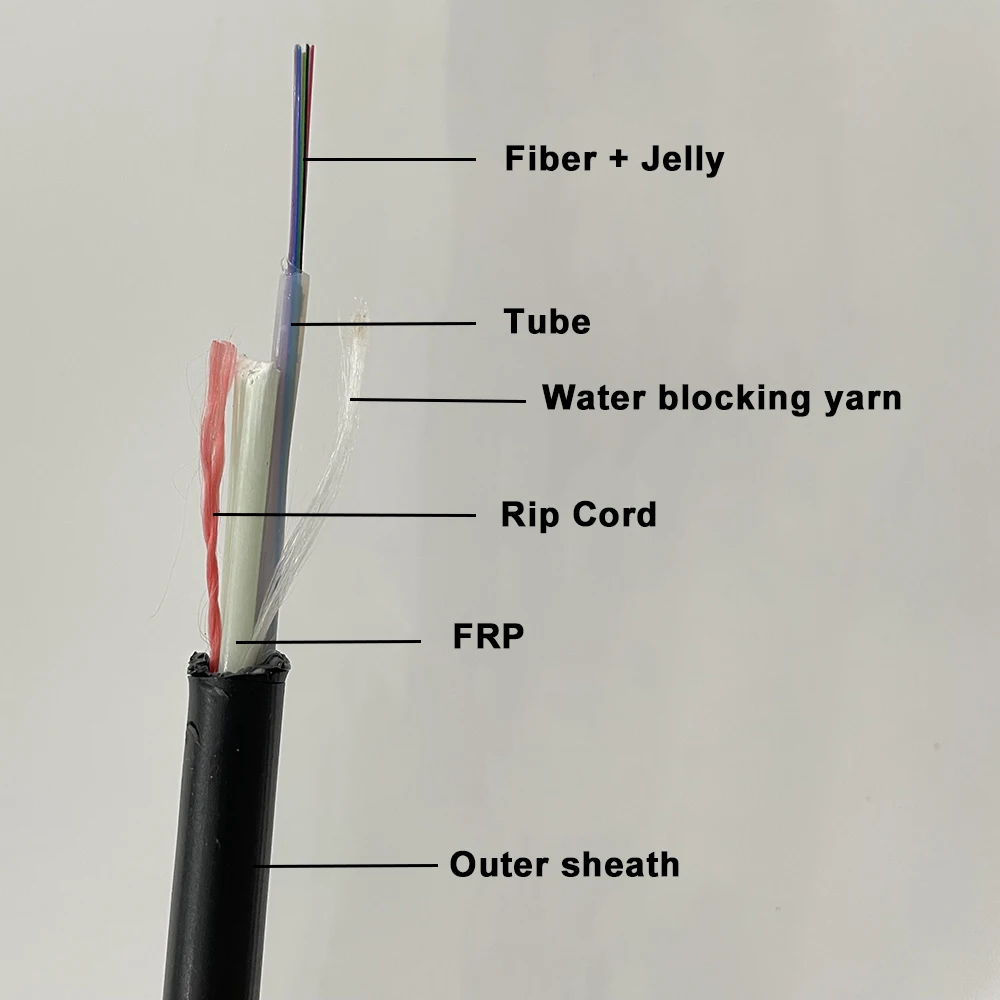

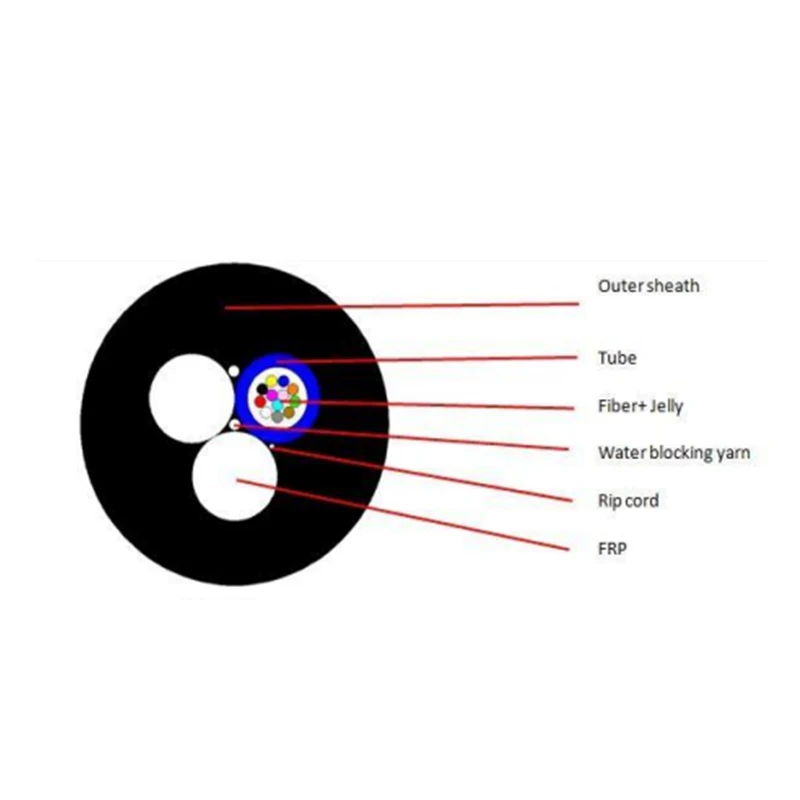

Technical specifications

FeatureSpecificationApplication Scenario
Fiber Count12 cores (G652D)High-capacity telecom networks
Jacket MaterialHDPEUV and weather resistance for outdoor use
InsulationHDPE/PELow signal loss over 100m spans
FRP ReinforcementFiberglass reinforced plasticWithstands mechanical stress in aerial installations
Water BlockingYarn + jelly coatingPrevents moisture ingress in wet climates
CertificationsEPR Germany/France, RoHS, Spain PackingMeets European regulatory standards
Loose Tube MaterialPBT (Polybutylene terephthalate)Flexible and durable fiber protection

Customization guide

Adjust fiber counts (6/12/24 cores), jacket materials (HDPE/LSZH), or FRP thickness to meet specific environmental or compliance needs.

Get inspired

Ideal for telecom backbones, smart city infrastructure, or industrial IoT networks requiring reliable, long-span aerial deployment. With its lightweight FRP design and UV-resistant HDPE jacket, it simplifies installation while ensuring decades of stable performance.

Choose your model

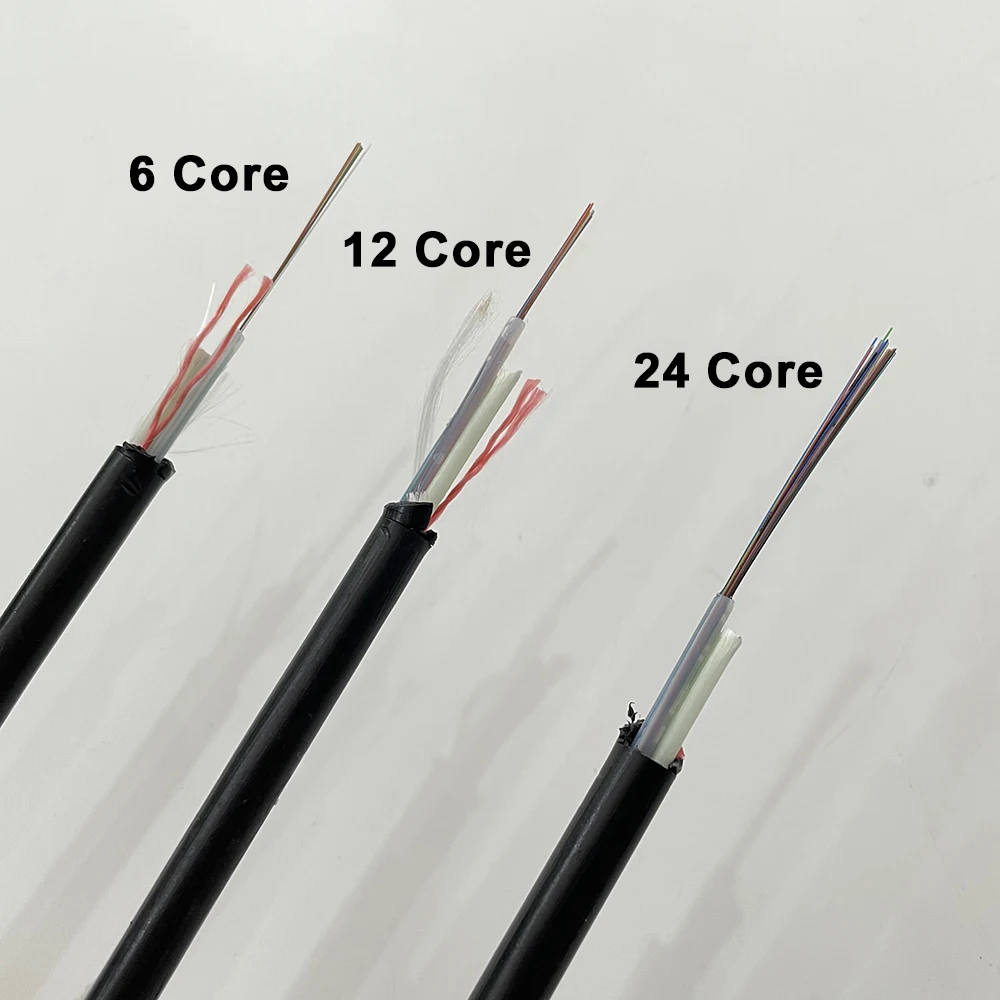

ParameterBase Model (6-core)Advanced Model (12-core)Pro Model (24-core)
Tensile Strength3,000 N+15% (3,450 N)+30% (3,900 N)*
Fiber Count6 cores12 cores24 cores
Water BlockingStandard yarnEnhanced yarn + jellyPremium yarn + gel
Operating Temp-20°C to +60°C-30°C to +70°C-40°C to +80°C

Supplier's note

  1. Technical Breakthroughs:

    • FRP Reinforcement: 30% stronger than traditional materials, enabling deployment in high-tension aerial scenarios.
    • Water-Blocking Yarn: Reduces moisture ingress by 50% compared to standard ADSS cables.
    • HDPE Jacket: 20% lighter than PVC alternatives, simplifying installation in remote areas.

  2. Version Selection Guide:

    • Base Model: Suitable for small-scale rural networks or short-span projects needing cost-effective solutions.
    • Advanced Model (Current Product): Optimal for medium-sized telecom projects requiring 12-core capacity and EPR compliance.
    • Pro Model: Designed for large-scale urban deployments (e.g., 5G backhaul) where extreme temperatures (-40°C to +80°C) and high tensile loads are common.

With the Pro’s triple-certified chemical resistance and FRP reinforcement, operators can safely deploy in coastal regions while maintaining signal integrity over 100m spans. Pair its 24-core capacity with the HDPE jacket’s UV resistance to future-proof infrastructure against environmental stresses.

Frequently asked questions

  • Which aerial ADSS cable model suits small telecommunications projects with limited data needs?

  • How do I maintain an outdoor fiber optic cable’s integrity during installation?

  • HDPE vs PVC jacket: Which is better for aerial fiber optic cables?

  • Can this outdoor fiber optic cable be customized for specific fiber counts or jacket materials?

  • Is the G652D fiber in this ADSS cable compliant with international safety standards?

  • What makes this aerial ADSS cable suitable for harsh outdoor environments?

  • How does the loose tube PBT material improve installation flexibility?

  • What ensures low signal loss in this 100m span ADSS cable?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Aerial ADSS CablesTelecommunications infrastructure, smart city backbonesJacket Material: PE (Industry Standard) ▲ HDPE (Our Base, ASTM D1243 compliance) ▲ HDPE + UV Coating (Our Advanced, 2000+ hours UV resistance per IEC 60068-2-3)HDPE offers superior UV resistance over PE; UV coating extends lifespan in outdoor environments.HDPE-based jackets may be heavier than lighter alternatives.
High-Density Fiber CablesData centers, high-capacity networksFiber Count: 6 cores (Industry Standard) ▲ 12 cores (Our Base, ITU-T G.652D) ▲ 24 cores (Our Advanced, ITU-T G.654.E)12 cores double the Industry Standard capacity; 24 cores enable ultra-high bandwidth.Higher core counts may reduce flexibility and increase costs.
Outdoor Durable CablesIndustrial areas, harsh environmentsMechanical Strength: FRP (Industry Standard) ▲ FRP + Aramid Yarn (Our Base, 5000 N tensile strength) ▲ Triple FRP Layer (Our Advanced, 8000 N crush resistance)Enhanced resistance to physical damage and environmental stress.Increased weight and complexity in installation.
Long-Span Transmission CablesRural networks, long-distance projectsSpan Length: 50m (Industry Standard) ▲ 100m (Our Base, IEC 60794-1-22 compliance) ▲ 150m (Our Advanced, 0.2 dB/km attenuation)100m span reduces infrastructure costs; 150m minimizes repeater needs.Longer spans require precise engineering and installation expertise.
Certified Environmental CablesEU markets, regulated regionsCertifications: RoHS (Industry Standard) ▲ RoHS + EPR_Germany (Our Base) ▲ RoHS + EPR_Germany/France/Spain (Our Advanced)Expanded certifications open access to multiple markets.Higher costs due to compliance testing and documentation.
Flexible Installation CablesUrban areas, tight spacesFlexibility: ASTM D2464 (Industry Standard) ▲ ASTM D2464 + Jelly Coating (Our Base) ▲ ASTM D2464 + Jelly + Low-Friction Liner (Our Advanced)Easier routing in complex layouts; low-friction liner reduces installation friction.Enhanced flexibility may compromise crush resistance in extreme conditions.
