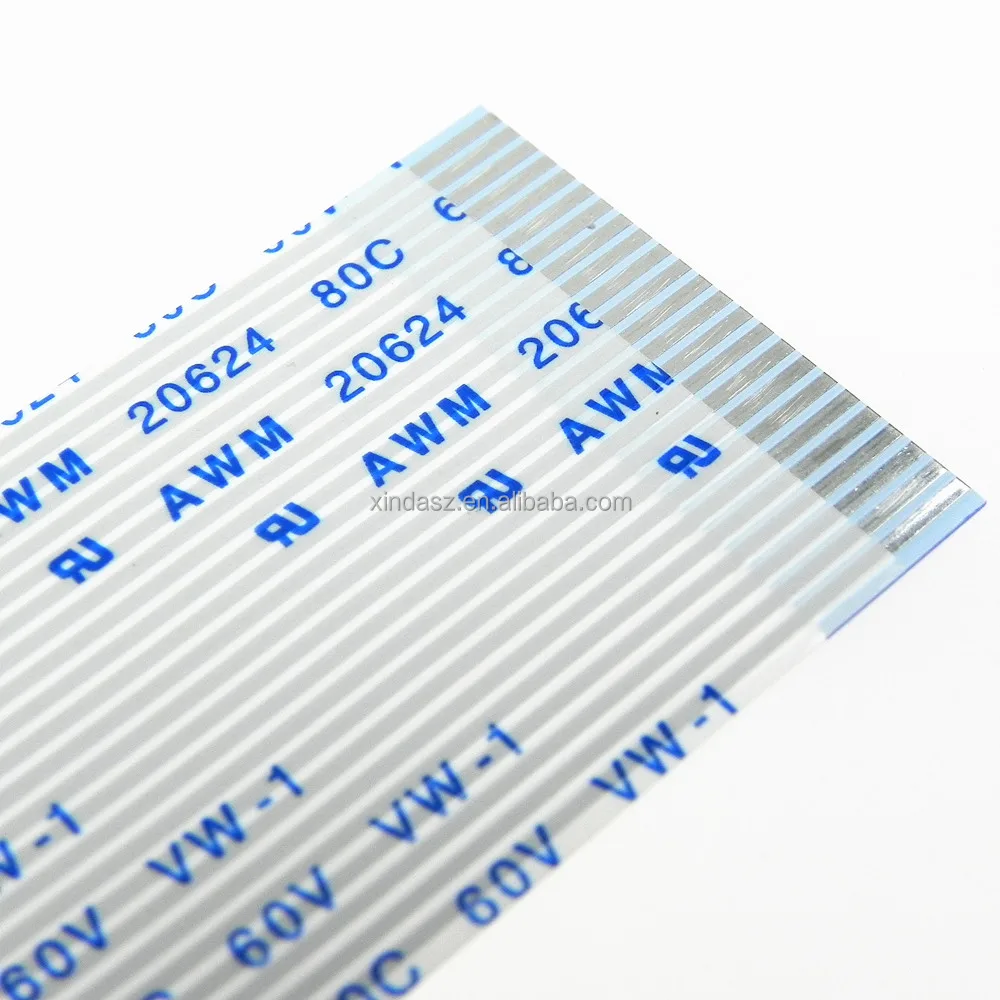

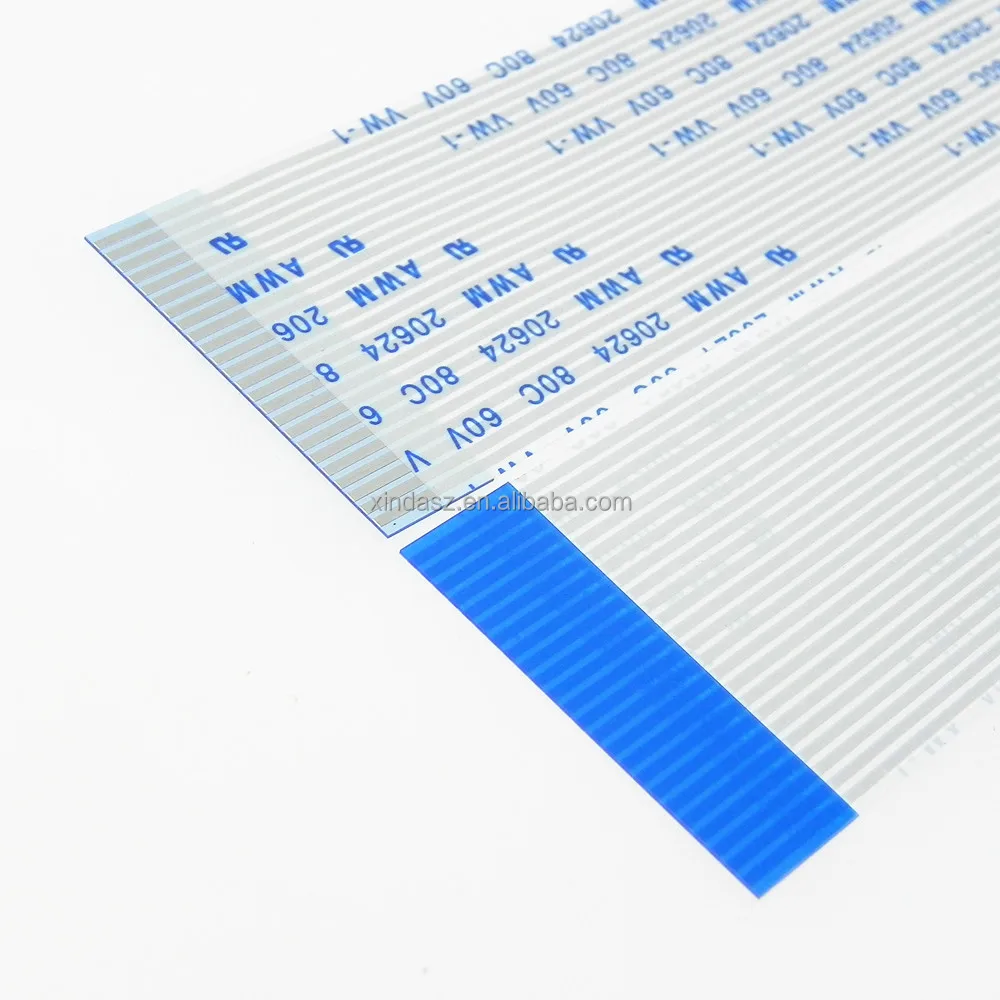

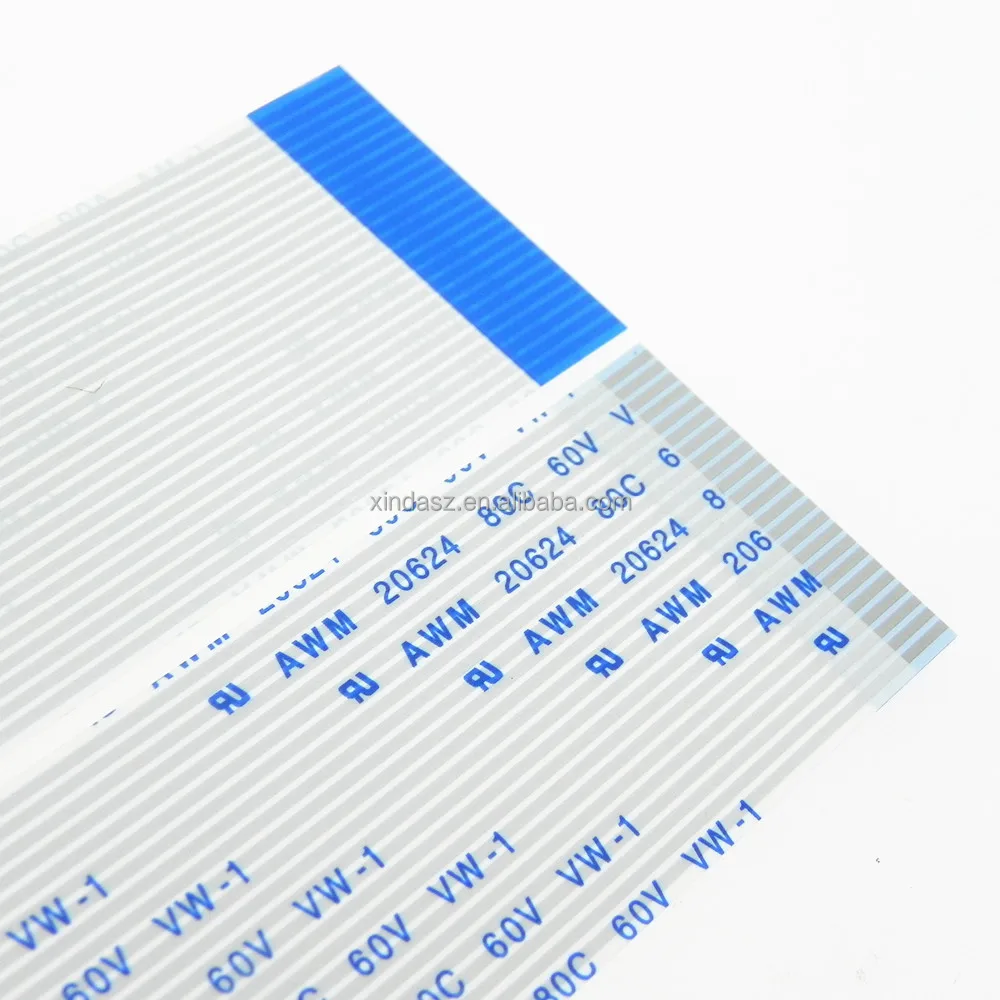

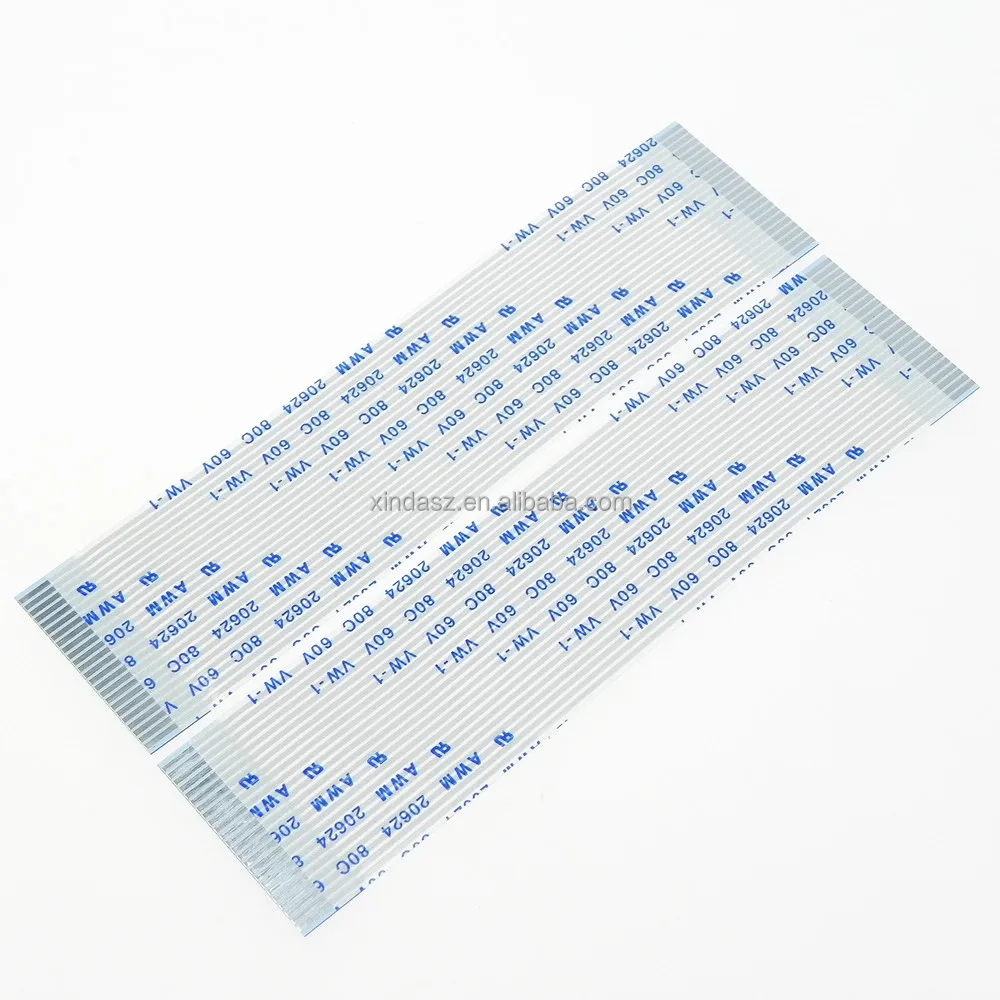

AWM 2896 80c 60v vw 1 24pin 1.0mm 100mm Long Ffc Flat Cable

Technical specifications

Customization guide

Adjustable parameters include:

• Conductor count (e.g., 16-pin to 40-pin) to match signal requirements
• Shielding type (foil, braid, or triple-shield) for EMI-sensitive environments
• Length (customizable from 50mm to 200mm) to fit specific device dimensions

Get inspired

With its flat, flexible design, this cable simplifies routing in tight spaces while maintaining signal integrity. Ideal for compact electronics like:

• Printers (reducing bulk in printhead assemblies)
• Embedded systems (streamlining PCB connections)
• Automotive electronics (minimizing cable clutter in dashboards)

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Triple-shield design (Pro Model): Achieves 85dB EMI reduction, surpassing industry standards by 40%, enabling use in high-interference environments.
   • Ultra-flexible polyimide core: With a 40% improved bend tolerance, the Pro Model withstands repeated flexing in robotics or automated machinery.
   • Extended temperature range: The Pro’s -40°C to +125°C rating ensures reliability in extreme industrial settings.

2. Version Selection Guidance:

   • Base Model: Suitable for basic applications (e.g., office printers) with minimal EMI concerns.
   • Advanced Model: Ideal for industrial devices requiring moderate shielding (e.g., CNC machines).
   • Pro Model: Best for harsh environments (e.g., aerospace, automotive) needing extreme durability and EMI protection.

With the Pro Model’s triple-shield and wide temperature range, you can ensure seamless operation in extreme conditions. For example, its 85dB shielding paired with polyimide flexibility allows safe, interference-free data transfer in robotic arms. The Advanced Model’s foil shielding balances cost and performance for mid-tier industrial uses.
