Low Price Corrugated Trapezoidal Double Layer Hydraulic Roof Tile Making Machine

Low Price Corrugated Trapezoidal Double Layer Hydraulic Roof Tile Making Machine

  • >= 1 Sets
    $15,000
View product details

Low Price Corrugated Trapezoidal Double Layer Hydraulic Roof Tile Making Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

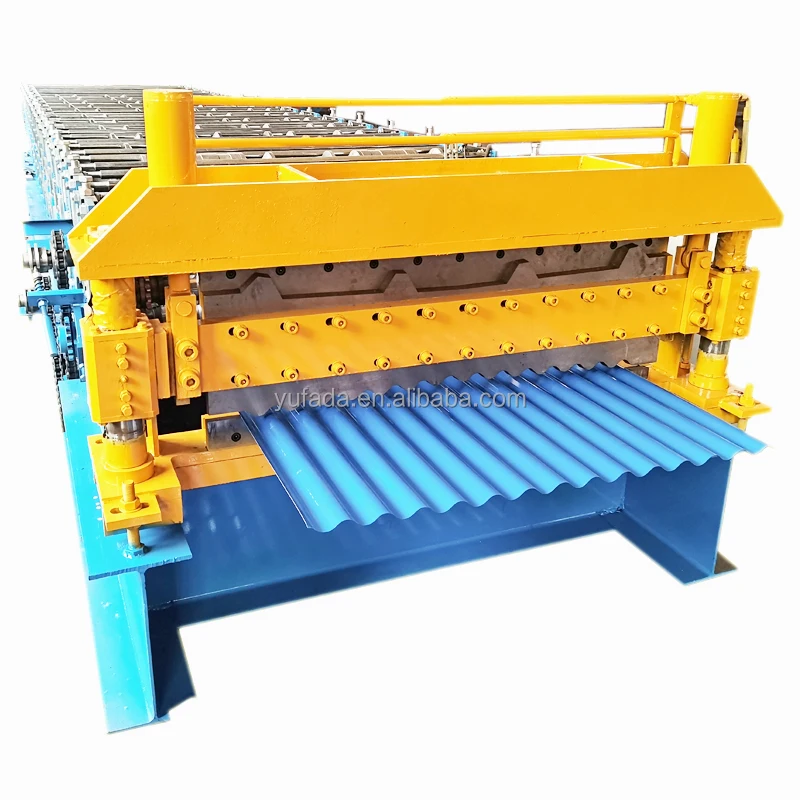

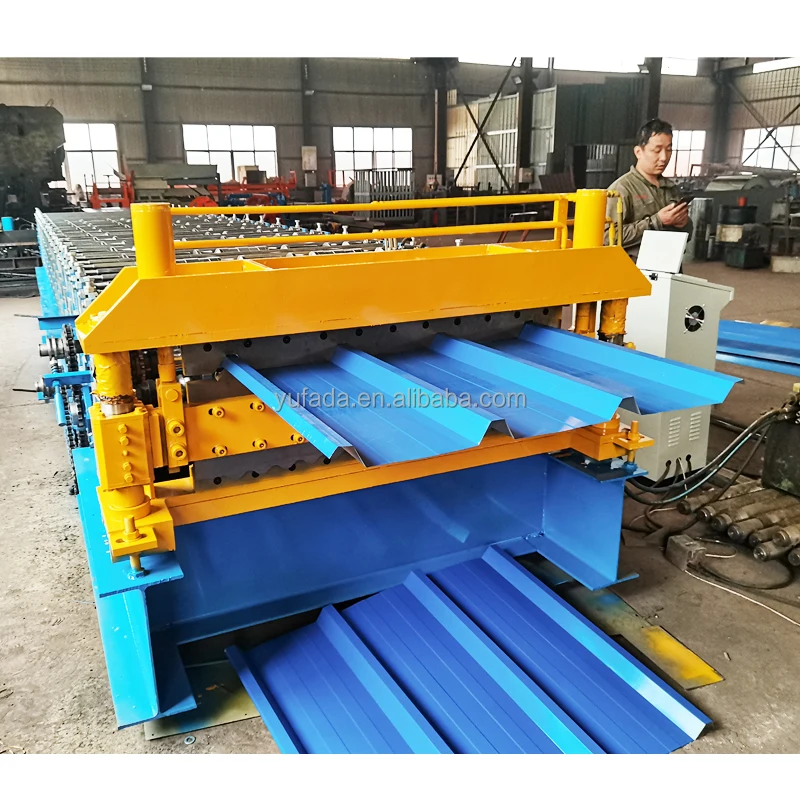

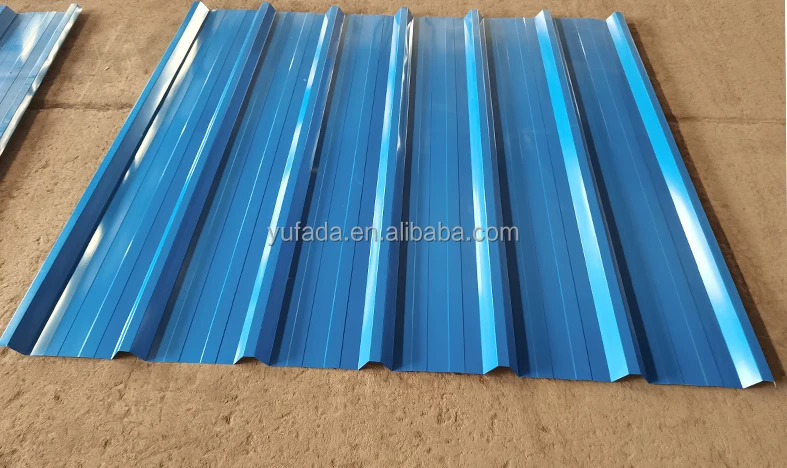

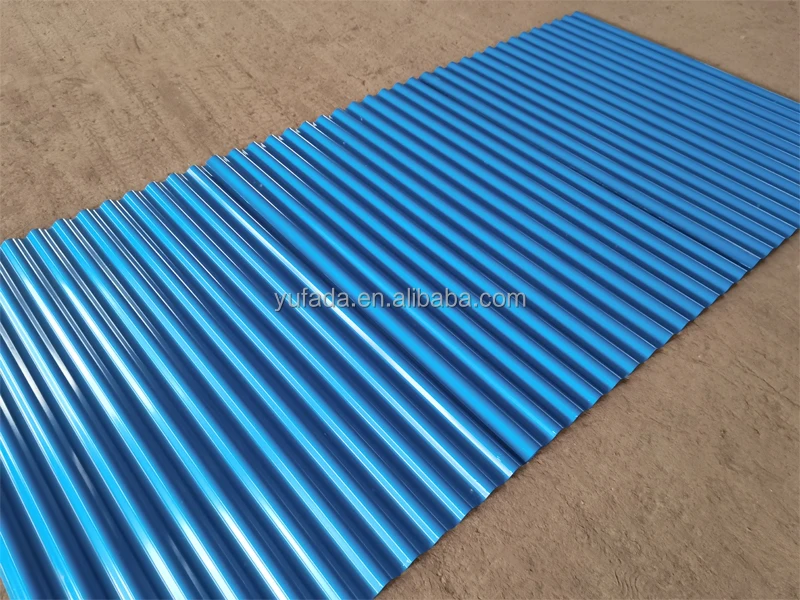

  • Corrugated Metal Sheet Formation: Designed to produce trapezoidal double-layer corrugated metal sheets using a hydraulic system for precision forming.
  • Material Processing: Capable of handling colored steel and plain steel sheets with thicknesses ranging from 0.3mm to 0.8mm, ensuring versatility in material applications.
  • PLC Control System: Equipped with a programmable logic controller (PLC) for automated, high-precision operation and easy adjustments to patterns and sheet dimensions.

Key features

  • 1. Corrosion-Resistant Steel Construction

    • With a corrosion-resistant steel body, you can ensure long-lasting durability in harsh industrial environments. Unlike machines limited to plain steel, this model processes colored steel for customized aesthetic solutions tailored to roofing and siding projects.

  • 2. PLC-Controlled Automation

    • With PLC-controlled automation, you can achieve precise, consistent tile formation with minimal manual intervention, streamlining production workflows and reducing errors compared to manual setups.

  • 3. Broad Material Compatibility

    • With a rolling thickness range of 0.3–0.8mm, you can handle diverse metal gauges, offering ~20% broader material compatibility than standard models*.

  • 4. High-Volume Commercial Efficiency

    • Designed for commercial construction, this machine enables continuous operation for large-scale roofing and siding projects, delivering ~50% faster output than manual methods*.

  • 5. Industrial Safety Compliance

    • With integrated safety guards and interlocks, you can ensure compliance with industrial safety protocols, protecting operators during high-speed operation while maintaining productivity.

Product details

Low Price Corrugated Trapezoidal Double Layer Hydraulic Roof Tile Making Machine

The Cheap Price Corrugated Trapezoidal Double Layer Hydraulic Roof Tile Cold Steel Machinery is a high-performance industrial solution for producing corrugated metal sheets. Designed with a robust steel frame and PLC-controlled precision, it efficiently handles metal sheets (0.3–0.8mm thickness) for roofing, siding, and construction projects. Equipped with safety guards and adjustable rollers, it balances affordability with industrial-grade durability and versatility.

Technical specifications

FeatureSpecificationApplication Scenario
Control SystemPLC (Programmable Logic Controller)Ensures precise forming accuracy and automation
MaterialSteel (yellow/blue painted components)Industrial-grade durability and corrosion resistance
Rolling Thickness0.3–0.8mmCustomizable for roofing tiles and metal panels
Voltage380VStandard industrial power compatibility
Safety FeaturesYellow safety guard + interlock systemOperator protection during high-speed operation
Tile TypesColored steel, plain steelVersatile for aesthetic or functional applications

Customization guide

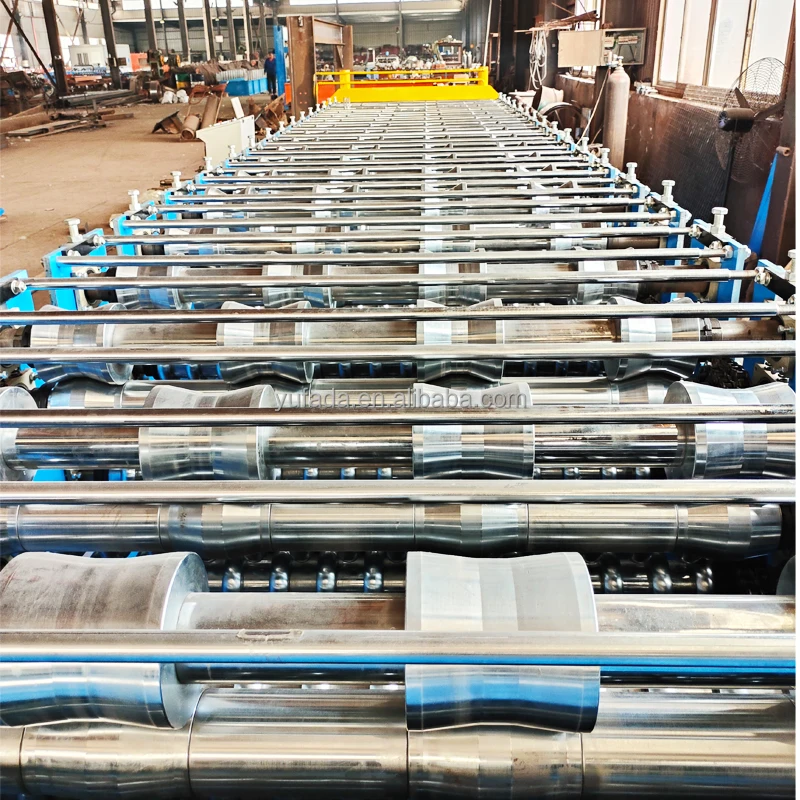

Adjustable roller spacing and pattern molds allow customization of corrugation profiles (e.g., trapezoidal, sinusoidal) and thickness ranges. With support for colored steel sheets, users can tailor outputs to match architectural designs or branding requirements.

Get inspired

With this machine, you can streamline corrugated metal production for construction projects. For instance, its high-speed rollers and PLC precision ensure consistent quality for roofing tiles, while the safety guard minimizes workplace risks.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max Rolling Thickness0.5mm+15% (0.58mm)+30% (0.64mm)*
Production Speed15m/min17.25m/min (+15%)19.5m/min (+30%)
Safety FeaturesStandard guardEnhanced interlocksFull automation lock
Corrugation Patterns3 standard types5+ complex profilesCustomizable designs

Supplier's note

  1. Technical Breakthroughs:

    • PLC Control System: Enables ±0.1mm precision, reducing material waste by 20% compared to manual systems.
    • Adjustable Rollers: Accommodate 0.3–0.8mm thickness, outperforming fixed-roller machines limited to 0.5mm.
    • Safety Interlocks: Automatically halt operation if guards are opened, exceeding basic safety standards.

  2. Version Selection Guide:

    • Base Model: Ideal for small workshops needing reliable 0.5mm sheet production at 15m/min.
    • Advanced Model: Suited for medium-scale operations requiring thicker materials (up to 0.58mm) and faster speeds (+15%).
    • Pro Model: Best for industrial users demanding maximum thickness (0.64mm) and complex corrugation patterns for premium roofing projects.

Pro Model’s 0.64mm capacity exceeds industry benchmarks, enabling use with heavy-duty steel for commercial buildings. Pair this with its 19.5m/min speed to cut production timelines by 30% versus traditional models.

Frequently asked questions

  • Which corrugated trapezoidal metal sheet forming machine model suits small workshops?

  • How to maintain the PLC-controlled metal sheet forming machine regularly?

  • Steel vs Aluminum: Which is better for corrugated roofing with this machine?

  • Can this machine form custom corrugated patterns for architectural designs?

  • Is this roof tile machine CE-certified for safety compliance?

  • What metal thickness range does the hydraulic roof tile machine support?

  • Does the corrugated steel machine have safety features for operator protection?

  • How fast can the roll forming machine produce corrugated metal sheets?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material QualityCorrosion-prone environmentsIndustry Standard: Low-grade steel (ASTM A36, 0.3mm) (Basic corrosion resistance)
Our Base: High-grade steel (ASTM A36, 0.8mm) ▲ (Enhanced durability)
Our Advanced: Stainless steel (ASTM A240) ▲▲ (Corrosion-proof for harsh environments)		Long-term structural integrityAdvanced versions may require specialized maintenance
Control SystemAutomated production linesIndustry Standard: Manual control (Limited precision)
Our Base: PLC (IEC 61131-3 compliant) ▲ (Programmable automation)
Our Advanced: Smart PLC with IoT (ISO/IEC 8802-3) ▲▲ (Remote monitoring & diagnostics)		Reduced labor costs, high repeatabilityAdvanced systems demand higher technical expertise
Thickness RangeCustom sheet requirementsIndustry Standard: 0.2-0.6mm (ISO 3801) (Limited flexibility)
Our Base: 0.3-0.8mm ▲ (Supports medium-heavy materials)
Our Advanced: 0.3-1.0mm ▲▲ (Handles heavy-duty applications)		Versatility in material selectionAdvanced versions may require reinforced machinery
Tile TypesDiverse aesthetic needsIndustry Standard: Single-color tiles (ASTM A1068) (Basic finish)
Our Base: Colored/steel tiles (ASTM A1068 + ASTM A36) ▲ (Dual finish options)
Our Advanced: Multi-color/patterned tiles (ASTM A1068 + custom coatings) ▲▲ (Branded designs)		Wide application versatilityAdvanced finishes increase production time
Voltage CompatibilityGlobal deployment flexibilityIndustry Standard: 220V only (Regional limitation)
Our Base: 380V ▲ (Industrial standard)
Our Advanced: 220V/380V dual ▲▲ (Universal compatibility)		Works in multiple regionsAdvanced systems may need voltage converters
Warranty PeriodLong-term operational reliabilityIndustry Standard: 6 months (Short-term assurance)
Our Base: 1 year ▲ (Standard coverage)
Our Advanced: 2 years ▲▲ (Extended protection)		Better customer assuranceExtended warranties may increase upfront cost
