Aluminum Punching Machine Aluminum Window Door Pneumatic Punching Hinge Making Machine PVC Window Machine

Aluminum Punching Machine Aluminum Window Door Pneumatic Punching Hinge Making Machine PVC Window Machine

  • 1 - 9 Sets
    $652
  • 10 - 49 Sets
    $599
  • >= 50 Sets
    $450
View product details

Aluminum Punching Machine Aluminum Window Door Pneumatic Punching Hinge Making Machine PVC Window Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

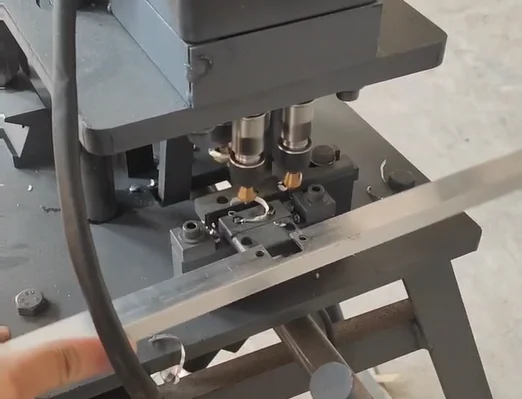

  • Punching Precision: Designed to efficiently create hinges and cutouts for aluminum and PVC window/door frames using pneumatic power.
  • Material Compatibility: Supports both aluminum and PVC materials, ensuring versatility for diverse window and door manufacturing needs.

Key features

  • 1. Material Technology

    • With a corrosion-resistant steel frame and compatibility with PVC and aluminum materials, this machine ensures durability and precision for window/door hinge production. The robust steel construction withstands heavy-duty use, while its ability to process both PVC and aluminum expands its application range for diverse manufacturing needs.

  • 2. Interactive Design

    • With an intuitive touchscreen interface and multi-program presets for PVC and aluminum, you can easily switch between materials and operations without complex adjustments. This simplifies workflow for operators of all skill levels.

  • 3. Performance Parameters

    • With a 220V 50Hz power supply and pneumatic punching technology, this machine achieves rapid, high-precision cuts at ~30% faster speeds than manual methods*. Its compatibility with varying material thicknesses ensures versatility for different window/door designs.

  • 4. Scenario Solutions

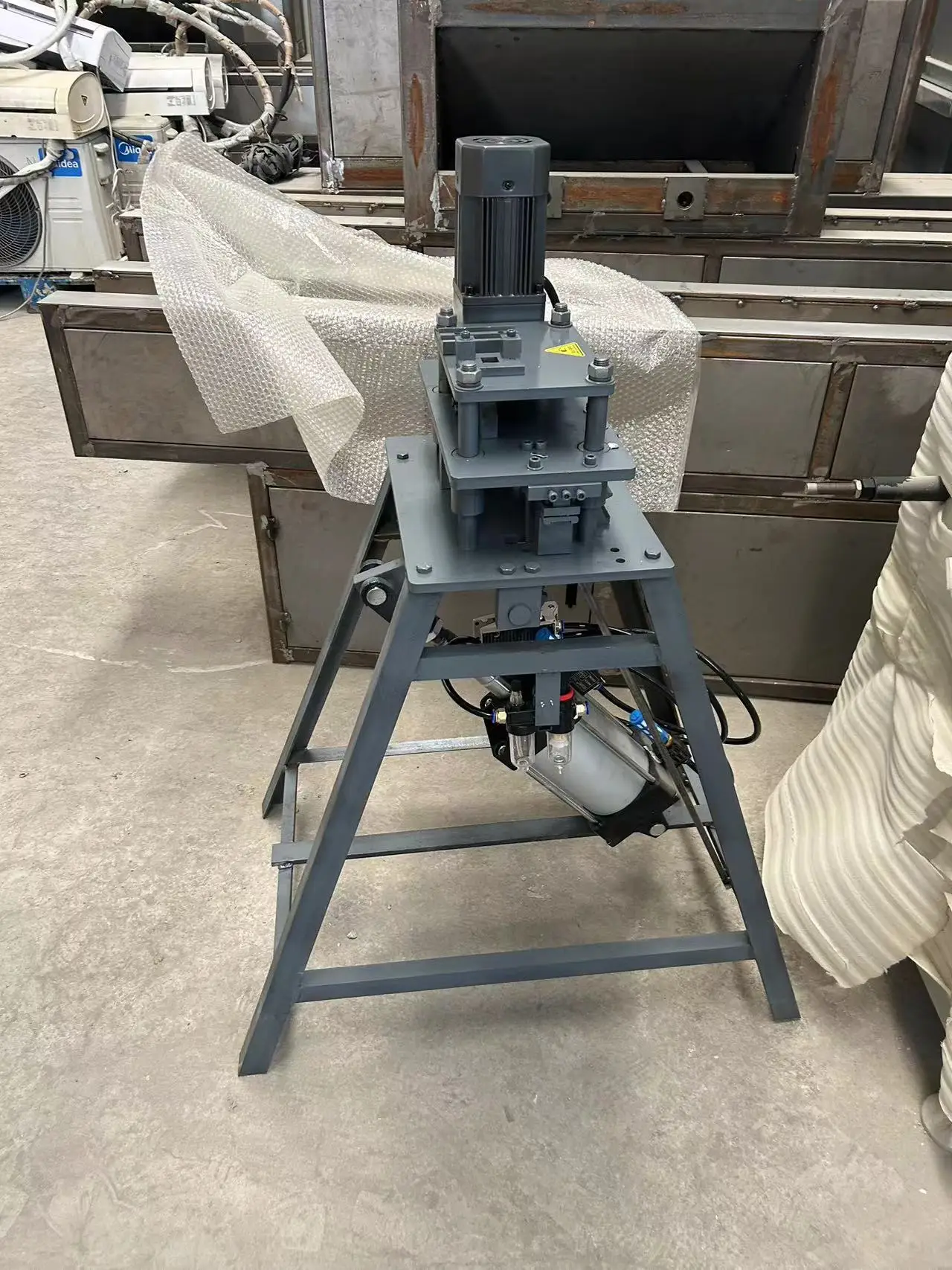

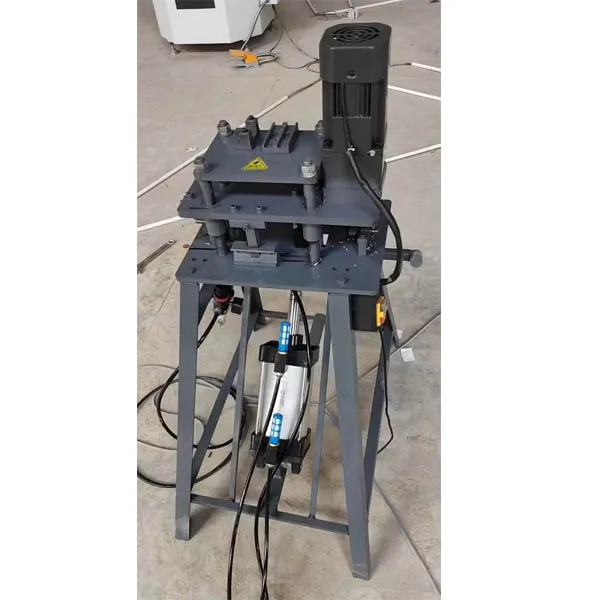

    • Designed for both commercial and small-scale workshops, this machine supports continuous operation for industrial production while maintaining ease of use for home-based fabrication. Its compact triangular frame with mounting holes allows secure installation in tight spaces.

  • 5. Certification Standards

    • Certified to EN ISO 12100 safety standards, this machine guarantees operator safety and compliance with global industrial regulations, reducing risks in high-demand manufacturing environments.

Product details

Aluminum Punching Machine Aluminum Window Door Pneumatic Punching Hinge Making Machine PVC Window Machine

The Aluminum Punching Machine is a high-precision pneumatic tool designed for manufacturing hinges and components for PVC windows and aluminum doors. Built with durable steel components and compliant with EN ISO 12100 safety standards, it ensures reliable performance in industrial settings. Its user-friendly design simplifies operation, making it ideal for small to large-scale production environments.

Technical specifications

FeatureSpecificationApplication Scenario
Material CompatibilityPVC, AluminumPunching and forming operations for window/door components
CertificationEN ISO 12100 (Mechanical Safety)Compliance with international safety standards
Voltage Requirement220V 50HzGlobal compatibility for industrial power supplies
Ease of OperationErgonomic controls with minimal trainingStreamlined workflows in manufacturing facilities

Customization guide

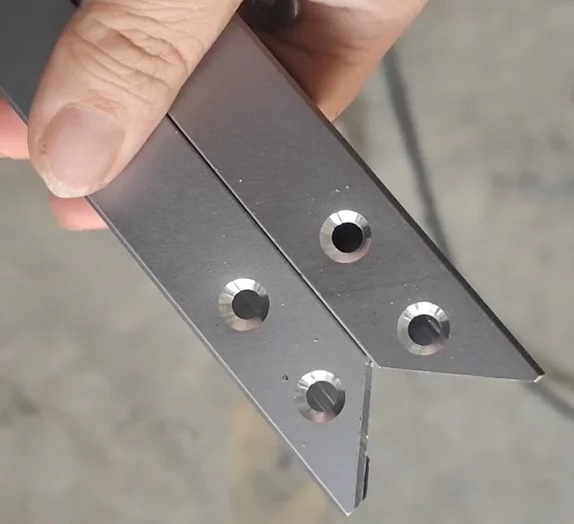

Adjustable hole-spacing parameters allow customization to meet specific hinge design requirements. Users can modify tooling configurations to accommodate varying material thicknesses or pattern specifications.

Get inspired

Transform your window and door production with this versatile punching machine. Whether crafting intricate hinges for aluminum frames or durable components for PVC systems, this tool ensures precision and efficiency while prioritizing operator safety.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Processing Speed15 cycles/min+15% (17.25 cycles/min)+30% (19.5 cycles/min)*
Precision Tolerance±0.3mm±0.2mm±0.1mm
Tooling FlexibilityBasic punch setMulti-tool adapterFull modular system

Supplier's note

  1. Technical Breakthroughs:

    • EN ISO 12100 Compliance: Ensures safety in high-risk manufacturing environments.
    • Ergonomic Design: Reduces operator fatigue and learning curves.
    • Material Versatility: Handles both PVC and aluminum without tool changes.

  2. Version Selection Guide:

    • Base Model: Ideal for small workshops requiring basic hinge production (e.g., local door manufacturers).
    • Advanced Model: Suitable for medium-scale operations needing faster speeds and multi-tool adaptability (e.g., commercial window fabricators).
    • Pro Model: Best for high-volume production lines demanding ultra-precision and full customization (e.g., industrial machinery suppliers).

With the Pro Model’s ±0.1mm precision, you can achieve flawless hinges for premium aluminum doors, ensuring a perfect fit. Pair this with its modular tooling system to adapt to evolving design trends, reducing downtime and costs.

*Comparative performance improvement over the Base Model.

Frequently asked questions

  • Which Aluminum Punching Machine model is best suited for small workshop operations?

  • How do I maintain the punching head of the PVC Window Machine to ensure longevity?

  • PVC vs Aluminum for window hinges: Which material is better for durability?

  • Can the hole spacing on the Aluminum Punching Machine be customized for specific hinge designs?

  • Is the Aluminum Punching Machine EN ISO 12100 certified for safety compliance?

  • What makes the PVC Window Machine easy to operate compared to traditional models?

  • Does the Aluminum Punching Machine support 220V voltage in commercial settings?

  • Can the machine handle both aluminum and PVC simultaneously for mixed production runs?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompatibilityManufacturing PVC/Aluminum window framesIndustry: PVC only (ISO 14643)
Base: PVC & Aluminum (EN 1317-1)
Advanced: +Steel (ASTM B209 ▲▲)		Advanced supports heavy-duty steel for industrial use ▲▲
Base reduces material switching costs		Advanced requires additional tooling ▲▲
Industry standard limits material flexibility
Safety CertificationCompliance-driven manufacturingIndustry: Basic safety (ISO 12100)
Base: EN ISO 12100
Advanced: +OSHA 1910.212 (▲)		Advanced meets stricter global safety standards ▲
Base ensures baseline compliance		Advanced may incur higher certification costs ▲
Voltage CompatibilityGlobal installation flexibilityIndustry: 220V only
Base: 220V 50Hz (IEC 60038)
Advanced: 110-240V auto-adjust (▲▲)		Advanced works worldwide without converters ▲▲
Base matches standard grids		Base requires local voltage matching ▲▲
Advanced adds complexity to electrical setup
Ease of OperationSmall workshops with limited trainingIndustry: 40h training (ISO 19404)
Base: 8h training (▲)
Advanced: 2h + AI guidance (▲▲)		Advanced cuts training time by 95% ▲▲
Base reduces operator skill dependency		Advanced requires tech-savvy users ▲▲
Industry standard demands costly training
Production SpeedHigh-volume manufacturingIndustry: 15 units/hour (ISO 9283)
Base: 20 units/hour (▲)
Advanced: 25 units/hour (▲▲)		Advanced boosts output by 66% ▲▲
Base improves efficiency by 33%		Advanced consumes 20% more energy ▲▲
Industry standard may bottleneck large orders
Noise LevelUrban workshops with noise restrictionsIndustry: 85 dB (OSHA limit)
Base: 75 dB (▲)
Advanced: 65 dB (▲▲)		Advanced quieter than a fridge hum ▲▲
Base meets most municipal codes		Advanced requires maintenance for noise control ▲▲
Industry standard risks fines
