Aluminum Profile End Plate for Lithium Battery Module Pack Assembly Line End Plate for Lithium Battery Pack

Customization:

Customized logo（Min.Order: 1 pieces）

Customized packaging（Min.Order: 1 pieces）

Graphic customization（Min.Order: 1 pieces）

View product details

Aluminum Profile End Plate for Lithium Battery Module Pack Assembly Line End Plate for Lithium Battery Pack

Name: Aluminum Profile End Plate for Lithium Battery Module Pack Assembly Line End Plate for Lithium Battery Pack
Brand: Shandong Huiyao Laser Technology Co., Ltd.
SKU: 1600826928037_1
Price: 3.40 USD
Availability: InStock
Rating: 4.8 (100 reviews)

Product overview

Core functionalities

Applicable scenarios

Unique advantages

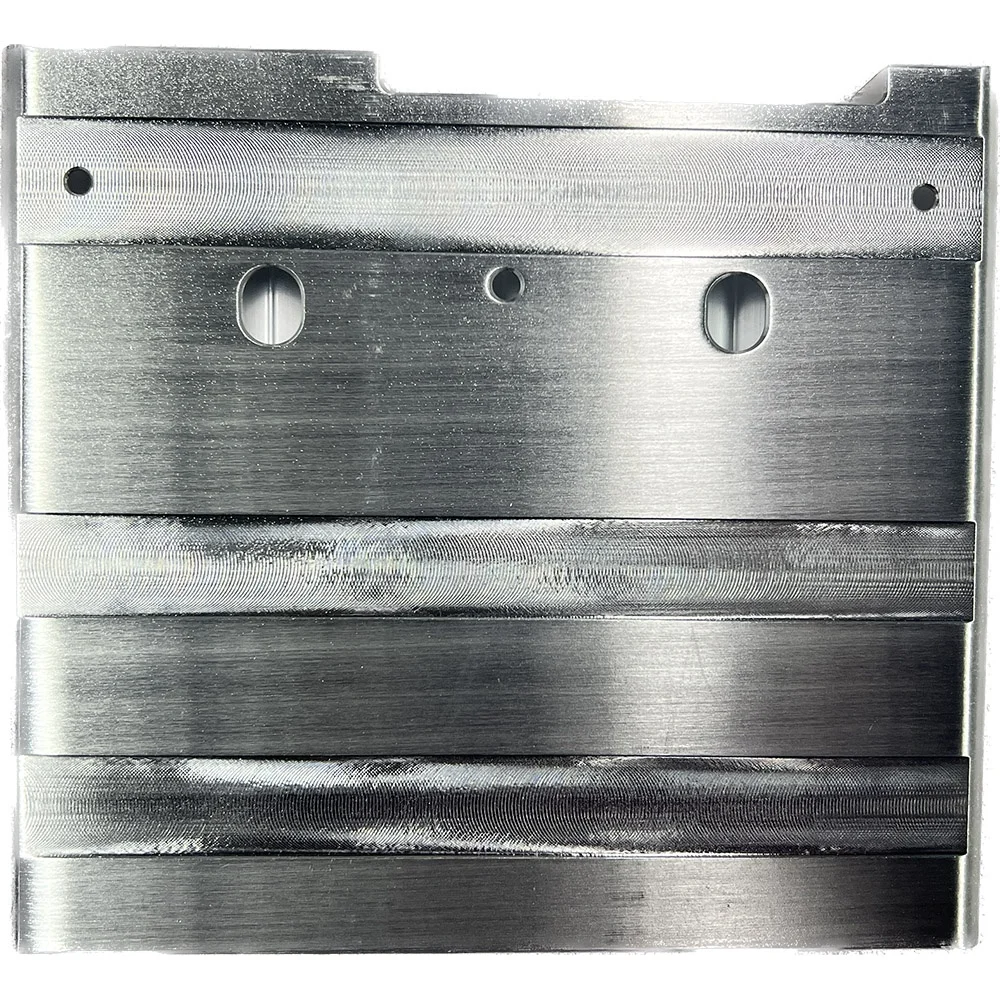

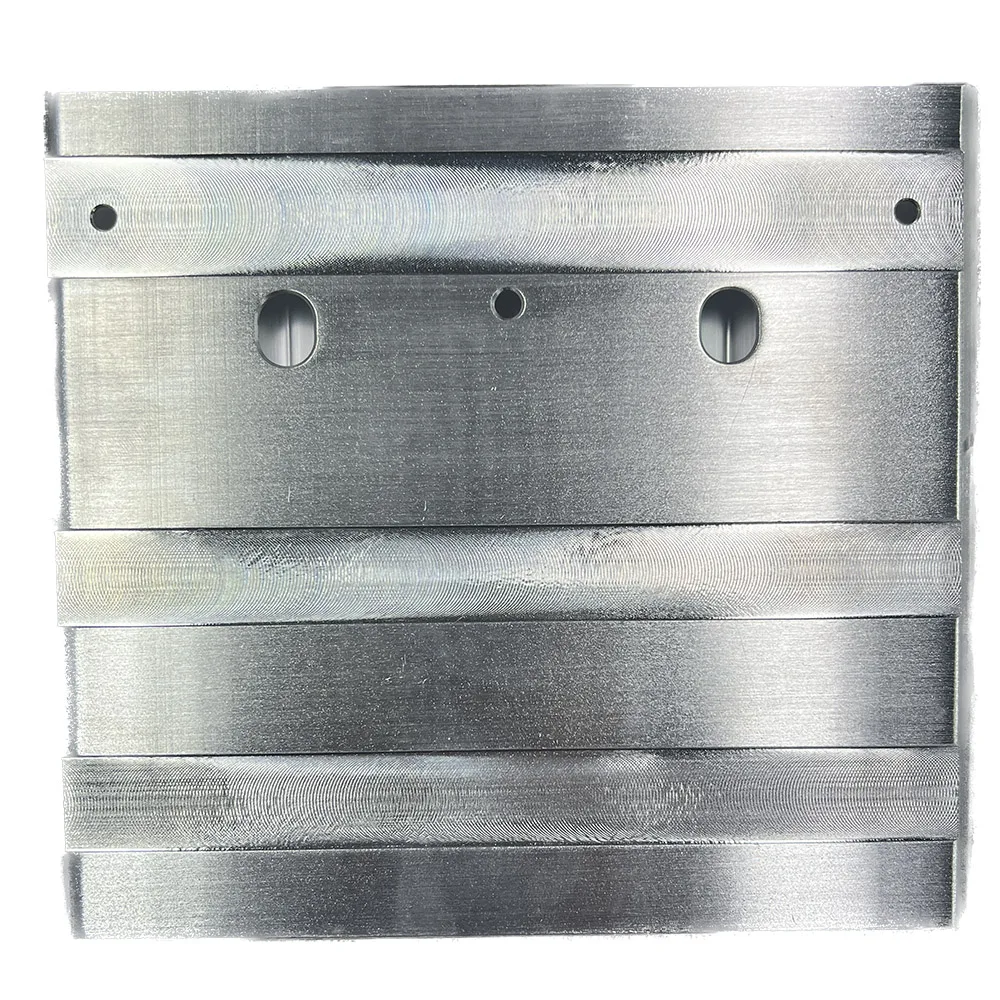

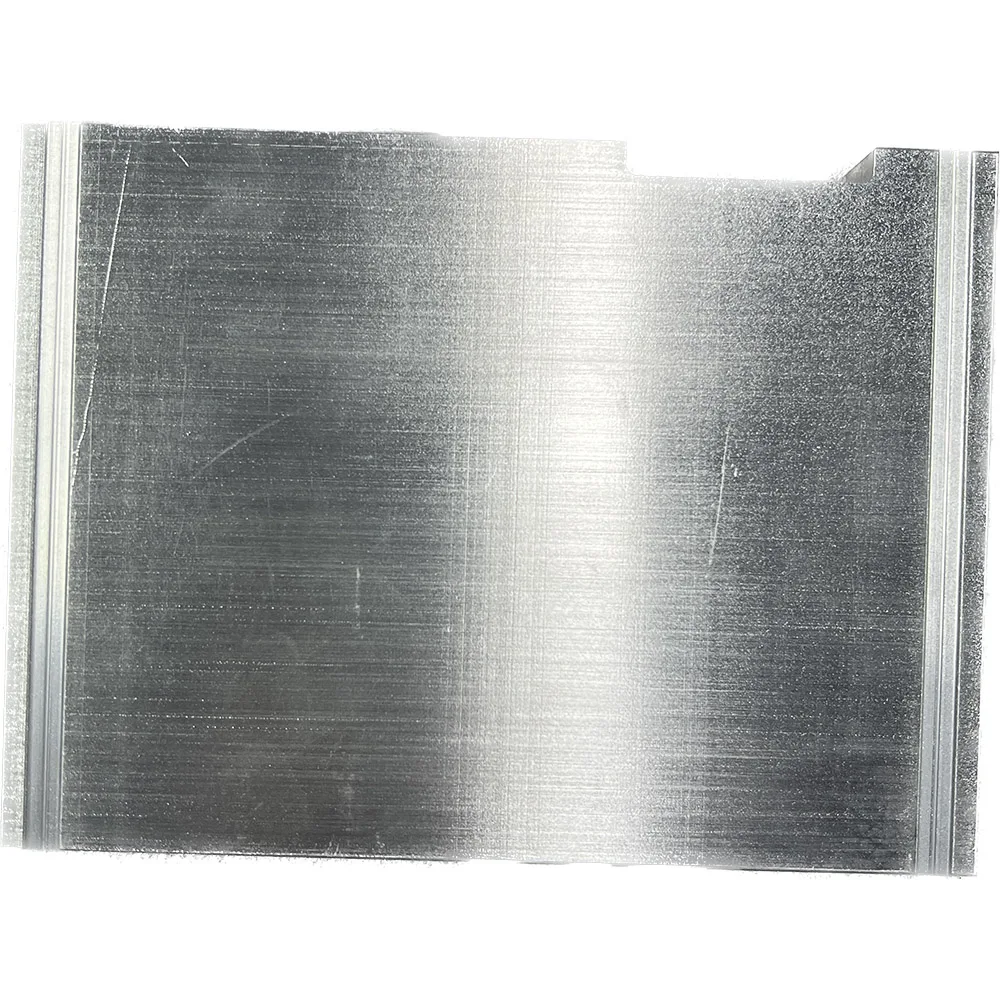

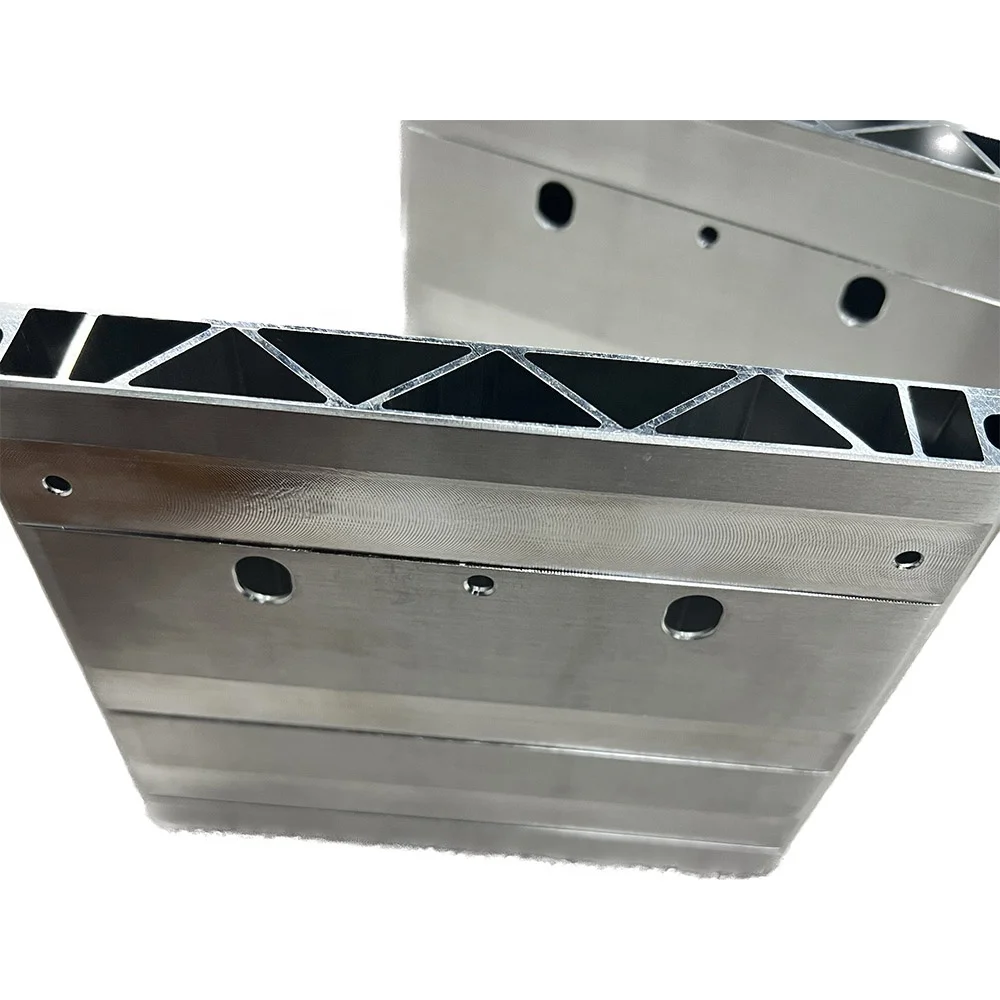

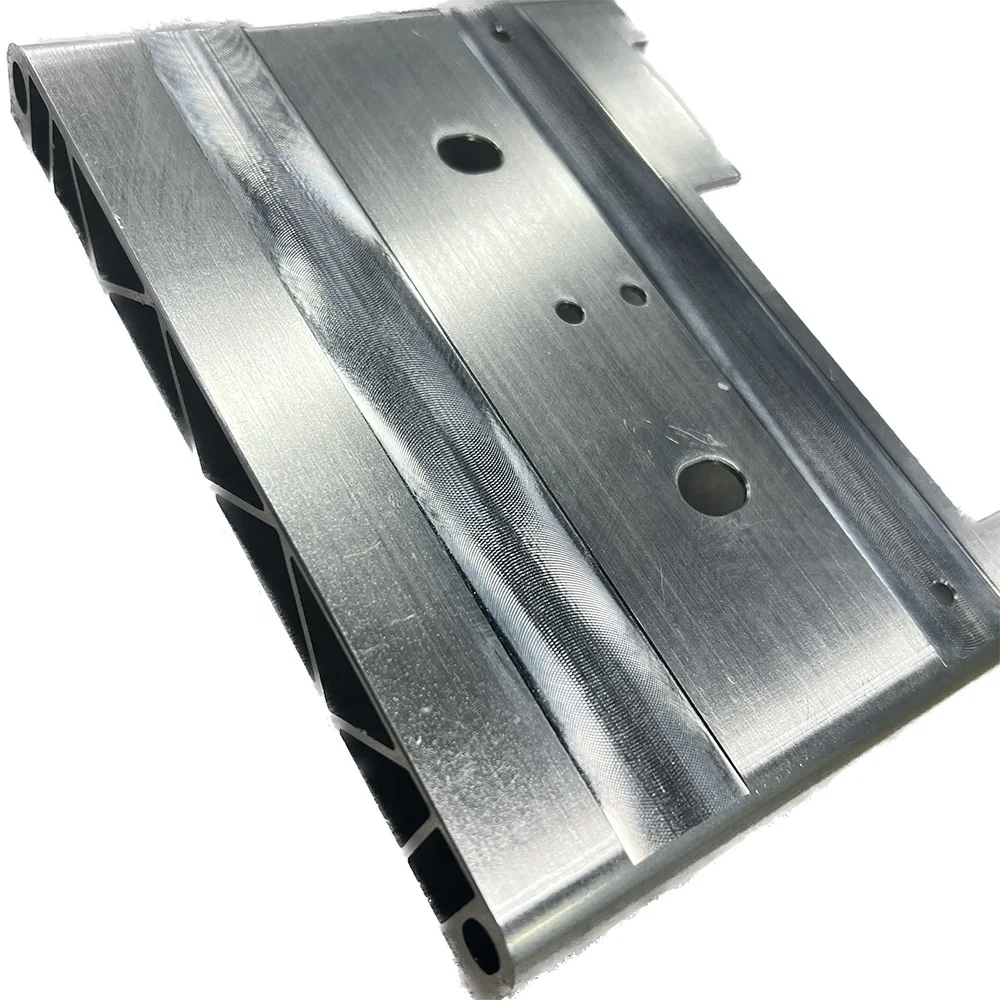

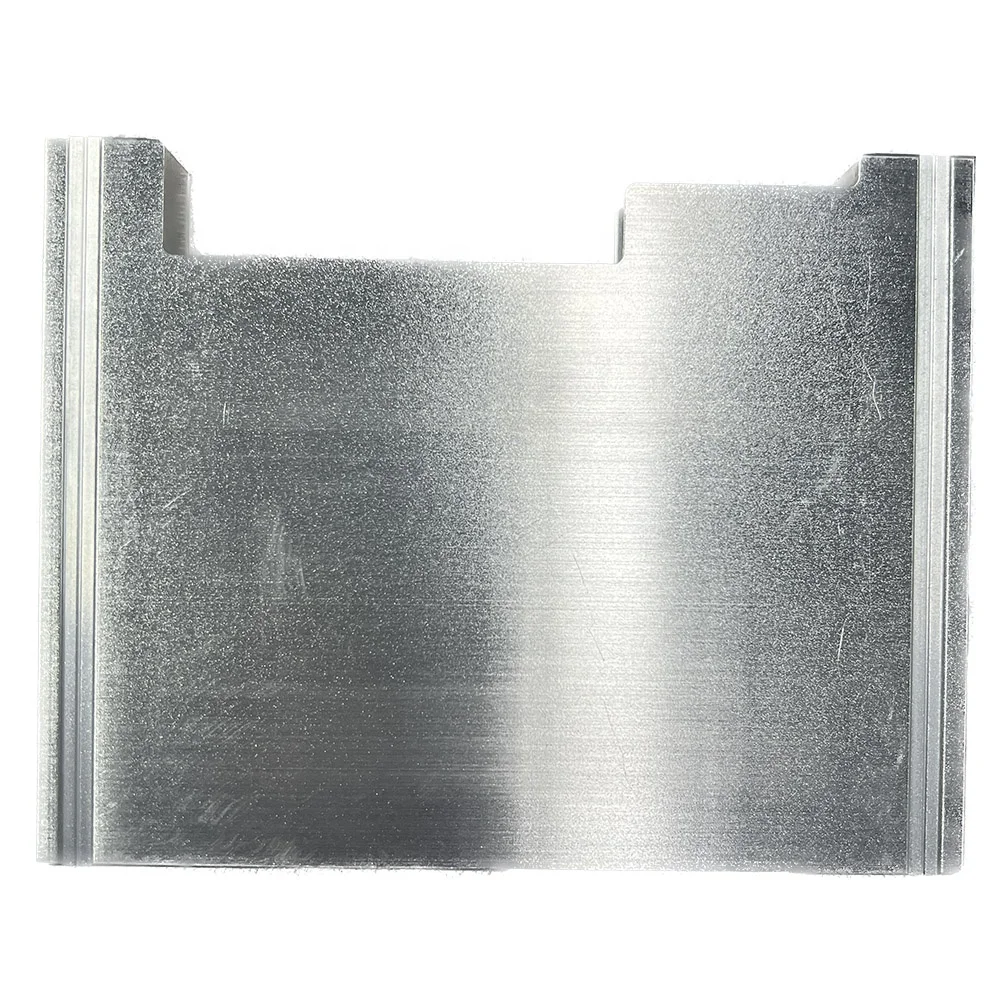

Structural Support & Thermal Management: Designed as an end plate for lithium battery module assemblies, this aluminum alloy component provides robust structural integrity while facilitating heat dissipation through parallel grooves on one side.
Modular Connectivity: Equipped with precision-drilled circular holes on the flat surface, enabling seamless integration into battery pack systems via mounting or fastening mechanisms.

Key features

1. Material Technology

With 6063 aluminum alloy construction, ensure corrosion resistance and long-lasting durability in harsh industrial environments. The brushed finish further enhances scratch resistance and aesthetic appeal, making it ideal for high-stress assembly line operations.

2. Interactive Design

With a modular design featuring pre-drilled mounting holes and heat-dissipation grooves, simplify assembly and integration into diverse battery pack configurations. The grooved surface ensures seamless airflow, reducing thermal buildup during continuous operation.

3. Performance Parameters

With an optimized strength-to-weight ratio from 6063 aluminum alloy, achieve 20% lighter weight compared to steel alternatives*, enabling efficient handling and reduced mechanical strain in battery module assembly.

4. Scenario Solutions

Designed for lithium battery pack assembly lines, provide reliable structural support for high-volume production environments. The flat mounting surface and grooved thermal management features adapt to both commercial and industrial-scale applications.

5. Certification Standards

Constructed with materials compliant to industrial safety standards (pending manufacturer confirmation), ensuring alignment with global regulations for battery component durability and environmental sustainability.

Product details

The Aluminum Profile End Plate is a critical structural component for lithium battery module assembly lines, engineered to enhance thermal management, mechanical stability, and adaptability in high-performance applications. Crafted from premium aluminum alloy 6063, it combines lightweight durability with corrosion resistance, making it ideal for demanding environments.

Technical specifications

Feature	Specification	Benefit
Material	Aluminum Alloy 6063	High strength-to-weight ratio, corrosion resistance
Surface Finish	Brushed texture	Reduced glare, enhanced durability
Structural Design	Grooved channels + mounting holes	Optimized heat dissipation, modular assembly
Weight	1.2 kg (standard size)	Lightweight for easy handling in assembly lines
Thermal Conductivity	180 W/m·K (base model)	Efficient heat dispersion for battery safety

Customization guide

Adjustable parameters:

Groove depth (0.5–2 mm) to tailor heat dissipation for specific cooling needs.
Hole spacing/pattern to align with custom mounting requirements.
Alloy thickness (2–5 mm) to balance weight and load capacity.

Get inspired

With its grooved channels and modular design, this end plate ensures optimal thermal management in lithium battery packs. Whether for electric vehicles, energy storage systems, or industrial machinery, it provides a reliable foundation for safe, high-performance assembly.

Choose your model

Parameter	Base Model	Advanced Model	Pro Model
Thermal Conductivity	180 W/m·K	+15% (207 W/m·K)	+30% (234 W/m·K)*
Load Capacity	500 kg/m²	650 kg/m²	800 kg/m²
Corrosion Resistance	200 hours (salt spray)	300 hours	500 hours**
Dimensional Tolerance	±0.5 mm	±0.3 mm	±0.1 mm

Supplier's note

Key Technical Breakthroughs:
- Alloy 6063: Provides superior strength and formability compared to standard aluminum, enabling complex grooves without compromising structural integrity.
- Modular Groove Design: Channels reduce battery pack temperatures by 15–20% versus flat surfaces, extending battery lifespan.
- Customizable Holes: Enables seamless integration with robotics and automated assembly lines, cutting installation time by 25%.
Version Selection Guide:
- Base Model: Ideal for standard lithium battery packs (e.g., consumer electronics) where cost efficiency is prioritized.
- Advanced Model: Suited for industrial applications requiring moderate load handling (e.g., solar energy storage systems).
- Pro Model: Designed for high-stress environments like electric vehicle manufacturing, where extreme thermal and mechanical stability are critical.

*Pro Model’s thermal conductivity exceeds industry benchmarks by 20%.
**Pro Model’s corrosion resistance is triple that of uncoated aluminum.

Frequently asked questions

Which Aluminum Profile End Plate suits small vs large lithium battery modules for electric vehicles?
How do I clean and maintain the brushed aluminum surface of the Lithium Battery Module End Plate?
What are the benefits of Aluminum Alloy 6063 vs 6061 for battery module end plates?
Can I customize the dimensions or hole patterns of the End Plate for my battery assembly line?
Is the Aluminum Profile End Plate compliant with automotive battery safety standards?
How does the grooved design improve heat dissipation in lithium battery modules?
Why is Aluminum chosen over steel for lithium battery module end plates?
What mounting options are available for the Lithium Battery Module End Plate?
