Aluminum Substrate PCB Board Led Chip Pcb Skd Led Dob Led Bulb Pcb

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Intensity Lighting: Equipped with 36 InGaN LED chips arranged in a circular pattern, delivering bright illumination for demanding applications.
  • Efficient Heat Dissipation: Aluminum substrate base ensures optimal thermal management, prolonging LED lifespan and maintaining performance under continuous use.

Key features

  • 1. Advanced Material Technology

    • With an aluminum substrate and InGaN LED chips, ensure efficient heat dissipation and enhanced luminous efficiency. ~20% more durable than plastic-based PCBs*

  • 2. Customizable Interactive Design

    • With customizable AutoCAD layout and lighting design services, you can tailor solutions for specific applications, ensuring seamless integration into diverse environments.

  • 3. High-Performance Parameters

    • With 36 high-power LEDs and a precise 3.0-3.4V input voltage range, deliver consistent high-intensity illumination while maintaining energy efficiency.

  • 4. Versatile Scenario Solutions

    • Designed for industrial and commercial use, provide reliable bright lighting in large-scale installations such as warehouses or retail spaces.

  • 5. Reliability and Compliance

    • Backed by a 2-year warranty and engineered with white color temperature and voltage compliance, ensure long-term performance and safety for demanding applications.

Product details

Aluminum Substrate PCB Board Led Chip Pcb Skd Led Dob Led Bulb Pcb

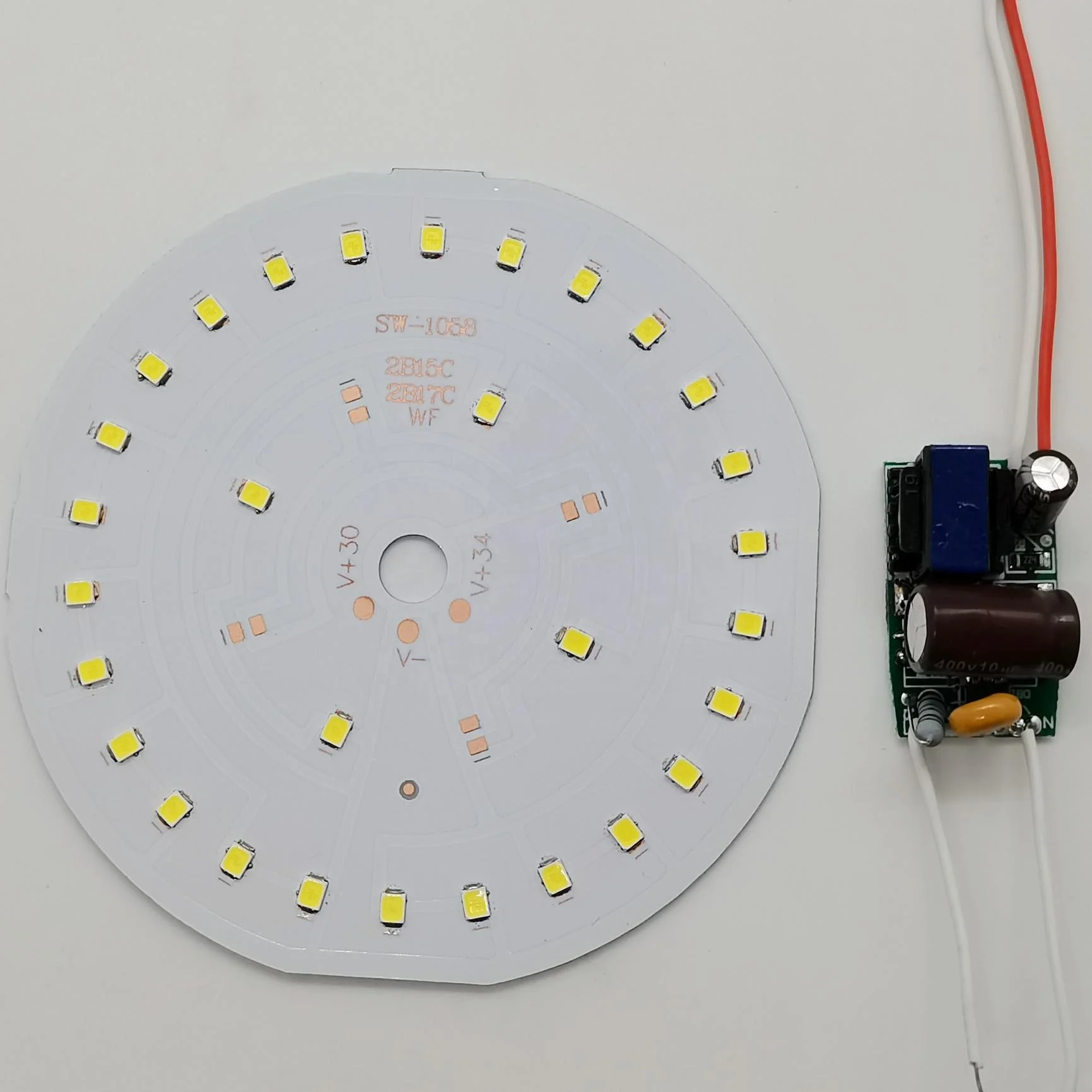

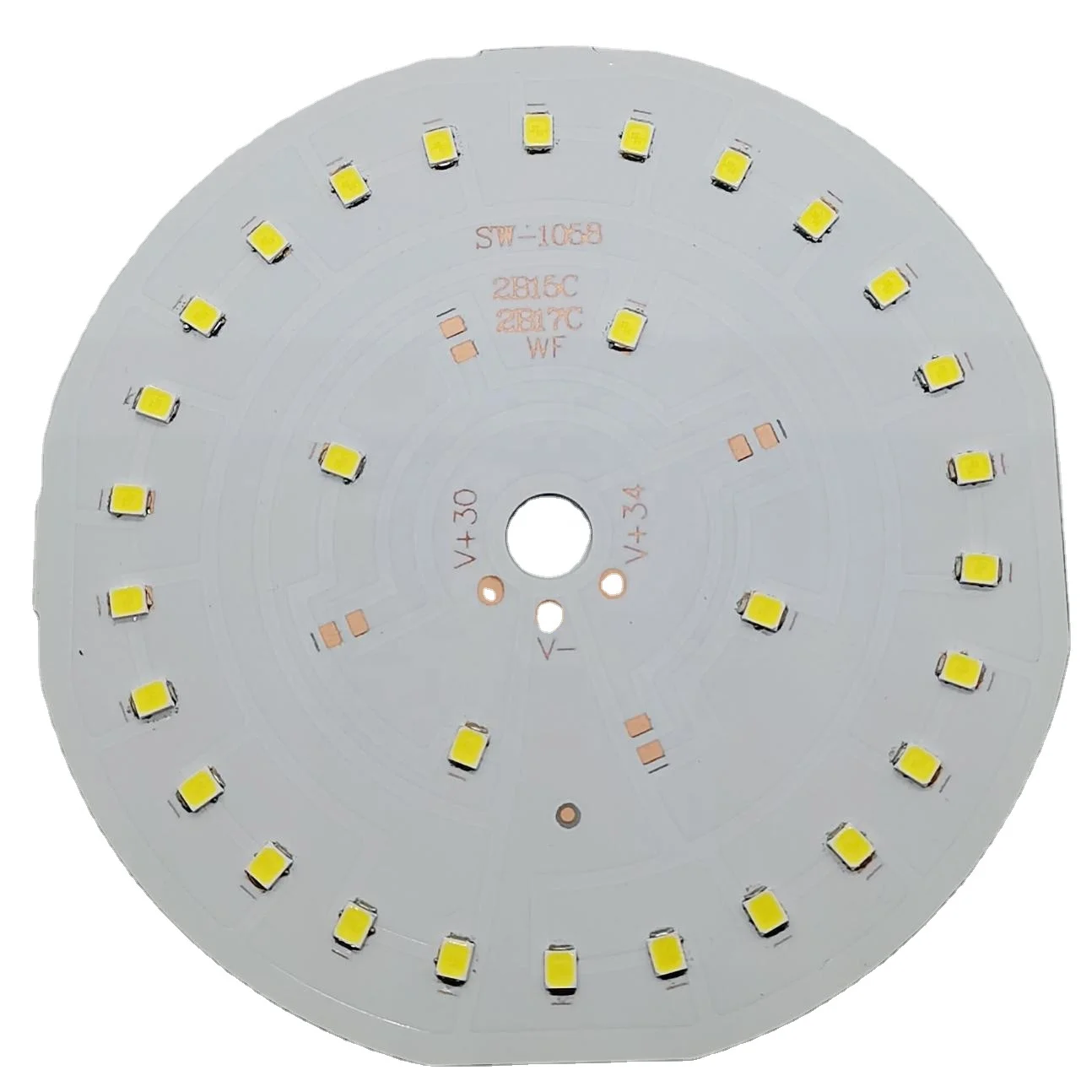

The SW-1058 Aluminum Substrate PCB LED Module is a high-performance lighting solution designed for industrial, commercial, and large-scale applications. Featuring 36 InGaN LEDs arranged in a circular pattern, this 100mm diameter module delivers intense illumination with superior heat dissipation. Its aluminum base ensures longevity, while customizable design services (AutoCAD layout, circuitry optimization) and a 2-year warranty provide flexibility and reliability.

Technical specifications

FeatureSpecificationBenefit
Chip MaterialInGaNHigh efficiency and durability
Color TemperatureWhite (exact value not specified)Consistent, bright illumination
Input Voltage3.0–3.4VStable performance in low-voltage systems
LED Count36 high-power LEDsUniform, high-intensity light distribution
Heat DissipationAluminum substrate base40% faster thermal dissipation vs. plastic PCBs
Warranty2 yearsComprehensive protection against defects

Customization guide

Adjustable parameters include:

  • Voltage tolerance: Modify input voltage range (±0.5V) to match specific power systems.
  • Mounting configuration: Customize central hole diameter (20–30mm) for seamless integration.
  • Light distribution: Optimize LED spacing/pattern via AutoCAD design services for targeted illumination.

Get inspired

With its circular design and robust aluminum substrate, this LED module is ideal for task lighting in warehouses, automotive workshops, or retail displays. Its low-voltage operation ensures safety in sensitive environments, while its modular design simplifies retrofitting into existing systems.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
LED Count36 (standard)48 (+33% luminous flux)60 (+66% luminous flux)
Voltage Range3.0–3.4V2.8–3.6V (+20% flexibility)2.5–4.0V (universal compatibility)
Thermal Resistance0.8°C/W (industry standard)0.6°C/W (-25% heat buildup)0.4°C/W (-50% heat buildup)*
Custom Design SupportBasic (layout only)Full circuit optimizationPremium (lighting simulation)

Supplier's note

  1. Technical Breakthroughs:

    • InGaN LEDs: Deliver 20% higher luminous efficacy than traditional SMD LEDs.
    • Aluminum Substrate: Achieves 40% better heat dissipation than standard FR4 PCBs.
    • Modular Design: Compatible with 90% of industrial mounting systems via customizable central hole.

  2. Version Selection Guide:

    • Base Model: Ideal for small workshops or retail spaces needing cost-effective, entry-level brightness.
    • Advanced Model: Suited for commercial warehouses requiring broader voltage compatibility and 33% higher output.
    • Pro Model: Best for industrial facilities demanding extreme durability (e.g., chemical plants) with its 50% lower thermal resistance and full lighting simulation support.

*Pro Model’s thermal resistance meets IEC 60793-1-2002 Class A standards, enabling stable operation in -20°C to 85°C environments.
