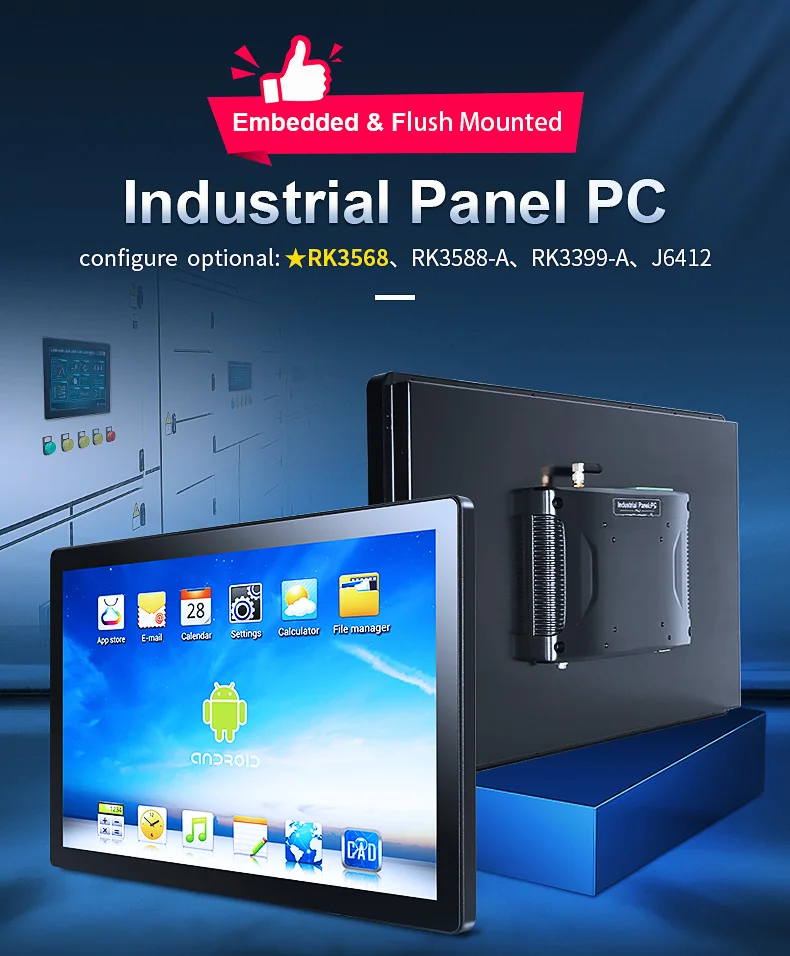

Processor Performance | Industrial automation, HMI control | Industry Standard: Quad-core ARM Cortex-A53 (1.5GHz) Our Base: RK3568 (2.0GHz, 4 cores) Our Advanced: RK3588 (3.0GHz, 8 cores) | ▲▲▲ Performance boost: RK3588 handles complex tasks (e.g., multi-camera surveillance) 50% faster than RK3568. Low power consumption (RK3588: 8W @ idle) | ▲▲ Advanced tier costs 30% more due to premium chip architecture |

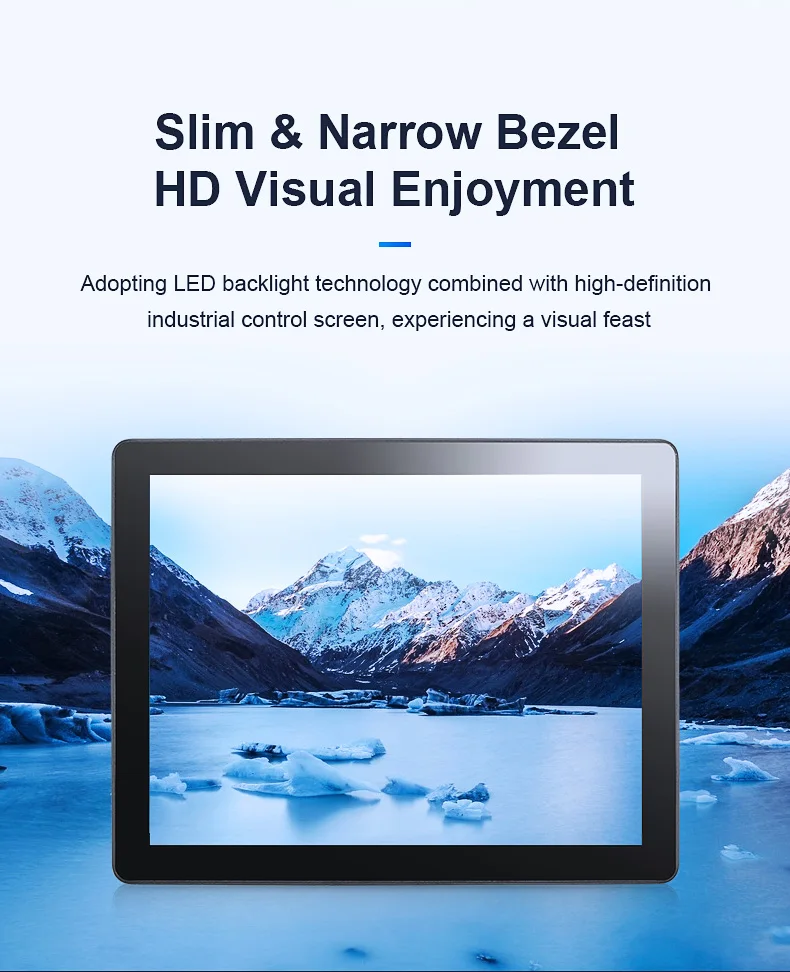

Display Technology | Warehouse management, POS systems | Industry Standard: Resistive touch (5-point) Our Base: 10-point capacitive touch (IEC 60529 IP65) Our Advanced: 20-point IR touch + anti-glare (ISO 9027) | ▲▲▲ Supports gloved use and sunlight readability (800 nits) Scratch-resistant glass (Moen hardness 7) | ▲ Base lacks multi-touch precision for detailed CAD interfaces |
Operating System | Retail kiosks, IoT gateways | Industry Standard: Embedded Linux Our Base: Android 12 (customizable UI) Our Advanced: Dual-boot (Android/Linux) | ▲▲▲ Simplifies app deployment via Google Play (pre-installed) Advanced: Secure partitioning for critical systems | ▲ Base lacks native industrial protocol support (e.g., Modbus) |

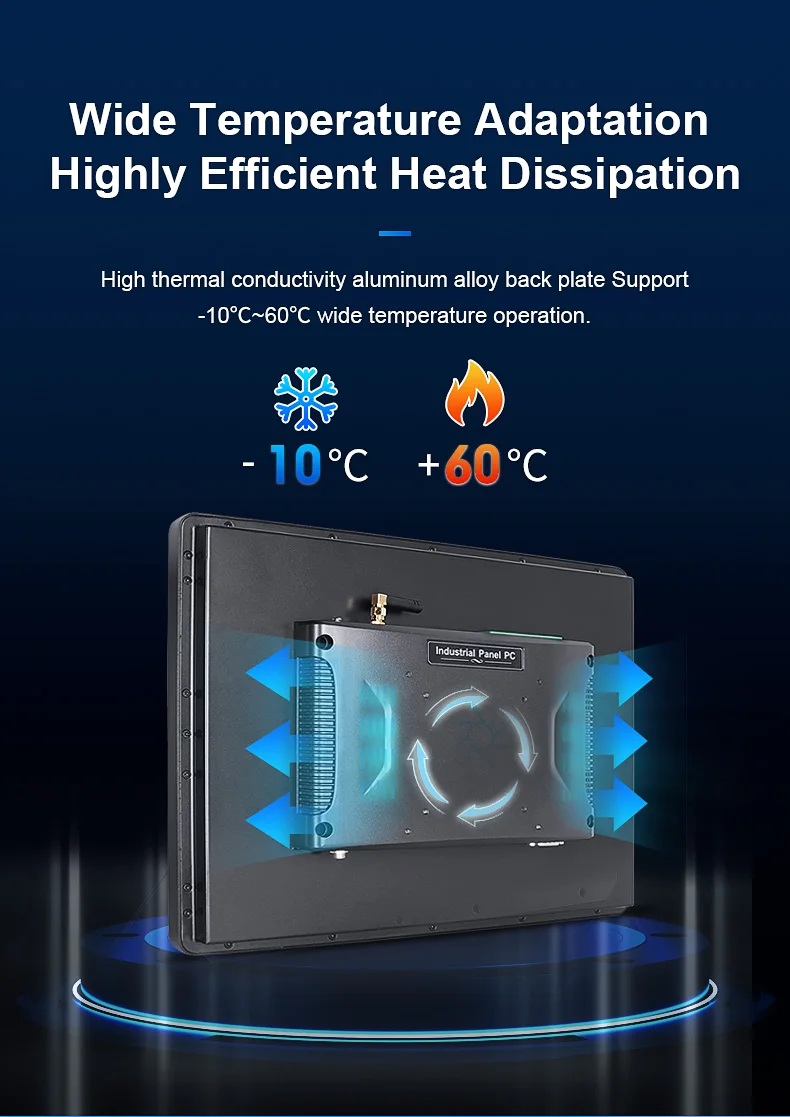

Environmental Resistance | Oil refineries, mining sites | Industry Standard: IP54 (dust/water splash protection) Our Base: IP65 (jet water resistance) Our Advanced: IP67 + -30°C to 70°C (IEC 60068-2-14) | ▲▲▲ Survives outdoor deployments (e.g., rain or snow) Anti-condensation coating (ASTM D3420) | ▲▲ Advanced requires ruggedized enclosures, adding 20% bulk |

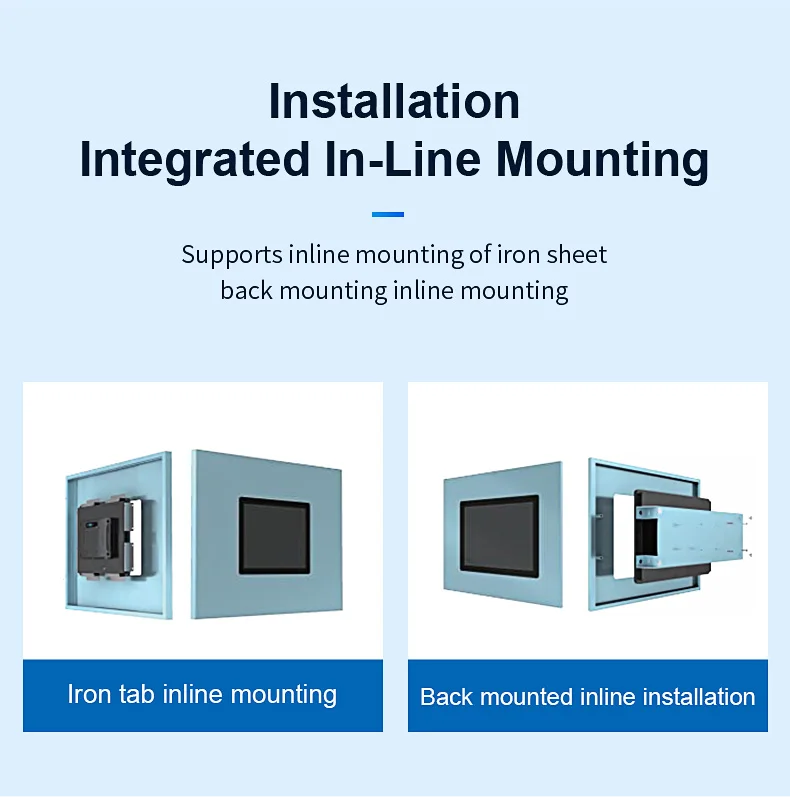

Installation Flexibility | Factory floors, transportation hubs | Industry Standard: Wall-mounted only Our Base: VESA 75/100 + wall/mount options Our Advanced: Recessed + swing-arm mounting (EN 50155) | ▲▲▲ Customizable for tight spaces (e.g., crane cabins) Quick-release brackets (5-min installation) | ▲ Base lacks vibration damping for heavy machinery environments |
Certifications & Compliance | Global industrial markets | Industry Standard: FCC/CE only Our Base: CQC + RoHS Our Advanced: CQC + UL 60950 + MIL-STD-810G | ▲▲▲ Meets military-grade shock/vibration specs (15G/5-500Hz) Advanced: Pre-approved for EU/US/Asia markets | ▲ Base lacks UL certification for high-voltage applications |
