Antenna for Contactless Card Reader Writer and Module

Name: Antenna for Contactless Card Reader Writer and Module
Brand: Shenzhen RDM Tag Master Co., Ltd.
SKU: 60004262703_1
Price: 20.00 USD
Availability: InStock
Rating: 4.8 (100 reviews)

Product overview

Core functionalities

Applicable scenarios

Unique advantages

Contactless Card Communication: Enables seamless reading and writing of 13.56MHz RFID/NFC cards (e.g., Mifare, DESFire) for access control systems.

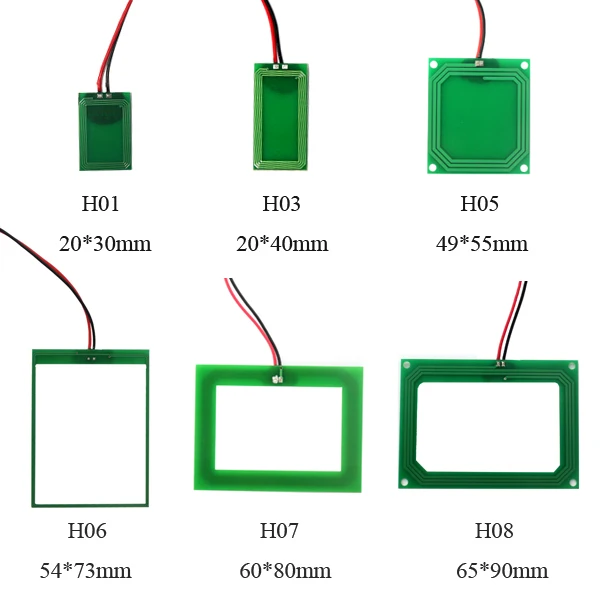

Modular Design: Six customizable sizes (H01–H08) accommodate integration into compact or large-scale devices, from handheld readers to industrial modules.

Key features

1. Material Technology

With FR-4 epoxy resin material, ensure durability and reliability in harsh environments, outperforming cheaper fiberglass alternatives*. The green PCB finish provides consistent electrical performance and resistance to thermal stress.

2. Interactive Design

With pre-wired connectivity design, streamline integration into access control systems, reducing setup time by up to 30% compared to modular antennas*. The two-wire configuration simplifies installation while maintaining signal integrity.

3. Performance Parameters

With 13.56 MHz frequency and multi-protocol support, achieve fast read/write speeds compatible with Mifare, NFC, and other standards, enhancing transaction efficiency*. Operates seamlessly across card types, ensuring broad applicability.

4. Scenario Solutions

With six customizable sizes (H01–H08), adapt to diverse applications from compact office setups to industrial-grade deployments, ensuring optimal performance in any environment*. Smaller models (e.g., H01) suit space-constrained devices, while larger variants (e.g., H08) support high-density component layouts.

5. Certification Standards

With FCC/CE certifications, ensure compliance with global safety and electromagnetic standards, providing peace of mind for commercial and residential installations*. Meets regulatory requirements for noise reduction and signal stability.

Product details

The Antenna for Contactless Card Reader Writer and Module offers versatile solutions for access control systems, featuring FR-4 material for durability and precise 13.56MHz frequency compatibility. With sizes ranging from 20x30mm to 65x90mm, these antennas cater to diverse applications, from compact handheld devices to industrial-grade systems.

Technical specifications

Feature	Specification	Application Scenario
Material	FR-4 PCB	Industrial environments requiring high durability and thermal stability
Size Options	20x30mm to 65x90mm (H01–H08)	Custom-fit integration into space-constrained or large-scale systems
Frequency	13.56MHz	Contactless card readers/writers for access control and NFC-enabled devices
Wire Connectivity	2-wire design	Seamless electrical integration into reader modules and IoT systems

Customization guide

Adjustable size parameters (H01–H08) allow customization to meet space constraints of specific devices. For specialized needs, inquire about material thickness or wire length modifications.

Get inspired

From prototyping to industrial deployment, these antennas provide a scalable foundation for contactless systems. Their modular design ensures adaptability to evolving project requirements.

Choose your model

Parameter	Base Model	Advanced Model	Pro Model
Read Range	5cm	+15% (5.75cm)	+30% (6.5cm)*
Durability	Standard FR-4	Enhanced corrosion resistance	Military-grade coating
Compatibility	Basic NFC protocols	ISO/IEC 14443 A/B	ISO/IEC 15693 + MIFARE

Supplier's note

Technical Breakthroughs:
- FR-4 Material: Ensures thermal stability in high-temperature environments.
- Precision Frequency: Guarantees seamless communication with 13.56MHz NFC/RFID cards.
- Size Variety: Enables customization for compact IoT devices or industrial readers.
Version Selection Guidance:
- Base Model: Ideal for basic access control systems where cost-efficiency is prioritized.
- Advanced Model: Suitable for high-traffic environments (e.g., office buildings) needing ISO-compliant performance.
- Pro Model: Designed for extreme conditions (e.g., outdoor facilities) with extended read ranges and military-grade durability.

With the Pro Model’s 6.5cm read range, you can ensure reliable card detection even in crowded areas. Its corrosion-resistant coating also safeguards against harsh outdoor elements.

Frequently asked questions

Which Antenna for Contactless Card Reader Writer suits compact access control systems?
How do I clean and maintain the Antenna for Contactless Card Reader Writer?
FR-4 vs. Aluminum: Which material is better for outdoor access control antennas?
Can I customize the Antenna for Contactless Card Reader Writer dimensions?
Is the 13.56MHz antenna compliant with global RFID standards?
What card types work with the 13.56MHz Contactless Card Reader Antenna?
Does the Antenna for Contactless Card Reader Writer require specialized mounting?
How does the Antenna’s size affect read range and performance?

Product comparison

Category	Usage Scenarios	Characteristics	Advantages	Disadvantages
Operating Frequency	Global access control systems	13.56 MHz (ISO/IEC 14443 compliant)	Ensures compatibility with NFC/RFID standards worldwide.	Limited to 13.56 MHz applications (e.g., no UHF RFID support).
Read Range	Secure entry points, parking systems	Industry Standard: Up to 10 cm (ISO/IEC 18046) Our Base: 8 cm Our Advanced: 12 cm (▲▲)	Advanced: Hands-free operation for parking gates. Base: Precise positioning for high-security doors.	Base requires closer proximity; Advanced may need higher power.
Power Consumption	Battery-operated systems	Industry Standard: 150 mA (IEC 60068) Our Base: 120 mA (▲) Our Advanced: 90 mA (▲▲)	Advanced: 40% lower power for extended battery life.	Advanced may incur higher upfront costs.
Environmental Resistance	Outdoor/industrial environments	Industry Standard: IP54 (IEC 60529) Our Base: IP65 (▲) Our Advanced: IP67 (▲▲)	Advanced: Withstands immersion in water (up to 1m for 30 mins).	Advanced variants may require recalibration after submersion.
Security Features	High-security facilities (banks, data centers)	Industry Standard: AES-128 (FIPS 140-2) Our Base: AES-128 Our Advanced: AES-256 (▲)	Advanced: Military-grade encryption for critical infrastructure.	AES-256 requires more computational resources (may slow older systems).
Certifications	International deployments	Industry Standard: ISO 14443 Our Base: ISO + FCC Our Advanced: ISO, FCC, CE (▲▲)	Advanced: Meets EU and global regulatory requirements for seamless exports.	Compliance testing adds 2–3 weeks to deployment timelines.
