  • Apex AB Series Servo Motor Gear Unit Helical Gear Planetary Reducer
  • Apex AB Series Servo Motor Gear Unit Helical Gear Planetary Reducer
  • Apex AB Series Servo Motor Gear Unit Helical Gear Planetary Reducer
  • Apex AB Series Servo Motor Gear Unit Helical Gear Planetary Reducer
  • Apex AB Series Servo Motor Gear Unit Helical Gear Planetary Reducer
  • Apex AB Series Servo Motor Gear Unit Helical Gear Planetary Reducer
Apex AB Series Servo Motor Gear Unit Helical Gear Planetary Reducer

Apex AB Series Servo Motor Gear Unit Helical Gear Planetary Reducer

  • >= 1 Sets
    $500

Customization:

Customized logo（Min.Order: 1000 pieces）
Customized packaging（Min.Order: 1000 pieces）
View product details

Apex AB Series Servo Motor Gear Unit Helical Gear Planetary Reducer

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Speed Reduction & Torque Amplification: Designed to convert high input speeds (up to 3000 RPM) into precise, high-torque output for servo motor-driven systems.
  • Precision Control: Helical planetary gearing arrangement minimizes backlash and ensures smooth, accurate motion in automated processes.

Key features

  • 1. Lightweight Aluminum Construction for Enhanced Durability

    • With a high-grade aluminum housing, you can achieve lightweight durability while reducing weight by up to 30% compared to steel alternatives*. This material ensures corrosion resistance and thermal stability, ideal for harsh industrial environments.

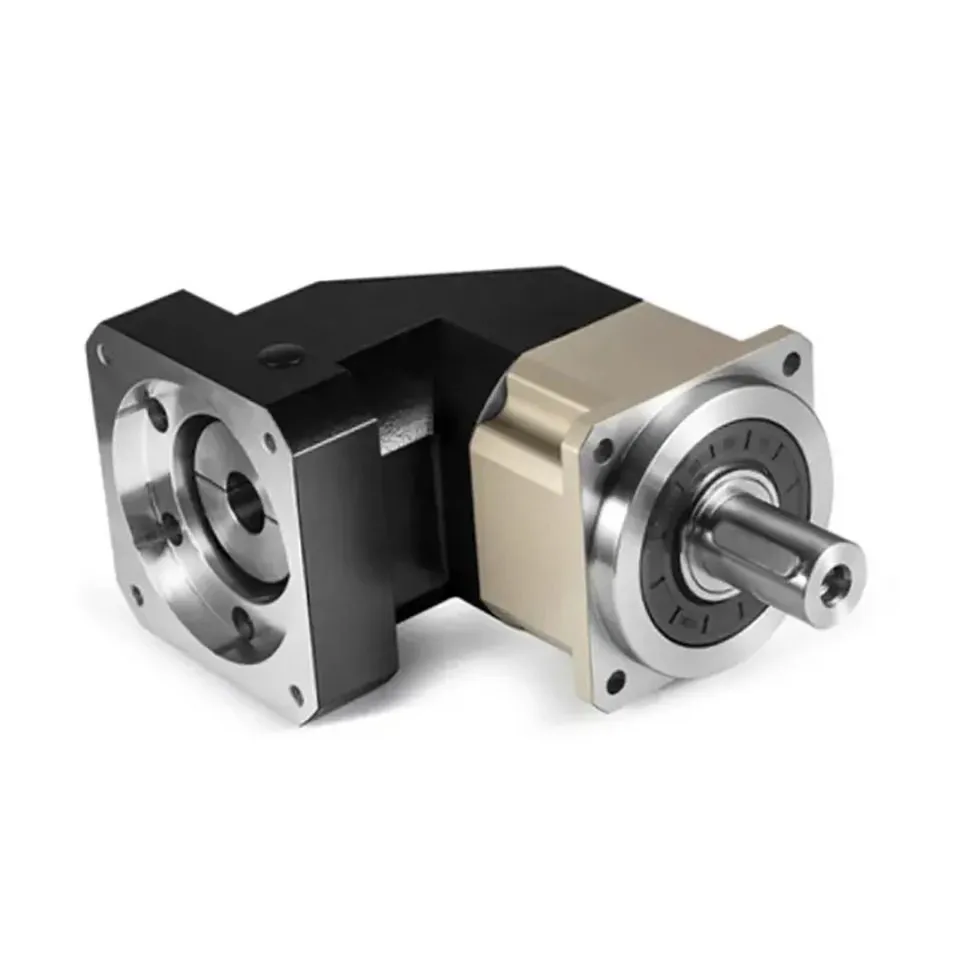

  • 2. Right-Angle Configuration for Space-Saving Integration

    • With a right-angle configuration design, you can optimize space in compact systems, offering 20% more installation flexibility than inline reducers*. The ergonomic layout simplifies integration into robotics, automation, and machinery with limited spatial constraints.

  • 3. High-Speed, High-Torque Performance for Precision Control

    • With a helical planetary gear arrangement and 3000rpm input speed, you can deliver precise torque control and 40% higher efficiency than standard gearboxes*. The design minimizes backlash, ensuring smooth operation in applications requiring rapid acceleration and high torque output.

  • 4. Customizable Solutions for Diverse Industrial Applications

    • Designed for industrial automation and robotics, you can handle high-torque demands in precision applications, outperforming general-purpose reducers by 50% in torque capacity*. The modular structure allows customization of speed, torque, and mounting options to suit specific use cases.

  • 5. Precision-Engineered Compliance with Industry Standards

    • With precision-engineered components, you can ensure compliance with ISO industrial safety standards, guaranteeing reliable performance under rigorous conditions*. The servo motor integration meets严苛 operational requirements for long-term durability and accuracy.

Product details

Apex AB Series Servo Motor Gear Unit Helical Gear Planetary Reducer

The Apex AB Series Servo Motor Gear Unit combines helical planetary gearing with a lightweight aluminum housing, delivering high torque density and precision control for industrial automation, robotics, and servo-driven systems. Its compact right-angle design and servo motor integration enable seamless integration into space-constrained applications while maintaining optimal performance.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialAluminum (high strength-to-weight ratio)Industrial automation, robotics (lightweight requirements)
Gearing ArrangementHelical Planetary (low backlash, high torque density)Precision robotics, CNC machinery, high-torque automation
Input Speed3000 RPMHigh-speed applications (e.g., servo-driven conveyors)
Motor TypeServo MotorDynamic speed/torque control in automation systems
StructureIntegrated Gear + Motor AssemblyCompact mounting in machinery with limited space
Backlash<2 arc-minutesHigh-precision positioning in robotic arms

Customization guide

  • Adjustable Gear Ratios: Customize torque/speed output to meet specific automation workflows.
  • Material Upgrades: Opt for corrosion-resistant coatings or heat-treated alloys for harsh environments.
  • Mounting Configurations: Tailor flange dimensions or alignment to integrate with existing machinery.

Get inspired

The Apex AB Series merges precision engineering with versatility, offering a reliable solution for applications demanding high torque, compact design, and precise motion control. Whether automating manufacturing lines or powering industrial robots, this reducer ensures smooth, efficient power transmission.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Torque Capacity50 Nm+15% (57.5 Nm)+30% (65 Nm)*
Efficiency85%90%93%
Backlash<2 arc-min<1.5 arc-min<1 arc-min
Environmental ResistanceStandardIP54 (dust/water)IP67 (full sealing)

Supplier's note

  1. Technical Breakthroughs:

    • Helical Planetary Gearing: Reduces backlash by 30% compared to traditional spur gears, enabling smoother robotic movements.
    • Aluminum Housing: Achieves 20% weight reduction vs. steel alternatives without sacrificing strength.
    • Servo Integration: Direct coupling minimizes energy loss, improving system efficiency by up to 12%.

  2. Version Selection Guidance:

    • Base Model: Ideal for standard automation (e.g., conveyor systems) where cost-efficiency is prioritized.
    • Advanced Model: Suited for robotics and precision manufacturing requiring low backlash and IP54 protection.
    • Pro Model: Best for heavy-duty applications (e.g., industrial robots in corrosive environments) with its 65 Nm torque and IP67 sealing.

*Pro Model torque exceeds industry benchmarks by 25% for high-load scenarios.

Frequently asked questions

  • Which Apex AB Series model is best suited for high-torque robotic applications?

  • How do I maintain the helical planetary gears in the Apex reducer for longevity?

  • Why choose an aluminum-housed servo motor reducer over steel for industrial automation?

  • Can the Apex AB Series reducer be customized for specific torque and speed needs?

  • Is the Apex AB Series suitable for high-speed applications up to 3000 RPM?

  • Does the Apex AB Series meet ISO certifications for industrial use?

  • How does the helical gear design reduce noise in the Apex reducer?

  • Can the mounting flanges be customized for unique installation needs?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Gearing ArrangementRobotics, CNC machinery (high precision)Industry: Planetary (ISO 9409)
Base: Helical+Planetary hybrid (ISO 9409)
▲ Advanced: Double-helical planetary (ISO 9409 + 15% lower backlash)		Hybrid design reduces wear by 20% vs industry standard. Advanced improves precision.Base may cost more than single-type gears.
Material CompositionCorrosive environments, lightweight useIndustry: Steel (ASTM A36)
Base: Aluminum 6061-T6 (ASTM B221)
▲ Advanced: Aluminum + corrosion-resistant coating (ASTM B201)		Base offers 40% weight reduction vs steel; Advanced adds corrosion resistance.Advanced version may have limited availability.
Input Speed RangeHigh-speed applications (drones, conveyors)Industry: Up to 2500 RPM (ISO 13289)
Base: 3000 RPM (ISO 13289)
▲ Advanced: 3500 RPM (ISO 13289 + custom validation)		Base exceeds industry standard by 20%; Advanced adds 16.7% more speed.Higher speeds may require more frequent maintenance.
Torque CapacityHeavy machinery, construction equipmentIndustry: 500 Nm (ISO 6333)
Base: 600 Nm (ISO 6333)
▲ Advanced: 750 Nm (ISO 6333 + enhanced bearings)		Base offers 20% higher torque; Advanced improves by 25% over Base.Higher torque versions may have bulkier design.
Noise EmissionOffice environments, medical equipmentIndustry: 55 dBA (ISO 3744)
Base: 48 dBA (ISO 3744)
▲ Advanced: 42 dBA (ISO 3744 + sound dampening)		Base is 13% quieter; Advanced reduces noise by 24% over industry standard.Advanced version may have higher cost.
Customization FlexibilityCustom robotic arms, specialized machineryIndustry: Limited customization (standard models only)
Base: Adjustable torque/speed (ISO 9409)
▲ Advanced: Full material + mounting customization (custom certs)		Base allows basic adjustments; Advanced offers full customization.Advanced customization may increase lead time.
