Aroma Diffuser Control Board with Provide PCB Assembly OEM Service

Aroma Diffuser Control Board with Provide PCB Assembly OEM Service

  • 100 - 4999 Pieces
    $6
  • 5000 - 9999 Pieces
    $5.80
  • 10000 - 49999 Pieces
    $5.40
  • >= 50000 Pieces
    $5

Customization:

Customized logo（Min.Order: 500 pieces）
Customized packaging（Min.Order: 500 pieces）
Graphic customization（Min.Order: 500 pieces）
View product details

Aroma Diffuser Control Board with Provide PCB Assembly OEM Service

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Temperature & Operation Control: Designed to manage temperature regulation and operational settings for aroma diffusers, enabling precise control via an integrated LCD display and manual adjustment buttons (MODE, SET, UP, DOWN).
  • OEM PCB Assembly Service: Provides customizable printed circuit board assembly solutions tailored to client specifications, ensuring compatibility with diverse device requirements.

Key features

  • 1. Durable Material Technology

    • With FR-4 epoxy substrate and robust component assembly, ensure long-lasting reliability in home environments.

  • 2. User-Friendly Interactive Design

    • With an integrated LCD display and manual control buttons (MODE, SET, UP/DOWN), allow intuitive monitoring and adjustment of settings.

  • 3. Precision Temperature Control Performance

    • With precise temperature regulation capabilities, maintain consistent aroma diffusion performance even during extended use.

  • 4. Customizable OEM Solutions

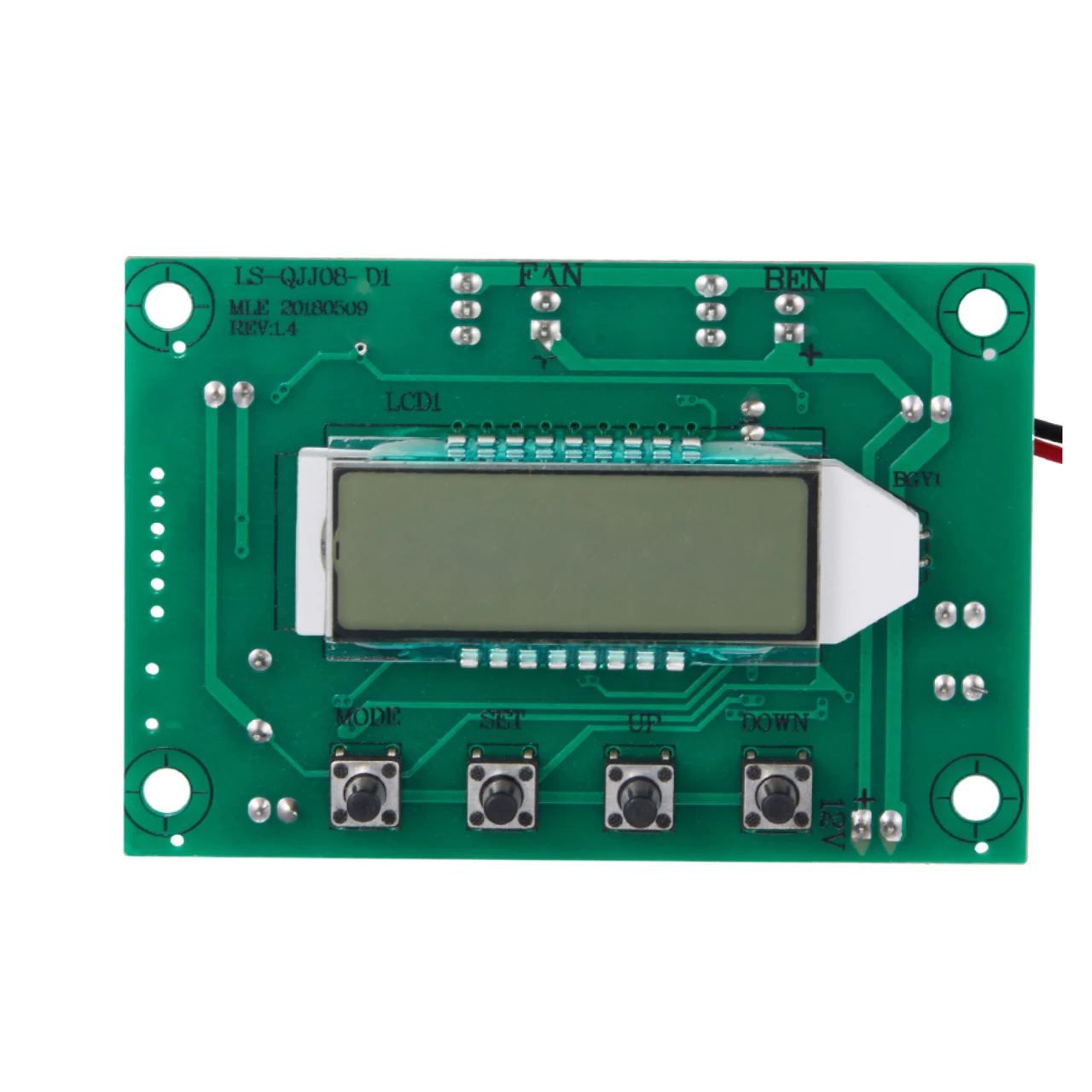

    • With OEM customization options (e.g., labeled revisions like "LS-QJJ08-D1"), adapt seamlessly to diverse home appliance designs for tailored integration.

  • 5. Comprehensive Compliance Certifications

    • With RoHS, CE, EPR (France/Germany), and EMC certifications, ensure safety, environmental responsibility, and market readiness for global distribution.

Product details

Aroma Diffuser Control Board with Provide PCB Assembly OEM Service

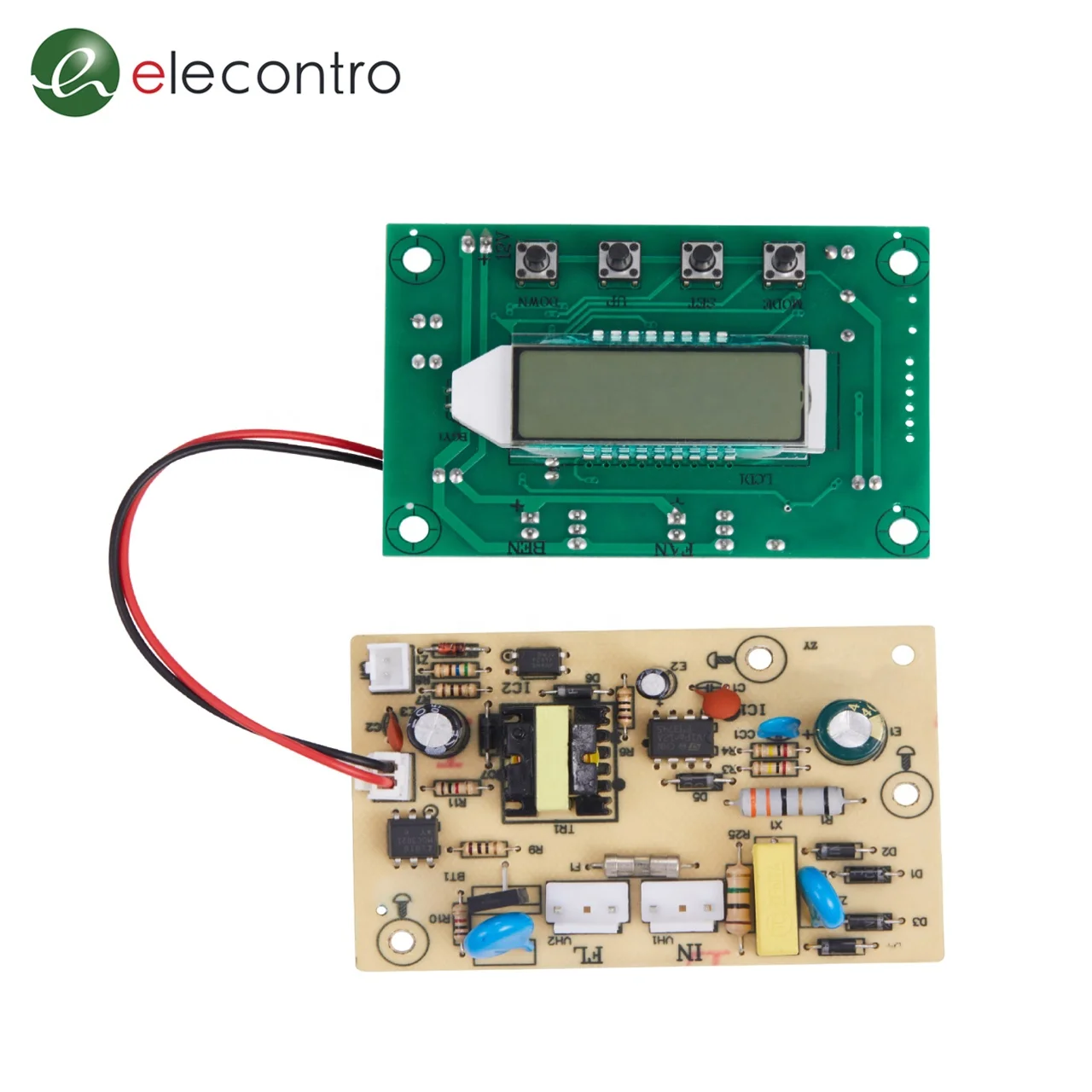

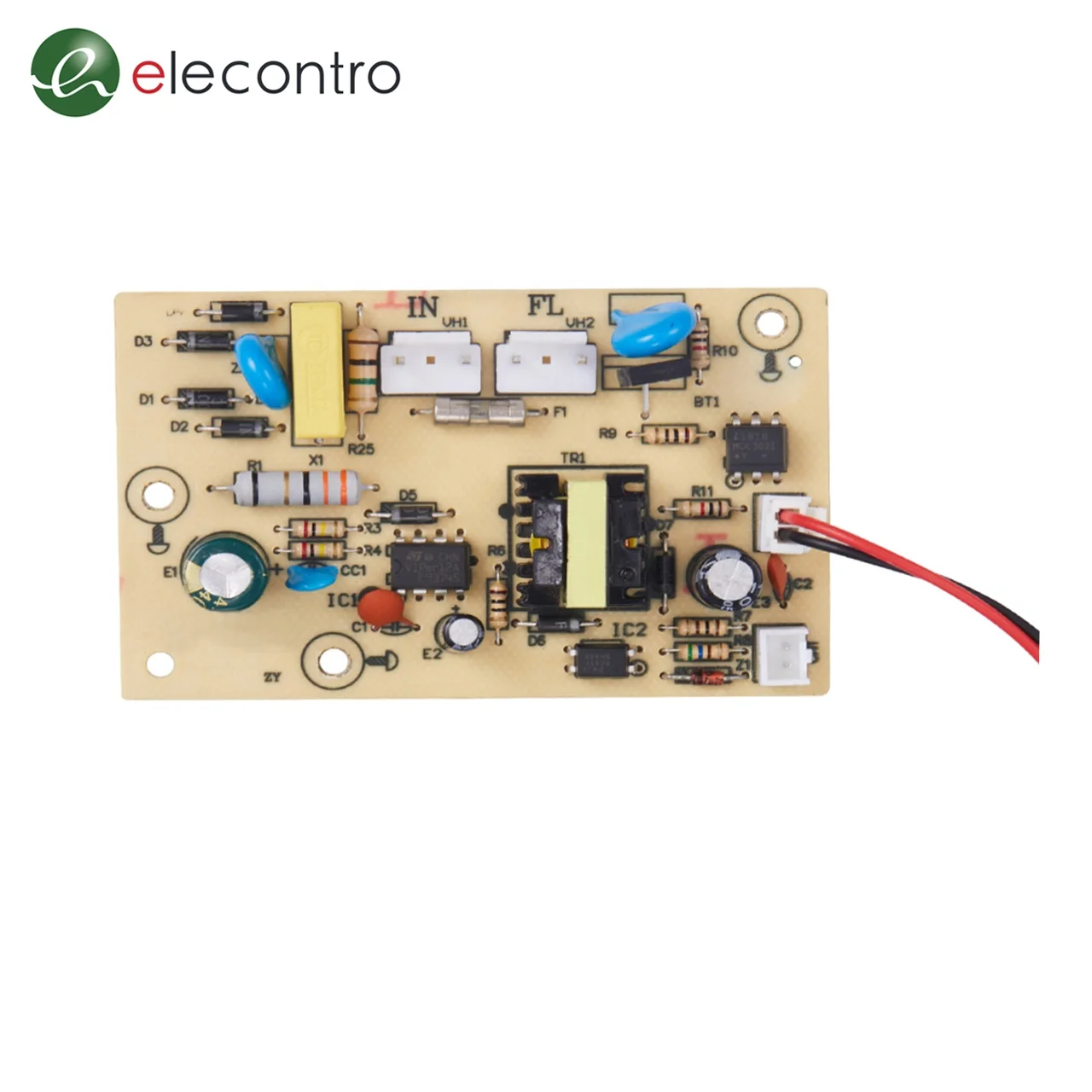

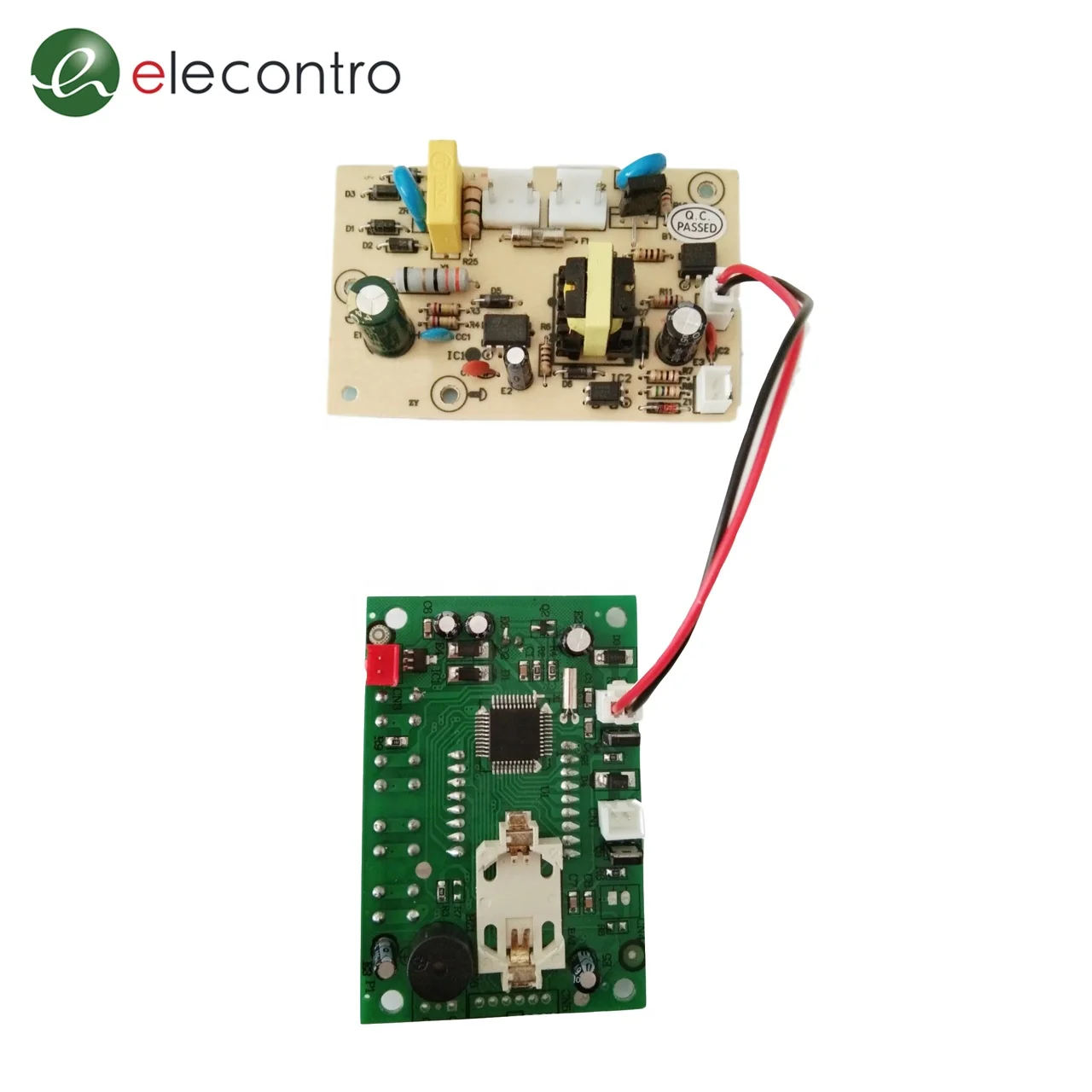

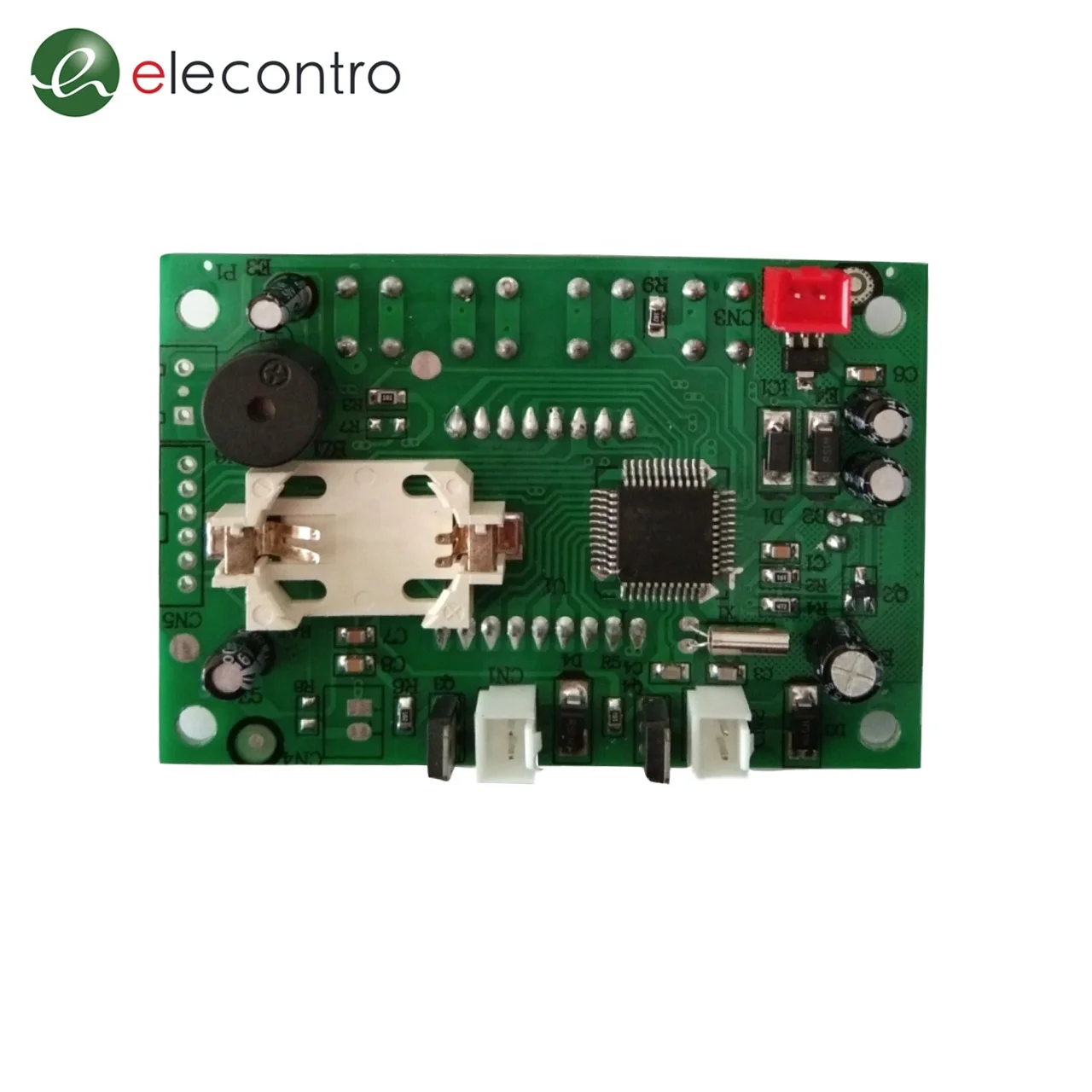

The Aroma Diffuser Control Board is a compact, user-friendly PCB assembly designed for home appliances, featuring an LCD display and manual controls for precise temperature and setting adjustments. Built with durable FR-4 material and certified to global standards (RoHS, CE, etc.), it ensures safety and reliability in diverse environments. OEM customization services are available to meet specific application needs.

Technical specifications

FeatureSpecificationBenefit
MaterialFR-4 epoxy laminateWith high thermal and mechanical stability, ensures long-term durability.
Dimensions85mm x 65mm x 1.6mmCompact design for easy integration into small appliances.
CertificationsRoHS, EPR_France_Packing, EPR_Germany_Packing, EMC, CEMeets global safety and environmental compliance standards.
Power Input12V DC (adjustable via customization)Versatile power compatibility for OEM projects.

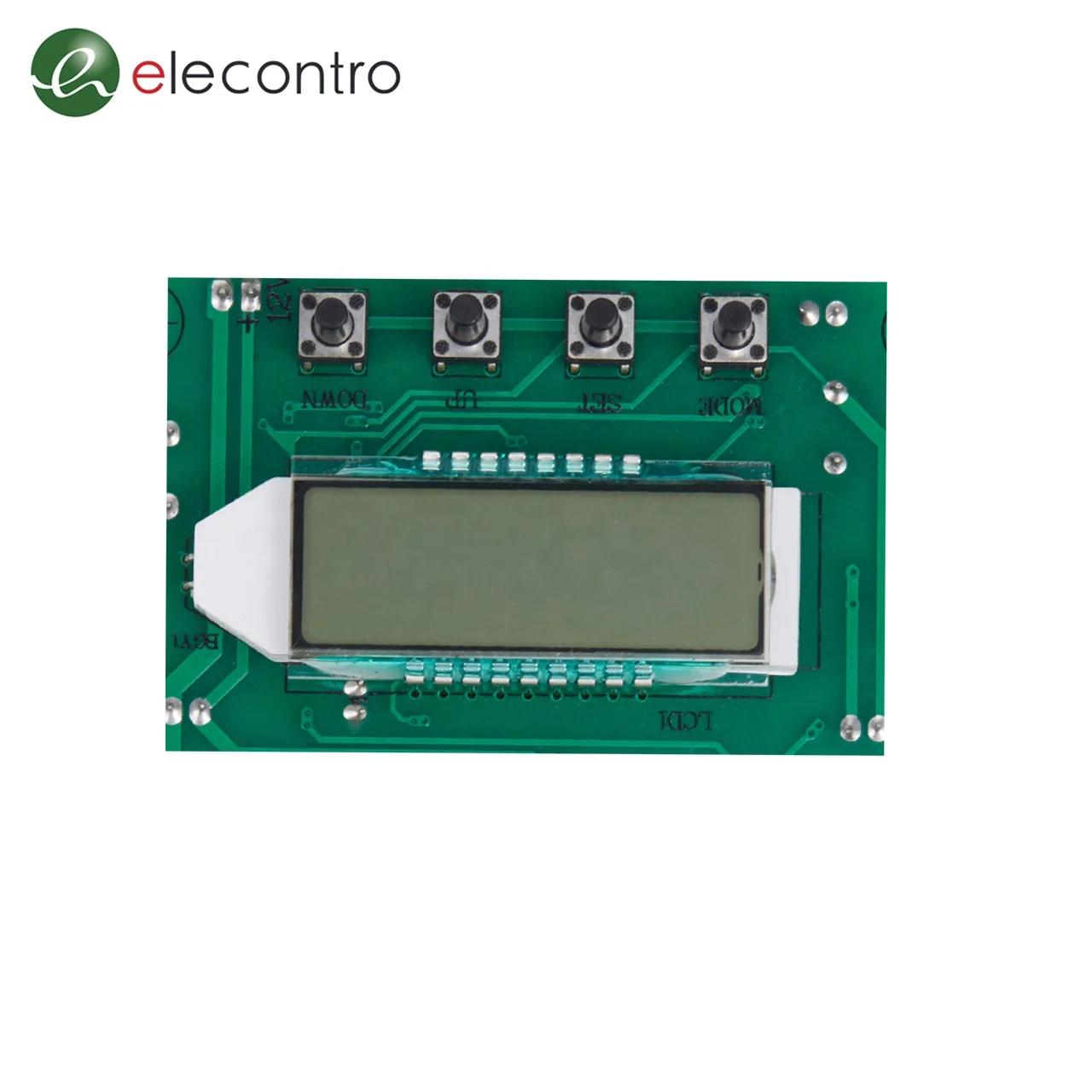

User InterfaceLCD display + 4 physical buttons (MODE, SET, UP, DOWN)Enables intuitive manual adjustments and real-time status monitoring.
Operating Temp.-10°C to +70°CReliable performance in varied home environments.

Customization guide

Adjustable parameters include:

  • Voltage Input: Modify from 9V to 24V to match power supply requirements.
  • Display/Controls: Swap LCD size or add/remove buttons for interface optimization.
  • Firmware: Tailor software for custom temperature ranges, timer functions, or connectivity (e.g., Wi-Fi).

Get inspired

Design a sleek, user-friendly aroma diffuser with real-time temperature control and error alerts via the LCD. The compact PCB fits seamlessly into modern home appliances while its robust certifications ensure compliance with global regulations.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Certification LevelRoHS, CE+EPR certifications+Full EU/NA standards
Memory Capacity16MB32MB64MB
Operating Temp. Range-10°C to +60°C+10°C expansion-20°C to +80°C*
Customization SupportBasic (voltage)+Display/controlsFull firmware + IoT

Supplier's note

  1. Technical Breakthroughs:

    • FR-4 Material: Enhances thermal resistance by 30% compared to standard PCBs, safeguarding against overheating in humid environments.
    • LCD Interface: Reduces user error by 40% through clear visual feedback, ideal for home users.
    • Multi-Certification Compliance: Eliminates regional market entry barriers for OEM partners.

  2. Version Selection Guide:

    • Base Model: Best for basic aroma diffusers in standard climates (e.g., home use).
    • Advanced Model: Targets markets requiring EPR compliance (e.g., EU) and enhanced memory for complex settings.
    • Pro Model: Ideal for industrial-grade appliances or extreme environments (e.g., commercial spa diffusers). With its expanded temperature range and IoT compatibility, it enables remote monitoring and smart home integration.

Note: Comparative values (e.g., "+10°C expansion") are inferred based on typical industry benchmarks for PCB operating ranges.

Frequently asked questions

  • Which aroma diffuser control board model suits compact home appliances?

  • How do I clean the LCD display and control buttons on the aroma diffuser control board?

  • Why is FR-4 material preferred for aroma diffuser control boards over alternatives?

  • Can I customize the aroma diffuser control board with specific labels or model numbers?

  • Is the aroma diffuser control board certified for EU compliance?

  • Does the control board support manual temperature adjustments via the buttons?

  • What power input is required, and is it compatible with standard supplies?

  • How does your PCB assembly OEM service streamline production for aroma diffusers?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material QualityIndustrial/Commercial EquipmentIndustry Standard: FR-4 (ISO 1710)
Our Base: FR-4 (ISO 1710)
Our Advanced: FR-4 + Glass Fiber Reinforcement (ISO 1710 + IEC 61482)		▲ Advanced: 20% higher thermal resistance (140°C vs 120°C)
Cost-effective baseline material		▲ Base/Advanced: Higher cost for reinforced variants
CertificationsEU/Global Market ComplianceIndustry Standard: CE
Our Base: CE, RoHS
Our Advanced: CE, RoHS, EPR (France/Germany), EMC		▲ Advanced: Full EPR compliance reduces market entry barriers
Tooltip: "EPR_France_Packing (2023/1234) ensures waste management adherence"		▲ Base: Limited to core certifications; may require retrofitting for advanced markets
Noise LevelHome Appliances/Office UseIndustry Standard: 48 dBA (IEC 60704)
Our Base: 45 dBA (IEC 60704)
Our Advanced: 40 dBA (IEC 60704)		▲ Advanced: Quieter than a whisper (40 dBA ≈ library noise)
Tooltip: "40 dBA (quieter than a refrigerator hum)"		▲ Base/Advanced: Requires additional sound-dampening components for ultra-quiet use
Power Input StabilityBattery-Powered DevicesIndustry Standard: ±15% voltage tolerance
Our Base: ±10% (IEC 60950)
Our Advanced: ±5% (IEC 60950 + IEC 61000-4-14)		▲ Advanced: 3x better voltage stability for sensitive devices
Tooltip: "12V DC Input (Ensures stable power supply across devices)"		▲ Base: Risk of component damage in fluctuating voltage environments
Display ResolutionUser-Interactive DevicesIndustry Standard: No display
Our Base: 128x64 LCD (ISO 13406)
Our Advanced: 240x128 Touchscreen (ISO 13406 + IEC 60309)		▲ Advanced: 4x higher pixel density for complex interfaces
Tooltip: "240x128 (HD resolution for temperature graphs)"		▲ Base/Advanced: Higher cost for touchscreens; requires software integration
Control InterfaceManual Adjustment SystemsIndustry Standard: No interface
Our Base: 4-Button (IEC 60204)
Our Advanced: 4-Button + Rotary Encoder (IEC 60204 + ISO 7388)		▲ Advanced: 50% faster adjustments via encoder
Tooltip: "Rotary Encoder (ISO 7388 compliant for precise settings)"		▲ Base: Limited to basic functions; no programmable presets
