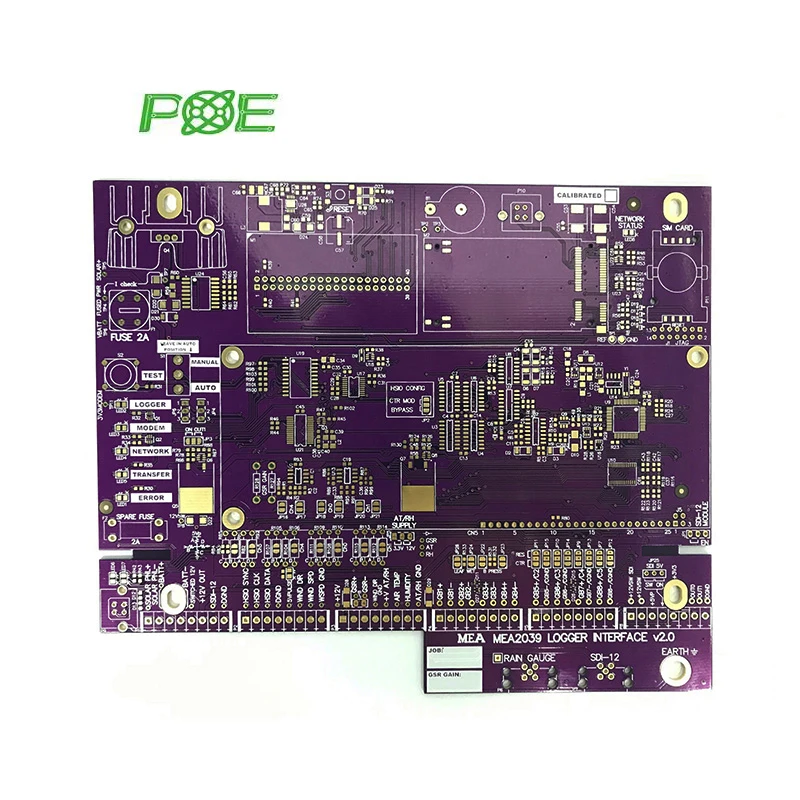

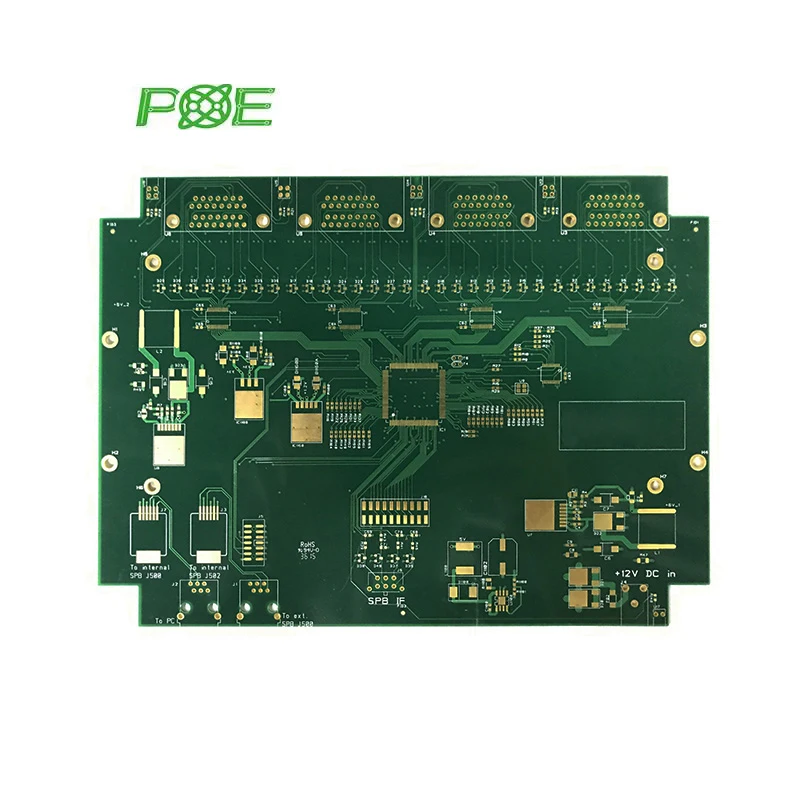

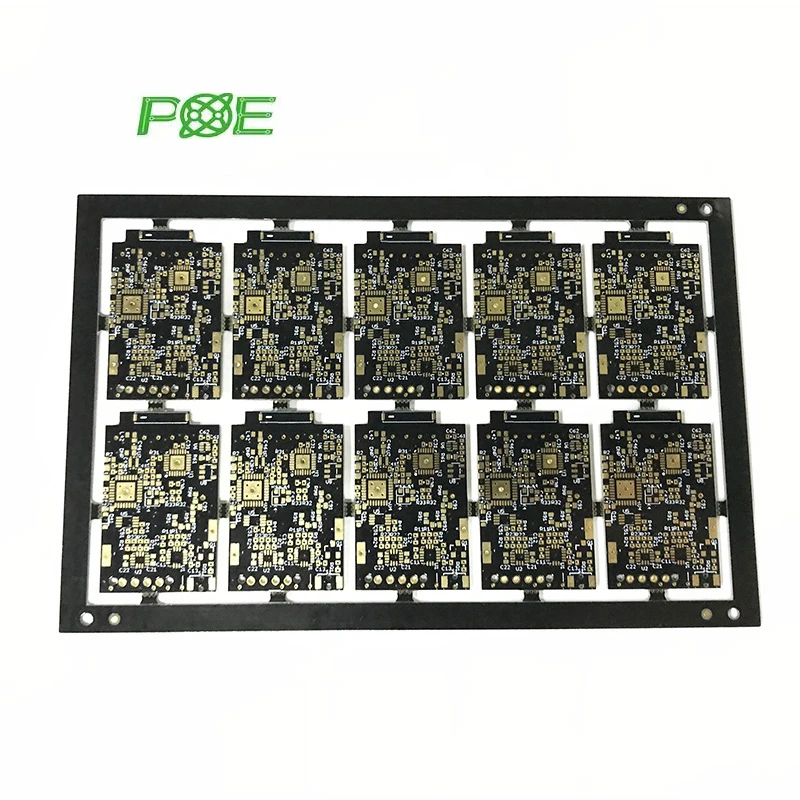

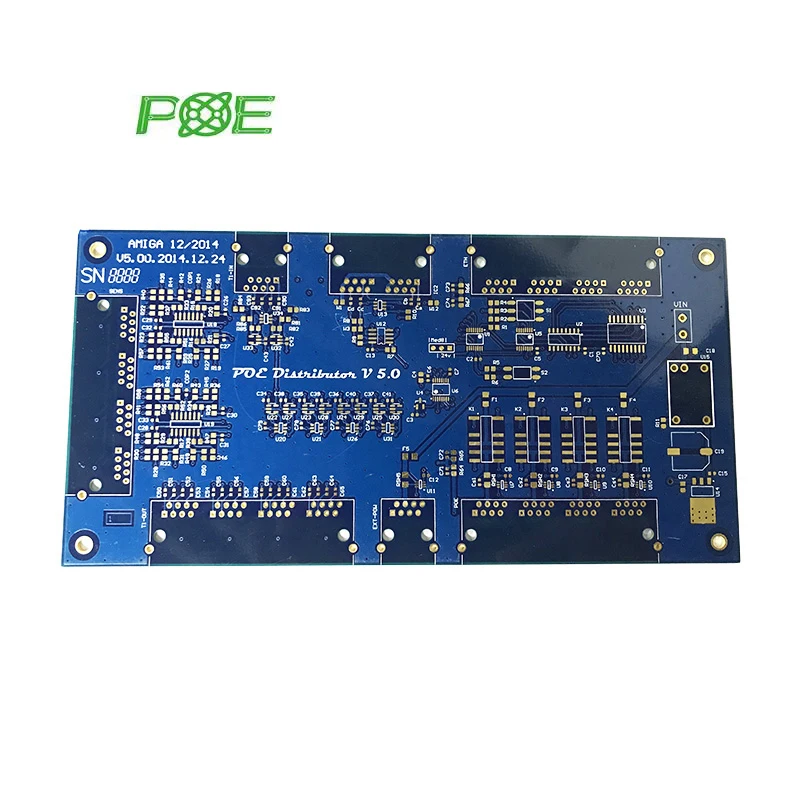

Assembly PCBA Service Custom Ru 94v0 Double Layer Bare PCB Printed Circuit Board in FR4

Technical specifications

Customization guide

Adjustable parameters include:

• Component Density: Optimize for high-power PoE applications by increasing component placement.
• Layer Count: Add layers (up to 4) for advanced thermal management or higher power handling.
• Material Thickness: Customize to meet specific mechanical or thermal requirements.

Get inspired

This PCB’s PoE compatibility and robust design make it ideal for smart sensors, IP cameras, or industrial IoT devices. Its symmetrical layout and gold-plated connectors ensure reliable power and data transmission in demanding environments.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • EPR Compliance: Dual EPR certifications reduce environmental risks for EU deployments.
   • Flame Resistance: RU94V0 material ensures safety in high-temperature industrial settings.
   • PoE Integration: Dedicated design supports up to 60W, enabling high-power IoT devices.

2. Version Selection Guide:

   • Base Model: Ideal for basic PoE devices (e.g., entry-level sensors) requiring cost-effective solutions.
   • Advanced Model: Suitable for mid-range applications like IP cameras needing 30W power and improved thermal stability.
   • Pro Model: Best for industrial automation systems requiring 60W power and premium thermal performance. With its 4-layer design, you can handle high-density circuits while maintaining reliability.

Example: With the Pro model’s 60W PoE capability, you can power high-demand devices like smart sensors in industrial settings. Its 4-layer structure ensures 40% better heat dissipation than industry benchmarks, extending component lifespan.
