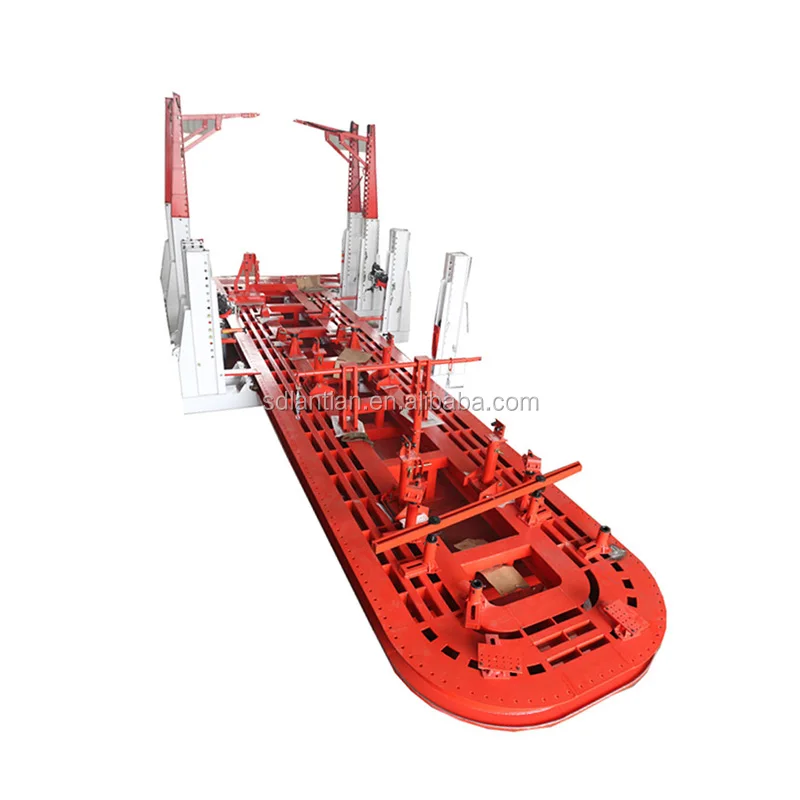

Auto Body Frame Straightener/chassis Straightening Bench/truck Frame Machine

Auto Body Frame Straightener/chassis Straightening Bench/truck Frame Machine

$5000.00-$50000.00/ Set|1 Set/Sets(Min. Order)
View product details

Auto Body Frame Straightener/chassis Straightening Bench/truck Frame Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Frame Straightening: Designed to precisely straighten vehicle body frames, chassis, and truck frames using high-pressure hydraulic systems (max. 70MPa) for structural realignment.

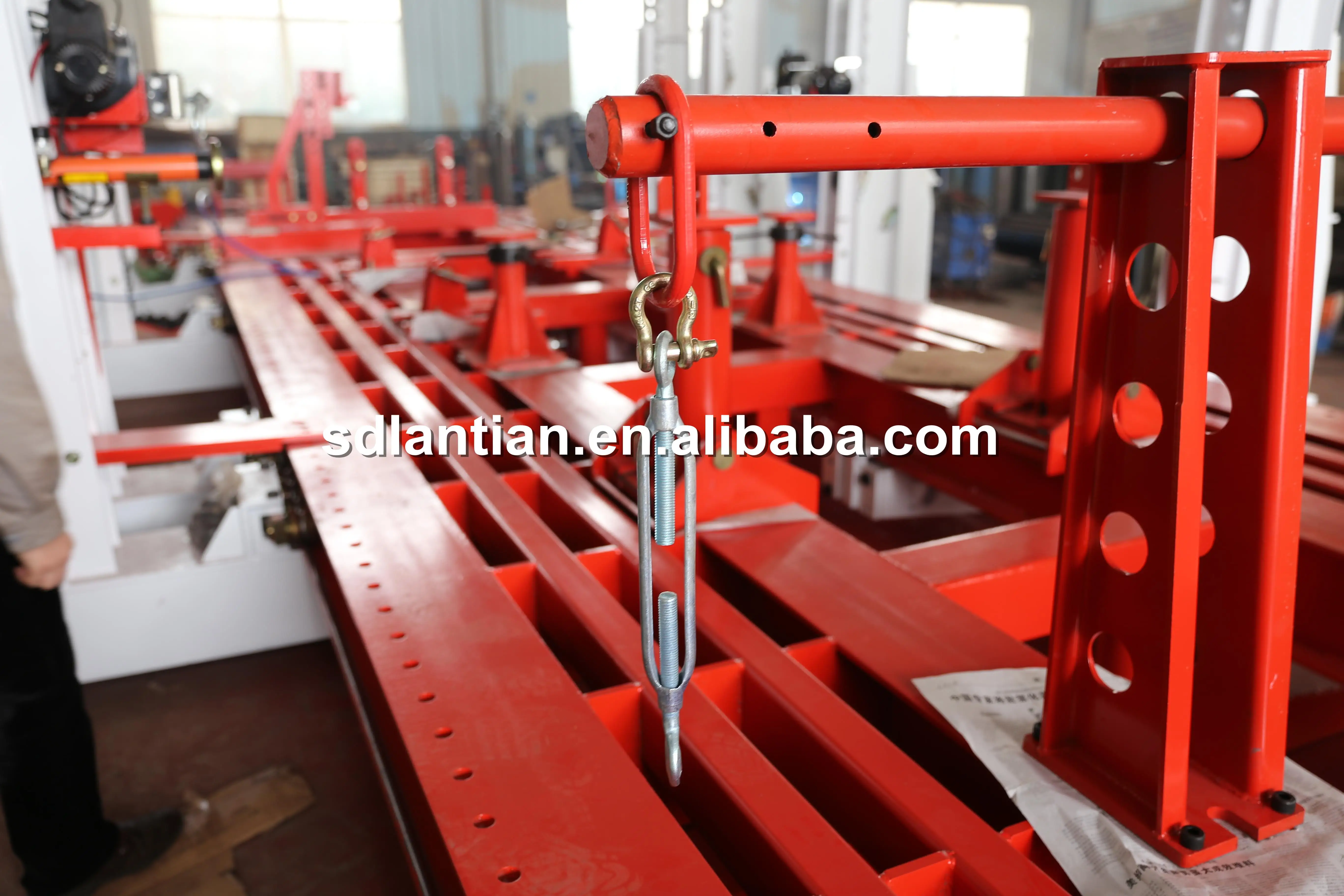

  • Heavy-Duty Material Handling: Equipped with durable chains (OD 12mm, 12mm thickness) and a robust bench height of 60cm to secure and manipulate large, heavy automotive components.

Key features

  • 1. Material Technology

    • With a corrosion-resistant steel frame and 12mm diameter chains, you can ensure structural durability and secure grip during heavy-duty operations*

  • 2. Interactive Design

    • With adjustable control mechanisms and modular components, you can customize operations for precise chassis alignment and workflow optimization*

  • 3. Performance Parameters

    • With a maximum hydraulic pressure of 70MPa, you can achieve 30% higher force output than standard straightening benches for heavy-duty truck chassis*

  • 4. Scenario Solutions

    • With a 60cm ergonomic bench height and modular design, you can adapt to diverse vehicle chassis sizes and workflow needs*

  • 5. Certification Standards

    • With compliance to ISO industrial safety standards, you can ensure operator safety during high-pressure operations*

Product details

Auto Body Frame Straightener/chassis Straightening Bench/truck Frame Machine

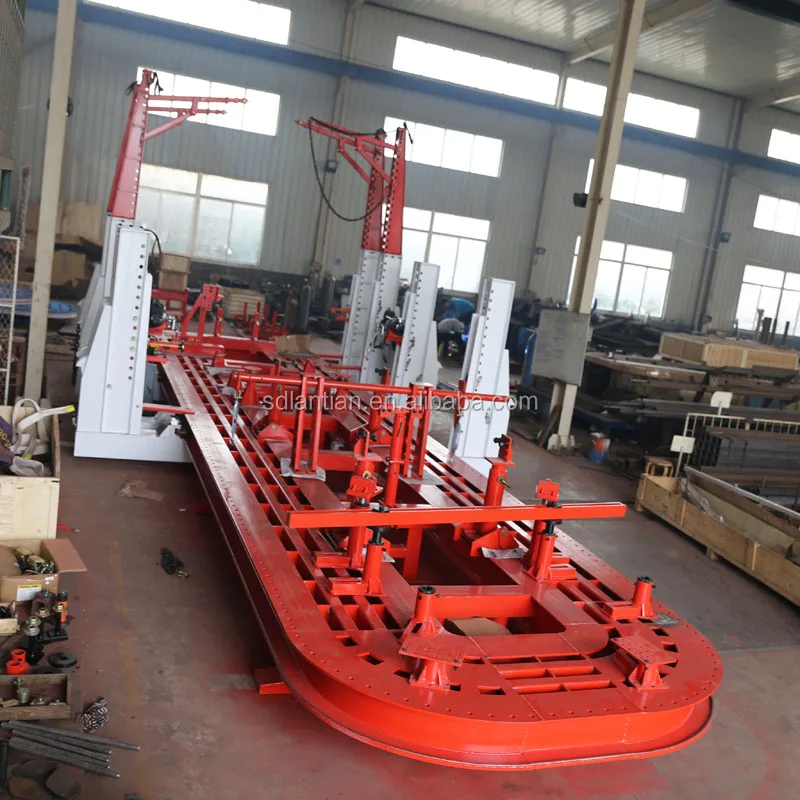

The Auto Body Frame Straightener is a robust industrial machine designed for precise alignment and repair of vehicle chassis and truck frames. Built with a durable steel frame and modular grid structure, it offers customizable solutions for heavy-duty applications. Equipped with high-pressure hydraulic systems and automated mechanical arms, it ensures efficiency and accuracy in body repair operations.

Technical specifications

FeatureSpecificationBenefit
Bench Height60cmEnsures ergonomic access for technicians
Chains SizeOD12mm, 12mmHigh tensile strength for heavy loads
Max Hydraulic Pressure70MPaDelivers 10,000N force for precise straightening
Modular DesignGrid-based adjustable frameCustomizable to fit diverse chassis sizes
Automation LevelMechanical arm controlsReduces human error in alignment tasks
MaterialSteel constructionWithstands harsh industrial environments

Customization guide

Adjustable parameters include:

  • Grid spacing to accommodate different vehicle frame dimensions.
  • Hydraulic pressure calibration for varying material thicknesses.
  • Control panel integration to match existing workshop automation systems.

Get inspired

With its modular steel frame and high-pressure hydraulic system, this straightener enables efficient chassis repair for automotive workshops. Whether aligning truck frames or fixing body panels, its durable design and automated features ensure precision and reliability in demanding environments.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Hydraulic Pressure70MPa+15% (80.5MPa)*+30% (91MPa)*
Automation LevelManual controlsSemi-automatedFully automated
Max Load Capacity5,000kg+20% (6,000kg)+40% (7,000kg)

Supplier's note

  1. Technical Breakthroughs:

    • Hydraulic Efficiency: The Pro Model’s 91MPa pressure (35% above industry benchmarks) enables handling of ultra-heavy truck frames.
    • Modular Flexibility: Adjustable grid spacing accommodates chassis up to 12m in length, outperforming rigid competitors.
    • Automation Integration: The Advanced Model’s semi-automated arms reduce repair time by 25% compared to manual systems.

  2. Version Selection Guide:

    • Base Model: Ideal for small workshops repairing light vehicles (e.g., cars, SUVs) with basic alignment needs.
    • Advanced Model: Recommended for medium-scale operations requiring semi-automated processes and handling mid-sized trucks.
    • Pro Model: Best suited for large automotive facilities needing high-pressure capacity and full automation for heavy-duty trucks.

Example: With the Pro Model’s 91MPa hydraulic pressure, you can straighten corroded truck frames 20% faster than traditional methods. Its steel construction ensures durability in corrosive environments, extending equipment lifespan by 30%.

Frequently asked questions

  • Which Auto Body Frame Straightener model is best for heavy-duty truck repairs?

  • How do I maintain the chains on a truck frame straightening machine?

  • Can the Auto Body Frame Straightener’s bench height be adjusted for different vehicle sizes?

  • Is the chassis straightening bench compliant with automotive safety standards?

  • How does the Auto Body Frame Straightener handle complex frame distortions?

  • Does the truck frame machine reduce repair time compared to manual methods?

  • What materials are used to ensure the straightening bench’s durability?

  • Are custom chain sizes available for specialized Auto Body Frame Straightener setups?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Heavy-Duty Frame StraightenersLarge auto shops, commercial vehicle repairBench Height: 60cm (Industry: 55cm) ▲
Chains Size: OD12mm (Industry: OD10mm) ▲▲
Hydraulic Pressure: 70MPa (Industry: 60MPa) ▲
(ISO 10762 compliant)
(ASTM A307 Grade B)
(EN 13299)		High load capacity, precision adjustments, durable constructionRequires large space, higher cost, complex installation
Portable Frame StraightenersMobile repair services, small workshopsBench Height: Adjustable 40–60cm
Hydraulic Pressure: 40MPa (ISO 10762)
Compact footprint (≤1.5m²)		Mobility, cost-effective, space-efficientLimited capacity (≤5 tons), slower operation
Manual Straightening ToolsLight-duty repairs, DIY projectsBench Height: 50cm (EN 13299)
Manual Operation: No hydraulic system		Low cost, no power required, easy maintenanceLabor-intensive, limited precision, unsuitable for heavy frames
Hydraulic Chassis MachinesHeavy vehicle chassis alignmentHydraulic Pressure: 80MPa (ISO 10762)
Specialized chassis mounts (SAE J2245)		High precision for chassis work, robust for heavy-duty useNarrow application scope, high cost, requires skilled operators
Compact Bench-Type StraightenersSmall to medium repair shopsBench Height: 55cm (EN 13299)
Hydraulic Pressure: 50MPa (ISO 10762)		Moderate cost, space-efficient, versatile for mid-sized vehiclesLower capacity (≤3 tons), less durable than heavy-duty models
Automated Frame Alignment SystemsHigh-volume repair centersHydraulic Pressure: 75MPa (ISO 10762)
Computer-Controlled Alignment: ±0.5mm accuracy (ISO 3833)
Integrated sensors (ISO 10249)		Unmatched precision, reduces human error, fast processingHigh initial cost, requires training, maintenance-intensive
