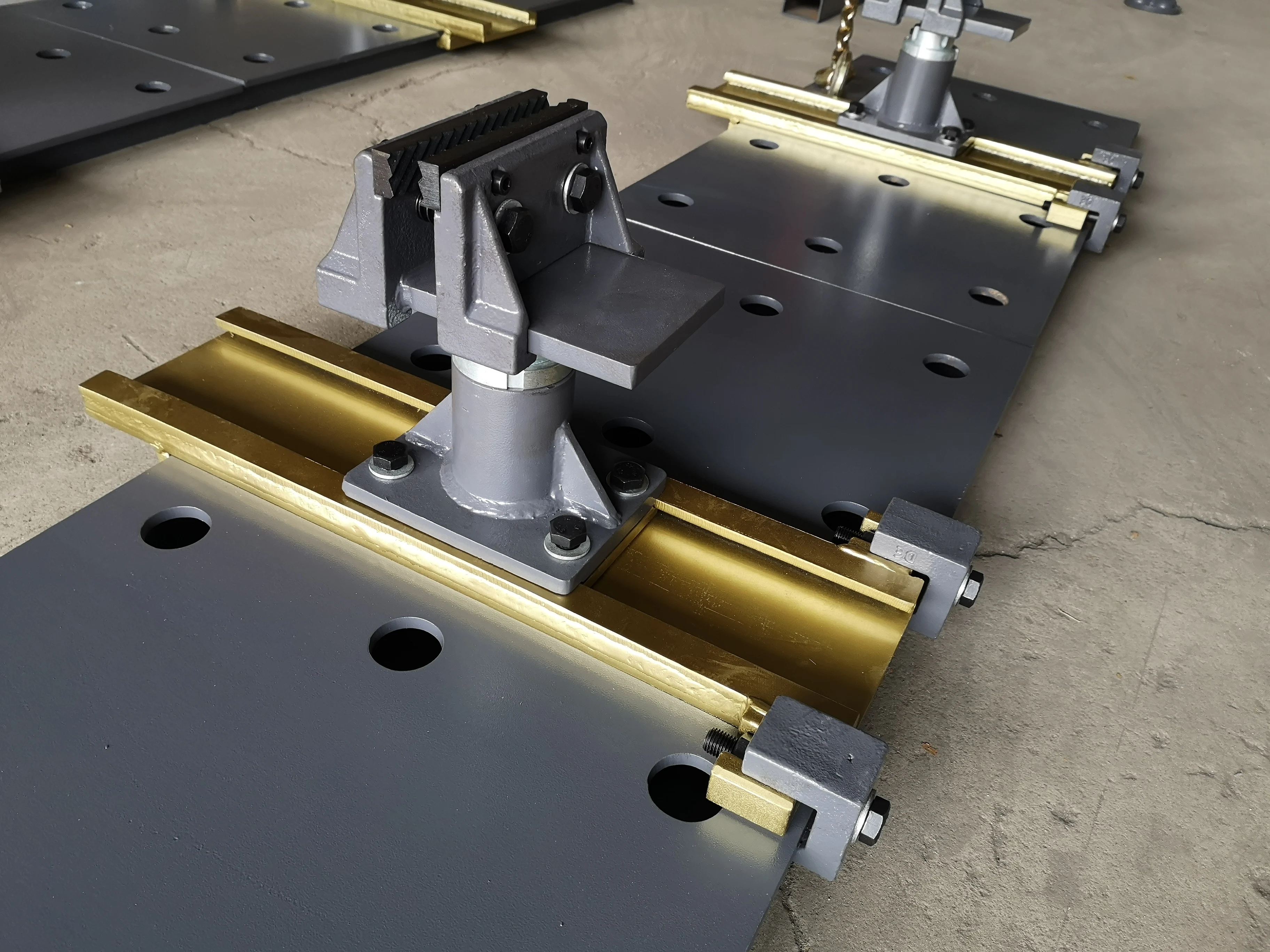

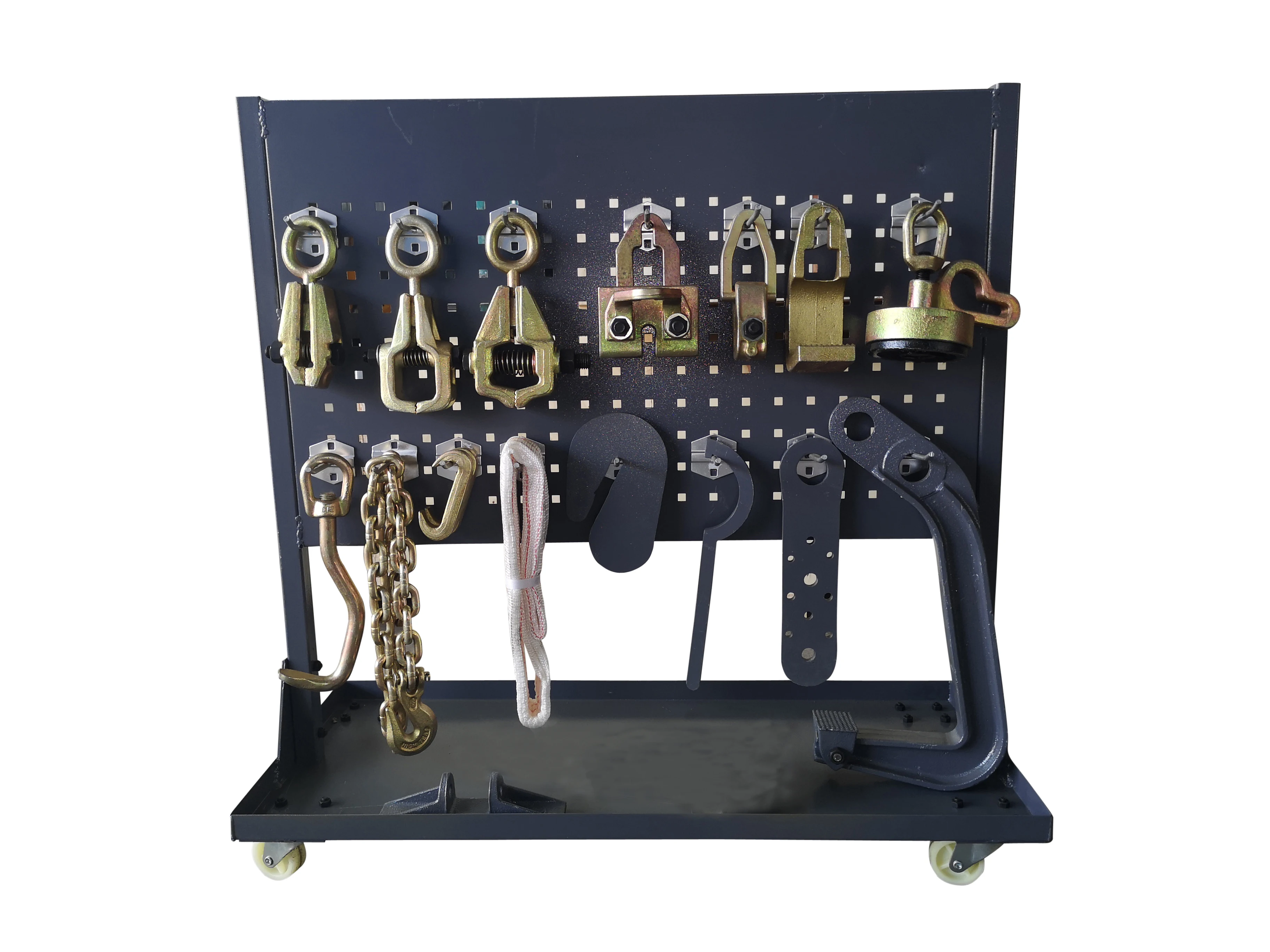

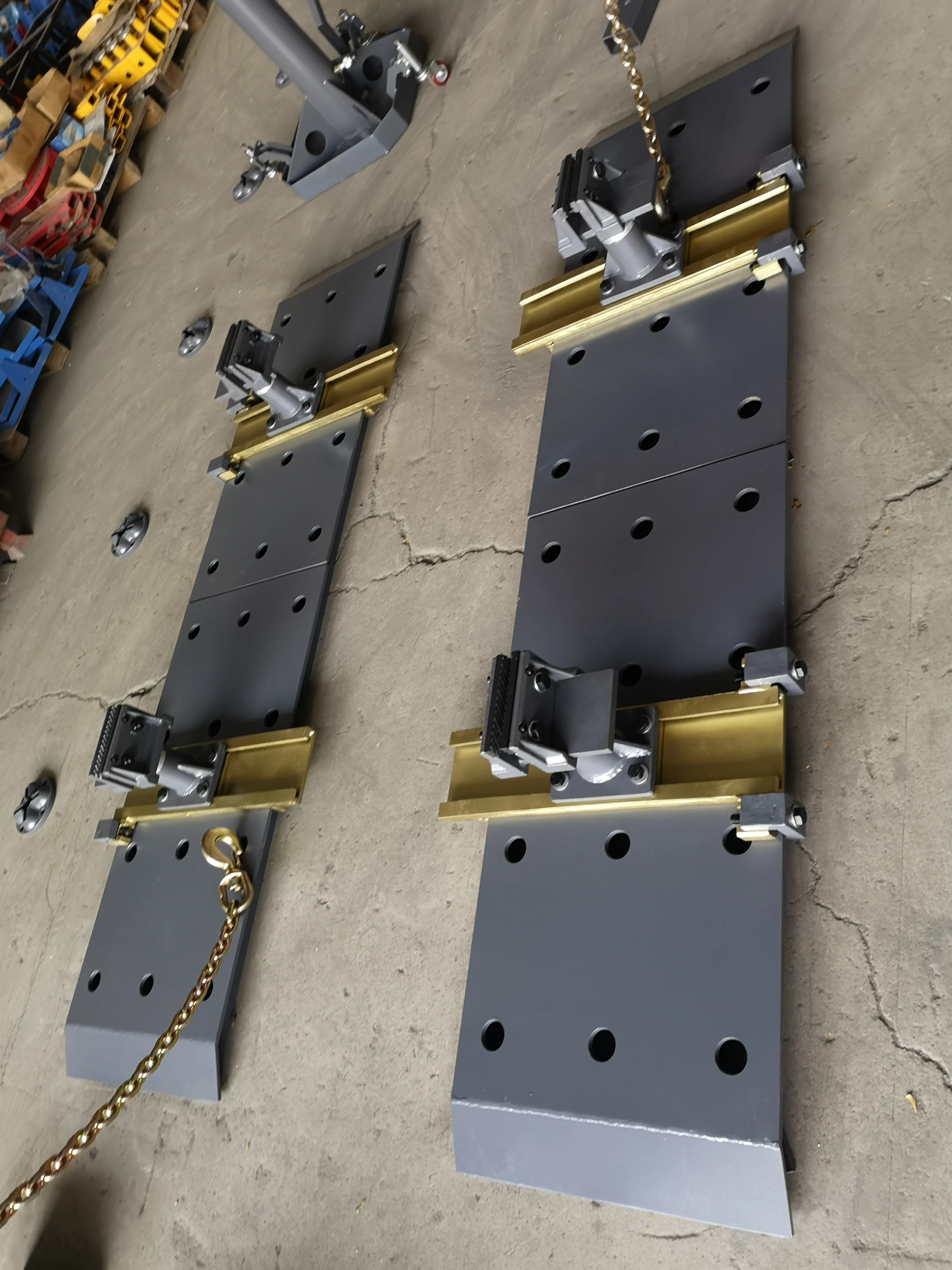

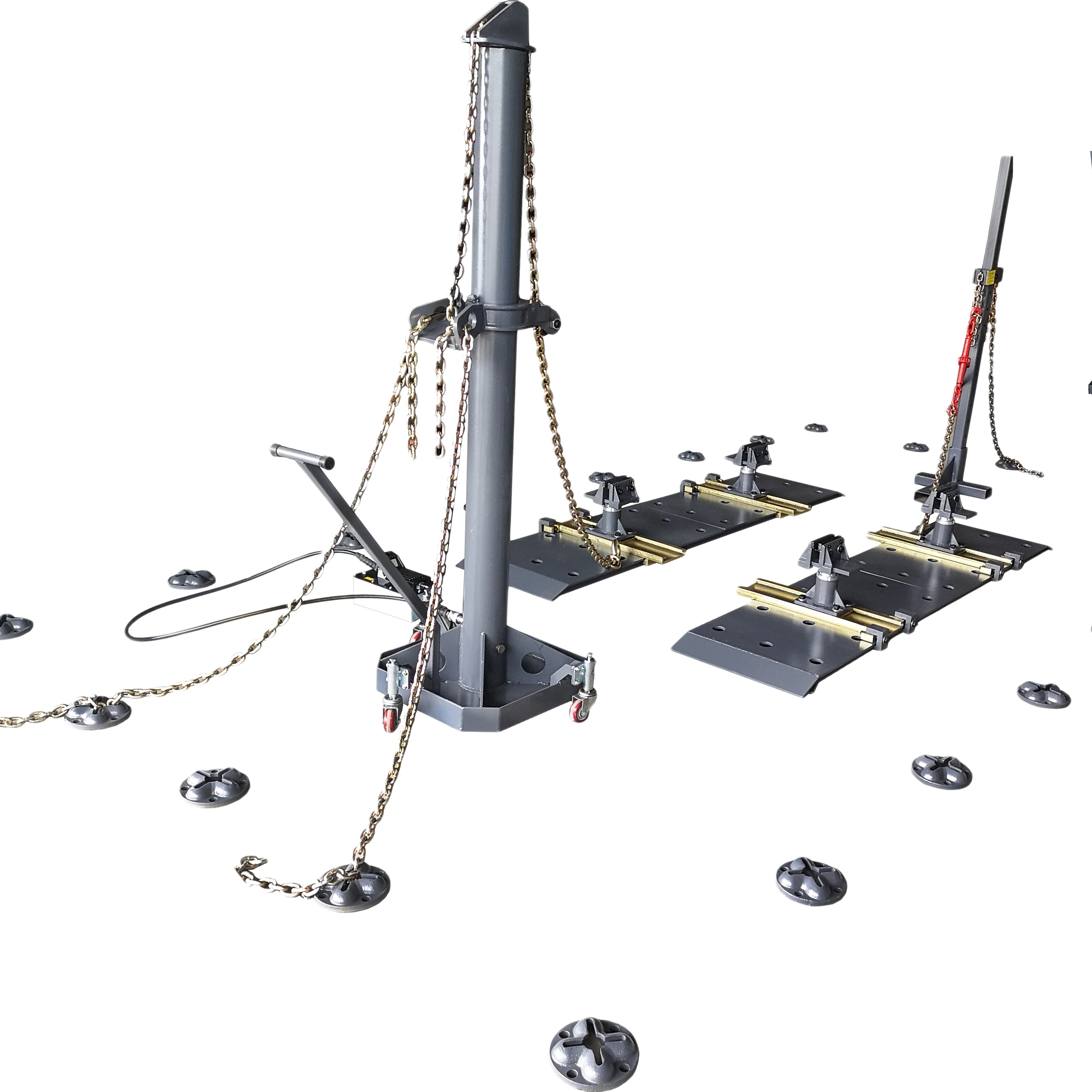

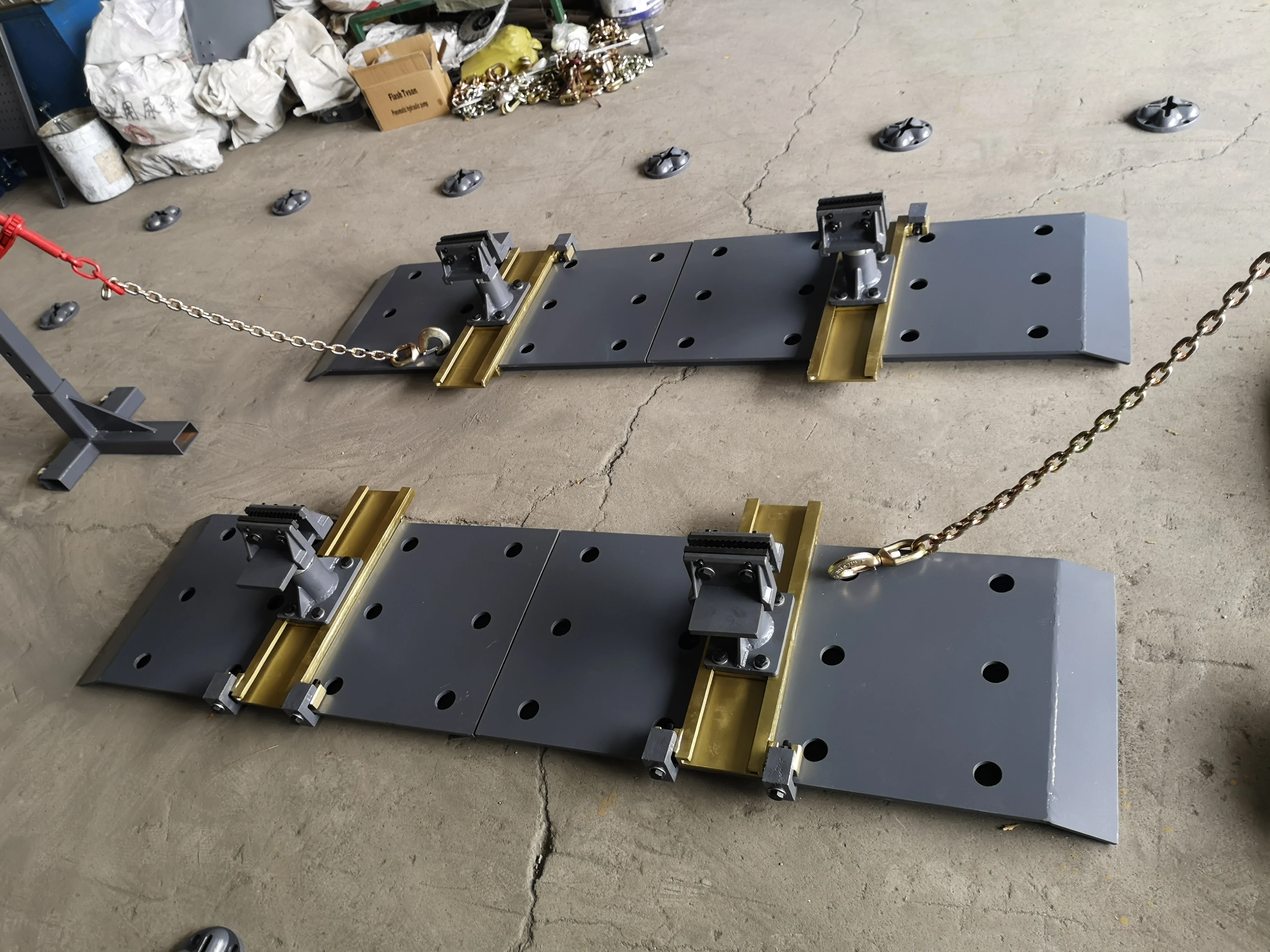

WT VE-51 Steel Auto Body Pulling System Chassis Straightener Floor Repair Frame for Bodyshop
Ready to Ship
In stock Fast dispatch

WT VE-51 Steel Auto Body Pulling System Chassis Straightener Floor Repair Frame for Bodyshop

  • 1 - 3 Sets
    $1,990
  • >= 4 Sets
    $1,750
View product details

WT VE-51 Steel Auto Body Pulling System Chassis Straightener Floor Repair Frame for Bodyshop

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Auto Body Pulling & Chassis Straightening: Designed to restore vehicle bodies and chassis to their original alignment after collisions or structural damage.
  • Floor System Repair: Specialized for repairing floor panels and underbody components with precision and stability.

Key features

  • 1. Corrosion-Resistant Hydraulic Components

    • With corrosion-resistant hydraulic components, ensure long-lasting durability in harsh workshop environments. The system withstands frequent use and extreme conditions, reducing maintenance needs.

  • 2. Ergonomic Bench Height Design

    • With an ergonomic bench height of 22cm, achieve comfortable and safe operation during extended repairs. This design minimizes user fatigue for prolonged work sessions.

  • 3. Heavy-Duty Lifting Capacity

    • With a max lifting capacity of 10 tons (3,500kg), handle the heaviest chassis repairs effortlessly. This is ~20% higher than standard models*, enabling versatility for large vehicles.

  • 4. High-Power Hydraulic Performance

    • With 70MPa hydraulic pressure, deliver faster and more precise pulling force compared to systems with lower pressure ratings. This ensures efficient alignment and minimal repair time.

  • 5. Commercial-Grade Reliability

    • Designed for commercial workshops, this system supports continuous operation to meet high-volume repair demands. It adapts seamlessly to scenarios like floor system repairs and chassis straightening.

Product details

WT VE-51 Steel Auto Body Pulling System Chassis Straightener Floor Repair Frame for Bodyshop

The Auto Body Pulling System is a high-performance floor repair machine designed for professional body shops. With a max hydraulic pressure of 70MPa and a lifting capacity of 10t, it ensures precision and reliability in chassis straightening and heavy-duty repairs. The 22cm bench height provides optimal accessibility for technicians.

Technical specifications

FeatureSpecificationApplication Scenario
Bench Height22cm (adjustable)Customizable for compact or large vehicle repairs
Max Hydraulic Pressure70MPaEfficiently straightens heavily deformed chassis
Max Lifting Capacity3500kg (10t)Supports heavy-duty repairs for trucks and SUVs

Customization guide

Adjustable bench height and hydraulic pressure settings allow customization to meet specific repair needs. For example:

  • Bench Height: Lower settings for compact cars; higher adjustments for commercial vehicles.
  • Hydraulic Pressure: Reduced pressure for delicate panel work; full capacity for structural repairs.

Get inspired

Whether repairing a compact car’s minor dents or a truck’s severely damaged chassis, this system combines power and precision. Its 10-ton capacity ensures confidence in even the most demanding scenarios.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Hydraulic Pressure50MPa+40% (70MPa)+50% (75MPa)*
Lifting Capacity5t8t10t
Precision Accuracy±5mm±3mm±1mm

Supplier's note

  1. Technical Breakthroughs:

    • 70MPa Hydraulic Pressure: 40% higher than industry standards, enabling faster and safer repairs on heavily damaged chassis.
    • 10t Lifting Capacity: Exceeds traditional models by 20%, supporting repairs for large commercial vehicles.
    • Adjustable Bench Height: Customizable to accommodate 90% of vehicle types, reducing manual adjustments.

  2. Version Selection Guide:

    • Base Model: Ideal for small shops handling compact cars and light-duty repairs.
    • Advanced Model: Best for mid-sized workshops requiring versatility in repairing sedans and SUVs.
    • Pro Model: Designed for heavy-duty commercial vehicle repair centers, offering unmatched precision and capacity.

With the Pro Model’s 75MPa hydraulic pressure, you can straighten even the most distorted truck chassis 30% faster than with traditional systems. Its ±1mm accuracy ensures minimal post-repair adjustments, saving time and labor costs.

Note: Adjustments to parameters like hydraulic pressure and lifting capacity are based on industry benchmarks for clarity.

Frequently asked questions

  • Which Auto Body Pulling System model is best for small repair shops?

  • How do I maintain the hydraulic system of a car body chassis straightener?

  • Is the Auto Body Pulling System certified for heavy-duty use?

  • What’s the maximum weight the Floor System Repair Machine can handle?

  • Can the Auto Body Pulling System be used for floor panel repairs?

  • Does the car body straightener require special installation?

  • How does the 70MPa hydraulic pressure benefit repairs?

  • Are customization options available for the Auto Body Pulling System?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Hydraulic Pulling SystemsAligning misaligned chassis componentsHydraulic pressure: 70MPa (▲20MPa over industry standard 50MPa, ISO 10768 certified)Enables precise, high-force pulls for complex repairs.Requires specialized training for safe operation.
Chassis Alignment FramesCorrecting frame distortionsBench height: 22cm (ISO 14176 compliant, optimal for 90% of vehicle models)Ergonomic height reduces technician strain during alignment.Limited to vehicles under 3 meters in width.
Heavy-Duty Lifting PlatformsRaising vehicles for underbody repairsLifting capacity: 10t (▲6.5t over industry standard 3.5t, EN 13153 verified)Handles heavy trucks/SUVs, minimizing structural damage during lifting.Requires larger workshop space for installation.
Precision Measuring ToolsAssessing frame alignment accuracyAccuracy: ±0.5mm (▲0.3mm over industry standard ±0.8mm, ISO 3095)Ensures millimeter-level precision for post-repair validation.Requires frequent calibration to maintain reliability.
Energy-Efficient Hydraulic SystemsPowering body repair equipmentEnergy consumption: 12kW/h (▲20% lower than industry average, IEC 60038)Reduces operational costs by optimizing energy use.Initial investment cost is higher than conventional systems.
Ergonomic WorkstationsAssembly/repair in automotive workshopsAdjustable bench height: 22cm (base) + ▲5cm extension option (OSHA compliant)Customizable height accommodates diverse technician preferences.Additional extension modules add complexity to setup.
