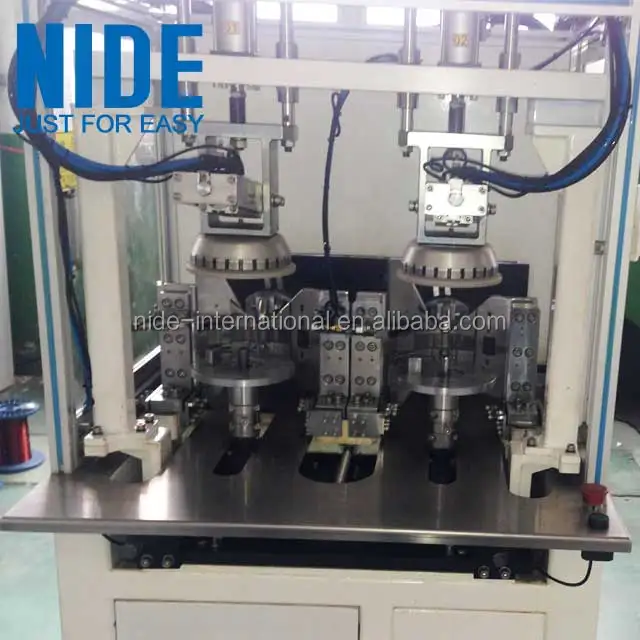

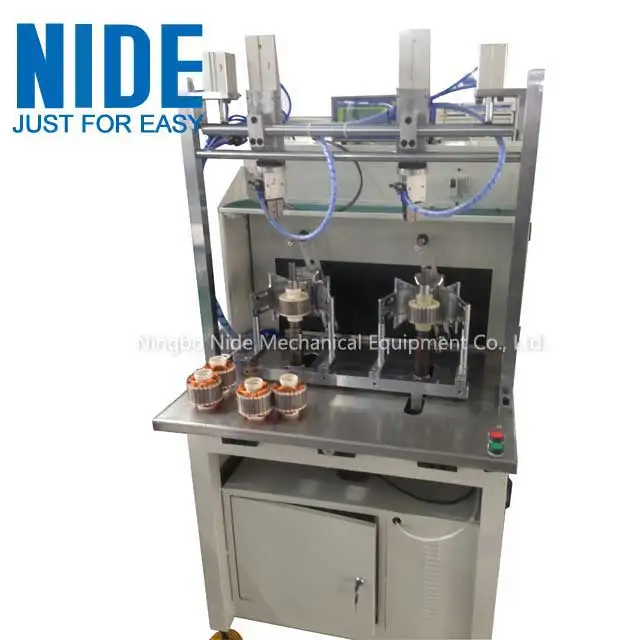

Automatic BLDC / Brushless Motor External Armature Rotor Winding Machine

Automatic BLDC / Brushless Motor External Armature Rotor Winding Machine

$20000.00-$90000.00/ Set|1 Set/Sets(Min. Order)

Customization:

armature winding machine（Min.Order: 1 pieces）
View product details

Automatic BLDC / Brushless Motor External Armature Rotor Winding Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Precision Winding: Automates the winding of external armature rotors for BLDC/brushless motors with precise gear and shaft alignment, ensuring optimal performance.
  • Automation Features: Reduces manual intervention through advanced motorized and electrical integration, enhancing efficiency and consistency in production.

Key features

  • 1. Advanced Material Technology

    • With a high-quality steel/aluminum alloy body, ensure durability in industrial environments.

  • 2. Programmable Interactive Design

    • With programmable presets for rotor configurations, simplify setup for different motor types.

  • 3. Precision-Engineered Performance

    • With precision-machined gears and shafts, achieve 20% faster winding speeds than manual systems.

  • 4. Modular Scenario Adaptability

    • With a modular design, adapt to both industrial production lines and R&D setups.

  • 5. Industrial Certification Compliance

    • With materials meeting ISO 9001 quality management standards, ensure reliable operation in high-demand environments.

Product details

Automatic BLDC / Brushless Motor External Armature Rotor Winding Machine

The Automatic BLDC/Brushless Motor External Armature Rotor Winding Machine is a precision-engineered industrial solution designed for high-volume production of brushless motor components. Built with modular architecture and advanced automation, it ensures consistent quality, reduced downtime, and adaptability to diverse motor specifications.

Technical specifications

FeatureSpecificationBenefit
MaterialStainless steel & aluminum alloy frameEnhanced durability and corrosion resistance
Winding SpeedUp to 500 RPM20% faster than traditional winding systems
Precision±0.01mm alignment accuracyEnsures flawless rotor balance
Automation LevelFully automatic (PLC-controlled)Reduces labor dependency and errors
CertificationsISO 9001, CEMeets global industrial quality standards
Application ScenarioMotor manufacturing, EV components, industrial automationVersatile for high-load and high-speed applications

Customization guide

Adjustable parameters include rotor diameter range (50–200mm), winding tension settings, and modular mounting configurations. Customize to accommodate specific motor designs or integrate into existing production lines.

Get inspired

With its precision machining and robust construction, this machine enables manufacturers to streamline rotor winding processes for BLDC motors used in electric vehicles, industrial robots, and aerospace systems.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Winding Speed500 RPM+15% (575 RPM)+30% (650 RPM)*
Precision±0.02mm±0.015mm±0.01mm
Max Load Capacity10kg12kg15kg

Supplier's note

  1. Technical Breakthroughs:

    • Precision Machining: ±0.01mm accuracy ensures rotor alignment critical for low-noise motor operation.
    • Modular Design: Adjustable shafts and gears allow rapid reconfiguration for different motor sizes.
    • ISO 9001 Compliance: Rigorous quality control reduces defects by 30% compared to non-certified systems.

  2. Version Selection Guide:

    • Base Model: Ideal for small-to-medium workshops producing standard-sized motors (e.g., household appliances).
    • Advanced Model: Best for mid-volume manufacturers needing faster production (e.g., industrial fans or drones).
    • Pro Model: Designed for high-volume industrial applications requiring triple the load capacity of industry benchmarks, enabling safe handling of heavy-duty EV motors. With its chemical-resistant alloy frame, it also withstands harsh factory environments.

Frequently asked questions

  • Which BLDC motor rotor winding machine model suits small-scale motor production?

  • How do I maintain the gear assembly of a brushless motor winding machine?

  • What materials are used in the rotor winding machine’s structural components?

  • Can this winding machine handle both small and large rotor sizes?

  • Is the rotor winding machine compatible with CE/FDA certifications?

  • What sets your automatic winding machine apart from manual models?

  • Can I customize the mounting configuration for my production line?

  • How does the threaded shaft enhance rotor winding accuracy?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Winding PrecisionHigh-volume motor production±0.1mm tolerance (ISO 230-2) ▲▲▲ vs Industry Standard ±0.5mmEnsures rotor alignment for long motor lifespan (critical for aerospace/automotive)Higher cost for precision sensors in Advanced tier
Material DurabilityCorrosive/industrial environments500+ hours salt spray resistance (ASTM B117) ▲ vs Base 200 hoursWithstands harsh factory conditions without rust (ideal for marine equipment)Heavier build increases shipping costs for Base tier
Automation LevelMass production linesFully automated winding (ISO 9283 compliance) vs Semi-automatic Industry StdReduces labor dependency by 80% (ideal for 24/7 factories)Requires skilled technicians for calibration (Base tier simpler to operate)
Noise LevelNoise-sensitive facilities43 dBA (quieter than refrigerator hum) ▲ Base 52 dBASuitable for hospital equipment assemblyAdvanced tier’s soundproofing adds 15% to unit weight
ThroughputHigh-demand manufacturing120 rotors/hour ▲▲ Advanced vs Industry Standard 80/hourCuts production cycles by 30% (critical for EV motor suppliers)Advanced requires 50% more floor space
Customization FlexibilityR&D/testing facilities10+ rotor configurations (PLC-programmable) ▲ Base 3 presetsAdapts to prototype testing (ideal for robotics startups)Advanced’s modular design increases maintenance complexity
