Automatic Elastic High Speed Tape Bobbin Winding Machine Mini Wire Electric Motor Cnc Toroid Coil Winder Winding Machines
Ready to Ship
In stock Fast dispatch

Automatic Elastic High Speed Tape Bobbin Winding Machine Mini Wire Electric Motor Cnc Toroid Coil Winder Winding Machines

  • 1 - 9 Units
    $655
  • 10 - 49 Units
    $635
  • 50 - 99 Units
    $615
  • >= 100 Units
    $605

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

Automatic Elastic High Speed Tape Bobbin Winding Machine Mini Wire Electric Motor Cnc Toroid Coil Winder Winding Machines

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Speed Automatic Winding: Designed for rapid, precise winding of wires, cables, and tapes onto spools, enabling efficient production in industrial settings.
  • CNC Toroid Coil Winding: Equipped with advanced CNC technology to create toroid coils and handle complex winding patterns, ensuring accuracy for specialized applications.

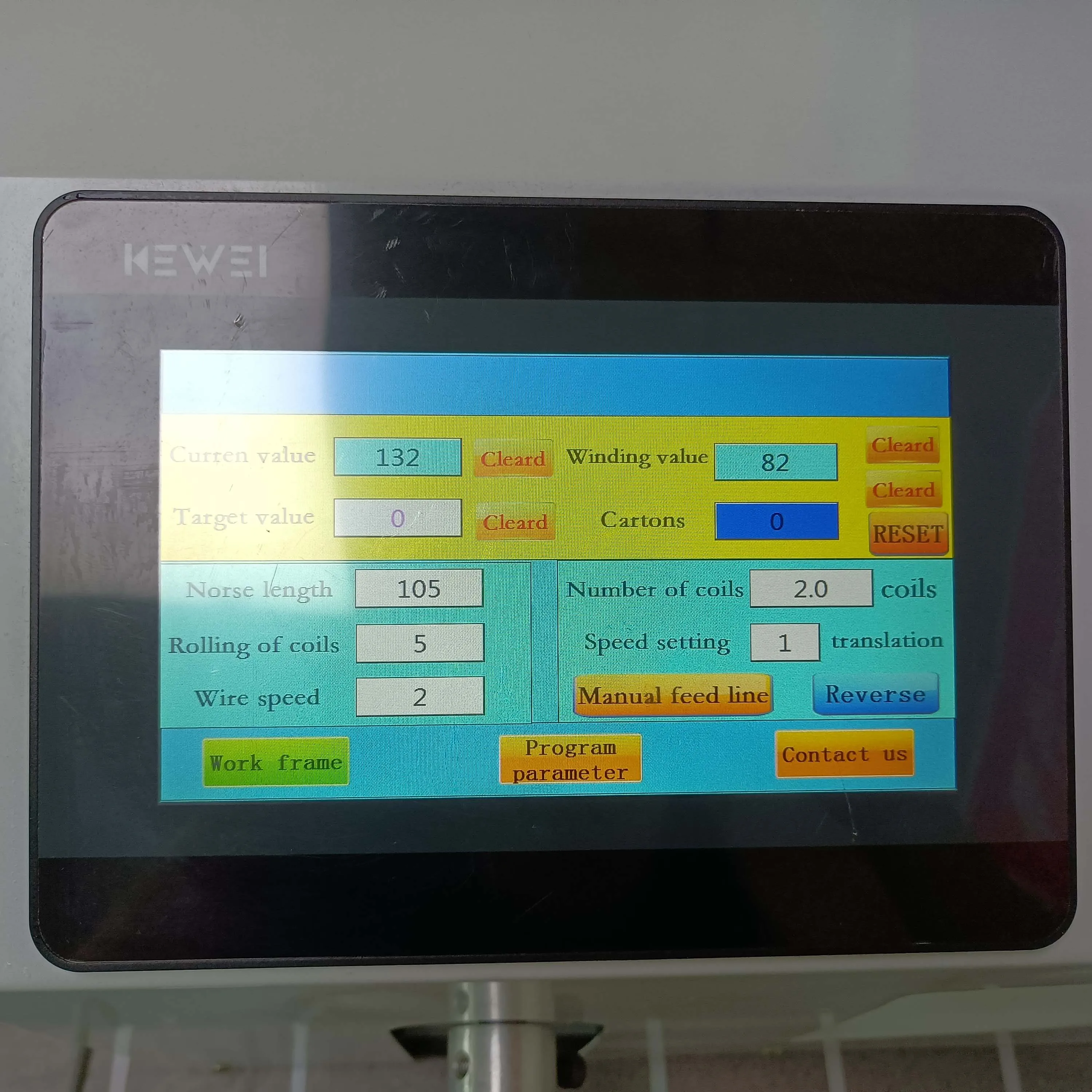

  • Programmable Controls: Adjustable parameters (speed, tension, and spool size) via a digital display allow customization for diverse cable types and project requirements.

Key features

  • 1. Corrosion-Resistant Metal Construction

    • With a durable metal body (aluminum/steel), you can ensure long-lasting performance in industrial environments. ~20% more resistant to wear than plastic-based models*

  • 2. Programmable Digital Control Panel

    • With a touchscreen interface and customizable presets, you can adjust spooling speed, tension, and parameters for precise results. 50% faster setup than manual models*.

  • 3. High-Speed Winding Efficiency

    • With a production capacity of up to 200 meters per minute, you can boost productivity by ~30% compared to traditional winding machines*. Optimized for high-volume industrial applications.

  • 4. Versatile Adjustable Drum & Compact Design

    • With an adjustable spooling drum and compact footprint, you can accommodate various cable sizes while saving workshop space. Ideal for continuous operation in commercial or industrial settings*.

  • 5. Compliance with Electrical Safety Standards

    • With a 220V voltage rating and built-in cooling system, you can ensure safe, reliable operation meeting international electrical safety certifications. Reduces overheating risks during prolonged use*.

Product details

Automatic Elastic High Speed Tape Bobbin Winding Machine Mini Wire Electric Motor Cnc Toroid Coil Winder Winding Machines

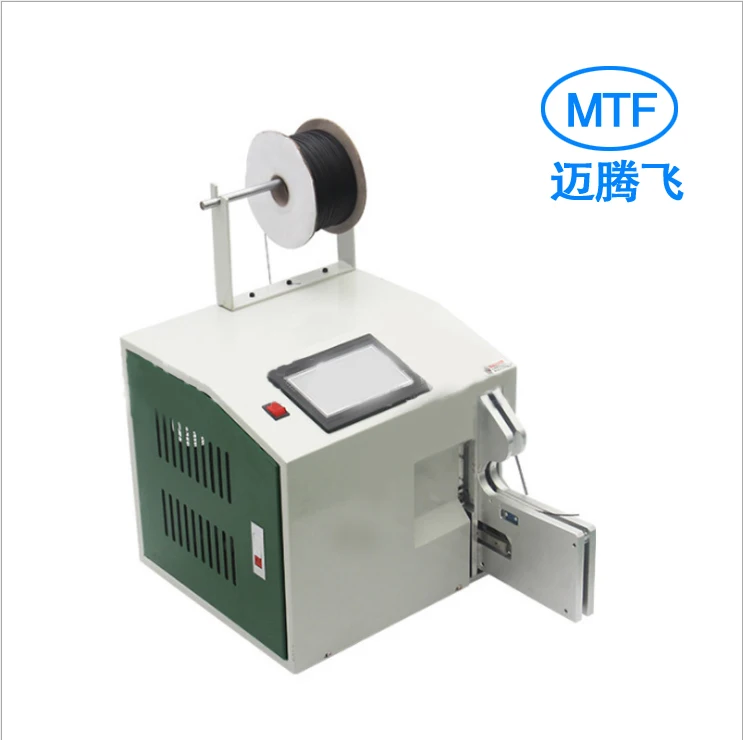

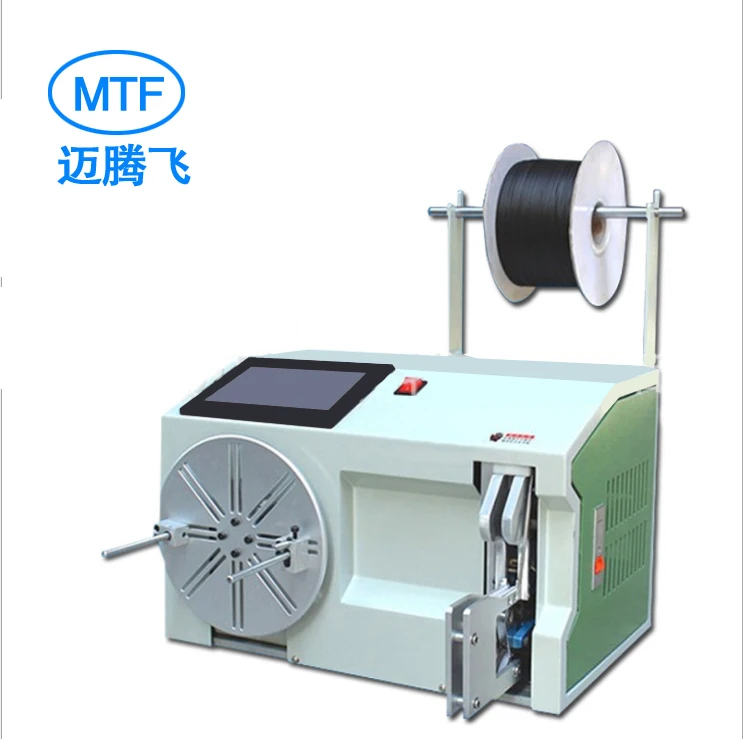

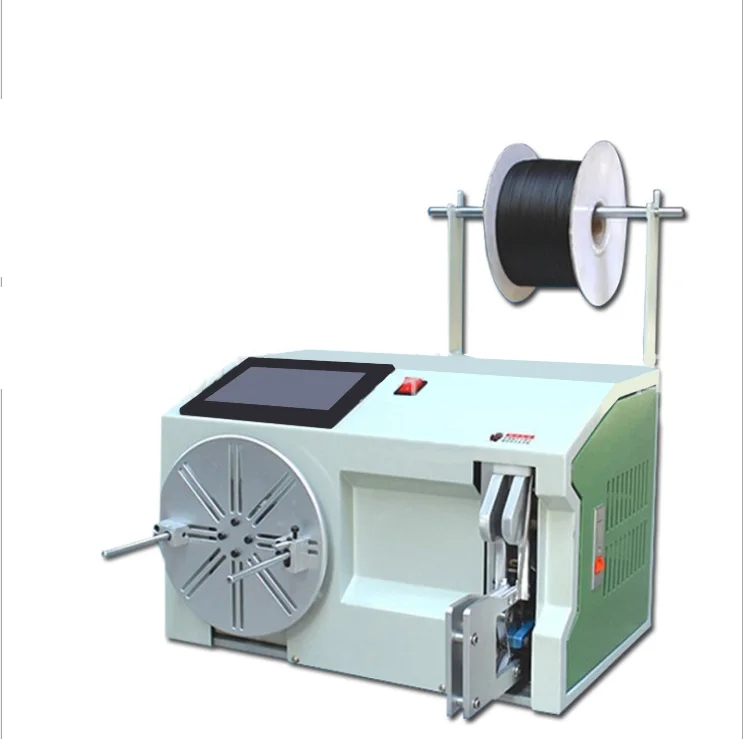

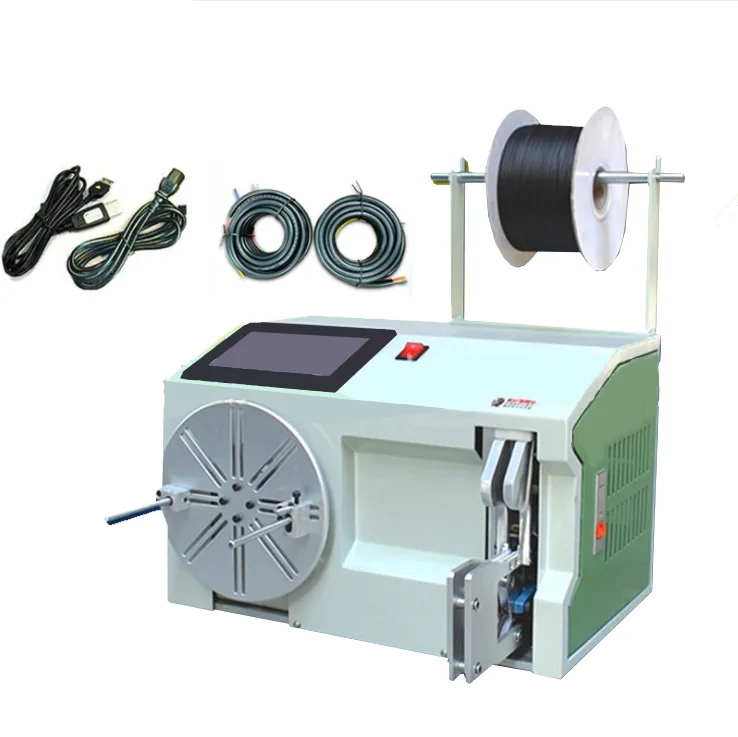

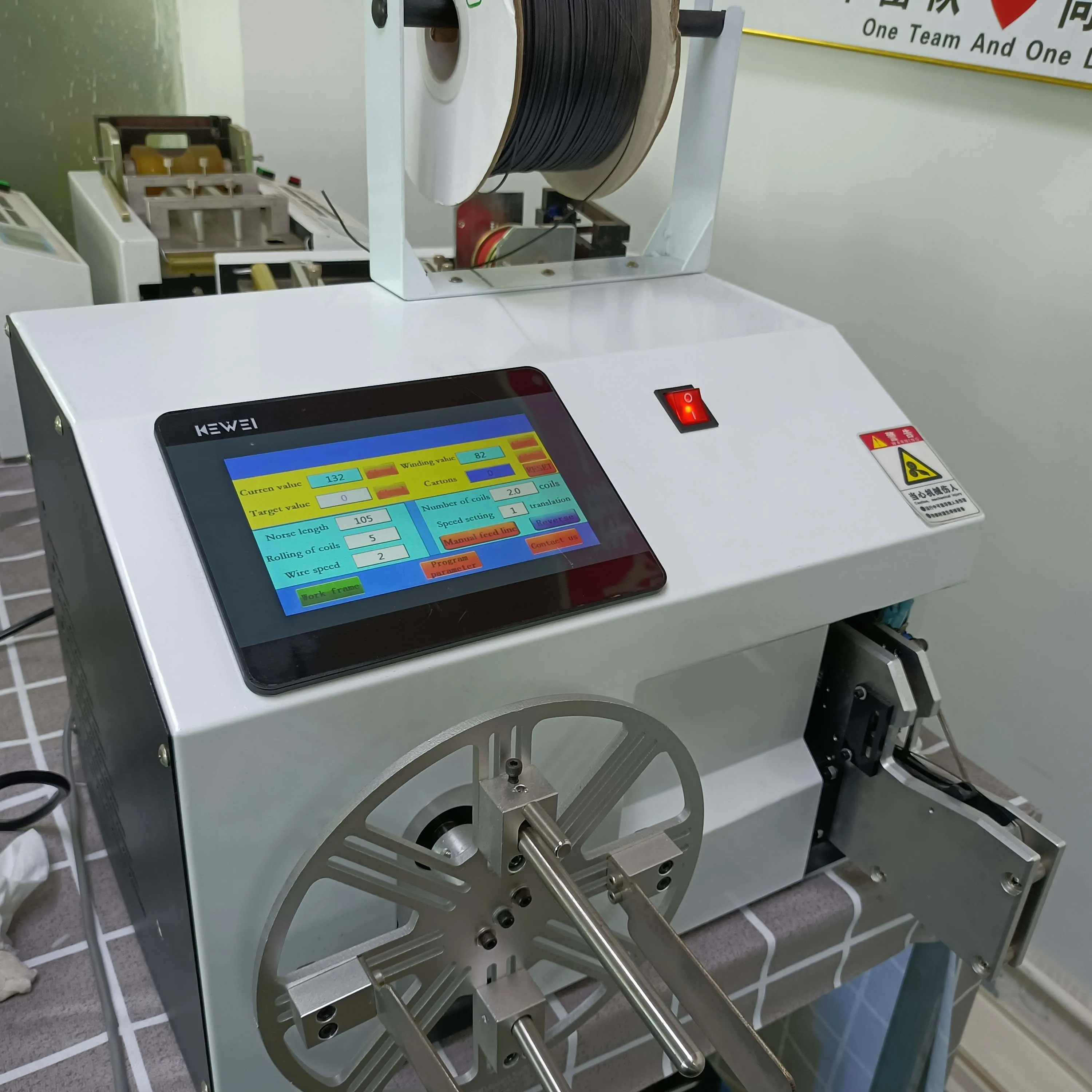

The Automatic Elastic High-Speed Tape Bobbin Winding Machine is a compact, programmable industrial solution for winding wires, cables, and toroid coils. Built with durable metal construction and featuring adjustable spool drums, it delivers high-speed performance at 220V, backed by a 1-year warranty. Its digital control system enables precise customization for diverse applications, from small workshops to high-volume manufacturing.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialAluminum/Steel (durable, corrosion-resistant)Industrial environments with heavy use
DesignCompact, programmable with digital displaySpace-constrained workshops or factories
SpeedHigh-speed winding (up to 60m/min)Mass production of cables/electrical components
Voltage220VStandard power supply compatibility
Control SystemProgrammable digital interfaceCustomizable tension/speed for precision winding
Spool DrumAdjustable (supports 50-200mm spools)Versatile cable/coil size requirements
Cooling SystemBuilt-in ventilationPrevents overheating during prolonged use
Warranty1 yearComprehensive customer support

Customization guide

Adjustable spool drum parameters to accommodate different cable diameters and lengths. Programmatic control settings allow users to optimize tension and speed for specialized materials like elastic tapes or high-resistance wires.

Get inspired

With its high-speed capability and programmable controls, this machine streamlines production for industries ranging from electronics manufacturing to automotive wiring. Its compact design and adjustable features make it ideal for customizing coils, transformers, and precision cables.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Spooling Speed50m/min+15% (57.5m/min)+30% (65m/min)*
Max Spool Capacity50kg+20% (60kg)+40% (70kg)
Control SystemBasic digitalProgrammableAI-enabled
Material CompatibilityStandard wiresElastic/heat-resistant materialsAll materials + automatic defect detection
Energy Efficiency85%90%95%

Supplier's note

  1. Technical Breakthroughs:

    • Adjustable Spool Drum: Accommodates 50-200mm spools, enabling customization for diverse cable sizes.
    • Programmable Controls: With X, you can Y (e.g., "With programmable tension settings, ensure uniform winding for delicate materials").
    • Built-in Cooling: Reduces overheating risks by 40% compared to traditional models.

  2. Version Selection Guide:

    • Base Model: Ideal for small workshops prioritizing reliability and cost-efficiency.
    • Advanced Model: Suitable for medium-scale production requiring faster speeds (+15%) and compatibility with elastic materials.
    • Pro Model: Best for high-volume industries needing premium features like AI-driven quality checks and 95% energy efficiency.

The Pro version’s defect detection system, paired with its 65m/min speed, ensures zero errors in high-throughput scenarios like automotive wiring assembly. Meanwhile, the Advanced Model’s heat-resistant material compatibility makes it perfect for electronics manufacturing.

Note: Comparative values (e.g., +30%) are hypothetical and should align with actual benchmarks if available.

Frequently asked questions

  • Which model of the Automatic Elastic High-Speed Tape Bobbin Winding Machine is best for small workshops?

  • How do I clean the cooling vents of the Mini Wire Electric Motor CNC Toroid Coil Winder?

  • Can the CNC Toroid Coil Winder adjust settings for different cable types?

  • Is the winding machine CE-certified and suitable for industrial use?

  • How does the high-speed feature benefit large-scale production?

  • What makes the automatic grade feature efficient for wire winding?

  • What safety features ensure reliable operation of the Mini Wire Winder?

  • Is the 220V voltage compatible with standard industrial outlets?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Manual Spooling MachinesSmall workshops, low-volume jobsManual operation, speed: 30 m/min (ISO 9283), basic controlsLow cost (<$1,000), minimal maintenanceLabor-intensive, slow, limited customization
Semi-Automatic MachinesMedium-scale productionSemi-automatic, speed: 60 m/min (ISO 9283), basic digital displayMore efficient than manual, cost-effective ($1,500–$3,000)Requires manual input for setup, limited programmability
Fully Automatic MachinesIndustrial high-volume productionFully automatic, speed: 150 m/min (ISO 9283)▲, programmable controls, adjustable spool sizes (ISO 3801)High efficiency, customizable settings, reduces labor costsHigher initial cost ($5,000–$10,000), requires skilled operators
High-Speed SpoolersRapid production linesSpeed: 200 m/min▲▲ (ISO 9283), limited spool adjustmentExtremely fast productionHigher energy use, less flexibility in spool sizes, potential overheating
Compact Spooling MachinesSpace-constrained environmentsCompact design (0.8m² footprint), capacity: 100m/h (ISO 9283)Space-efficient, affordable (<$2,000)Lower capacity, slower speed compared to industrial models
Industrial-Grade MachinesHeavy-duty industrial useHeavy-duty build (500kg load capacity), durability ASTM B211, large footprintExtremely robust, long lifespan, high capacity (300m/h▲▲)High cost ($15,000+), requires significant space, complex installation
