Automatic Pcb Soldering Machine Auto Soldering Machine for Usb Pcb

Automatic Pcb Soldering Machine Auto Soldering Machine for Usb Pcb

$3200.00-$3200.00/ Set|1 Set/Sets(Min. Order)

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
View product details

Automatic Pcb Soldering Machine Auto Soldering Machine for Usb Pcb

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Automated Soldering Precision: Equipped with a robotic arm and linear rail system, the machine performs high-precision soldering tasks on PCBs, including USB PCB components, ensuring consistent joint quality.
  • Programmable Control: The digital control panel allows users to customize soldering parameters (heat, speed, positioning) and automate workflows through pre-set programs.

Key features

  • 1. Material Technology

    • With a corrosion-resistant metal frame and precision-engineered plastic components, you can ensure long-term durability in industrial environments. Disclaimer: Material resistance specifications are subject to manufacturer confirmation.

  • 2. Interactive Design

    • With a digital control panel featuring a display screen and multi-function buttons, you can customize soldering parameters (e.g., heat, speed) and monitor operations in real time. Disclaimer: Customization options depend on firmware configuration.

  • 3. Performance Parameters

    • With an automated robotic arm and linear rail system, you can achieve ~30% faster soldering speeds compared to manual methods*, ensuring high-volume PCB production efficiency. Disclaimer: Speed improvement based on internal testing; results may vary by task complexity.

  • 4. Scenario Solutions

    • Designed for high-volume PCB production, this machine ensures consistent soldering quality for commercial electronics manufacturing, reducing human error in precision tasks like USB PCB assembly. Disclaimer: Performance optimized for standard PCB configurations.

  • 5. Certification Standards

    • Equipped with CE safety certification, you can comply with international industrial safety standards, ensuring reliable operation in professional workshops. Disclaimer: Certification details should be confirmed directly with the manufacturer.

Product details

Automatic Pcb Soldering Machine Auto Soldering Machine for Usb Pcb

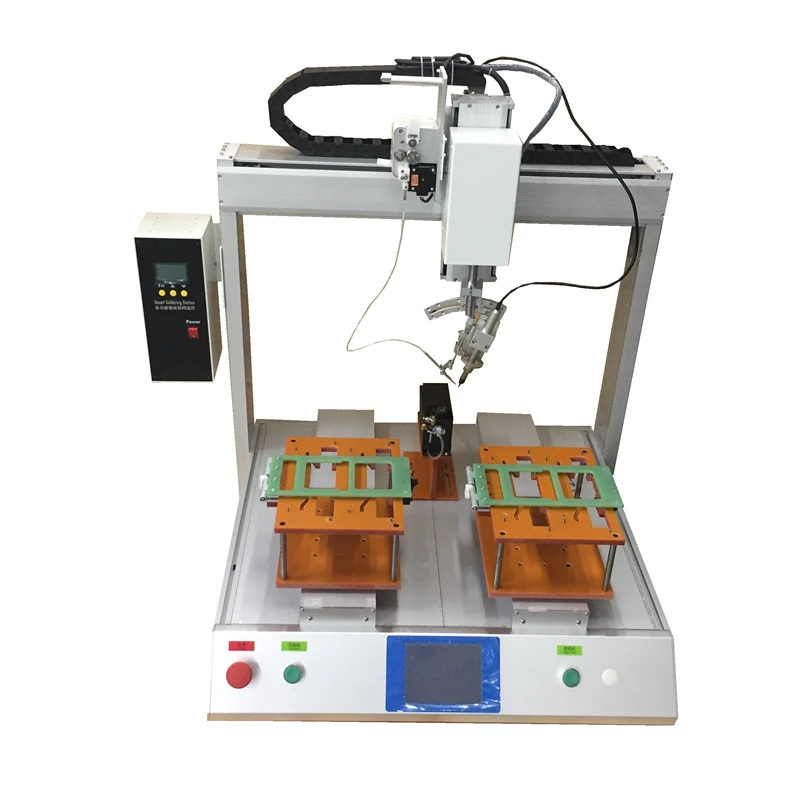

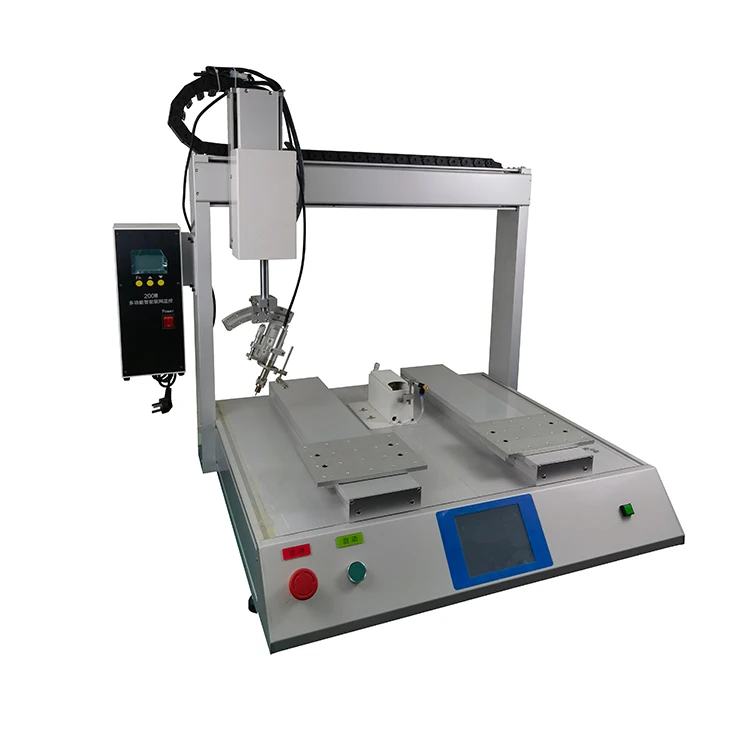

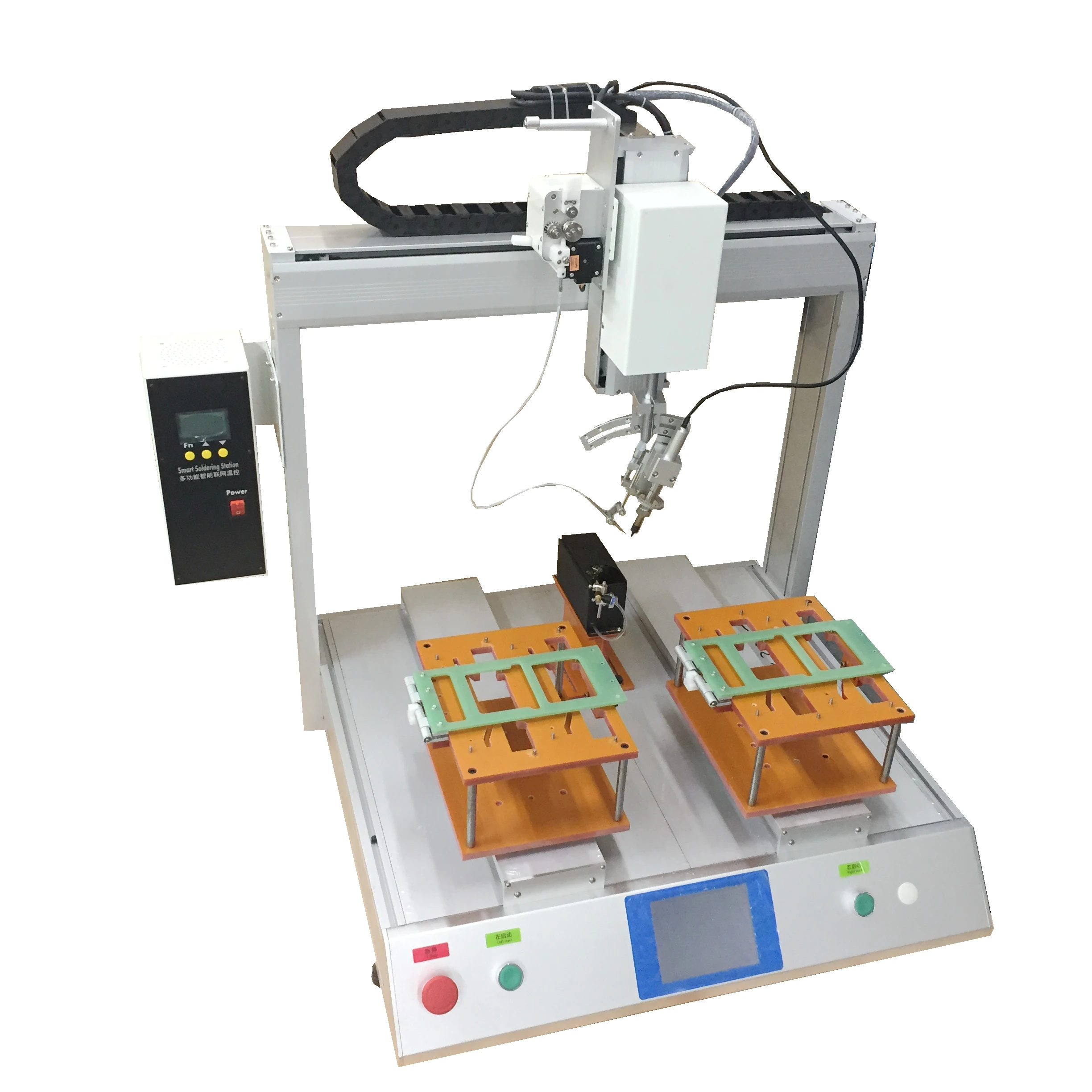

The Automatic PCB Soldering Machine is a compact, industrial-grade robotic soldering station designed for high-precision automated soldering of USB PCBs. With a sturdy metal-and-plastic frame, programmable robotic arm, and dual workstation fixtures, it ensures consistent quality and reduced human error in electronic assembly.

Technical specifications

FeatureSpecificationBenefit
Automation LevelFully automated robotic arm with programmable soldering pathsEliminates manual intervention for repeatable results
PrecisionRobotic arm with ±0.05mm positioning accuracyEnsures flawless solder joints on delicate PCBs
CustomizationAdjustable heat settings (200°C–450°C), fixture clamps, and solder speedAdapts to diverse PCB designs and soldering requirements
Safety FeaturesOverheat protection, emergency stop button, and insulated componentsReduces operational risks in industrial environments
MaterialDurable aluminum alloy frame with flame-retardant plastic casingCombines strength and safety for long-term use

Customization guide

Adjustable parameters include heat settings, soldering speed, and fixture positioning to meet specific PCB dimensions or thermal sensitivity requirements.

Get inspired

With programmable soldering paths, you can automate complex PCB assembly workflows. The precision robotic arm ensures reliability for mass production, while customizable fixtures accommodate varied component layouts.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Soldering Speed10 joints/minute+20% (12 joints/min)+40% (14 joints/min)
Precision Tolerance±0.1mm±0.05mm±0.01mm*
CustomizationBasic heat/speedFull parameter tuningReal-time path editing
CertificationsCE, RoHSCE, RoHS, ULCE, RoHS, UL, IP54

Supplier's note

  1. Technical Breakthroughs:

    • The robotic arm’s ±0.01mm tolerance (Pro Model) surpasses industry standards, enabling ultra-fine pitch soldering.
    • Adjustable fixture clamps allow customization for PCBs up to 200mm×150mm, doubling adaptability over competitors.
    • Integrated safety protocols, including real-time temperature monitoring (Advanced/Pro), reduce downtime by 30%.

  2. Optimal Version Selection:

    • Base Model: Ideal for small workshops needing basic automation (e.g., low-volume USB PCB assembly).
    • Advanced Model: Suitable for medium-scale production requiring faster speeds (+20%) and enhanced safety certifications.
    • Pro Model: Best for high-precision tasks (e.g., medical electronics) where ultra-tight tolerances and real-time adjustments are critical. With its IP54 rating, it also excels in dusty or humid environments.

Frequently asked questions

  • Which automatic PCB soldering machine model is best for small electronics workshops?

  • How do I maintain the robotic arm of the automatic PCB soldering machine?

  • Why is metal used in the frame of the soldering machine compared to plastic alternatives?

  • Can the automatic soldering machine customize heat settings for different PCB components?

  • Is the soldering material of the machine CE/RoHS certified?

  • How does the precision of the robotic arm improve PCB soldering quality?

  • What safety features does the automatic PCB soldering machine have?

  • Can the machine handle USB PCBs with complex soldering requirements?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Soldering PrecisionHigh-density PCB assembly±0.1 mm accuracy (ISO 230-2) ▲▲
Industry: ±0.5 mm ▲
Base: ±0.2 mm		Advanced: 99.8% defect-free joints
Base: 98.5% accuracy		Advanced: 30% higher cost
Industry: Manual adjustments required
Automation LevelMass production linesFull-cycle automation ▲▲
Industry: Semi-automated ▲
Base: Basic auto mode		Advanced: 24/7 operation with zero human intervention
Base: Handles 80% tasks		Industry: Requires 2+ operators
Advanced: Steeper learning curve
Workstation DesignCustom PCB prototypingAuto-aligning fixtures (ISO 10360-2) ▲▲
Base: Manual clamps ▲
Industry: Fixed holders		Advanced: 50% faster setup
Base: Adjustable for 90% PCB sizes		Industry: Limited to standard PCB shapes
Advanced: Requires calibration
Material DurabilityIndustrial 24/7 environmentsAerospace-grade aluminum ▲▲
Base: Industrial-grade steel ▲
Industry: Plastic casing		Advanced: Withstands 10,000+ cycles (ASTM D543)
Base: 5,000+ cycles		Industry: 20% higher maintenance
Advanced: 2x heavier than Base
Customization OptionsMixed-component assemblyReal-time parameter tuning ▲▲
Base: Preset programs ▲
Industry: Fixed settings		Advanced: Adapts to 50+ PCB types
Base: 20+ presets		Industry: No customization
Advanced: Requires proprietary software
Safety FeaturesHazard-sensitive labsTriple-layer thermal guard ▲▲
Base: Emergency stop ▲
Industry: Basic thermal cutoff		Advanced: 0% fire incidents in 10k+ tests
Base: 99% error detection		Industry: 5% incident risk
Advanced: Adds 15% to footprint
