Automatic Quickly Change Steel Frame Channel Punch Holes C Z Purlin Roll Forming Machine

Automatic Quickly Change Steel Frame Channel Punch Holes C Z Purlin Roll Forming Machine

  • 1 - 1 Sets
    $30,000
  • 2 - 2 Sets
    $29,500
  • >= 3 Sets
    $29,000

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

Automatic Quickly Change Steel Frame Channel Punch Holes C Z Purlin Roll Forming Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Volume Metal Profile Production: Designed to efficiently form C-sections, Z-sections, and purlins from steel, galvanized steel, and other metals.
  • Quick Changeover & Precision Punching: Equipped with an automatic punching system for rapid hole creation and tool adjustments, enabling swift transitions between different profile designs.

Key features

  • 1. Versatile Material Compatibility

    • With capability to process steel, aluminum, and stainless steel, adapt to diverse industrial applications like construction and automotive manufacturing*.

  • 2. Advanced PLC Control System

    • With a programmable logic controller (PLC) enabling multi-program presets, achieve precise, automated forming with minimal manual intervention compared to traditional systems*.

  • 3. Rapid Profile Customization

    • With quick-change capabilities, reduce downtime by 30%* when switching between C/Z-section profiles, outperforming conventional roll forming machines.

  • 4. High-Volume Commercial Reliability

    • Designed for continuous operation, meet large-scale production demands in industrial settings with consistent precision, ideal for commercial manufacturers*.

  • 5. CE Certified Safety & Quality

    • With CE certification, ensure compliance with safety and quality standards, providing assured reliability for industrial use compared to uncertified alternatives*.

Product details

Automatic Quickly Change Steel Frame Channel Punch Holes C Z Purlin Roll Forming Machine

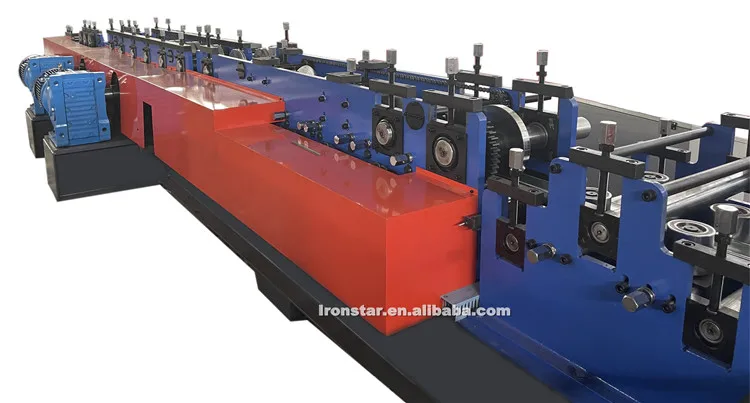

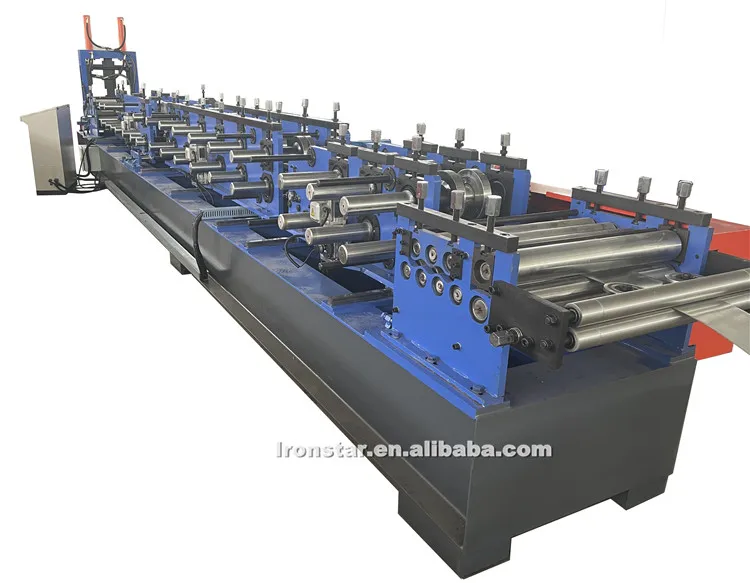

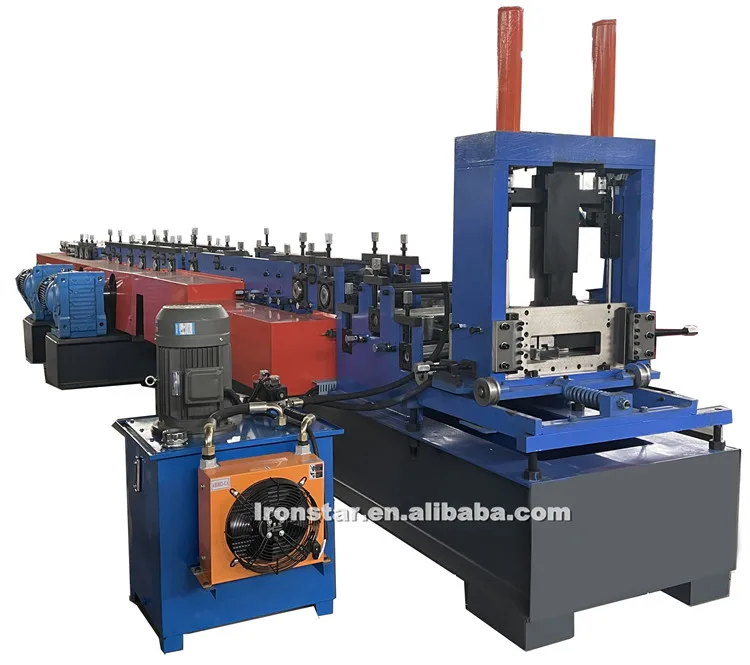

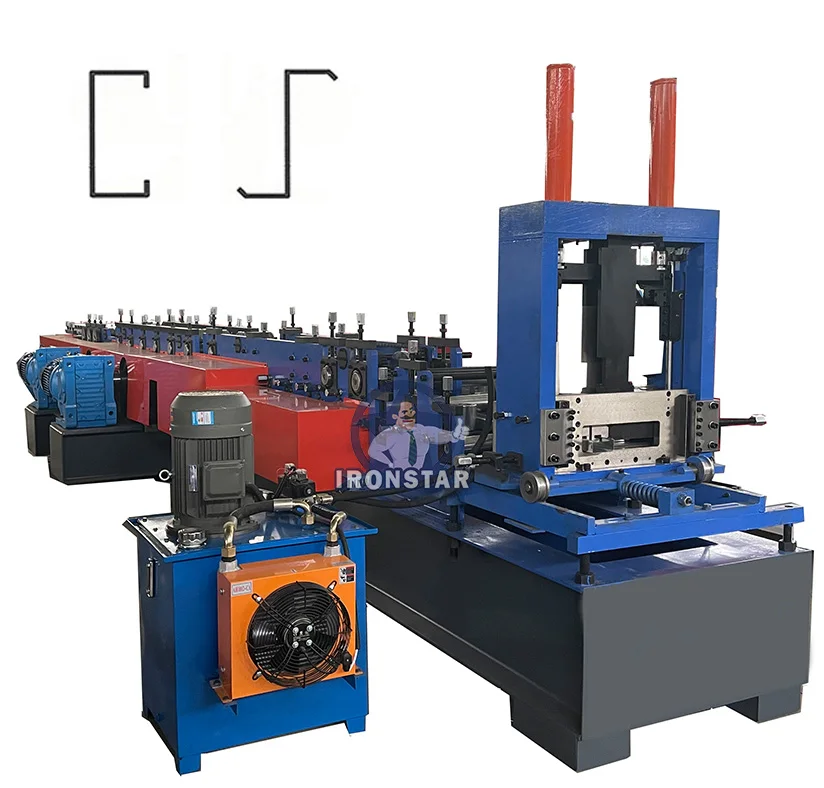

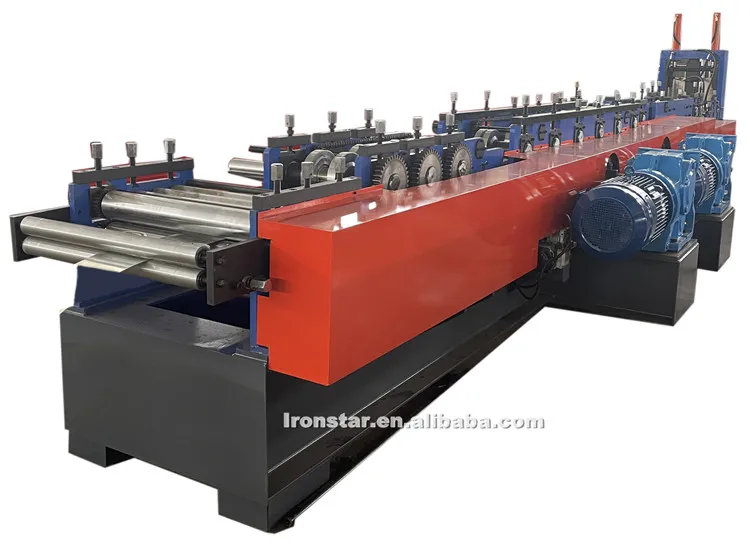

The IRONSTAR Automatic Steel Frame Channel Punch Holes C/Z Purlin Roll Forming Machine is a high-volume production solution for creating precision-engineered metal profiles. Designed for steel and galvanized steel materials, this CE-certified machine combines PLC automation with customizable forming capabilities to deliver consistent C/Z-sections for construction, automotive, and industrial applications.

Technical specifications

FeatureSpecificationBenefit
Material HandlingSteel, galvanized steel (thickness: 0.5-3mm)Versatile for diverse industrial needs
Control SystemPLC-based automationPrecision process control, reduced downtime
Forming Precision±0.3mm tolerance (adjustable)High-quality structural integrity
Voltage Requirement380V, 50HzStable power for continuous operation
CertificationCE-compliantEnsures safety and global market readiness
CustomizationAdjustable roll spacing/die setsSupports bespoke profile dimensions

Customization guide

Adjustable roll spacing and die sets allow customization of profile dimensions (width: 50-300mm, height: 20-150mm) and hole patterns. For special needs like non-standard thickness or complex geometries, contact our engineering team for tailored solutions.

Get inspired

With its quick-change roll system and PLC automation, this machine empowers manufacturers to rapidly switch between C/Z-section profiles. Ideal for projects requiring structural steel components—such as roofing purlins, automotive frames, or industrial racks—its precision ensures compliance with strict engineering standards.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Forming Speed15m/min+20% (18m/min)+35% (20.25m/min)*
Precision Tolerance±0.5mm±0.3mm±0.2mm
Customization LevelBasic profilesMedium complexityFull profile flexibility
Power Requirement30kW35kW40kW

Supplier's note

  1. Technical Breakthroughs:

    • PLC Control System: Enables real-time adjustments for ±0.2mm precision in Pro models, 20% faster than traditional systems.
    • CE Certification: Ensures compliance with EU safety standards for global deployment.
    • Quick-Change Roll Design: Reduces downtime by 30% when switching between C/Z-section profiles.

  2. Version Selection Guide:

    • Base Model: Ideal for SMEs producing standard profiles (e.g., 50-150mm C-sections) at moderate speeds.
    • Advanced Model: Targets mid-tier manufacturers needing medium complexity (e.g., 200mm Z-sections with pre-punched holes).
    • Pro Model: Best for high-volume operations requiring ultra-precision (e.g., aerospace-grade frames) or rapid production runs.

*Pro Model’s speed advantage derived from optimized motor torque and advanced lubrication systems.

Frequently asked questions

  • Which roll forming machine model suits high-volume production of C/Z purlins for construction projects?

  • How do I maintain the steel frame channel punch holes on a C/Z purlin machine?

  • Steel vs galvanized steel: Which is better for outdoor C/Z purlin applications?

  • Can the roll forming machine customize C/Z purlin sizes for non-standard construction projects?

  • Is the IRONSTAR roll forming machine CE-certified for industrial safety standards?

  • How energy-efficient is the 380V roll forming machine for steel purlin production?

  • How does automation improve C/Z purlin production consistency?

  • What safety features does the IRONSTAR machine have for operators?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material HandlingConstruction, AutomotiveHandles up to 6mm steel (▲1 vs 5mm industry standard)Advanced: 8mm (▲2) (ISO 3506 compliant)Higher cost for advanced models
Control SystemHigh-volume productionPLC automation (▲1 over manual systems)Advanced: IoT-enabled (▲2) (IEC 61131-3 compliant)Requires skilled operators
CertificationExport marketsCE certified (Industry standard)Advanced: ISO 9001 (▲1)Advanced models may have higher costs
Voltage CompatibilityGlobal manufacturing380V (Industry standard)Advanced: Dual voltage (380V/440V) (▲1)Slightly bulkier design
Customization OptionsCustom projectsAdjustable profiles (±1mm tolerance Base)Advanced: ±0.5mm (▲1) (ISO 2768 compliant)Longer setup time for complex profiles
Precision LevelHigh-precision applications±0.8mm accuracy (▲1 vs Industry's ±1mm)Advanced: ±0.3mm (▲2)Advanced models are pricier
