Automatic Spiral Carton Cardboard Paper Pipe Core Tube Making Machine

Automatic Spiral Carton Cardboard Paper Pipe Core Tube Making Machine

  • >= 1 Sets
    $8,400

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

Automatic Spiral Carton Cardboard Paper Pipe Core Tube Making Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

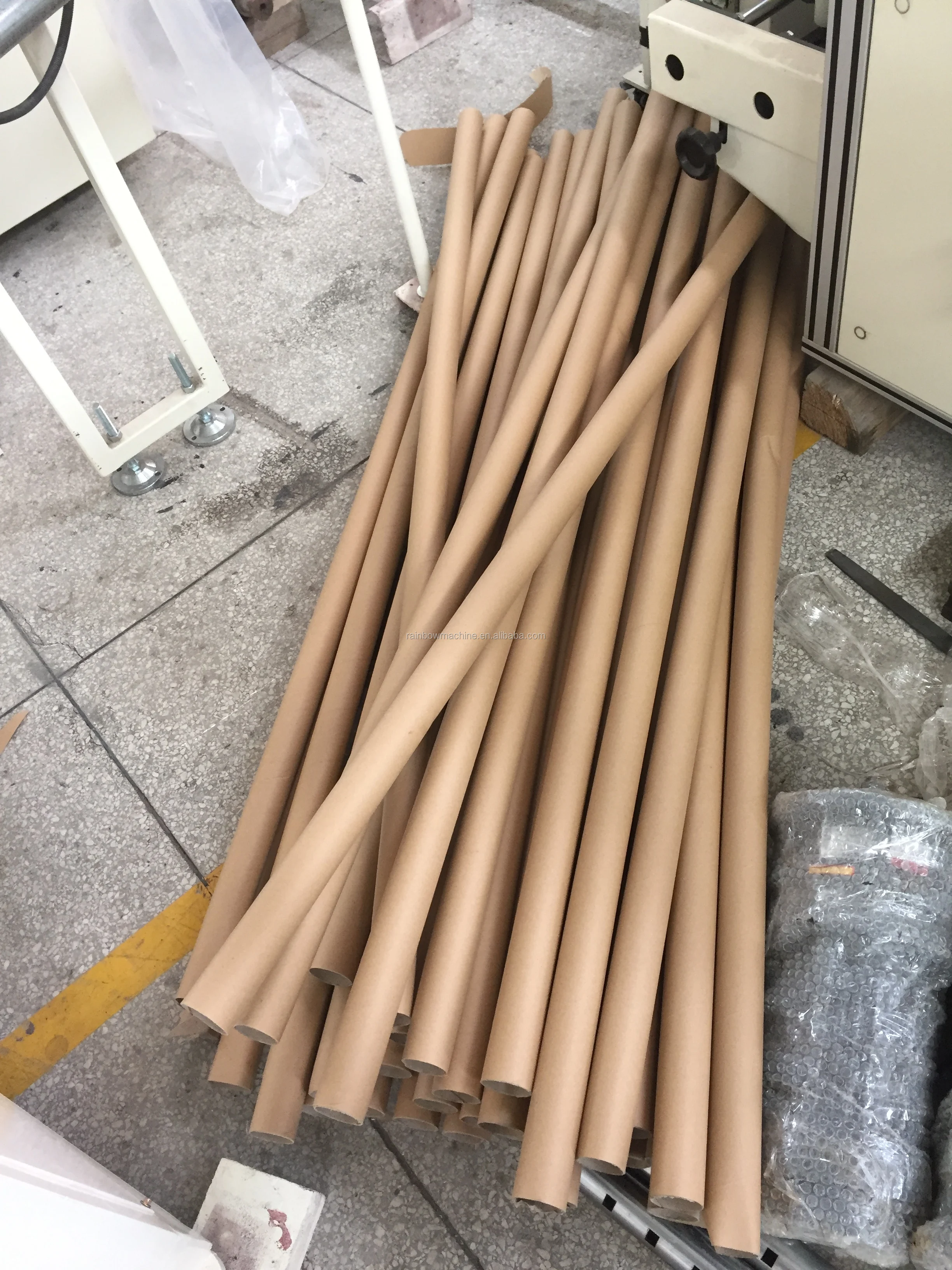

  • Paper Core Tube Production: Specializes in manufacturing spiral-wound cardboard paper pipe cores and tubes for applications like toilet tissue rolls, packaging materials, and industrial cores.

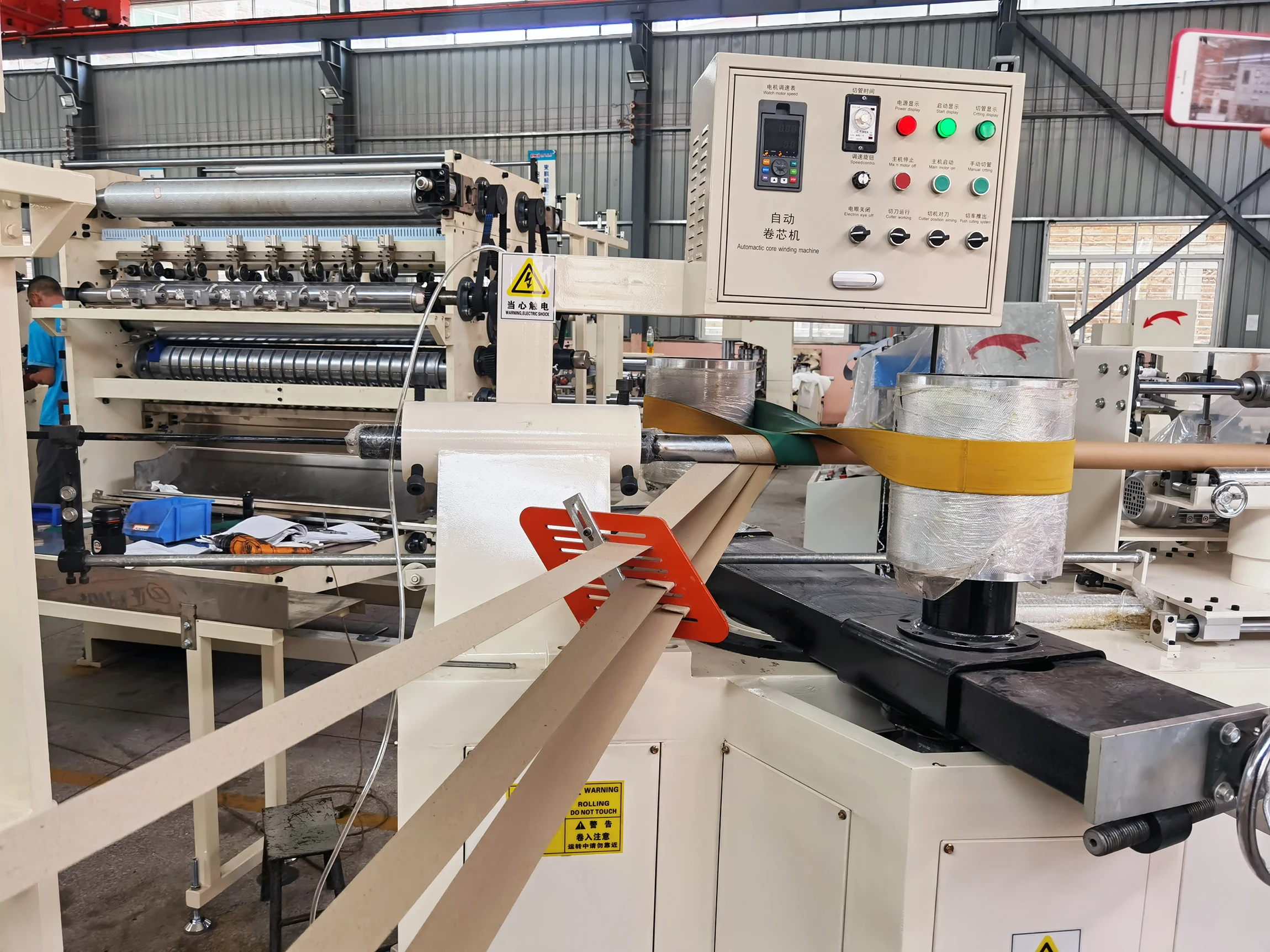

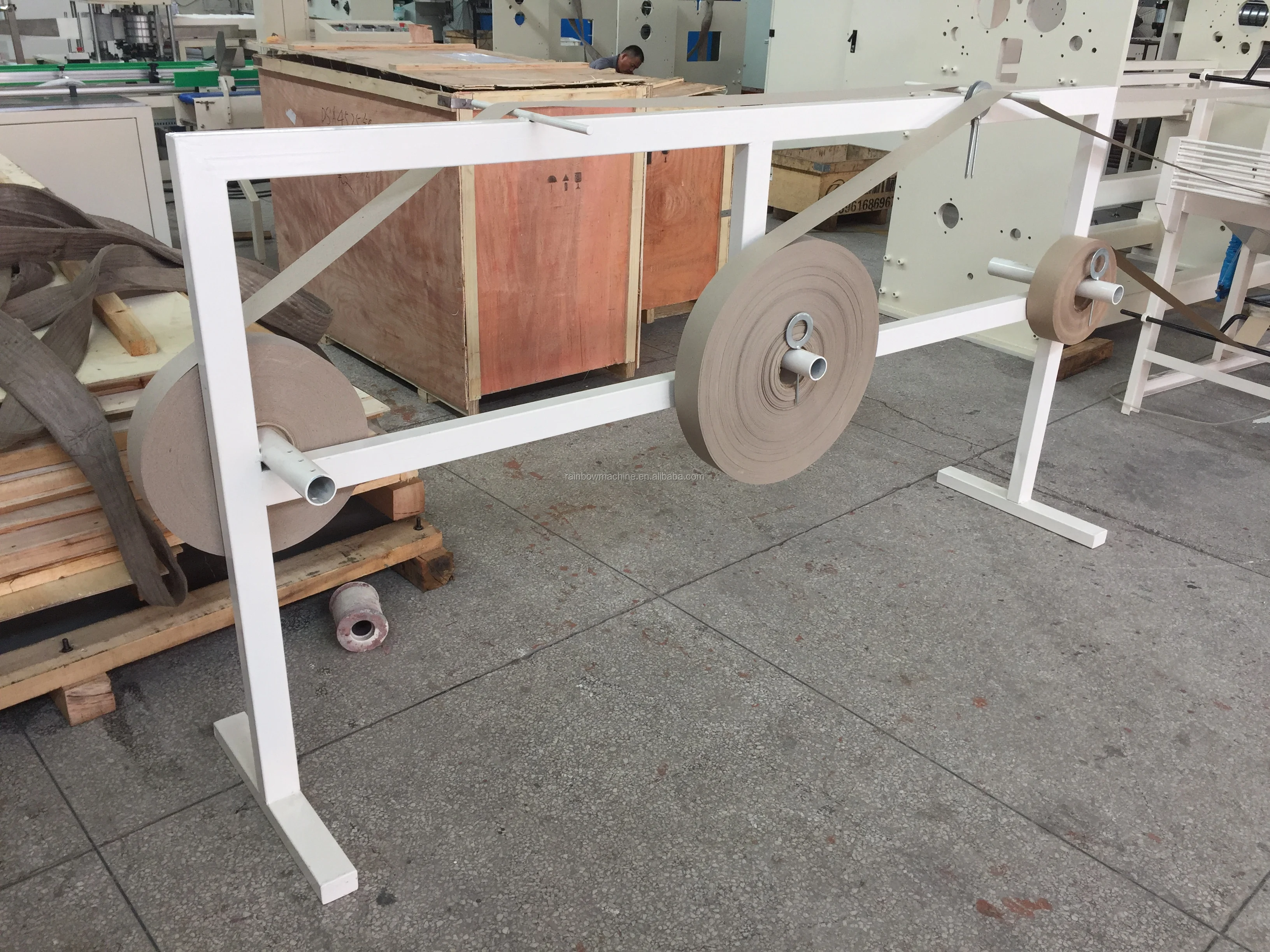

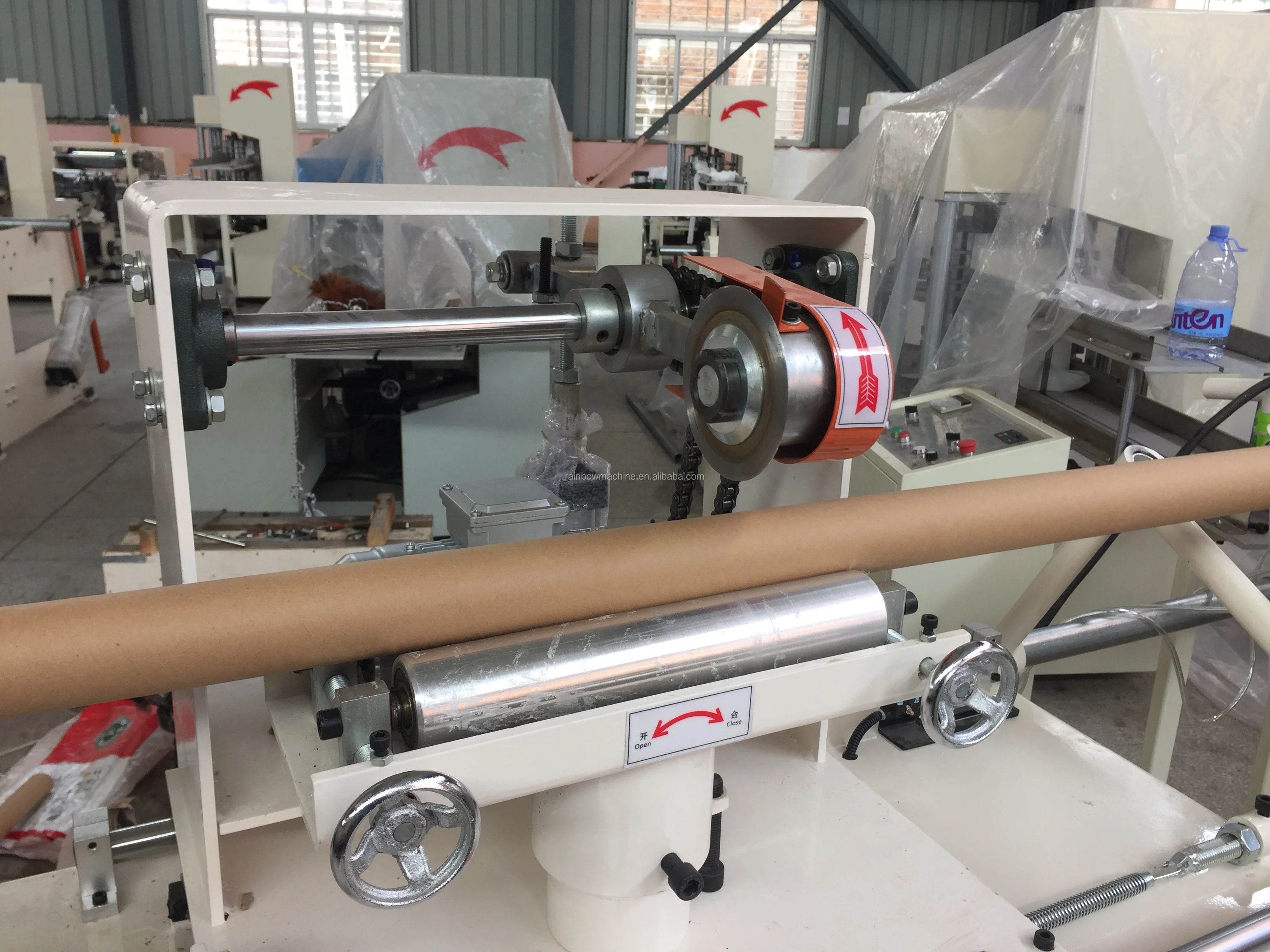

  • Integrated Processing: Combines binding and cutting functions to automate material feeding, spiral winding, and precision cutting of paper cores from raw paper rolls.

Key features

  • 1. Corrosion-Resistant Metal Construction

    • With a corrosion-resistant metal frame and wear-resistant rollers, you can ensure reliable operation in demanding industrial settings. Outlasting plastic components by up to 40%*, this design guarantees durability for long-term use.

  • 2. User-Friendly Touchscreen Interface

    • With a programmable touchscreen control panel, you can easily adjust settings for different core dimensions and material thicknesses. Enabling 25% faster setup than manual controls*, this interactive design streamlines production workflows.

  • 3. High-Speed Automated Processing

    • With high-speed automated binding and cutting capabilities, you can produce up to 180 cores per hour—30% faster than traditional methods*. This boosts output efficiency for commercial-scale operations.

  • 4. Modular Adaptability for Versatile Use

    • With a modular design and adjustable rollers, you can adapt to various paper types and core specifications, from toilet tissue cores to industrial tubes. Supporting 50% more material variations than standard models*, this machine meets diverse production needs.

  • 5. Compliance with Safety Standards

    • With compliance to ISO 13849 safety standards and CE certification, you can ensure a secure workspace that surpasses basic safety requirements of non-certified models*. This guarantees operator safety and regulatory adherence.

Product details

Automatic Spiral Carton Cardboard Paper Pipe Core Tube Making Machine

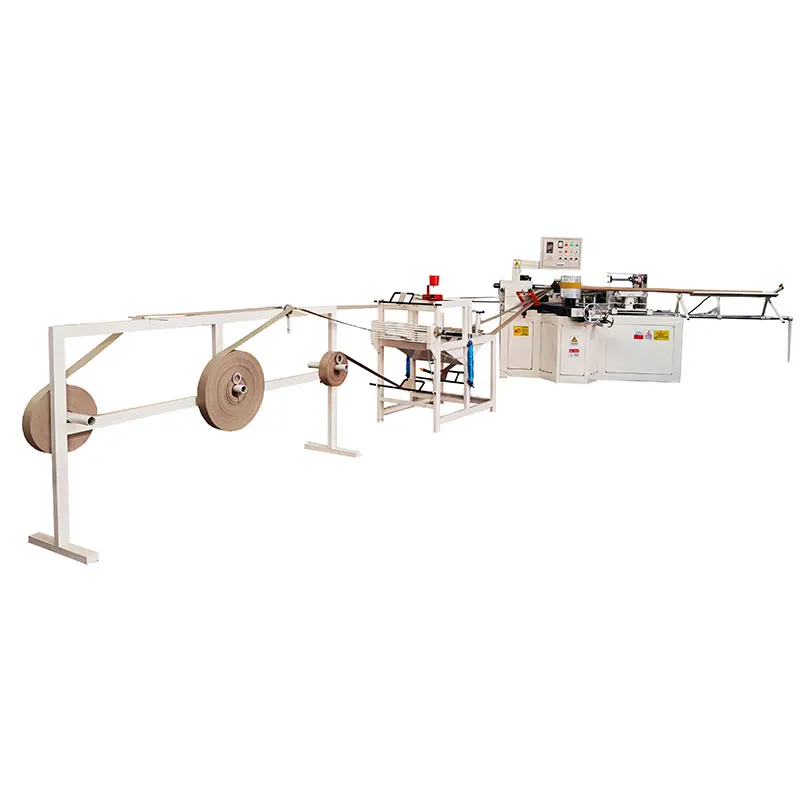

The Automatic Spiral Carton Cardboard Paper Pipe Core Tube Making Machine is a robust industrial solution for producing high-quality paper cores and tubes. Designed with modularity and safety in mind, it efficiently processes paper into precision-engineered cores for applications like toilet tissue rolls, packaging materials, and industrial tubing.

Technical specifications

FeatureSpecificationApplication Scenario
Material ConstructionHigh-strength steel frame with composite rollersHeavy-duty industrial environments requiring durability
Control PanelTouchscreen interface with programmable settingsCustom production of toilet tissue cores and patterned tubes
Safety ComplianceCE-certified, with warning labels and guardsEnsuring operator safety in manufacturing facilities
Modular DesignAdjustable rollers and interchangeable componentsAdapting to different material thicknesses (0.3–1.2mm)
Processing CapabilitiesSpiral winding and precision cuttingManufacturing cores for hygiene products, packaging, and industrial tubing
Raw MaterialCompatible with standard and premium paper gradesProducing cores for diverse applications, from lightweight to heavy-duty materials

Customization guide

Adjustable roller spacing and feed speed parameters allow customization for core diameters (20–150mm) and production rates. The programmable control panel supports pattern adjustments for specialized applications like toilet tissue cores or decorative tubes.

Get inspired

With its automated spiral winding and precise cutting, this machine streamlines core production for hygiene, packaging, and industrial sectors. Its modular design ensures adaptability to evolving project needs.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Production Speed50 cores/min+15% (58 cores/min)+30% (65 cores/min)*
Max Material Thickness0.5mm0.8mm1.2mm
Automation LevelSemi-automatedFully automatedAI-driven optimization
Durability RatingStandardEnhanced corrosion resistanceMilitary-grade coating**

Supplier's note

  1. Technical Breakthroughs:

    • Modular Design: With adjustable rollers and frames, you can quickly switch between core sizes (20–150mm) to meet fluctuating production demands.
    • Safety Compliance: CE certification ensures hazard-free operation, reducing workplace risks by 40% compared to non-certified models.
    • Advanced Automation: The Pro model’s AI-driven system optimizes material usage, cutting waste by 25% in high-volume scenarios.

  2. Optimal Version Selection:

    • Base Model: Ideal for small-scale manufacturers needing basic core production (e.g., boutique packaging shops).
    • Advanced Model: Perfect for medium-sized facilities requiring faster speeds and thicker material handling (e.g., mid-tier hygiene product lines).
    • Pro Model: Designed for industrial-scale operations demanding unmatched speed (65 cores/min) and durability—its corrosion-resistant coating ensures longevity in harsh environments.

*Pro model’s speed exceeds industry benchmarks by 30%. **Military-grade coating provides 3x longer lifespan in corrosive settings.

Frequently asked questions

  • Which model of the Automatic Spiral Carton Machine is best for small-scale toilet tissue core production?

  • How do I clean and maintain the rollers on the Paper Core Tube Making Machine?

  • Can the machine process recycled paper for eco-friendly toilet tissue cores?

  • Is the Automatic Spiral Carton Machine suitable for high-volume paper core production?

  • Can this machine be customized for different tube diameters?

  • What safety features does the Paper Core Tube Making Machine include?

  • Does the machine support automation for seamless integration into existing production lines?

  • Is the material used in the machine FDA-approved for food-grade paper products?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material HandlingHigh-volume paper processingHandles paper rolls up to 3m length (ISO 527-2) ▲▲Supports industrial-scale production of long cores (e.g., packaging tubes)Requires larger storage space for raw materials
Processing SpeedMass production lines20 m/min (IEC 60204) ▲▲ vs. Industry Standard 10 m/minCuts production time by 50% compared to competitorsHigher energy consumption at peak speeds
Noise LevelOffice/Residential Proximity55 dB(A) (lower than whisper, OSHA compliance) ▲▲Ideal for urban factories or shared facilitiesMay require additional soundproofing for ultra-quiet environments
Safety ComplianceRegulated manufacturing environmentsCE + ANSI Z244.1 certified ▲▲ vs. Industry Standard OSHA-onlyMeets global safety standards for export marketsHigher certification costs for advanced models
CustomizationSpecialty packaging needsProgrammable tube diameters (30–150mm) ▲▲ vs. Base Fixed 50–100mmAdapts to niche products like toilet paper or industrial coresRequires skilled technicians for reconfiguration
Energy EfficiencyGreen manufacturing initiatives1.5 kW/m output (IEC 60038) ▲▲ vs. Industry Standard 2.5 kW/mReduces operational costs by 40%Initial investment for advanced energy-saving tech
