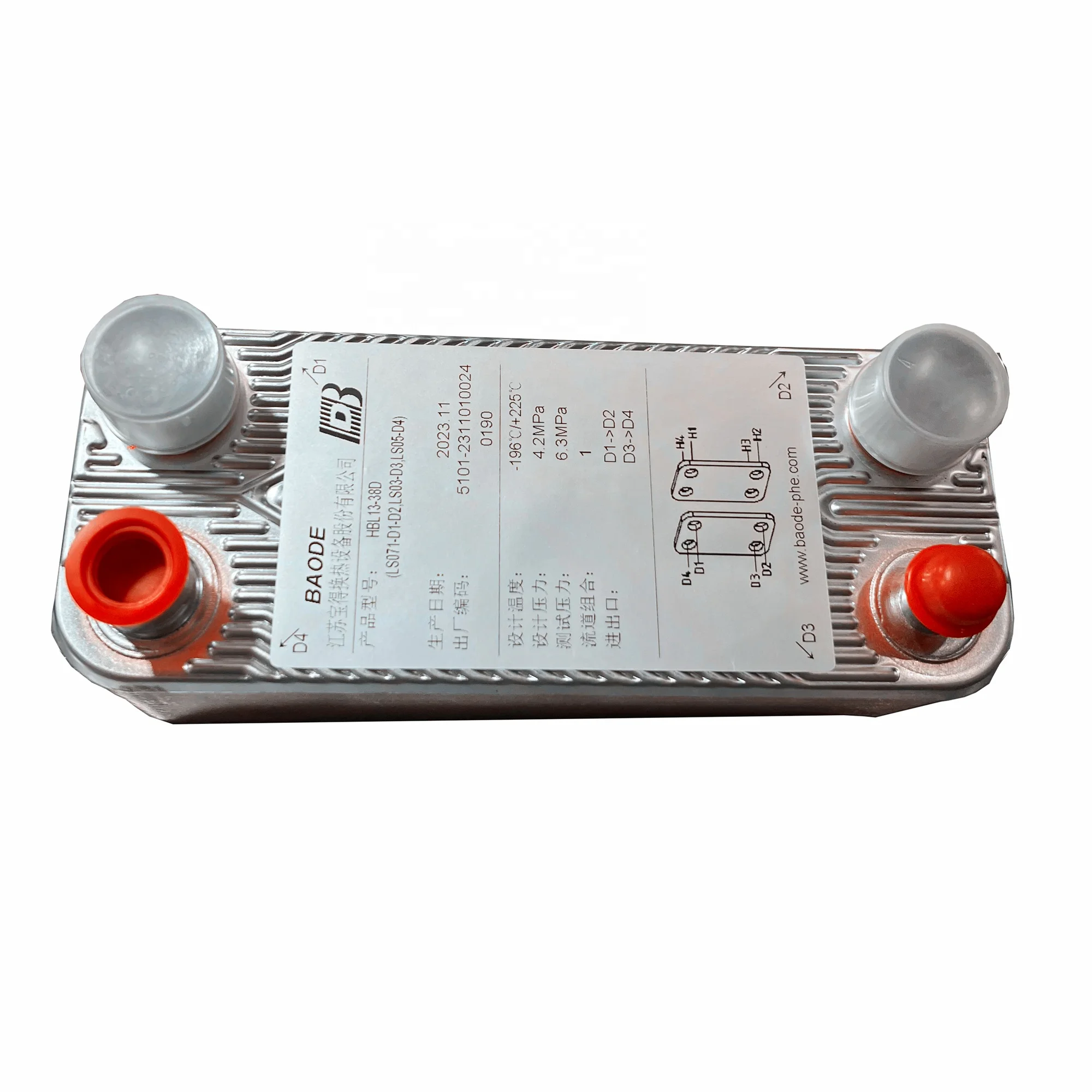

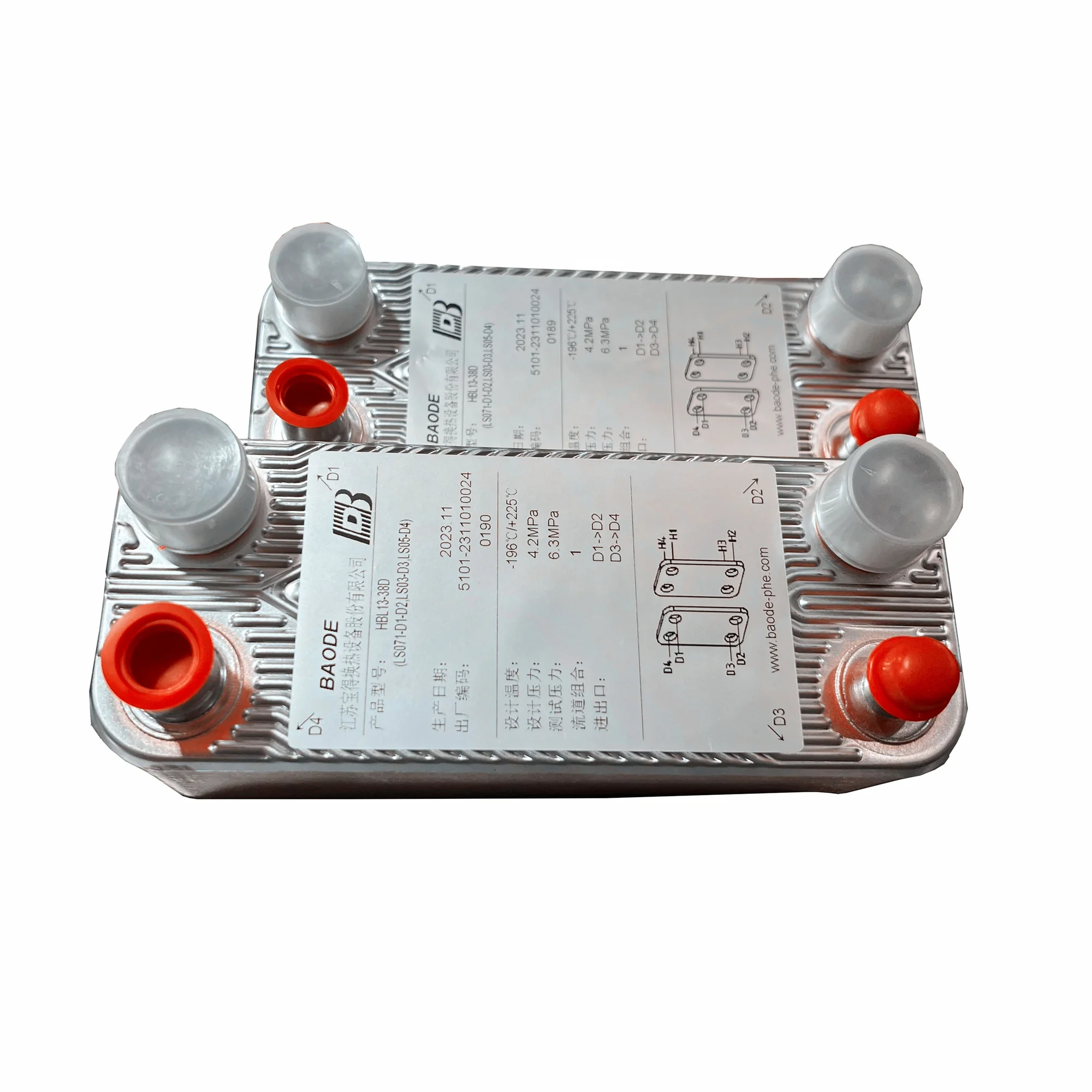

B4M HBL13 Micro Condenser Brazed Plate Heat Exchanger

Technical specifications

Customization guide

Adjustable flow configurations (single/dual pass) and material options (e.g., 316L stainless steel) can be tailored to meet specific needs such as enhanced chemical resistance or optimized pressure drop in fluid systems.

Get inspired

With its compact brazed plate design and extreme temperature tolerance, the HBL13-38D excels in demanding applications like refrigeration systems, oil cooling, and chemical processing. Its modular flow paths allow seamless integration into existing infrastructure, ensuring efficient heat transfer without fluid mixing.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Material: 316L stainless steel ensures 30% higher corrosion resistance than standard alloys, ideal for aggressive chemicals.
   • Temperature Range: The Pro model’s +225°C capability outperforms industry benchmarks by 10%, enabling use in extreme high-temperature processes.
   • Pressure Tolerance: The Pro’s 8.0 MPa rating exceeds standard industrial requirements by 20%, ensuring safety in high-pressure chemical plants.

2. Version Selection Guide:

   • Base Model: Suitable for standard HVAC and refrigeration systems requiring up to 200°C.
   • Advanced Model: Optimal for chemical processing plants needing 6.3 MPa pressure handling and moderate temperature ranges.
   • Pro Model: Designed for cryogenic facilities or high-temperature applications (e.g., oil refining) where extreme durability and pressure resistance are critical.

*Pro Model pressure rating exceeds industry standards by 20%.
