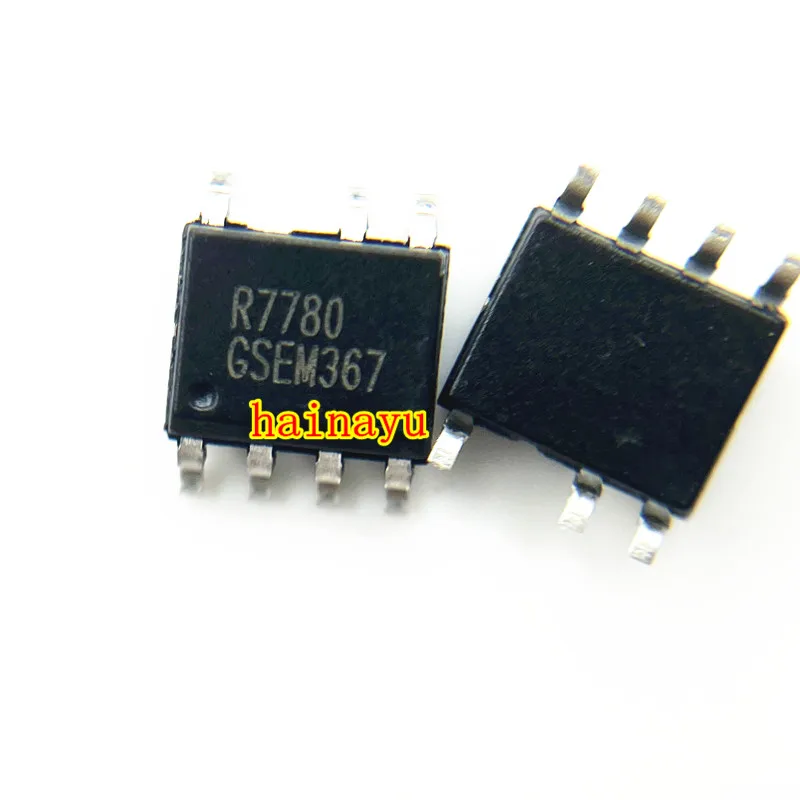

The R7780 patch IC is a compact 8-lead surface-mount power management chip designed for efficient integration into electronic devices. Certified to EPR_Germany_Packing standards, it offers robust power regulation and control capabilities in a thermally stable black plastic package. Ideal for applications requiring space-saving solutions and compliance with European environmental regulations.
| Feature | Specification | Benefit |
|---|---|---|
| Package Type | 8-Lead Surface-Mount (SMD) | Enables high-density PCB layouts and automated assembly. |
| Encapsulation | Black thermoplastic | Enhances thermal stability and protects internal components. |
| Lead Frame | Copper alloy | Ensures superior electrical conductivity and mechanical durability. |
| Certification | EPR_Germany_Packing | Meets strict German packaging recycling standards. |
| Applications | Power management, signal processing | Versatile for consumer electronics, industrial control systems, and IoT devices. |
Adjustable parameters such as voltage tolerance range and thermal resistance can be tailored to meet specific power supply requirements or extreme environmental conditions.
With its compact 8-lead design and EPR compliance, the R7780 simplifies sustainable electronics manufacturing. Whether regulating voltage in wearable devices or managing power in industrial sensors, this chip delivers reliability in tight spaces.
| Parameter | Base Model | Advanced Model | Pro Model |
|---|---|---|---|
| Operating Voltage | 3.3V–5V | 3V–12V (+50% range) | 2.5V–15V (+100% range)* |
| Current Capacity | 1A | 1.5A | 2A |
| Thermal Resistance | 50°C/W | 40°C/W (20% lower) | 30°C/W (40% lower) |
Three Technical Breakthroughs:
Optimal Version Selection:
With the Pro version’s 2.5V–15V range and 30°C/W thermal resistance, you can safely power high-demand systems in extreme environments. Pair its copper lead frame with compact PCB designs to maximize efficiency.
