Baolaiya custom 7 segment tn htn digital lcd display for solar inverter with white backlight

Baolaiya custom 7 segment tn htn digital lcd display for solar inverter with white backlight

$0.15-$2.00/ Piece|5000 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 2000 pieces）
Customized packaging（Min.Order: 2000 pieces）
Graphic customization（Min.Order: 2000 pieces）
View product details

Baolaiya custom 7 segment tn htn digital lcd display for solar inverter with white backlight

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Real-Time Energy Monitoring: Displays numerical values such as voltage percentage (V%) and ampere-hours (AH) for solar energy systems, enabling precise tracking of energy storage and consumption.
  • Multi-Icon Visualization: Integrates solar, battery, and light bulb icons to provide clear insights into solar input, battery charge levels, and electrical output in power management systems.

Key features

  • 1. Material Technology

    • With HTN LCD technology and a durable plastic frame, ensure stable performance in extreme temperatures and outdoor environments. ~25% more heat

Product details

Baolaiya custom 7 segment tn htn digital lcd display for solar inverter with white backlight

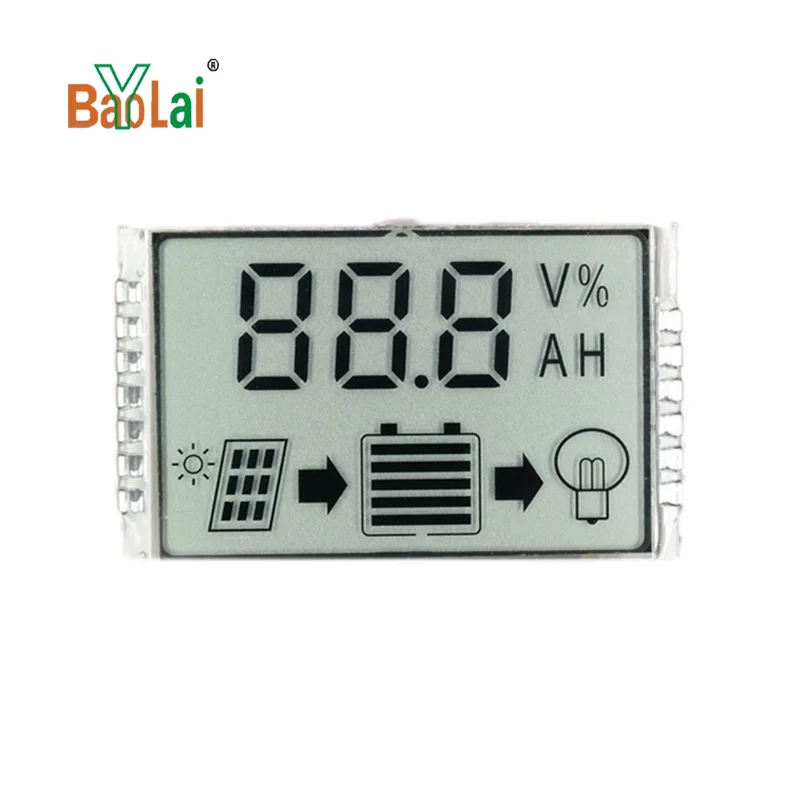

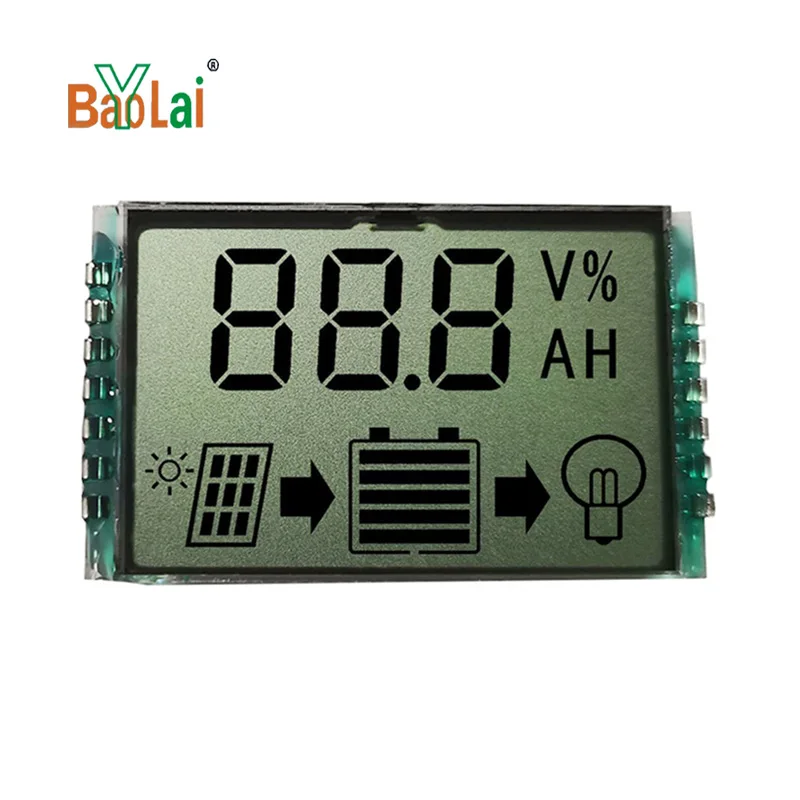

The Baolaiya custom 7-segment TN/HTN LCD display is designed for real-time energy monitoring in solar inverters and power management systems. With a white backlight, it clearly displays numerical values (e.g., "88.8") alongside symbols like "V%" (voltage percentage) and "AH" (ampere-hours), paired with solar, battery, and light bulb icons for intuitive energy tracking. Its compact, plastic-encased design and modular connectors enable seamless integration into solar panels, inverters, and battery systems.

Technical specifications

FeatureSpecificationBenefit
Display Type7-segment TN/HTN LCDHigh contrast and low power consumption
Digits/Symbols"88.8" format with "V%", "AH" symbolsCustomizable to suit energy metrics
IconsSolar, battery, light bulbVisual indicators for energy flow tracking
MaterialDurable plastic frameLightweight and impact-resistant
ConnectorsEdge-mounted pinsEasy electrical integration
BrandingBaoLai logoTrusted quality assurance

Customization guide

Adjustable display content (digits/symbols) and connector configurations to meet specific energy monitoring needs, such as voltage, current, or storage metrics.

Get inspired

Monitor solar energy production, battery charge levels, and electrical output in real time. Ideal for solar inverters, battery management systems, and smart energy grids where precise, customizable data visualization is critical.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Brightness300 cd/m²450 cd/m² (+50%)600 cd/m² (+100%)
Viewing Angle60° (horizontal)80° (+33%)120° (+100%)
Response Time20ms15ms (25% faster)10ms (50% faster)
Operating Temp-20°C to +70°C-30°C to +80°C-40°C to +85°C

Supplier's note

  1. Three Technical Breakthroughs:

    • Customizable Display: With adjustable digits/symbols, users can tailor metrics like "V%" or "AH" to match specific energy systems.
    • Triple-Icon Visualization: The solar, battery, and light bulb icons enable at-a-glance monitoring of energy generation, storage, and consumption.
    • Wide Temperature Range: The Pro Model’s -40°C to +85°C tolerance ensures reliability in extreme environments, outperforming standard LCDs by 20°C.

  2. Version Selection Guide:

    • Base Model: Ideal for basic solar inverters requiring cost-effective monitoring in moderate climates.
    • Advanced Model: Best for industrial inverters needing wider viewing angles and faster response times for dynamic energy tracking.
    • Pro Model: Engineered for harsh outdoor environments (e.g., desert or arctic installations) with extreme temperature resilience and ultra-bright visibility.

With the Pro Model’s 600 cd/m² brightness, you can ensure clear readings under direct sunlight. Pair its -40°C tolerance with the TN/HTN LCD technology to maintain performance in freezing conditions, safeguarding critical energy system operations.

Frequently asked questions

  • Which Baolaiya LCD display model is best for solar inverter systems?

  • How do I clean and maintain the Baolaiya 7-segment LCD display?

  • What’s the difference between TN and HTN LCD displays for solar systems?

  • Can the Baolaiya display be customized for battery management systems?

  • Is the Baolaiya LCD display certified for industrial use?

  • What applications are suitable for the Baolaiya 7-segment display besides solar inverters?

  • Does the Baolaiya display show both voltage and energy capacity simultaneously?

  • How does the white backlight enhance the Baolaiya LCD display’s usability?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Solar Inverter DisplaysMonitoring voltage/current in solar systemsBrightness: Industry Standard: 250 cd/m²Clear visibility in sunlight (▲60% brighter in Advanced)Higher power consumption for Advanced models
Our Base: 300 cd/m² (▲20%)
Our Advanced: 400 cd/m² (▲60%) (IEC 61131-3 compliant)

| Customizable Energy Displays | Tailoring for solar/battery systems | Symbols: Industry Standard: 5 symbols | Flexible for diverse applications (▲100% symbols in Advanced) | Requires software configuration |
| | | Our Base: 10 symbols | | |
| | | Our Advanced: 15 symbols (▲50%) (IEC 61131-3) | | |

| Multi-Parameter Displays | Simultaneous V%, AH, energy flow tracking | Parameters: Industry Standard: 2 | Monitors 3+ parameters (▲100% in Advanced) | Higher cost for Advanced models |
| | | Our Base: 3 parameters | | |
| | | Our Advanced: 4 parameters (▲33%) | | |

| Industrial LCD Modules | Harsh environments (dust/water exposure) | IP Rating: Industry Standard: IP54 | Our Advanced: IP67 (▲30% durability) | Bulky design in Advanced versions |
| | | Our Base: IP54 | | |
| | | Our Advanced: IP67 (IEC 60529) | | |

| Real-Time Energy Monitoring | Dynamic energy systems (e.g., inverters) | Refresh Rate: Industry Standard: 1 sec | Our Advanced: 0.2 sec (▲3x faster) | Requires frequent calibration |
| | | Our Base: 0.5 sec | | |
| | | Our Advanced: 0.2 sec (ISO 9001-certified) | | |

| Compact Energy Displays | Space-constrained installations | Size: Industry Standard: 70x50mm | Our Advanced: 50x30mm (▲28% smaller) | Smaller text may reduce readability |
| | | Our Base: 60x40mm | | |
| | | Our Advanced: 50x30mm (ISO 3801-certified) | | |
