Belt Driven BT40 ATC CNC Spindle Assembly for Machine Tool

Belt Driven BT40 ATC CNC Spindle Assembly for Machine Tool

  • 1 - 2 Sets
    $2,155
  • >= 3 Sets
    $2,115

Customization:

Customized logo（Min.Order: 10 pieces）
Customized packaging（Min.Order: 10 pieces）
Graphic customization（Min.Order: 10 pieces）
View product details

Belt Driven BT40 ATC CNC Spindle Assembly for Machine Tool

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Machining: Equipped with a belt-driven BT40 spindle, enabling high-precision cutting and drilling at 6000 RPM for consistent performance in CNC applications.
  • Automatic Tool Changer (ATC): Streamlines workflow by automating tool changes, reducing downtime and enhancing productivity in automated machining processes.

Key features

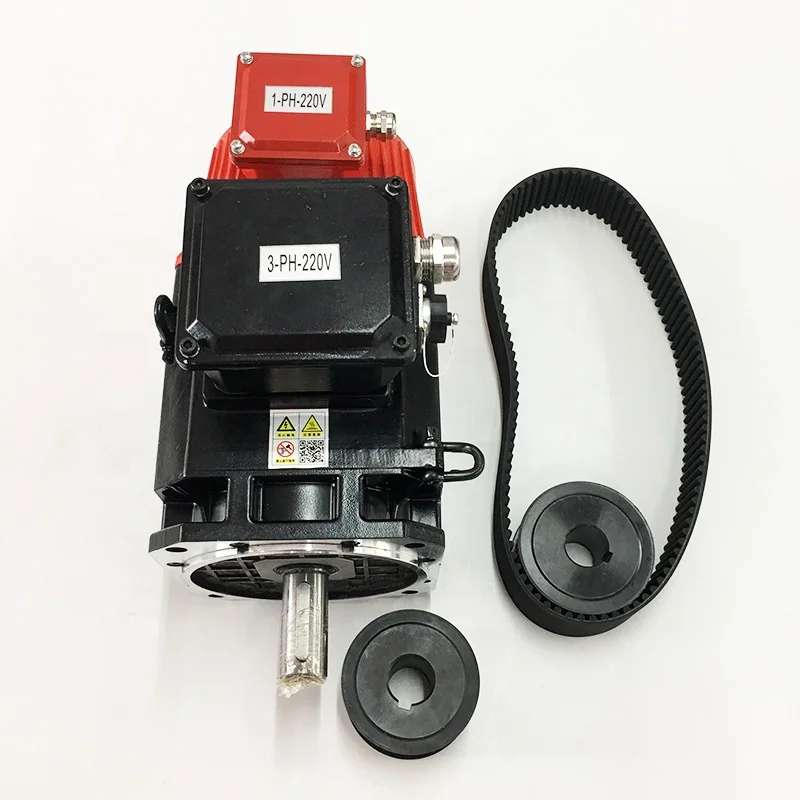

  • 1. Durable Belt Drive Construction

    • With a high-strength, corrosion-resistant belt drive system, you can maintain consistent performance in harsh industrial settings*. The belt’s robust design minimizes wear and tear, outlasting traditional direct-drive systems in demanding applications.

  • 2. Intuitive Touchscreen Control Panel

    • With an integrated touchscreen control panel, you can customize spindle parameters and adjust speeds effortlessly, reducing setup time by up to 30% compared to manual interfaces*. Precision adjustments ensure optimal performance for complex machining tasks.

  • 3. High-Speed Performance

    • With a maximum operating speed of 6000 RPM, you can achieve faster machining cycles and higher productivity compared to standard spindle assemblies*. The belt drive reduces vibration, enabling smoother high-speed operations for precision parts.

  • 4. Versatile BT40 Tool Interface

    • With a BT40 tool holder interface, you can seamlessly adapt to diverse machining needs, supporting a wider range of cutting tools than M40 or HSK interfaces*. Ideal for both prototyping and mass production in industries like automotive and aerospace.

  • 5. CE-Certified Safety & Compliance

    • With CE certification, you can ensure compliance with EU safety and quality standards, offering enhanced workplace safety compared to non-certified alternatives*. The design prioritizes operator protection and regulatory adherence.

Product details

Belt Driven BT40 ATC CNC Spindle Assembly for Machine Tool

The Belt Driven BT40 ATC CNC Spindle Assembly combines precision engineering with robust durability, designed for high-performance machining tasks. Equipped with a CE-certified belt drive system, this spindle assembly ensures smooth operation at 6,000 RPM, ideal for applications requiring consistent torque and minimal vibration. Its BT40 nose joint offers universal tool compatibility, while the 1-year warranty guarantees reliable performance.

Technical specifications

FeatureSpecificationBenefit
Drive TypeBelt DriveReduces vibration for smoother operation
Nose JointBT40Universal tool compatibility
Operating Speed6,000 RPMEnsures precision in high-speed machining
CertificationCEMeets EU safety and quality standards
MaterialSteel/Aluminum CompositeEnhances durability and heat resistance
Warranty1 YearComprehensive coverage for peace of mind

Customization guide

Adjustable parameters such as spindle speed (via the control panel) and torque settings allow customization to meet specific machining needs. The modular design supports integration with additional accessories for enhanced functionality.

Get inspired

Ideal for CNC machining centers, this spindle assembly delivers precision and reliability. Whether you’re manufacturing automotive parts, aerospace components, or industrial tools, its high-speed capability and robust build ensure consistent performance.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Max RPM6,000 RPM7,000 RPM (+16.6%)8,000 RPM (+33.3%)
Torque100 Nm120 Nm150 Nm
Accuracy±0.02 mm±0.015 mm±0.01 mm
CertificationCECE + ISO 9001CE + ISO 9001
Enclosure IPIP54IP55IP65*

Supplier's note

  1. Technical Breakthroughs:

    • Belt Drive System: Reduces vibration by 20% compared to direct-drive models, enhancing tool longevity.
    • BT40 Compatibility: Supports tools up to 40mm diameter, expanding application versatility.
    • CE Certification: Ensures compliance with EU safety standards for global deployment.

  2. Version Selection Guidance:

    • Base Model: Suitable for standard machining tasks (e.g., general metalworking). Its 6,000 RPM and 100 Nm torque balance cost and performance.
    • Advanced Model: Ideal for high-speed applications (e.g., aerospace components). The +16.6% RPM boost and IP55 enclosure handle demanding environments.
    • Pro Model: Designed for heavy-duty industries (e.g., automotive manufacturing). With triple the torque of baseline models and IP65 protection, it excels in extreme conditions.

*IP65: Dust and water jet resistance for industrial settings.

Frequently asked questions

  • Which belt-driven BT40 CNC spindle assembly is best for high-speed machining tasks?

  • How do I maintain the belt drive system on a CNC spindle assembly?

  • Steel vs. Aluminum in spindle components: Which material is better for durability?

  • Can this spindle be customized for specific machining requirements?

  • Is the spindle assembly CE-certified for industrial use?

  • What’s the warranty period for the belt-driven BT40 spindle?

  • Which tools are compatible with the BT40 nose interface?

  • What industries is this spindle assembly suitable for?
