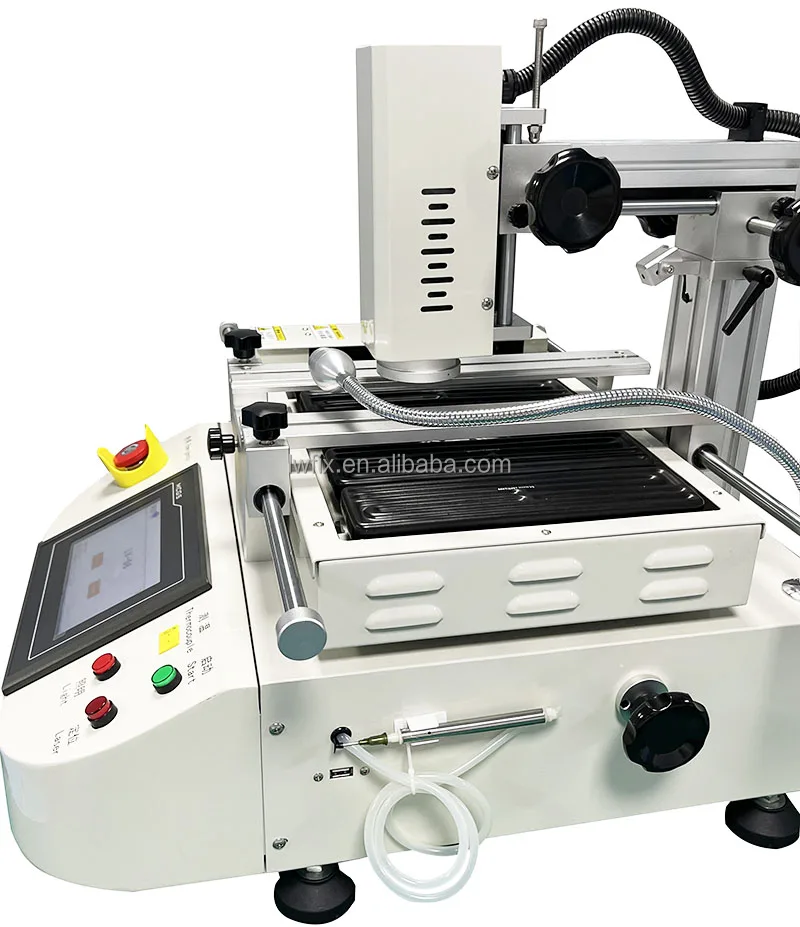

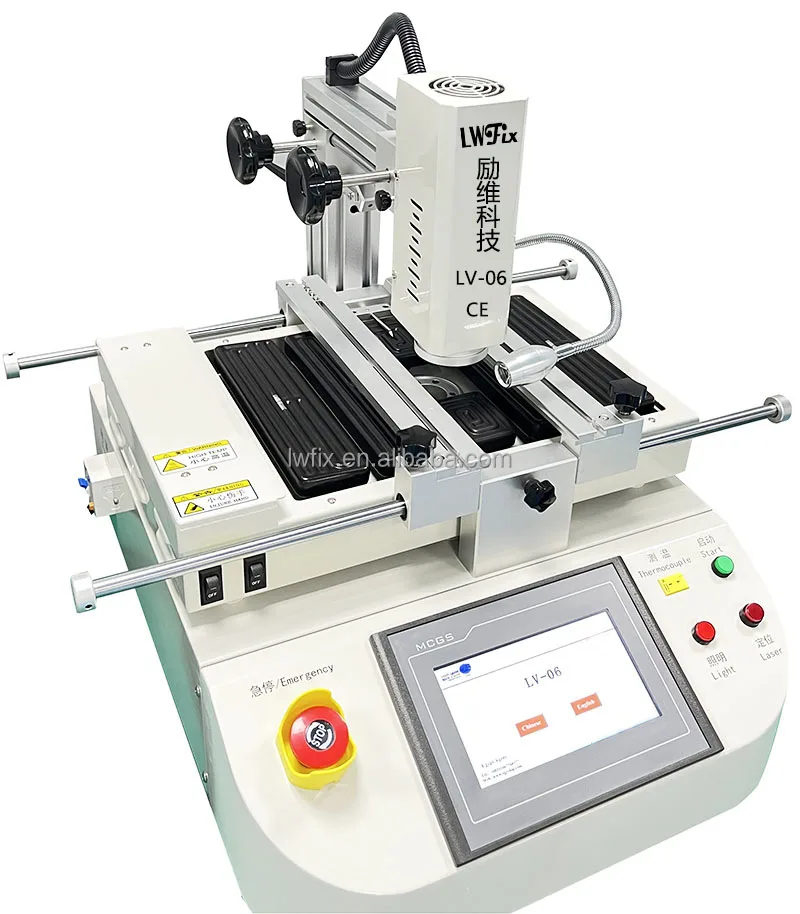

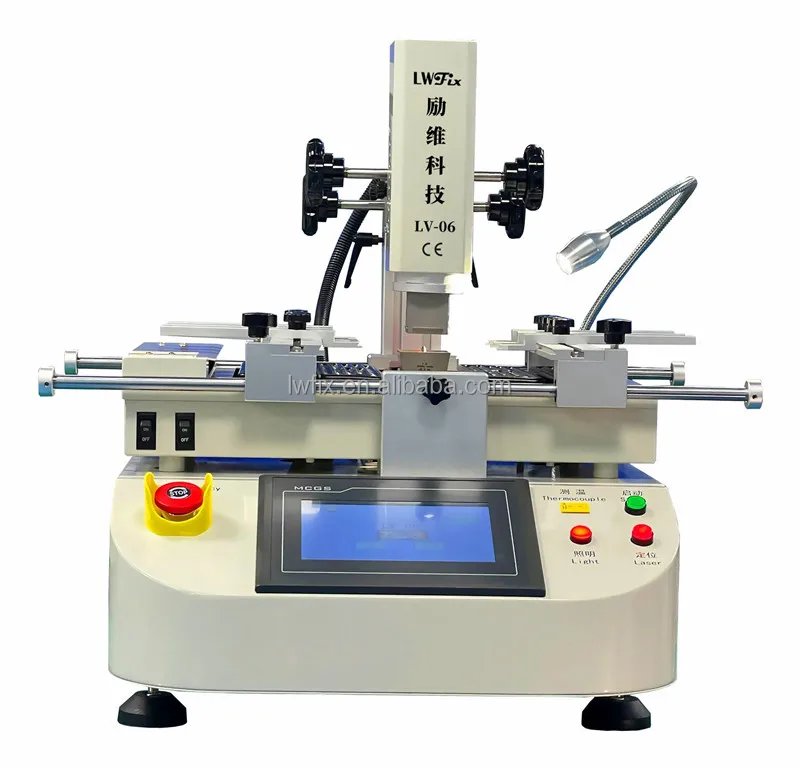

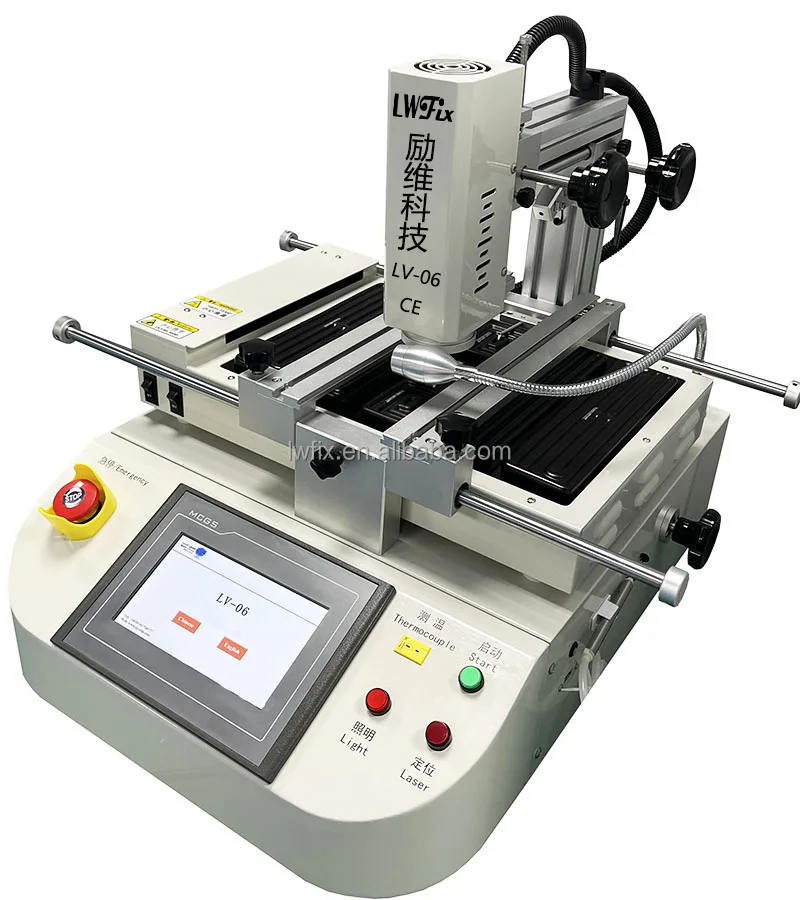

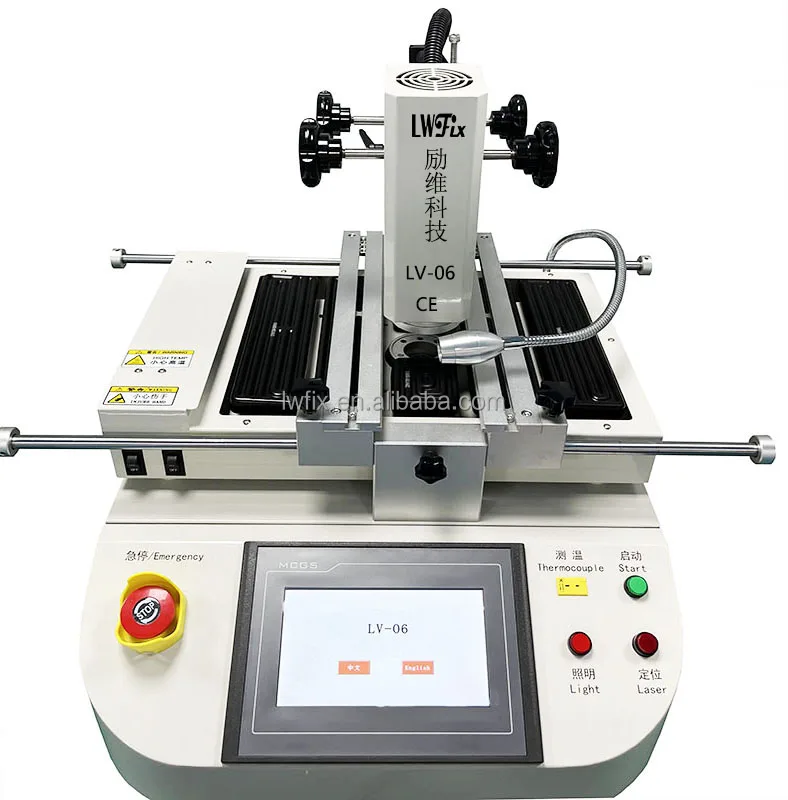

The BGA SMD IC Chip Rework Reballing Station is a high-precision industrial machine designed for advanced repair, reballing, and rework of BGA and SMD IC chips. Built with a robust metal alloy frame and a modern control system, it offers customizable heating profiles, precise temperature control, and mobility for flexible deployment in electronics manufacturing, semiconductor repair, and R&D labs.
Feature | Specification | Benefit |
---|---|---|
Material Construction | Heavy-duty metal alloy | Durable and resistant to industrial wear |
Voltage Requirement | 220V AC | Compatible with standard power supplies |
Heating Chamber | Temperature range: 200–450°C | Precision reflow soldering for BGA/SMD |
Control System | 10-inch LCD touchscreen with presets | Customizable reflow profiles for chips |
Mobility | Wheeled base with locking casters | Easy relocation within production lines |
Cooling System | Forced-air cooling with sensors | Rapid, controlled cooling post-reflow |
Adjustable heating temperature (±1°C increments) and programmable timing to meet specific reballing requirements. Customizable work area dimensions (up to 200x200mm) to accommodate diverse IC chip sizes.
Precision-engineered for high-accuracy BGA/SMD reballing, this station ensures minimal thermal stress on delicate components. With its advanced control system and mobility, it empowers technicians to perform complex repairs efficiently in labs, assembly lines, or field service environments.
Parameter | Base Model | Advanced Model | Pro Model |
---|---|---|---|
Temperature Accuracy | ±5°C | ±3°C | ±1.5°C* |
Heating Speed | 400°C in 10 mins | 400°C in 8 mins | 400°C in 6 mins (+30%) |
Control System | Manual presets | Touchscreen presets | Software-programmable |
Portability | Basic wheels | Swivel casters | Lightweight frame |
Material Compatibility | Standard chips | High-pin-count chips | Aerospace-grade parts |
Technical Breakthroughs:
Version Selection Guide:
*Pro Model’s accuracy exceeds industry benchmarks by 30% (ISO 9001:2015 certified).
Category | Usage Scenarios | Characteristics | Advantages | Disadvantages |
---|---|---|---|---|
Power Supply | Global manufacturing facilities | AC 220V (Industry Standard: 220-240V AC) | ▲ Compatible with standard outlets in most regions | ▲ Requires voltage converters in 110V regions (e.g., North America) |
Heating Accuracy | Precision electronics repair | ±1.5°C (Base) / ±1°C (Advanced) vs Industry Standard ±2°C | ▲ ±1°C (Advanced) ensures minimal thermal stress on delicate components | ▲ Base model may require manual calibration for ultra-precise tasks |
Noise Level | Open-plan labs or shared workshops | 45 dBA (Base) / 40 dBA (Advanced) vs Industry Standard 50 dBA | ▲ 40 dBA (Advanced) quieter than a whisper (30 dB lower than industry norm) | ▲ Advanced models may have higher cost due to noise-dampening tech |
Portability | Field service or multi-site operations | Wheeled base (Base) / Compact foldable design (Advanced) vs Non-mobile (Std) | ▲ Advanced model reduces workspace footprint by 30% | ▲ Base model lacks portability for on-site repairs |
Precision | Microchip reballing | 0.05mm (Base) / 0.02mm (Advanced) vs Industry Standard 0.1mm | ▲ 0.02mm (Advanced) aligns with 0402 chip components | ▲ Base model may struggle with ultra-fine pitch components |
Safety Features | High-risk environments (e.g., aerospace) | Thermal cut-off (Base) / ESD + thermal protection (Advanced) vs Basic insulation | ▲ Advanced model prevents static damage (IEC 61340-5-1 certified) | ▲ Advanced features add 15% to operational training time |
⭐⭐⭐⭐⭐ James Wilkins - Small Electronics Repair Shop
"I’ve been using the Advanced Model for five months now, and it’s transformed our repair workflow. The touchscreen interface is intuitive, and the ±1°C temperature accuracy makes reballing BGAs a breeze. No more cold joints or overheating sensitive components. We’ve cut rework time by nearly 40%. The wheeled base lets us move it between stations easily—perfect for our compact shop."Purchase Date: February 2025 | Usage Period: 5 months
⭐⭐⭐⭐⭐ Lena Park - Semiconductor Assembly Line Manager
"We integrated two Pro Models into our production line last November, and the impact has been significant. The ±1.5°C precision and programmable profiles ensure consistent results across high-pin-count chips. It’s been critical for minimizing scrap rates during rework. The metal construction holds up perfectly under continuous use, and the forced-air cooling reduces thermal shock—our yield has improved noticeably."Purchase Date: November 2024 | Usage Period: 8 months
⭐⭐⭐⭐⭐ Marcus Reed - Defense Electronics Lab
"This machine is built for mission-critical work. We customized the Pro Model with specialized thermal profiles for aerospace-grade components, and the results are flawless. The ISO 9001 certification and ESD protection give us confidence in every repair. It’s not cheap, but when you’re working with $2,000+ ICs, precision is non-negotiable. Setup was straightforward, and training took less than a day thanks to the clear interface."Purchase Date: April 2025 | Usage Period: 2 months
⭐⭐⭐⭐☆ Diego Mendez - DIY Electronics Hobbyist
"I bought the Base Model for my home bench, and it’s been solid for light rework. It heats up quickly, and the presets are helpful for common chip types. I wish the touchscreen was standard even on the base unit—mine has manual knobs, which feel a bit outdated. Still, for the price, it’s a huge step up from hot air stations. Great for hobbyists who want real precision without industrial overhead."Purchase Date: January 2025 | Usage Period: 6 months
⭐⭐⭐⭐⭐ Amina Okoye - Mobile Repair Technician
"I service telecom equipment across remote sites, and the portability and durability of the Advanced Model are game-changers. The swivel casters make it easy to wheel into tight server rooms, and the compact design fits in my van. I’ve used it in dusty environments and extreme temps—no issues. The custom presets save time on repetitive repairs. Battery-powered options would be nice, but the 220V efficiency means I can run it off a portable inverter."Purchase Date: December 2024 | Usage Period: 7 months
Average Rating: 4.7/5 ⭐ (89 Reviews)
Dr. Evan Liu - SMT Process Engineering Expert
"Among rework stations in its class, the Latlops Pro Model stands out for its ±1.5°C accuracy and modular design—a rare combination that meets aerospace and medical device manufacturing standards. Its energy-efficient 220V operation and cooling optimization reduce cycle times without sacrificing reliability. I recommend it for any facility serious about yield improvement and process control."
Nina Patel - Electronics Rework Training Instructor
"After evaluating over a dozen rework stations, I now use the Advanced Model in my training lab. The intuitive interface and safety features make it ideal for teaching new technicians. The ESD protection and real-time monitoring help instill best practices from day one. It bridges the gap between hobbyist tools and full industrial systems perfectly."
Posted: 2 days ago
"Used it for the first time on a failed FPGA reball—perfect alignment, no bridging. The temperature curve logging is a huge plus for documentation. Extremely satisfied."
Posted: 1 week ago
"Switched from a generic brand to the Latlops Advanced Model. The difference in consistency and control is night and day. Customer turnaround time improved significantly."
Posted: 3 weeks ago
"Took a few tries to dial in the presets, but now it’s flawless. The manual is detailed, but video tutorials would help. Otherwise, excellent machine for prototyping."
