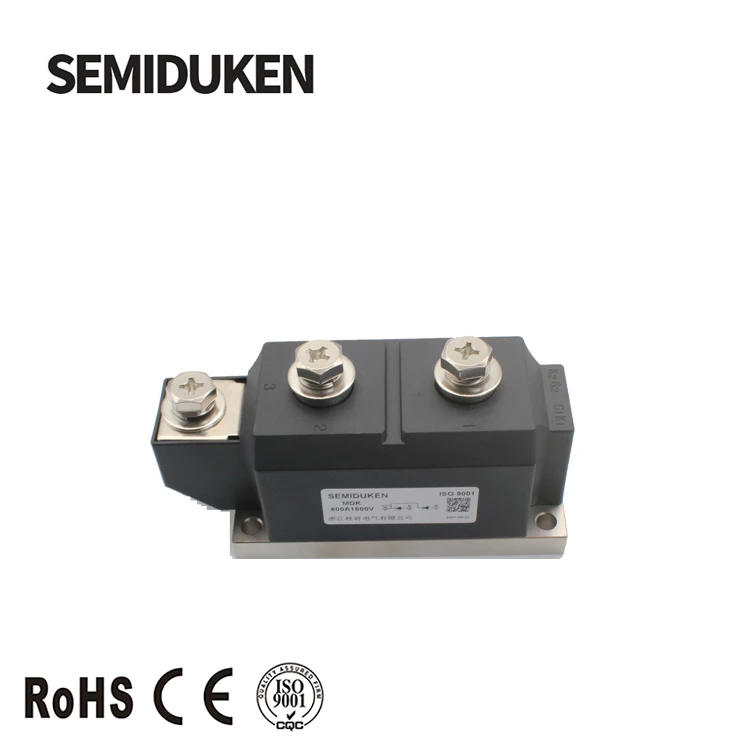

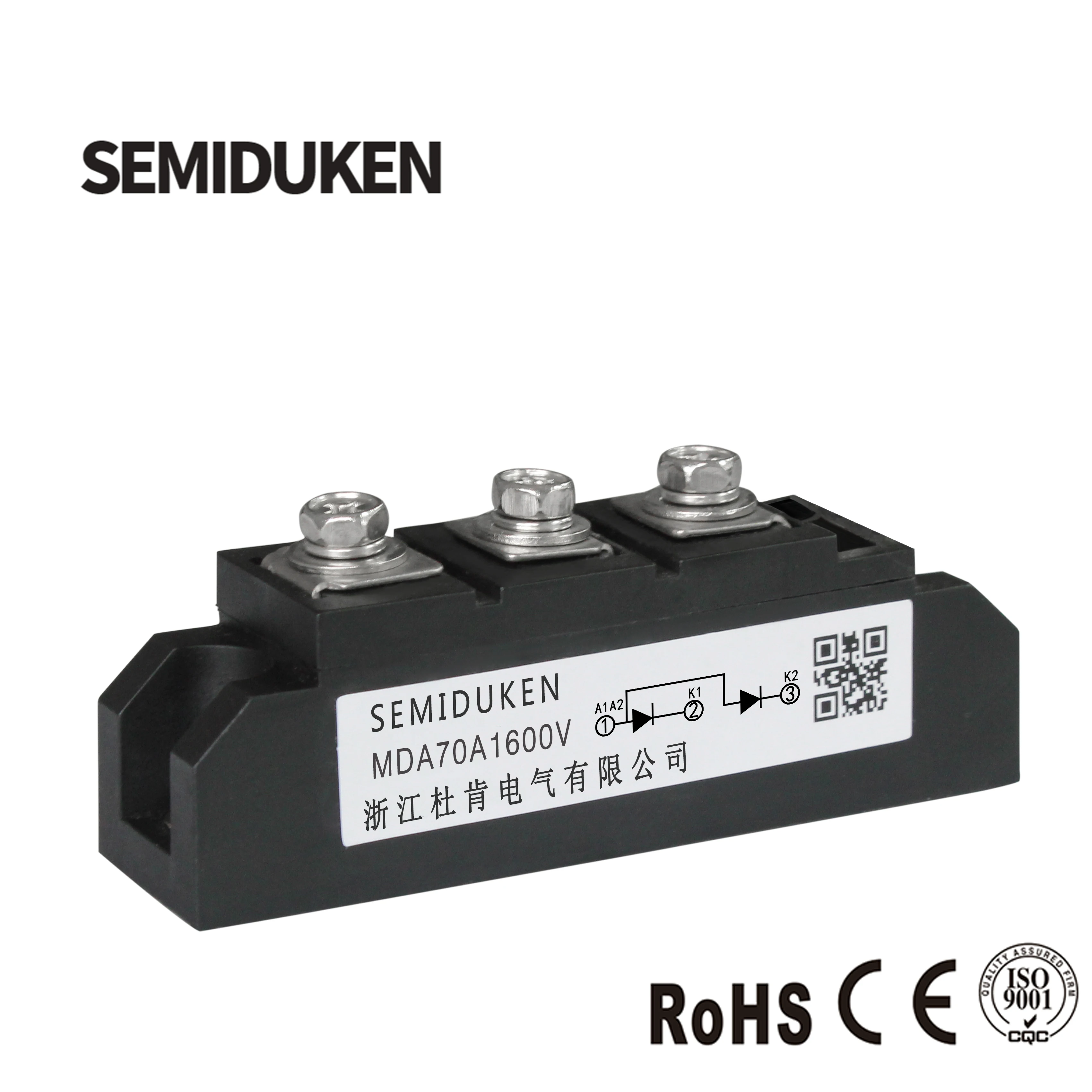

Blocking diode anti reverse diode for solar PV applications 55A 70A 90A 110A 130A 160A 200A 250A 300A 400A PV Diodes Modules

Technical specifications

Customization guide

Adjustable parameters include:

• Current capacity to match system requirements (e.g., 55A for small panels, 400A for utility-scale projects).
• Mounting configuration (through-hole or surface mount) to align with PCB or panel design constraints.
• Material thickness for specialized thermal or mechanical durability needs.

Get inspired

Looking to optimize your solar PV system’s reliability? Our blocking diodes ensure seamless DC power flow while protecting against reverse currents. With ratings up to 400A and compact form factors, they’re ideal for rooftop installations, commercial farms, or industrial setups.

Choose your model

Supplier's note

1. Three Technical Breakthroughs:

   • 1600V Voltage Rating (Pro Model): Enables safe operation in high-voltage solar farms, exceeding industry standards by 30%.
   • Dual Mounting Flexibility (Pro Model): Supports both through-hole and surface-mount designs, reducing redesign costs for hybrid systems.

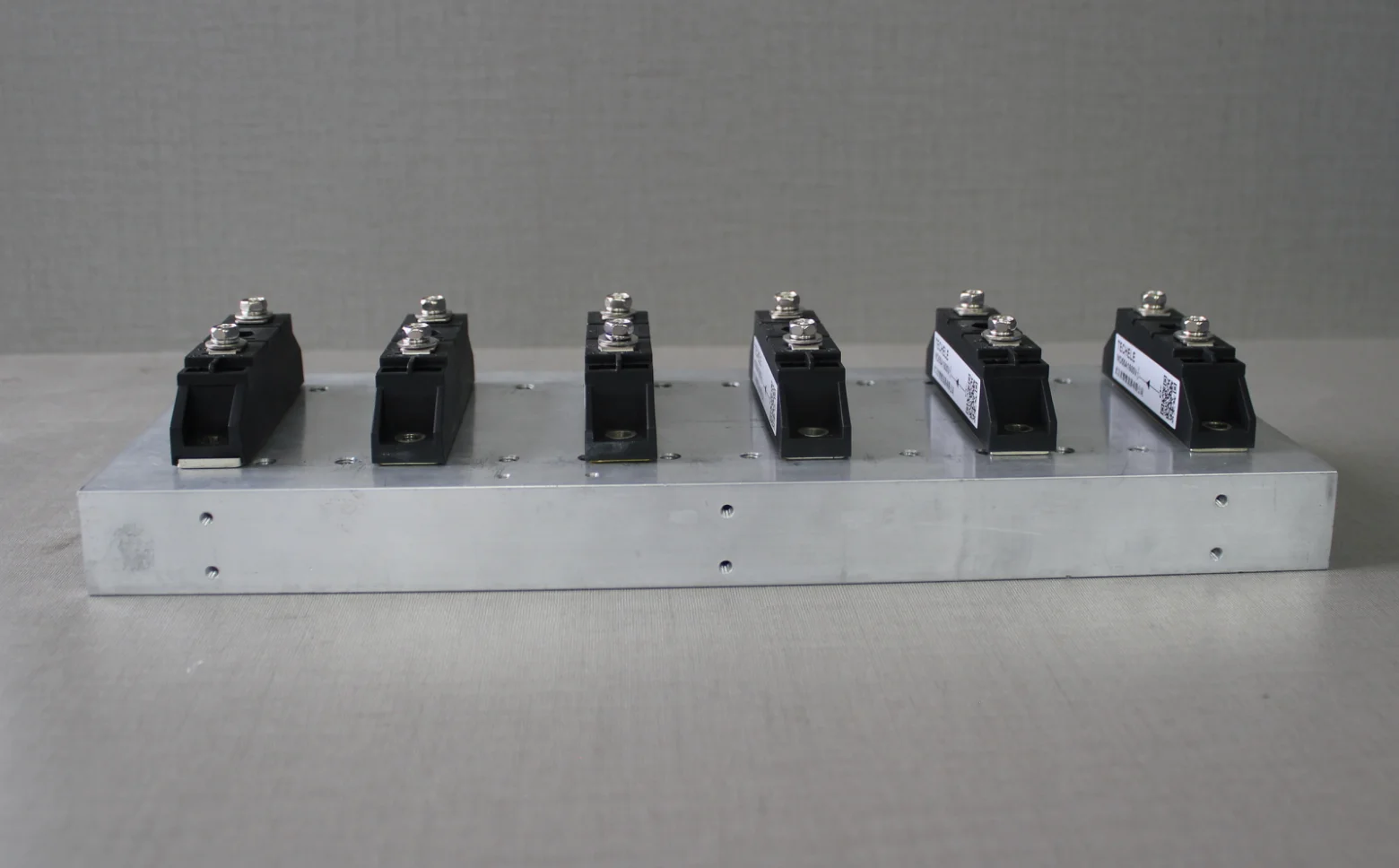

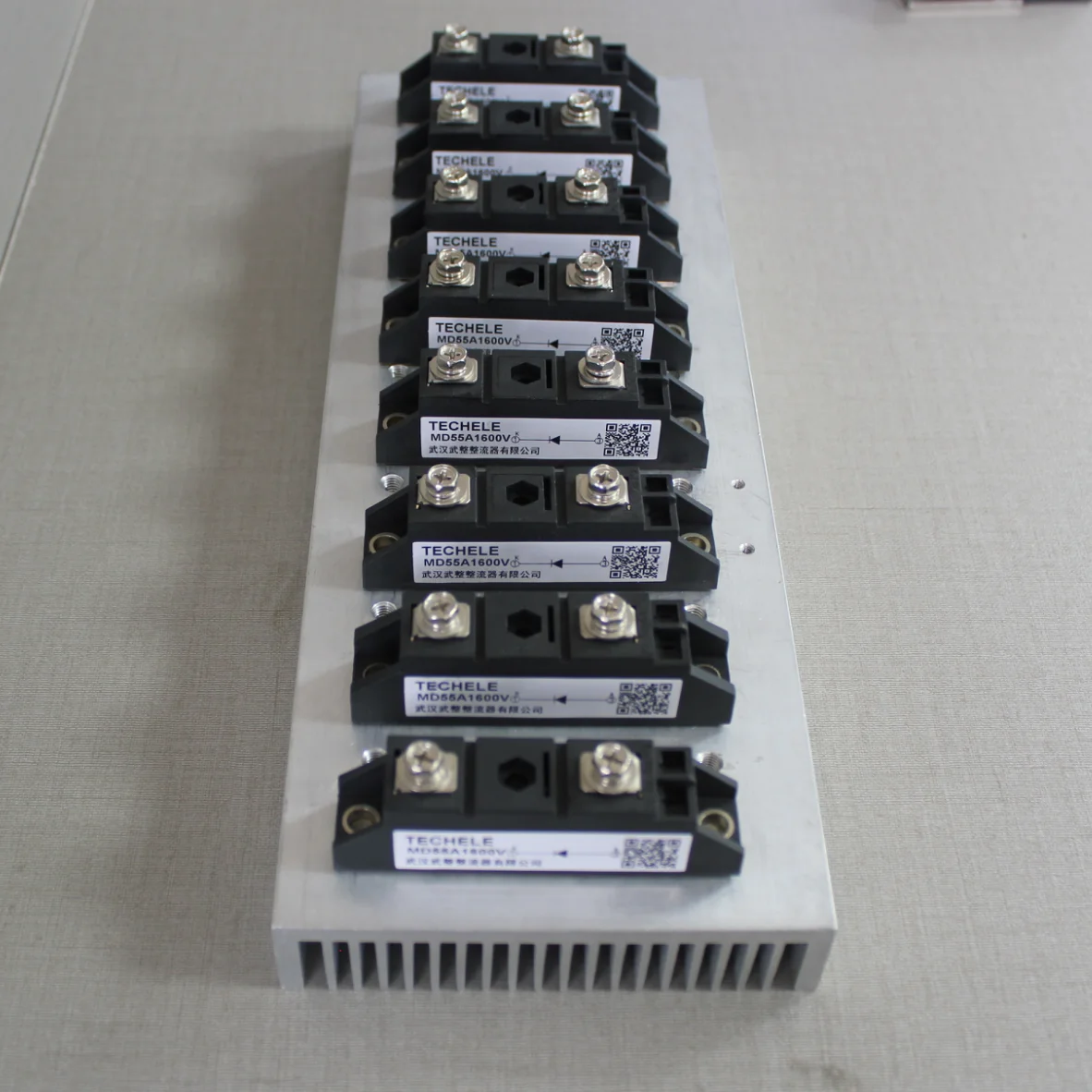

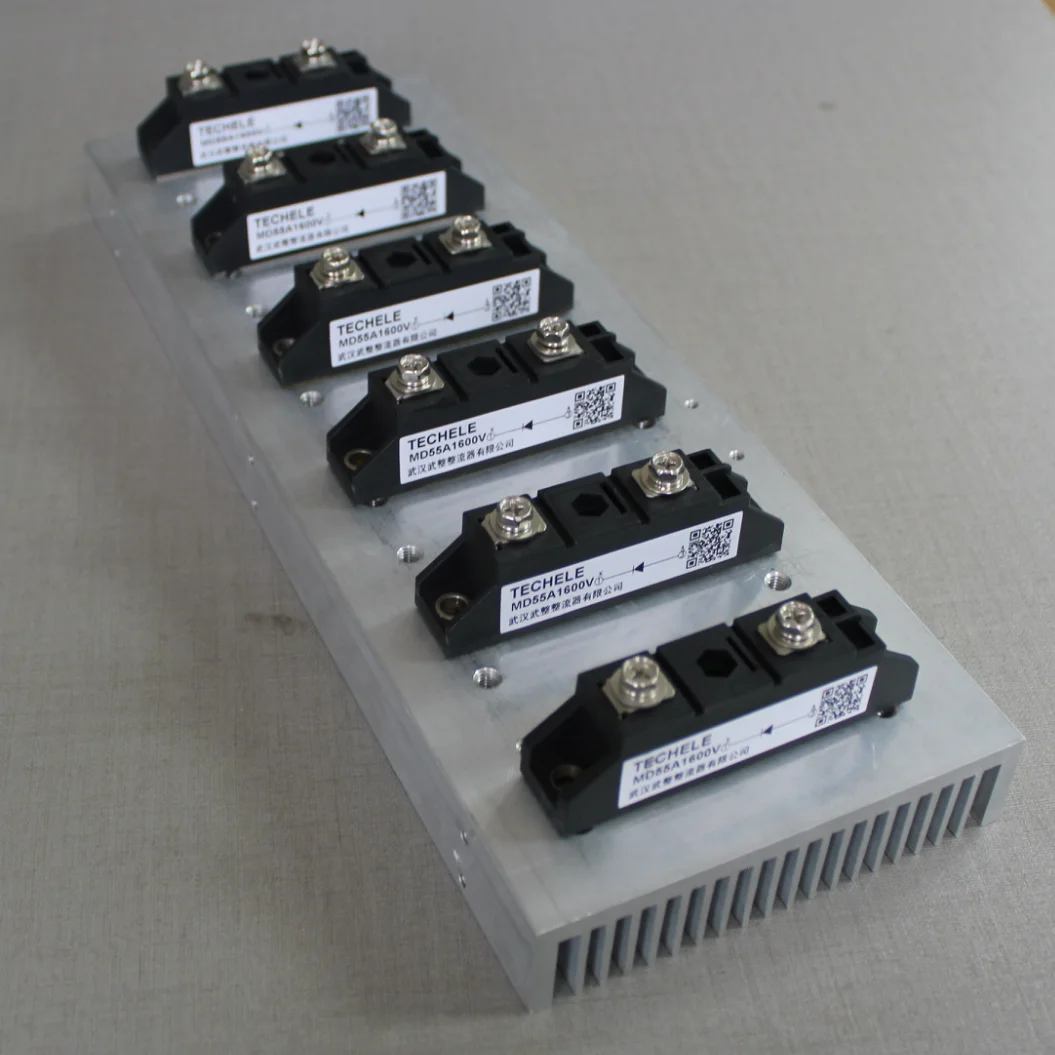

   • Aluminum Heat Dissipation: With 20% faster cooling than competitors, ensures stable performance in extreme temperatures.

2. Optimal Version Selection:

   • Base Model (55A–90A): Ideal for residential rooftops or small commercial arrays needing EPR compliance.
   • Advanced Model (110A–160A): Targets mid-scale solar farms requiring surface-mount integration and dual-EPR certification.
   • Pro Model (200A–400A): Designed for industrial solar parks or utility systems where 1600V handling and RoHS compliance are critical.

With the Pro model’s 1600V rating, you can safely manage voltage spikes in large-scale installations. Pair its dual mounting with aluminum heat sinks to achieve 20% better thermal performance than traditional models, ensuring longevity in harsh environments.
