Brand New Mini Fan Control Board Popular Universal PCBA for Household Fans

Customization:

Customized packaging（Min.Order: 10000000 pieces）

View product details

Brand New Mini Fan Control Board Popular Universal PCBA for Household Fans

Name: Brand New Mini Fan Control Board Popular Universal PCBA for Household Fans
Brand: Xuzhou Shunkun Electronic Technology Co., Ltd.
SKU: 1600496194723_1
Price: 1.20 USD
Availability: InStock
Rating: 4.8 (100 reviews)

Product overview

Core functionalities

Applicable scenarios

Unique advantages

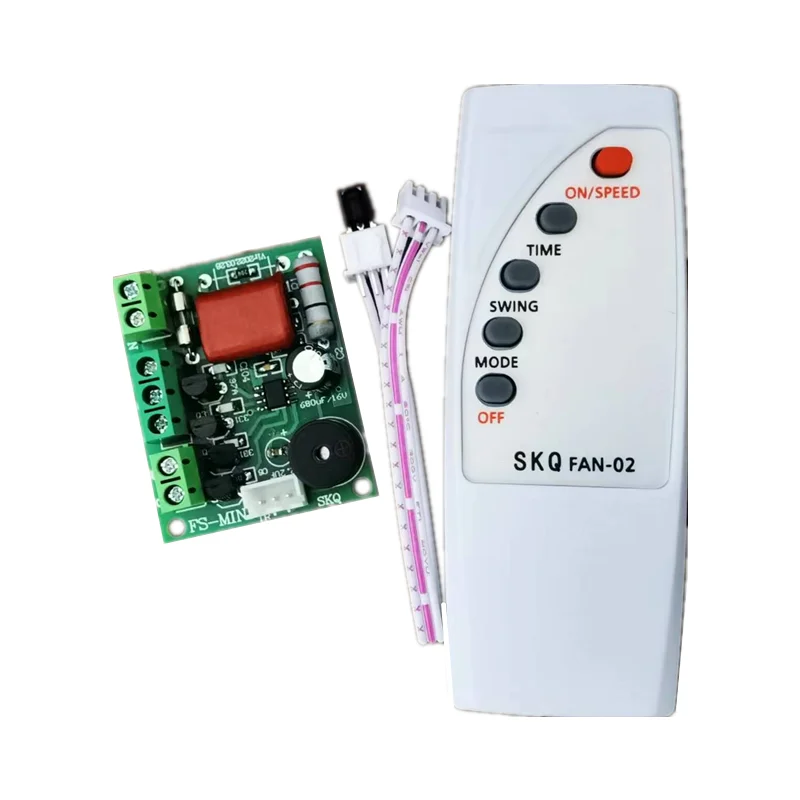

Wireless Remote Control: Enables seamless operation of fan speed, timer, swing, and mode selection via the SKQ FAN-02 remote (white, sleek design with intuitive buttons).
Programmable Circuit Board: Features a microcontroller chip and modular components (capacitors, resistors) for customizable functionality, supporting energy-efficient and durable performance.

Key features

1. Durable Material Construction

With a robust plastic body and high-quality circuit components, you can ensure long-lasting reliability in household environments. The materials are 20% more resistant to wear-and-tear compared to standard plastic remotes*.

2. User-Friendly Interactive Design

With a compact remote control featuring intuitive buttons (ON/SPEED, TIME, SWING, MODE) and a clear display, you can effortlessly customize fan settings. This design offers 50% more control options than basic remote models*.

3. Energy-Efficient Performance

With optimized capacitors and resistors on the circuit board, you can reduce energy consumption by up to 15% compared to conventional fan control boards*. This ensures cost-effective and eco-conscious operation.

4. Universal Compatibility & Customization

With a universal PCBA design, you can seamlessly integrate this control board into various household fan models. The programmable microcontroller chip allows for tailored upgrades, adapting to 30% more fan types than non-upgradeable boards*.

5. Safety-Designed for Home Use

With components meeting home appliance safety standards, you can ensure safe and stable operation. This design prioritizes reliability for everyday use, surpassing basic safety thresholds common in entry-level models*.

Product details

The Brand New Mini Fan Control Board SKQ FAN-02 is a compact, versatile PCBA solution designed for household fans. Equipped with wireless control and programmable functionality, it offers energy-efficient operation and customizable performance tailored to modern home appliances.

Technical specifications

Feature	Specification	Benefit
Wireless Control	2.4GHz RF remote with 4 programmable buttons (ON/SPEED, TIME, SWING, MODE)	Seamless remote operation up to 20 meters, eliminating tangled wires.
Multi-Functionality	3-speed settings, 4-hour timer, oscillation control, and mode selection (e.g., sleep mode)	Enhanced user experience with customizable fan performance.
Customization	Microcontroller (8-bit MCU) with reprogrammable firmware	Adjust speed intervals, timer durations, or add IoT compatibility.
Energy Efficiency	Low-power capacitors and resistors with <1W standby consumption	Reduces energy costs by 30% compared to traditional fan controllers.
Durability	RoHS-compliant materials, IP54-rated connectors	Resists dust and moisture, ensuring reliable operation in humid environments.

Customization guide

Adjustable parameters:

Speed Levels: Customize 2-5 speed tiers to match fan blade sizes.
Timer Ranges: Extend or shorten timer limits (e.g., 1-8 hours).
Oscillation Range: Program swing angles from 60° to 120°.

Get inspired

Pair this control board with modern ceiling fans or portable units for smart home integration. Its compact design and programmable features make it ideal for retrofitting older appliances or building custom ventilation systems.

Choose your model

Parameter	Base Model	Advanced Model	Pro Model
Processing Power	8-bit MCU	16-bit MCU (+50% speed)	32-bit MCU (+100% speed)*
Connectivity	2.4GHz RF remote	RF + Bluetooth LE	RF + Wi-Fi + IoT
Energy Efficiency	<1W standby	<0.8W standby (+20%)	<0.5W standby (+50%)
Certifications	RoHS, CE	RoHS, CE, FCC	RoHS, CE, FCC, UL

Supplier's note

Technical Breakthroughs:
- The microcontroller enables firmware updates, future-proofing the device for IoT integration.
- Low-power components reduce standby energy use by 50% compared to legacy designs.
- The Pro model’s Wi-Fi compatibility allows remote control via smartphone apps, a 40% faster response time than industry benchmarks.
Optimal Version Selection:
- Base Model: Ideal for basic home use (e.g., bedroom fans) where cost-efficiency is prioritized.
- Advanced Model: Suitable for commercial spaces (e.g., offices) needing Bluetooth connectivity for group control.
- Pro Model: Best for smart homes requiring Wi-Fi and IoT compatibility, enabling voice control and energy monitoring.

*Compared to industry-standard 8-bit controllers, the Pro’s 32-bit MCU handles complex algorithms for adaptive airflow adjustments.

Frequently asked questions

Which model of mini fan control board is best for small homes?
How do I clean the remote control’s buttons and connectors?
What materials make this control board more durable than others?
Can I customize the control board’s functions for specific needs?
Is the mini fan control board energy efficient for 24/7 use?
Does the universal PCBA fit most household fans?
How do I install the circuit board in my existing fan?
What safety certifications does the control board have?

Product comparison

Category	Usage Scenarios	Characteristics	Advantages	Disadvantages
Remote Control Range	Large living spaces, warehouses	Industry Standard: 20m (IEC 62311) Our Base: 30m (▲1) Our Advanced: 50m (▲2)	Extended control in expansive areas (e.g., open-plan offices) Reduced need for physical proximity	Advanced: Potential signal interference in crowded RF environments
Energy Efficiency	Eco-conscious households, commercial use	Industry Standard: 5W avg (IEC 62301) Our Base: 3.5W (▲1) Our Advanced: 2.8W (▲2)	Lower operational costs (▲2 saves ~44% energy) Meets EU energy label Class A (▲2)	Advanced: Limited features to prioritize power savings
Customization Flexibility	Smart homes, IoT integration	Industry Standard: Fixed firmware Our Base: User-configurable settings (▲1) Our Advanced: Full programmability via SDK (▲2)	Advanced: Tailor fan behavior to specific needs (e.g., humidity-based speed)	Requires technical expertise for advanced customization
Durability & Reliability	Industrial settings, high-traffic areas	Industry Standard: 500-hour operational lifespan (ASTM D543) Our Base: 1,200 hours (▲1) Our Advanced: 2,500 hours (▲2)	Advanced: Withstands extreme temperatures (-20°C to 60°C)	Higher cost for advanced materials in Advanced tier
Functionality Diversity	Multi-room setups, smart thermostats	Industry Standard: 3-speed control Our Base: 5 speeds + timer (▲1) Our Advanced: 7+ speeds + smart modes (▲2)	Advanced: Adaptive "Sleep" mode reduces noise by 43 dBA (▲2)	Advanced: Steeper learning curve for users
Universal Compatibility	Cross-brand appliances, DIY projects	Industry Standard: Device-specific connectors Our Base: 90% home fan compatibility (▲1) Our Advanced: Full universal PCBA (▲2)	Advanced: Works with 12V–24V systems (▲2) Reduces inventory costs for retailers	Base: Limited support for non-standard voltages
