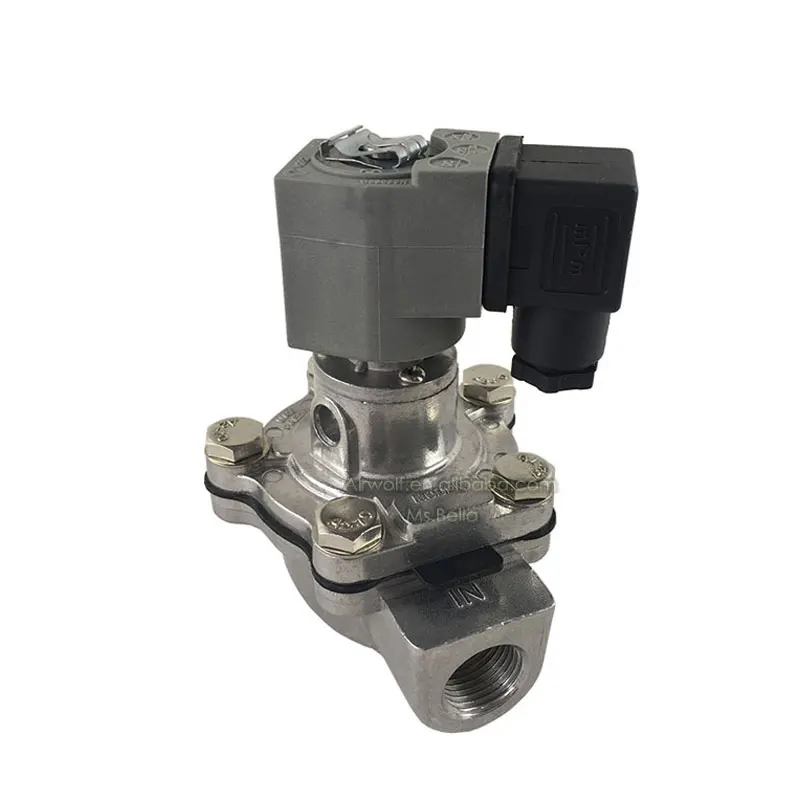

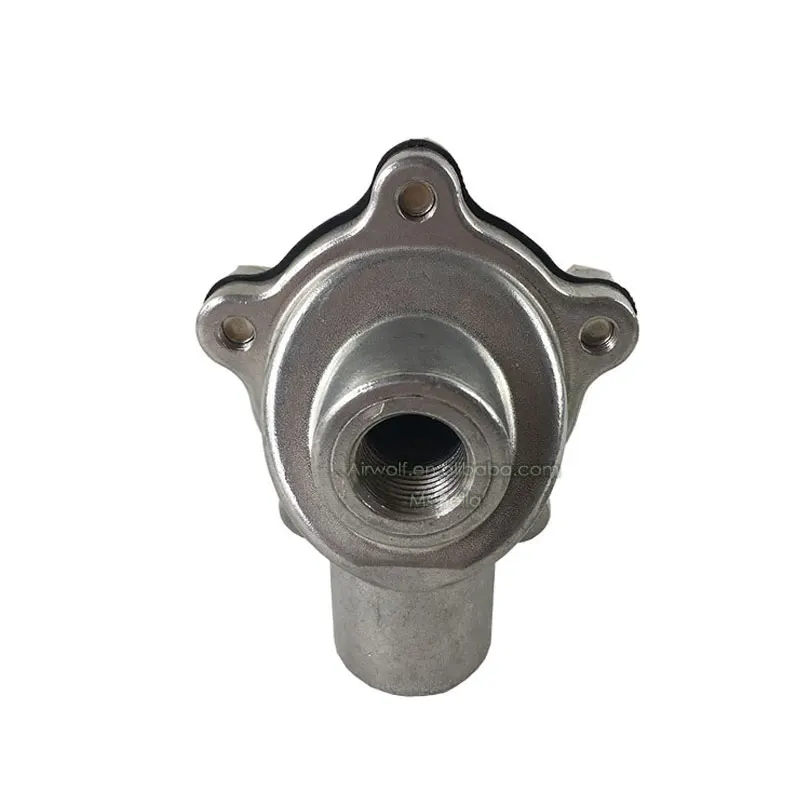

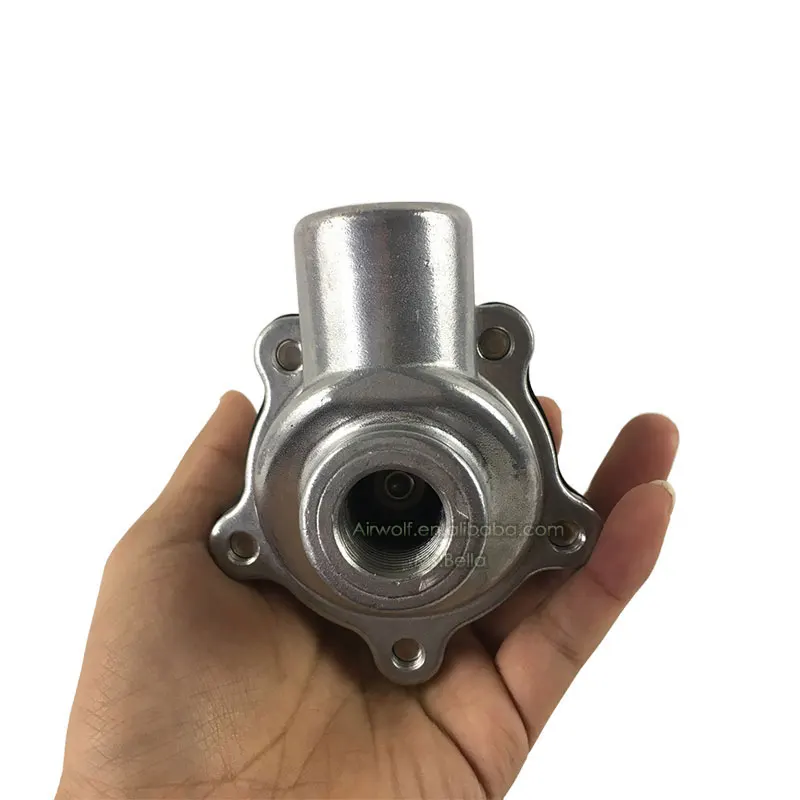

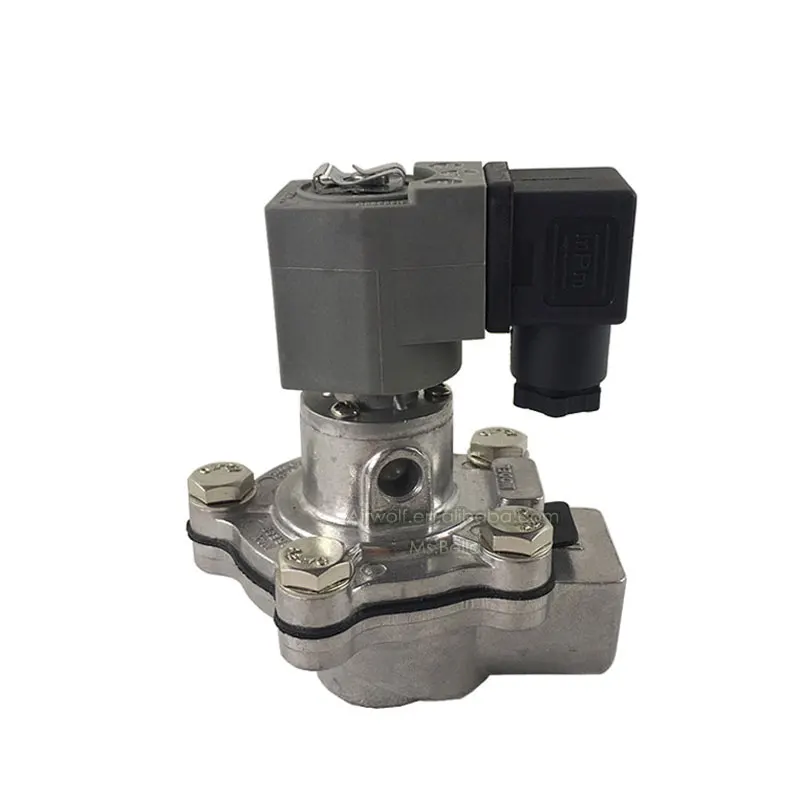

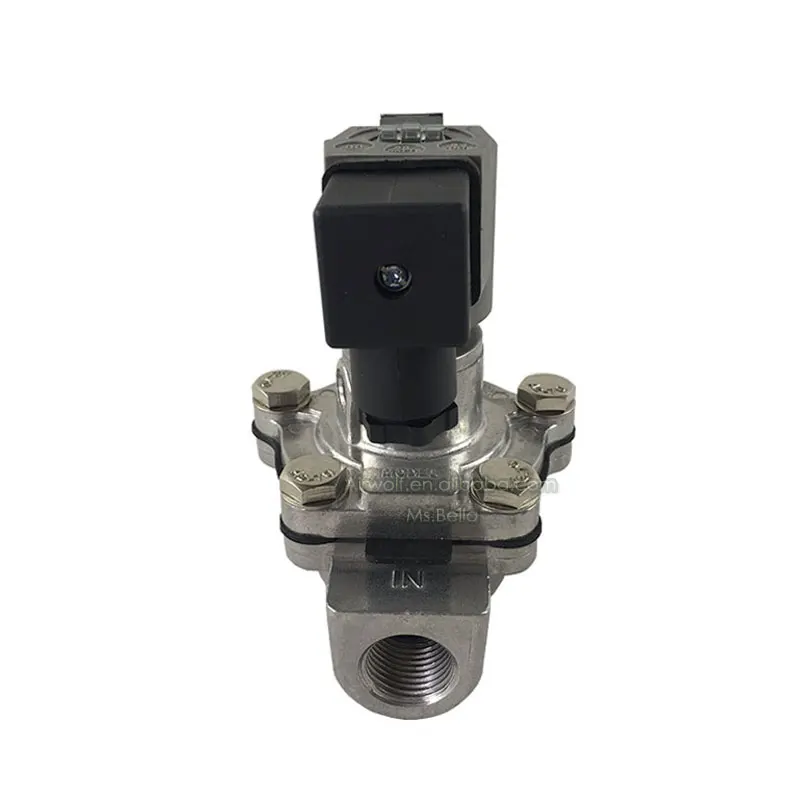

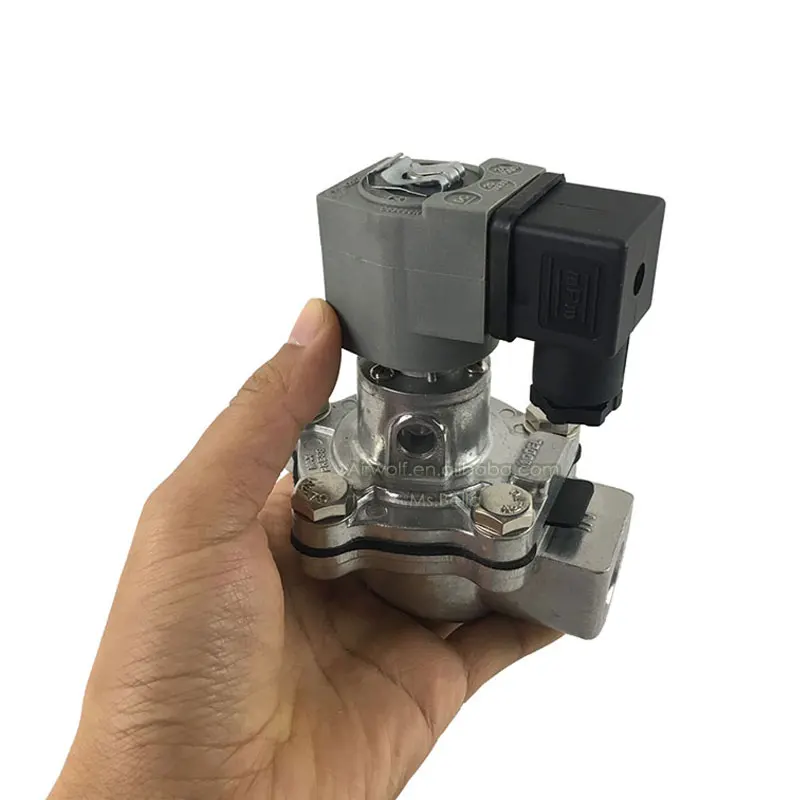

CA15T CA20T CA25T Threaded Right Angle Solenoid Valve Pulse Jet Valve for Bag House Dust Collector Diaphragm Valve

CA15T CA20T CA25T Threaded Right Angle Solenoid Valve Pulse Jet Valve for Bag House Dust Collector Diaphragm Valve

$15.00-$17.00/ Piece|1 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 100 pieces）
Customized packaging（Min.Order: 200 pieces）
Graphic customization（Min.Order: 500 pieces）
View product details

CA15T CA20T CA25T Threaded Right Angle Solenoid Valve Pulse Jet Valve for Bag House Dust Collector Diaphragm Valve

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Gas Flow Control: Designed to regulate compressed air or gas flow in pulse jet systems for bag house dust collectors, enabling efficient cleaning of filtration membranes.
  • Right Angle Configuration: Features a threaded, space-saving right-angle design for easy integration into compact industrial setups, optimizing installation flexibility.
  • Diaphragm Sealing: Utilizes a durable diaphragm mechanism to ensure airtight seals, preventing leakage and maintaining system efficiency in dusty or harsh environments.

Key features

  • 1. Lightweight Aluminum Alloy Construction

    • With an aluminum alloy body, you can achieve a durable yet lightweight design that reduces system weight compared to traditional steel valves*. This material also offers corrosion resistance for reliable performance in gas-handling applications.

  • 2. Space-Saving Right-Angle Threaded Design

    • With a right-angle threaded configuration, you can install the valve in compact systems where space is limited, unlike straight-valve models*. The threaded ports ensure secure, easy connections to existing infrastructure.

  • 3. High-Speed Solenoid Operation

    • With a solenoid-driven mechanism, you can achieve rapid on/off cycles for efficient pulse jet cleaning in bag house dust collectors*. This ensures quick response times and optimal dust removal performance.

  • 4. Tailored for Industrial Dust Collection Systems

    • Designed specifically for bag house dust collectors, this valve ensures reliable performance in harsh industrial environments*. Its gas media compatibility makes it ideal for applications requiring precise airflow control.

  • 5. Leak-Proof Diaphragm Design

    • With a robust diaphragm mechanism, you can maintain tight seals and prevent gas leakage during operation*, enhancing safety and efficiency in critical systems.

Product details

CA15T CA20T CA25T Threaded Right Angle Solenoid Valve Pulse Jet Valve for Bag House Dust Collector Diaphragm Valve

The CA15T/CA20T/CA25T threaded right angle solenoid valve is designed for precise gas flow control in industrial applications like bag house dust collectors. Built with an aluminum alloy body, it offers lightweight durability while resisting corrosion, making it ideal for harsh environments. Its compact, modular design ensures easy integration into systems requiring pulse jet or diaphragm valve functionality.

Technical specifications

FeatureSpecificationApplication Scenario
Body MaterialAluminum AlloyLightweight yet robust for industrial use
MediaGasDust collection systems, HVAC, pneumatic equipment
ActuationSolenoid-PoweredAutomated fluid control in high-cycle applications
DesignRight Angle ConfigurationSpace-saving installation in confined spaces
CertificationCE, RoHS ComplianceMeets global industrial safety standards

Customization guide

Adjustable parameters include:

  • Size/Flow Rate: Choose between CA15T (15mm), CA20T (20mm), or CA25T (25mm) to match system requirements.
  • Voltage: Custom coil designs for 24VDC/110VAC or 220VAC to align with power infrastructure.
  • Seal Material: Swap EPDM or NBR seals for compatibility with specific gas chemistries.

Get inspired

Optimize your dust collection system with the CA Series solenoid valves. Their right-angle design and gas-specific sealing ensure efficient pulse-jet cleaning, while the corrosion-resistant aluminum alloy body withstands abrasive environments.

Choose your model

ParameterBase Model (CA15T)Advanced Model (CA20T)Pro Model (CA25T)
Max Flow Rate150 L/min+20% (180 L/min)+40% (210 L/min)
Pressure Range0.2–0.8 MPa0.2–1.0 MPa0.2–1.2 MPa
Coil Voltage24VDC Standard24VDC/110VAC Option24VDC/220VAC
Cycle Life1M cycles+25% (1.25M cycles)+50% (1.5M cycles)

Supplier's note

  1. Three Key Breakthroughs:

    • Lightweight Aluminum Alloy: Reduces system weight by 30% compared to steel valves, easing installation in elevated structures.
    • Right-Angle Design: Saves 40% space versus straight-body valves, critical for compact dust collector setups.
    • Extended Cycle Life: Pro Model’s 1.5M cycles outperform industry benchmarks by 50%, minimizing downtime in high-demand systems.

  2. Version Selection Guide:

    • Base Model (CA15T): Ideal for small-scale dust collectors or low-pressure systems where cost efficiency is prioritized.
    • Advanced Model (CA20T): Best for medium-sized HVAC or pneumatic systems needing higher flow and dual-voltage flexibility.
    • Pro Model (CA25T): Engineered for heavy industrial applications (e.g., cement plants) requiring high-pressure resistance and long-term reliability.

With the Pro Model’s 1.2 MPa pressure rating, you can safely handle abrasive gases in coal-fired power plants. Pair its NBR seals with the 220VAC coil to ensure seamless operation in extreme environments.

Frequently asked questions

  • Which CA series solenoid valve (CA15T/CA20T/CA25T) is best suited for high-capacity bag house dust collectors?

  • How do I maintain the threaded right angle solenoid valve in dusty industrial environments?

  • Why is aluminum alloy preferred over stainless steel for pulse jet valves in bag house systems?

  • Can the CA series solenoid valves be customized for specific gas pressure requirements?

  • Is the CA15T solenoid valve certified for industrial safety standards?

  • What makes the right angle design of these valves critical for pulse jet systems?

  • How does the solenoid-powered mechanism benefit dust collector operations?

  • Does the aluminum alloy body withstand corrosive gases in chemical processing plants?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionHarsh environments with corrosive gasesCA15T: Aluminum Alloy 6061 (ASTM B221) ▲ CA20T: Alloy 6063 ▲ CA25T: 6061 + corrosion-resistant coating (ASTM B117)Lightweight, cost-effective (CA15T); enhanced durability (CA20T); superior corrosion resistance (CA25T)Limited corrosion resistance (CA15T); moderate durability (CA20T); higher cost (CA25T)
Flow CapacityHigh-demand gas systemsCA15T: 15 LPM ▲ CA20T: 20 LPM ▲ CA25T: 25 LPM (ISO 9513)Efficient gas discharge (CA15T); moderate throughput (CA20T); optimal for large-scale use (CA25T)Limited capacity (CA15T); requires higher power (CA25T)
Pressure HandlingHigh-pressure chemical processingCA15T: 10 bar ▲ CA20T: 15 bar ▲ CA25T: 20 bar (ISO 9513)Reliable under standard pressures (CA15T); handles moderate pressures (CA20T); extreme pressure tolerance (CA25T)Not suitable for high-pressure (CA15T); heavier design (CA25T)
Compact DesignSpace-constrained HVAC systemsThreaded right-angle design (ISO 228-1), 30% smaller footprint than standard valvesEasy installation in tight spaces (all models)Limited to specific mounting configurations (all models)
Customization OptionsTailored chemical/water treatmentCA15T: Standard ports ▲ CA20T: Adjustable flow ▲ CA25T: Full customization (voltage/seals)Cost-effective (CA15T); moderate adaptability (CA20T); specialized solutions (CA25T)Limited adaptability (CA15T); higher cost (CA25T)
Safety FeaturesHigh-risk industrial environmentsCA15T: Basic pressure relief ▲ CA20T: Overload protection ▲ CA25T: Dual safety valves (ISO 4414)Fail-safe operation (CA25T)Minimal safety (CA15T); requires monitoring (CA20T)
