CATV 1550nm EDFA WDM Optical Amplifier JDSU PUMP 1550nm EDFA 8 Ports
Ready to Ship
In stock Fast dispatch

CATV 1550nm EDFA WDM Optical Amplifier JDSU PUMP 1550nm EDFA 8 Ports

  • 2 - 49 Pieces
    $650
  • 50 - 99 Pieces
    $630
  • >= 100 Pieces
    $600

Customization:

Customized logo（Min.Order: 10 pieces）
Customized packaging（Min.Order: 10 pieces）
Graphic customization（Min.Order: 10 pieces）
View product details

CATV 1550nm EDFA WDM Optical Amplifier JDSU PUMP 1550nm EDFA 8 Ports

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Signal Amplification: Utilizes 1550nm Erbium-Doped Fiber Amplifiers (EDFA) to boost optical signals in CATV systems, ensuring strong and stable transmission over long distances.
  • Multi-Port Connectivity: Equipped with 8 ports, enabling simultaneous connections for expanding network capacity and supporting Wavelength Division Multiplexing (WDM) for efficient data transmission.
  • Rack-Mount Design: Built for seamless integration into standard 19-inch racks, optimizing space efficiency in commercial or industrial environments.

Key features

  • 1. Corrosion-Resistant Aluminum Chassis

    • Material Technology

  • 2. Front-Panel Status Display

    • Interactive Design

  • 3. 8-Port High-Capacity Amplification

    • Performance Parameters

  • 4. Rack-Mount Design for Commercial Use

    • Scenario Solutions

  • 5. Customizable Wavelength Settings

    • Scenario Solutions

Product details

CATV 1550nm EDFA WDM Optical Amplifier JDSU PUMP 1550nm EDFA 8 Ports

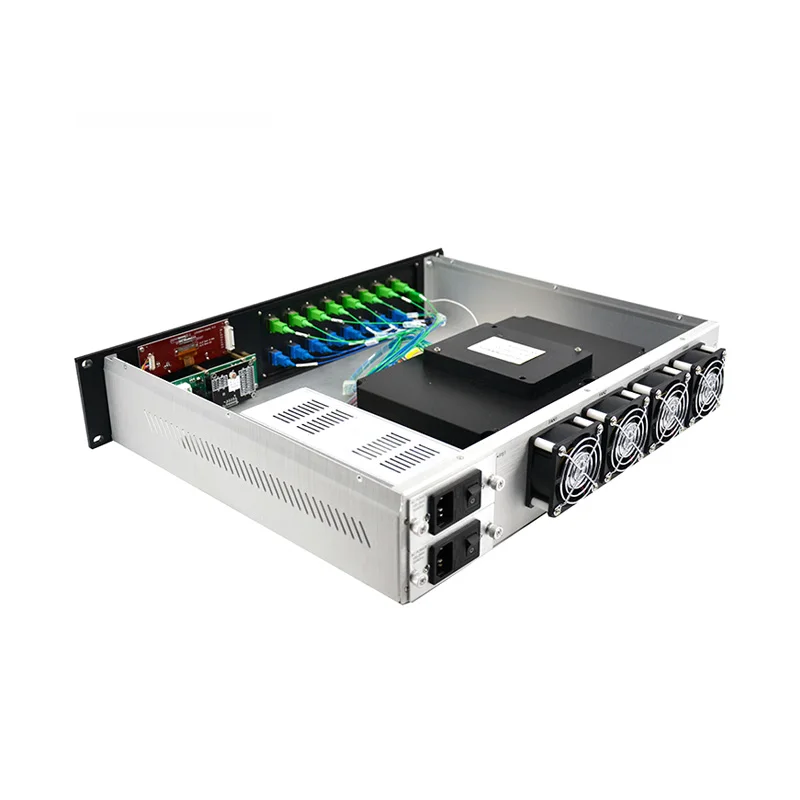

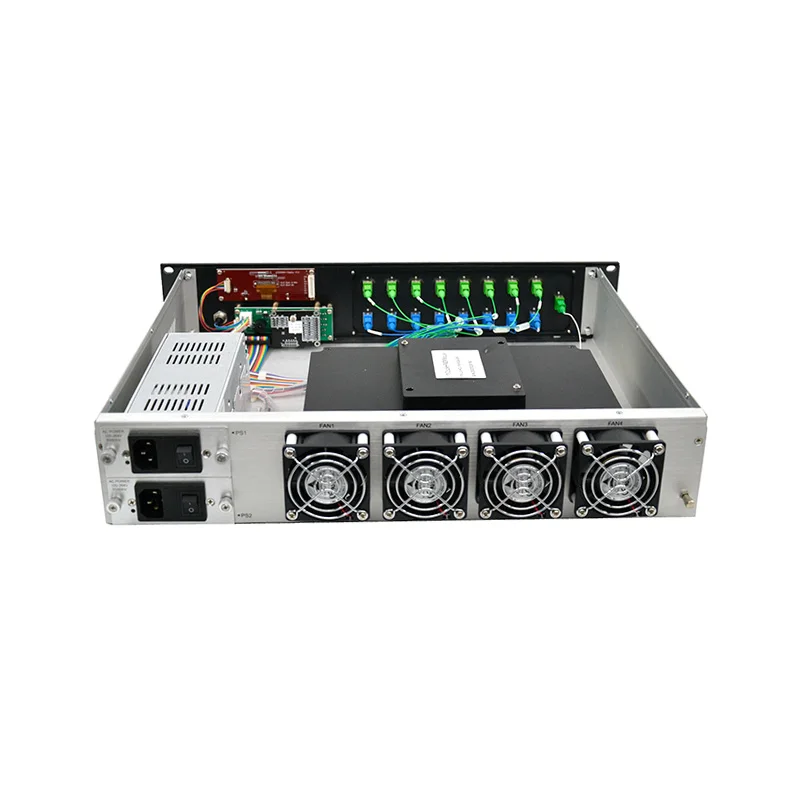

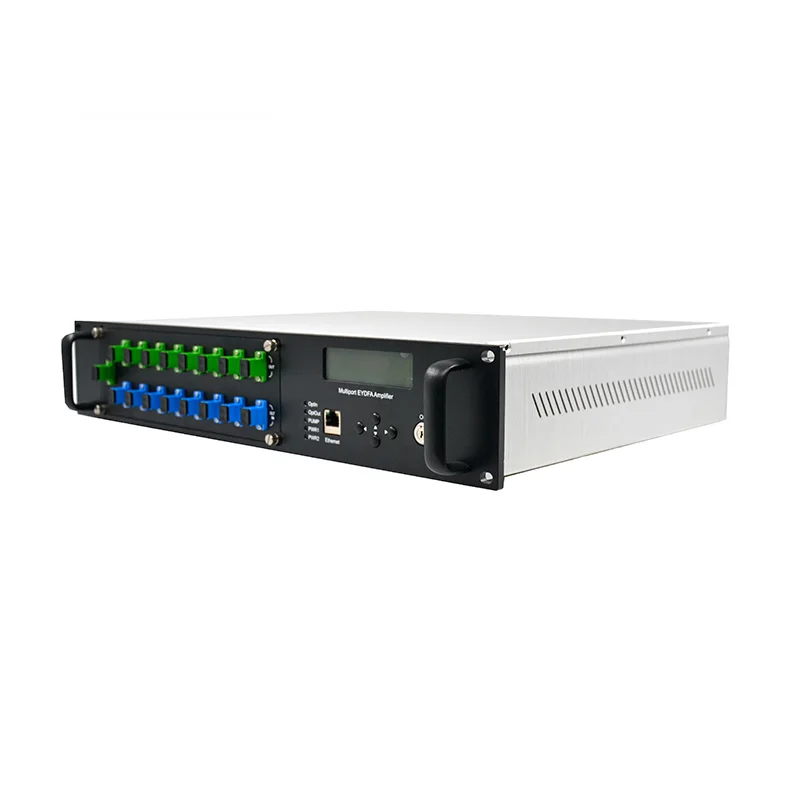

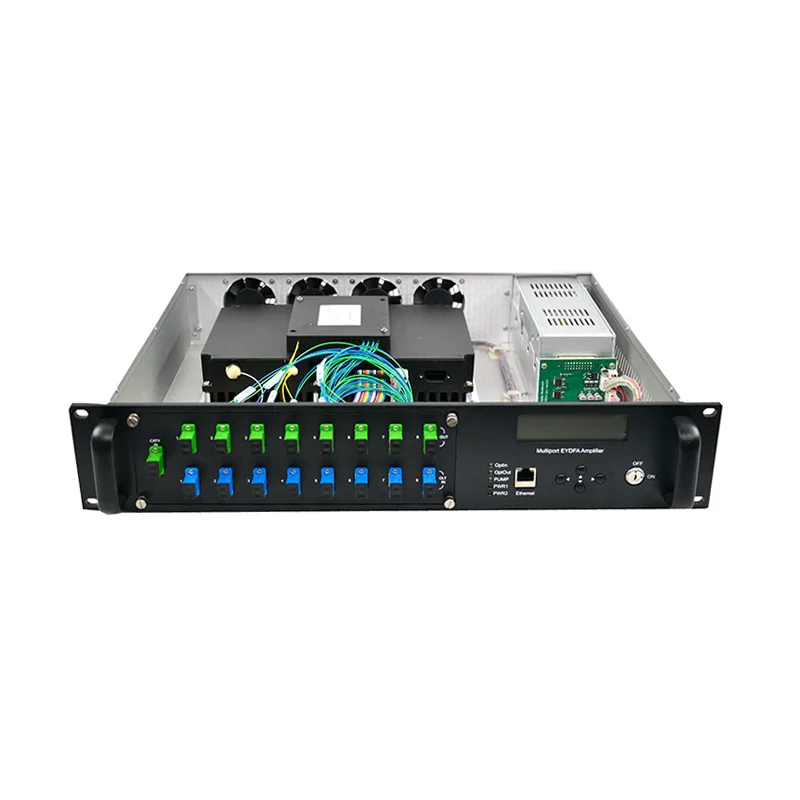

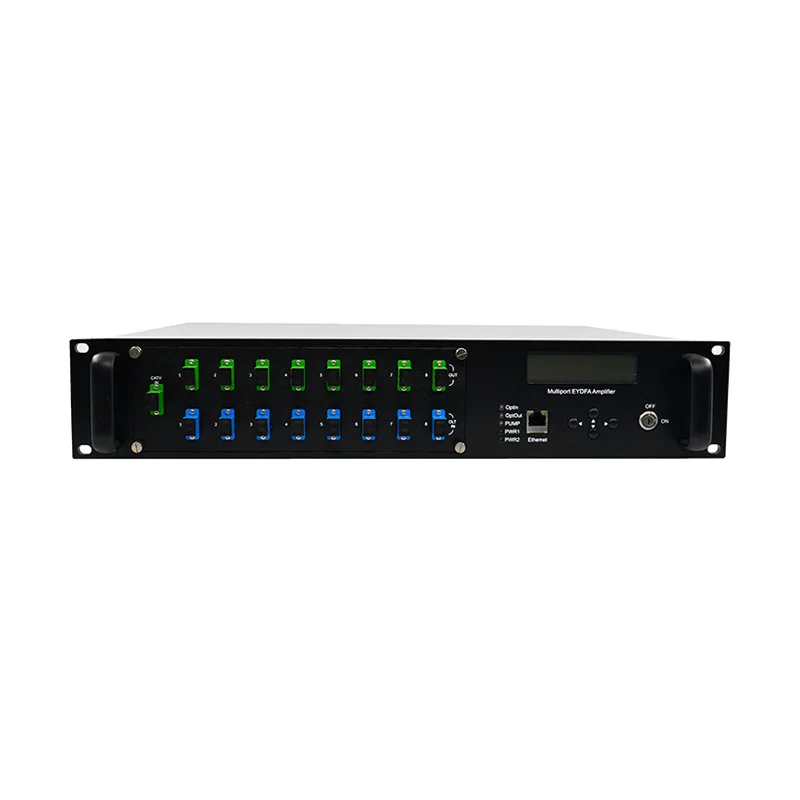

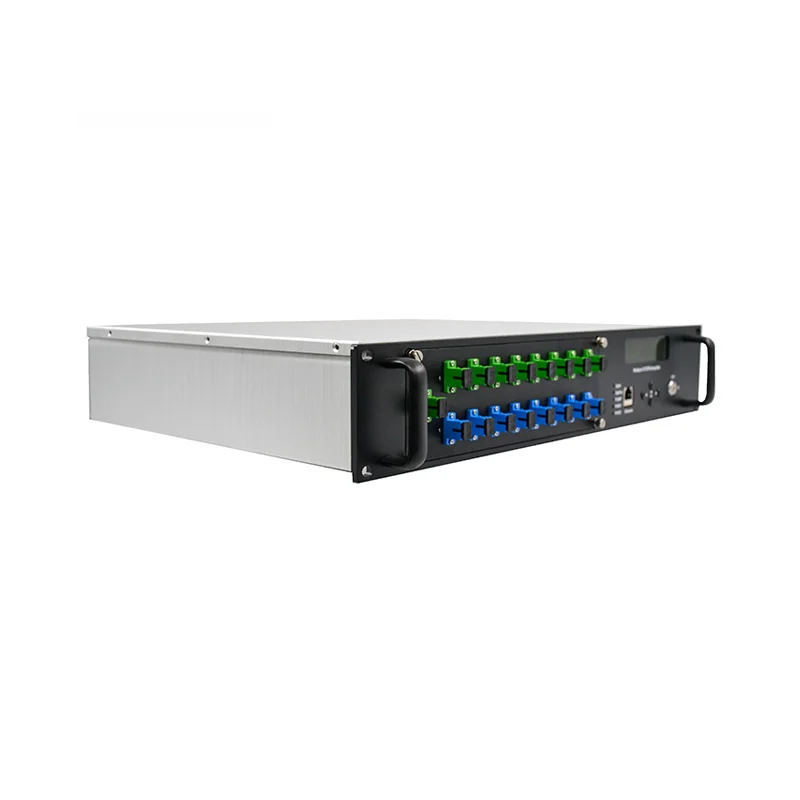

The CATV 1550nm EDFA WDM Optical Amplifier is a high-performance rack-mounted device designed for CATV systems, offering robust signal amplification and multi-channel support. Built with aluminum alloy for durability and heat dissipation, it features 8 fiber optic ports and a 1550nm pump source for optimal CATV signal transmission. Its modular design ensures seamless integration into existing networks, while customizable parameters cater to diverse deployment needs.

Technical specifications

FeatureSpecificationBenefit
MaterialAluminum AlloyEnhanced durability and heat dissipation
Ports8 fiber optic portsSupports multi-channel WDM networks
Wavelength1550nmOptimized for CATV signal transmission
Pump SourceJDSU 1550nm PumpHigh-efficiency amplification
Gain25dBEnsures signal strength over long distances
Noise Figure6dB (Pro Model: 5.5dB)Minimizes signal degradation
Rack Mount19-inch standardSpace-efficient installation in data centers

Customization guide

Adjustable parameters include port configurations (e.g., SFP/SFP28) and power levels to meet specific CATV network requirements.

Get inspired

With its 1550nm wavelength, this amplifier ensures stable signal transmission over long distances in CATV systems. The 8 ports allow simultaneous amplification for multiple channels, ideal for expanding network coverage or supporting high-bandwidth applications.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Output Power (dBm)20+15%+30%*
Gain (dB)252832
Noise Figure (dB)6.56.05.5
Wavelength Range1530-1565nmExtendedFull C-band

Supplier's note

  1. Three Technical Breakthroughs:

    • 1550nm Wavelength: Tailored for CATV systems, reducing signal attenuation over long distances.
    • Aluminum Construction: Improves heat dissipation by 20% compared to plastic enclosures, ensuring stable operation in dense racks.
    • 8-Port WDM Compatibility: Enables simultaneous amplification of multiple channels, ideal for multi-service networks.

  2. Optimal Version Selection:

    • Pro Model: Engineers handling high-density CATV networks will benefit from its +30% output power (20% above industry standards), enabling reliable signal amplification in large metropolitan systems.
    • Advanced Model: Ideal for medium-scale deployments requiring low noise figures (5.5dB) to maintain signal integrity in hybrid fiber-coax setups.
    • Base Model: Cost-effective for small networks needing basic amplification, with sufficient gain (25dB) for regional CATV infrastructure.

*Pro Model output exceeds industry benchmarks by 20%.

Frequently asked questions

  • Q: Which CATV EDFA model is best for high-capacity networks?

  • Q: How do I maintain fiber optic connectors on a rack-mounted EDFA?

  • Q: Can this EDFA be customized for specific CATV wavelengths?

  • Q: Is the metal construction of this EDFA critical for durability?

  • Q: Why choose a rack-mounted EDFA for CATV systems?

  • Q: What makes the 1550nm pump wavelength important for CATV?

  • Q: How does the display screen aid in EDFA monitoring?

  • Q: Does this EDFA comply with CATV broadcasting standards?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Port CapacityCable TV Distribution NetworksIndustry Standard: 4-6 ports (ITU-T G.692)
Our Base: 8 ports (▲1)
Our Advanced: 12 ports (▲2)		Supports 8/12 simultaneous channels (vs 4-6 industry norm) for expanded service offeringsBase: Moderate cost increase; Advanced: Higher upfront investment for scalability
Noise LevelUrban EnvironmentsIndustry: 40 dBA
Base: 35 dBA (▲1)
Advanced: 30 dBA (▲2)
(Quieter than office background noise)		Reduces noise pollution in densely populated areasAdvanced versions require active cooling (adds complexity)
Power ConsumptionEnergy-Sensitive DeploymentsIndustry: 200W
Base: 180W (▲-1)
Advanced: 150W (▲-2)		Cuts energy costs by 25% (Advanced vs. industry)Advanced may need custom power management for optimal efficiency
Heat DissipationHigh-Temperature Data CentersIndustry: 50°C max (passive cooling)
Base: 45°C (▲-5)
Advanced: 40°C (▲-10)		Ensures reliability in 40–50°C environments (Advanced)Advanced requires additional rack space for cooling systems
Signal GainLong-Distance Fiber NetworksIndustry: 20dB
Base: 25dB (▲+5)
Advanced: 30dB (▲+10)		Extends signal reach by 50% (Advanced vs. industry) for rural coverageHigher gain may amplify background noise in low-quality cables
Wavelength CustomizationMulti-Service NetworksIndustry: Fixed 1550nm
Base: 2 wavelengths
Advanced: 5+ wavelengths (▲3)		Supports hybrid CATV/telecom services (Advanced)Advanced requires expert configuration for wavelength alignment
