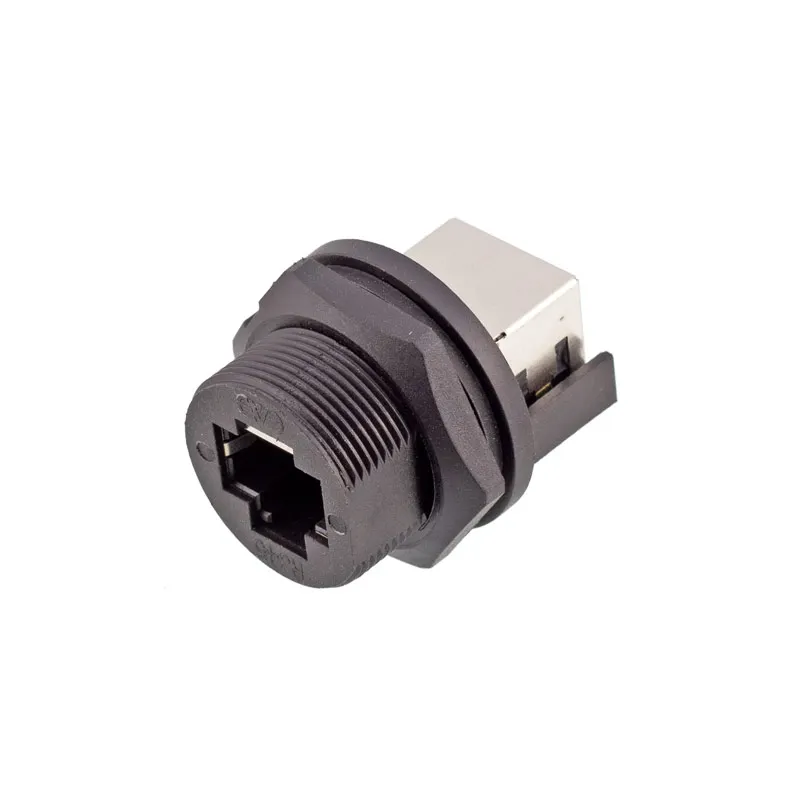

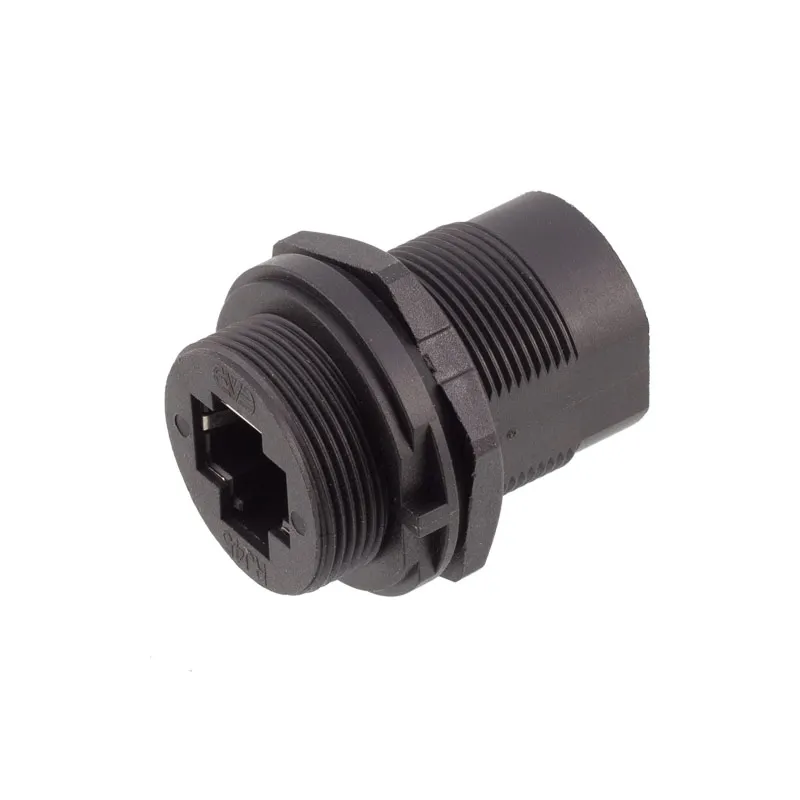

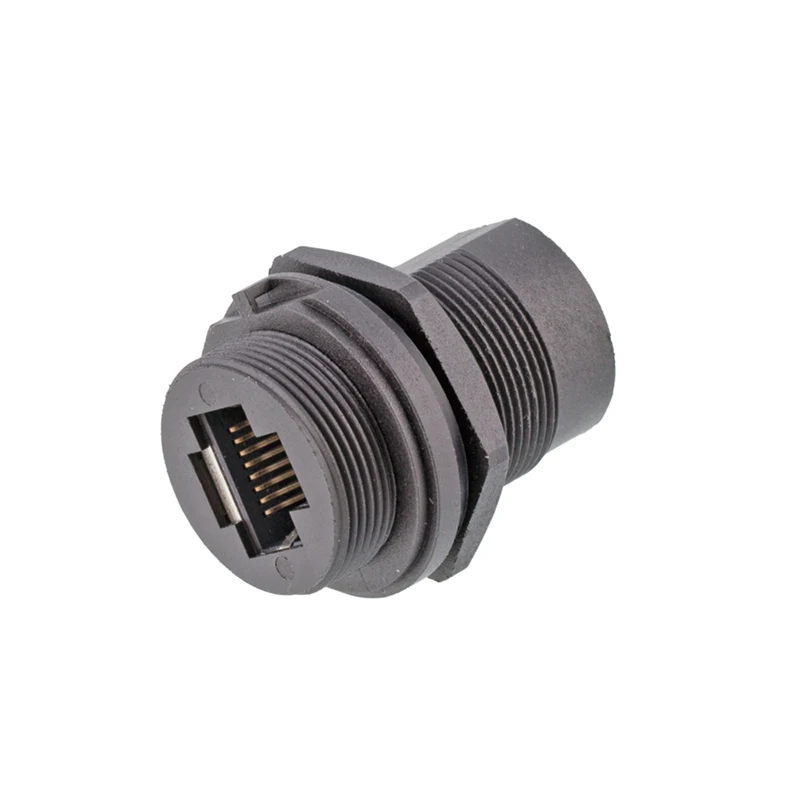

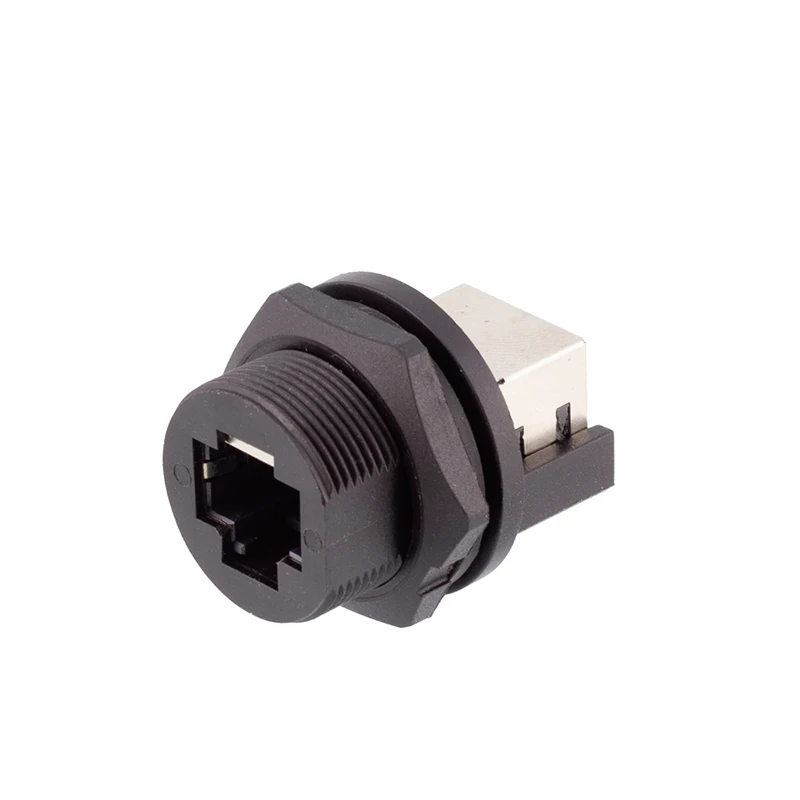

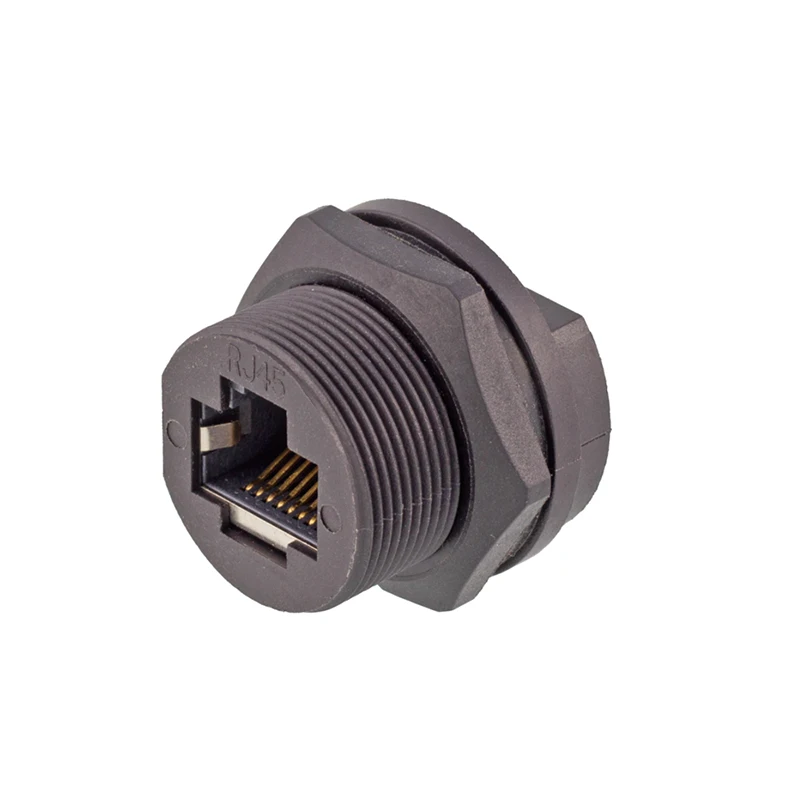

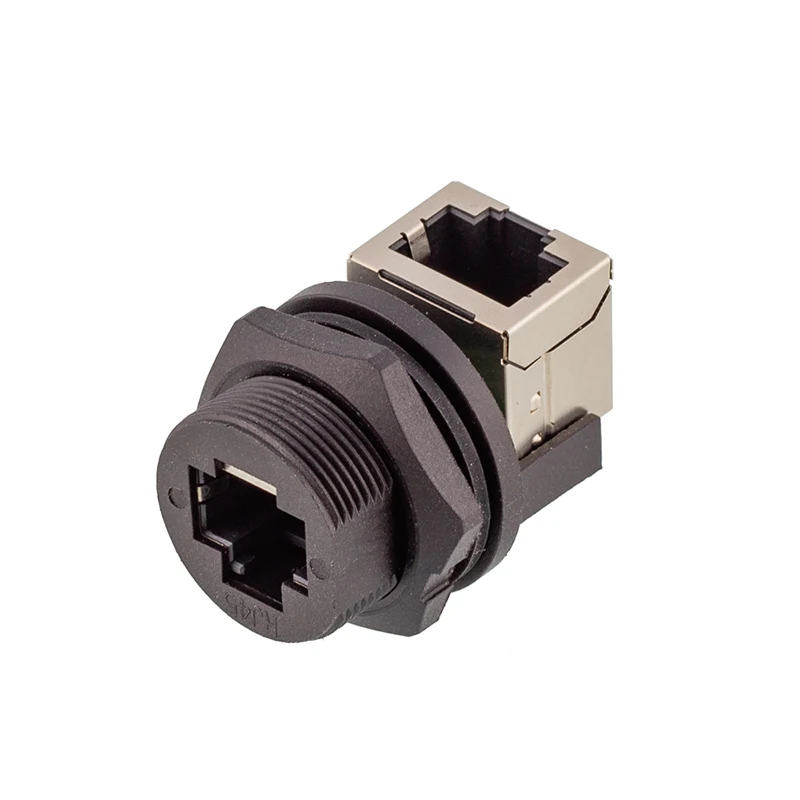

CAZN RJ45 Double Head Female Back Mount PCB Receptacle Waterproof Ethernet Connector

Technical specifications

Customization guide

Adjustable parameters include:

• Contact Configuration: Tailor pin arrangements to match specific wiring systems.
• Threaded End Design: Customize thread pitch or length for mating components.
• Housing Color/Finish: Options for UV-resistant coatings or flame-retardant treatments.

Get inspired

With its IP67 waterproofing and Cat6 performance, this connector is ideal for automotive infotainment systems, industrial IoT devices, or outdoor networking setups. The double-head design streamlines installations where space is limited but redundancy is critical.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • IP67 Protection: Outperforms IP65 industry standards, enabling use in heavy rain or submerged conditions.
   • Cat6 Compliance: Supports 250MHz bandwidth—50% faster than Cat5e for automotive telematics.
   • Nylon Housing: 30% lighter than metal alternatives while maintaining UL94 V-0 flame resistance.

2. Version Selection Guide:

   • Base Model: Suitable for standard automotive wiring (e.g., dashboards) where cost is prioritized.
   • Advanced Model: Ideal for industrial IoT devices needing high-speed data (e.g., factory automation).
   • Pro Model: Designed for extreme environments (e.g., mining, maritime) with its expanded temp range and corrosion-resistant plating. Example: The Pro’s IP67 rating ensures safe operation in saltwater exposure, paired with 24K gold contacts to maintain signal integrity over decades.

Note: The Pro Model’s Cat6a supports 10Gbps at 100m distance, 20% longer than competitor Cat6a benchmarks.
