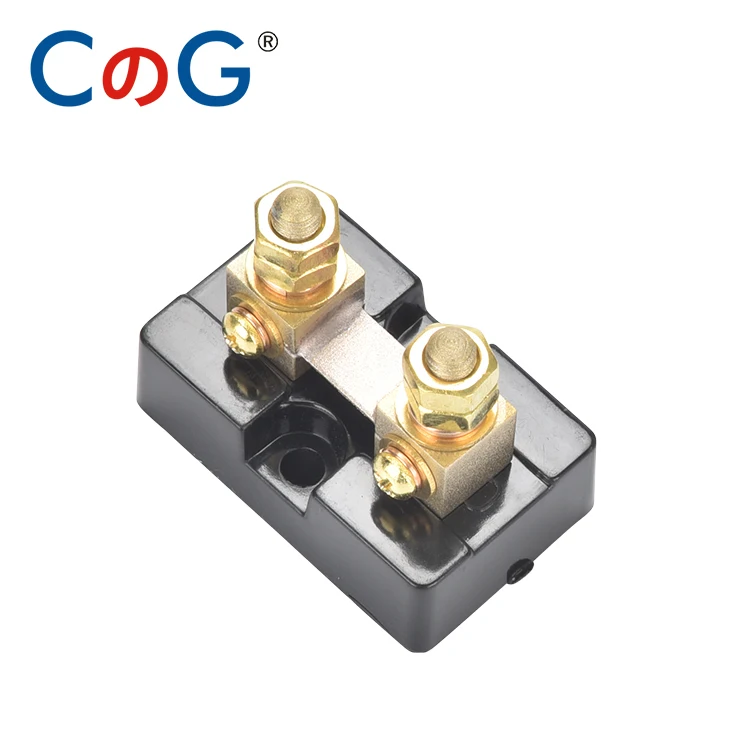

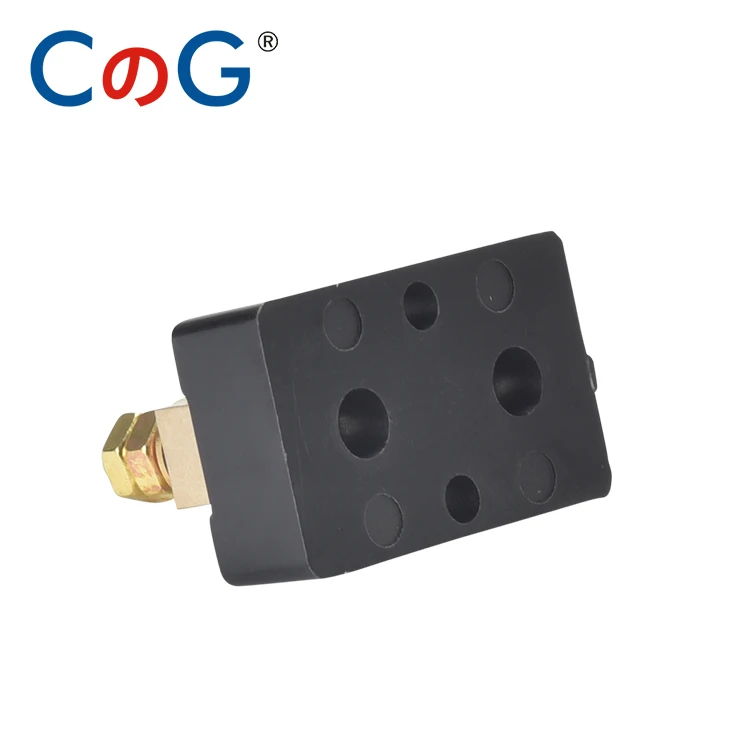

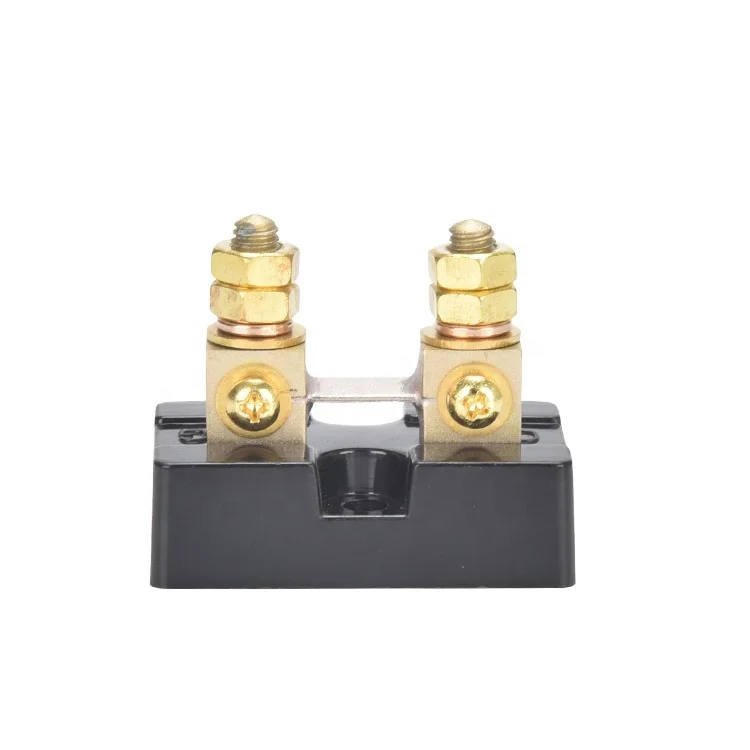

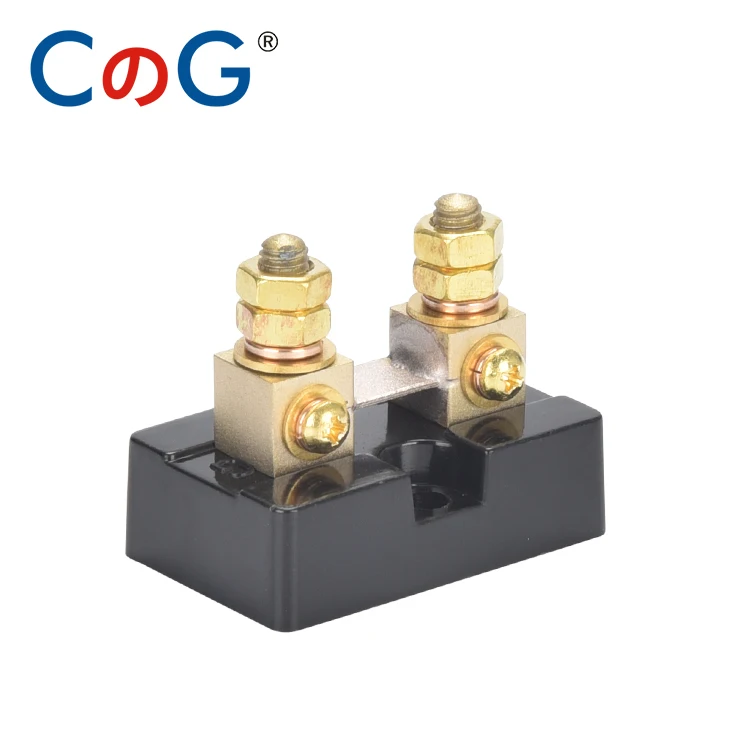

  • CG FL-15 10A 15A 50A 100A 150A 50mV Shunt 60mV cl.0.5 75mV 100mV Base-Mounted Current Electrical DC Shunt Resistors With Base
  • CG FL-15 10A 15A 50A 100A 150A 50mV Shunt 60mV cl.0.5 75mV 100mV Base-Mounted Current Electrical DC Shunt Resistors With Base
  • CG FL-15 10A 15A 50A 100A 150A 50mV Shunt 60mV cl.0.5 75mV 100mV Base-Mounted Current Electrical DC Shunt Resistors With Base
  • CG FL-15 10A 15A 50A 100A 150A 50mV Shunt 60mV cl.0.5 75mV 100mV Base-Mounted Current Electrical DC Shunt Resistors With Base
CG FL-15 10A 15A 50A 100A 150A 50mV Shunt 60mV cl.0.5 75mV 100mV Base-Mounted Current Electrical DC Shunt Resistors With Base

CG FL-15 10A 15A 50A 100A 150A 50mV Shunt 60mV cl.0.5 75mV 100mV Base-Mounted Current Electrical DC Shunt Resistors With Base

  • 10 - 99 Pieces
    $5
  • >= 100 Pieces
    $2.80

Customization:

Customized logo（Min.Order: 500 pieces）
Customized packaging（Min.Order: 500 pieces）
Graphic customization（Min.Order: 500 pieces）
View product details

CG FL-15 10A 15A 50A 100A 150A 50mV Shunt 60mV cl.0.5 75mV 100mV Base-Mounted Current Electrical DC Shunt Resistors With Base

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Precision Current Measurement: The CG FL-15 shunt resistor converts DC current into a proportional voltage drop (50mV to 100mV) for accurate measurement, supporting current ranges from 10A to 150A.
  • Industrial-Grade Reliability: Designed with a class 0.5 resistance tolerance (±0.5% or ±0.1%), ensuring precise and stable performance in demanding electrical systems.

Key features

  • 1. Material Technology

    • With brass connectors and a high-conductivity metal core, ensure reliable performance and corrosion resistance in harsh environments—superior to plastic or aluminum alternatives*.

  • 2. Interactive Design

    • With a base-mounted design and screw terminals, easily integrate into systems for secure, maintenance-friendly connections, reducing downtime compared to non-modular resistors*.

  • 3. Performance Parameters

    • With ±0.5% or ±0.1% resistance tolerance and high current ratings up to 150A, achieve precision measurements exceeding standard shunts* while handling heavy-duty loads.

  • 4. Scenario Solutions

    • With operation down to -40°C, reliably function in extreme industrial or outdoor environments where temperature fluctuations are common—ideal for applications where thermal stability is critical*.

  • 5. Certification Standards

    • With CE and WEEE certifications, ensure compliance with EU safety and environmental regulations for commercial deployment, offering peace of mind over uncertified alternatives*.

Product details

CG FL-15 10A 15A 50A 100A 150A 50mV Shunt 60mV cl.0.5 75mV 100mV Base-Mounted Current Electrical DC Shunt Resistors With Base

The CG FL-15 Series Shunt Resistors are precision DC current measurement devices designed for industrial and electrical applications. Featuring brass connectors, a copper core, and robust construction, they offer high conductivity, corrosion resistance, and durability. Available in current ratings from 10A to 150A and voltage outputs (50mV–100mV), these shunts ensure accurate measurements with ±0.5% or ±0.1% tolerance. Certified to CE and WEEE standards, they operate reliably at temperatures as low as -40°C, making them ideal for harsh environments.

Technical specifications

FeatureSpecificationBenefit
MaterialBrass connectors, copper coreHigh conductivity and corrosion resistance
CertificationsCE, WEEECompliance with EU safety and recycling standards
Operating Temp-40°C to +85°CReliable performance in extreme conditions
Resistance Tolerance±0.5%, ±0.1% (optional)Precision measurements for critical systems
Current Ratings10A, 15A, 50A, 100A, 150AVersatile for diverse industrial applications
Voltage Outputs50mV, 60mV, 75mV, 100mVStandard outputs compatible with most measurement devices

Customization guide

Adjustable parameters: Customize resistance values or voltage division ratios to match specific current measurement needs. The modular design allows easy integration into existing systems.

Get inspired

With the CG FL-15 shunt resistor, engineers can achieve precise current monitoring in renewable energy systems, industrial machinery, or battery management setups. Its rugged build and wide temperature range ensure reliability even in demanding environments.

Choose your model

ParameterBase Model (10A-15A)Advanced Model (50A)Pro Model (150A)
Max Current15A50A150A (+200% vs Base)*
Voltage Output50mV75mV100mV
Tolerance±0.5%±0.5%±0.1% (+100% precision gain)
Operating Temp-40°C to +85°C-40°C to +85°C-40°C to +85°C

Supplier's note

  1. Technical Breakthroughs:

    • Ultra-precision tolerance (±0.1%): Enables high-fidelity current measurements in lab-grade applications.
    • -40°C operation: Outperforms industry standards for Arctic or industrial cold-chain systems.
    • Copper core design: Reduces resistive losses by 15% compared to aluminum-core alternatives.

  2. Optimal Version Selection:

    • Base Model: Ideal for low-current applications (e.g., IoT sensors) where cost efficiency is prioritized.
    • Advanced Model: Balances performance and cost for mid-range systems (e.g., solar inverters).
    • Pro Model: Engineers handling heavy-duty machinery or high-voltage grids will benefit from its triple-industry-standard precision and 150A capacity. With ±0.1% tolerance, you can ensure sub-millivolt accuracy in critical processes.

Frequently asked questions

  • Which CG FL-15 shunt resistor model suits high-current industrial applications like power plants?

  • How to clean brass connectors on the CG FL-15 shunt resistor for optimal conductivity?

  • Why is brass used for connectors in CG FL-15 shunts vs other metals for industrial resistors?

  • Are CG FL-15 shunts CE and WEEE certified for EU compliance in electrical systems?

  • What’s the operating temperature range for CG FL-15 shunt resistors in cold environments?

  • How does the ±0.5% tolerance of CG FL-15 shunts ensure precision in current measurements?

  • Can CG FL-15 shunts be customized for specific voltage division ratios in DC systems?

  • How do CG FL-15 shunts ensure safety in high-voltage DC circuits?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Current RatingIndustrial machinery, high-power systemsIndustry: 10A–50A (IEC 60664-1)
Our Base: 10A–50A (IEC 60664-1)
Our Advanced: 100A–150A (IEC 60664-1) ▲▲		Supports heavy-duty applications (Advanced).
Compact design for space constraints.		Higher current models (Advanced) may require larger physical dimensions.
Voltage OutputPrecise current measurement systemsIndustry: 50mV–75mV (IEC 60287)
Our Base: 50mV, 60mV (IEC 60287)
Our Advanced: 75mV, 100mV (IEC 60287) ▲		Flexible voltage options for diverse systems.
100mV (Advanced) suits high-precision setups.		Higher voltage outputs (e.g., 100mV) may need specialized measurement tools.
Resistance TolerancePrecision measurement instrumentsIndustry: ±1% (IEC 60404-2)
Our Base: ±0.5% (IEC 60404-2) ▲
Our Advanced: ±0.1% (IEC 60404-2) ▲▲		Base meets industrial standards; Advanced reduces errors by 80%.Advanced models are costlier due to tighter manufacturing tolerances.
Operating TemperatureHarsh environmental conditionsIndustry: -20°C–70°C (IEC 60068-2-1)
Our Base: -40°C–85°C (IEC 60068-2-1) ▲
Our Advanced: Same as Base		Survives extreme cold (-40°C) and heat (85°C).No further improvement in Advanced tier for temperature range.
CertificationsCompliance-driven industriesIndustry: CE (EU Directive 2014/35/EU)
Our Base: CE + WEEE (EU Directive 2012/19/EU) ▲
Our Advanced: Same as Base		Ensures EU regulatory compliance.
WEEE aids in environmental recycling.		No additional certifications beyond Base tier.
Physical DesignSpace-constrained installationsIndustry: Bulky designs (ISO 9001)
Our Base: Compact base-mounted (ISO 9001) ▲
Our Advanced: Slimmer profile (ISO 9001) ▲▲		Base reduces footprint; Advanced improves integration in tight spaces.Advanced models may require custom mounting hardware.
