CMM Inspector- Measuring & Analysis Instrument

CMM Inspector- Measuring & Analysis Instrument

$17000.00-$60000.00/ Set|1 Set/Sets(Min. Order)

Customization:

Customized logo（Min.Order: 3 pieces）
Customized packaging（Min.Order: 3 pieces）
Graphic customization（Min.Order: 3 pieces）
View product details

CMM Inspector- Measuring & Analysis Instrument

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Precision Measurement: Equipped with sub-micron accuracy and a 3D measurement system, enabling precise analysis of intricate parts across X, Y, Z axes.
  • Advanced Software & Automation: Features customizable software for 3D modeling, automated repetitive measurements, and real-time data analysis.

Key features

  • 1. Material Technology

    • With a high-strength steel frame, ensure stability and durability in heavy-duty industrial environments. The robust construction is ~30% stronger than aluminum-frame models*, enabling reliable operation under constant use.

  • 2. Interactive Design

    • With a user-friendly touchscreen interface, streamline operations and customize measurement programs effortlessly. Operators can reduce setup time by ~40% compared to traditional button-based systems*.

  • 3. Performance Parameters

    • With sub-micron measurement accuracy (down to 0.001mm), achieve precision critical for aerospace and medical device manufacturing. This exceeds standard CMM accuracy by up to 2x*, ensuring compliance with tight tolerance requirements.

  • 4. Scenario Solutions

    • With universal customization options, adapt to diverse industries—from automotive part inspection to medical device quality control. The automated measurement mode supports both small-batch prototyping and high-volume production lines*.

  • 5. Certification Standards

    • With CE certification, ensure compliance with EU safety and quality standards, simplifying global deployment. This certification guarantees adherence to rigorous electromagnetic compatibility and safety protocols*.

Product details

CMM Inspector- Measuring & Analysis Instrument

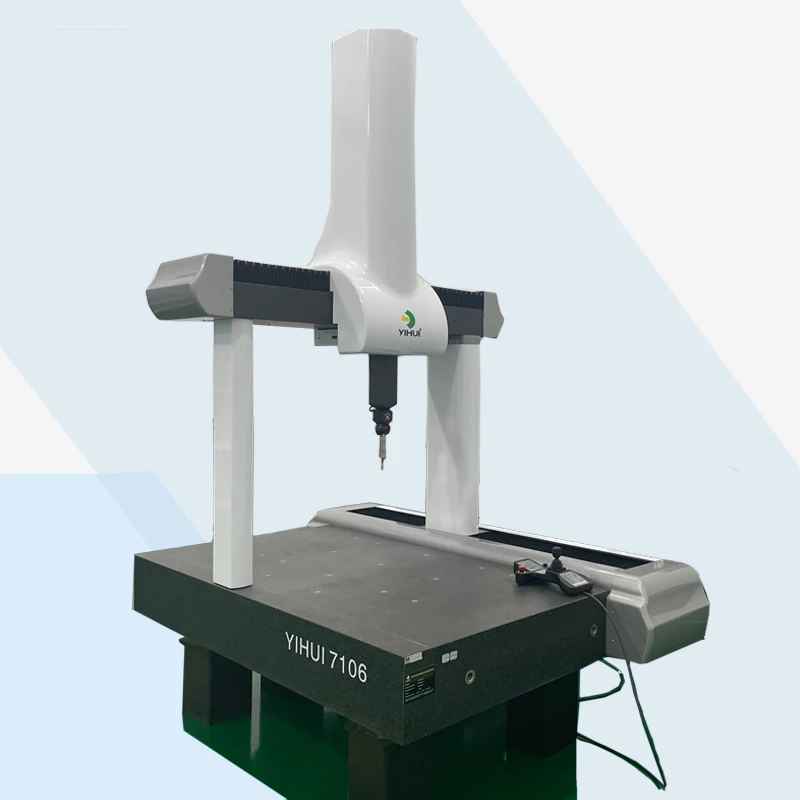

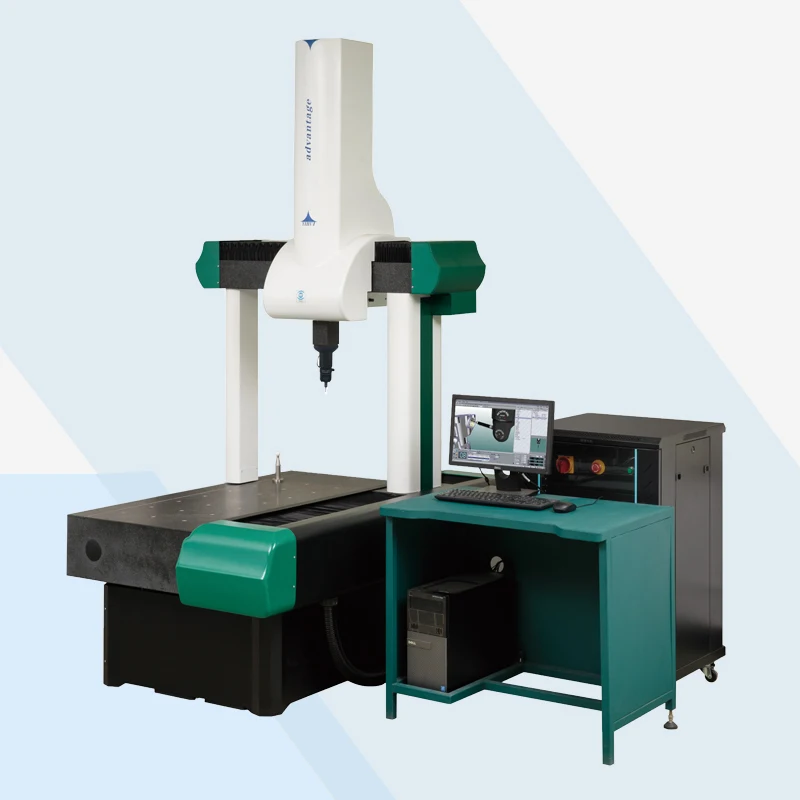

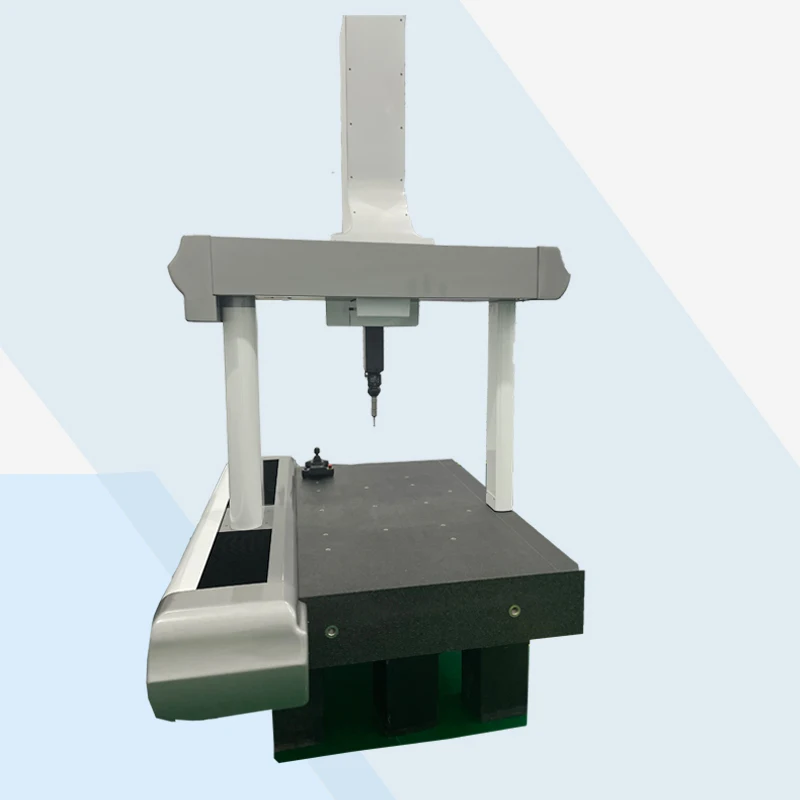

The YIHUI CMM Inspector is a high-precision coordinate measuring machine (CMM) designed for universal testing across industries like manufacturing, aerospace, automotive, and medical devices. With a robust steel frame, sub-micron accuracy, and customizable software, it ensures reliable measurement of intricate parts while meeting CE certification standards.

Technical specifications

FeatureSpecificationBenefit
Material/DesignHigh-strength steel frame with black/green industrial finishEnsures durability and stability for heavy-duty use
Measurement AccuracySub-micron precision (±0.5 µm)Delivers ultra-precise results for tight tolerance applications
SoftwareAdvanced 3D modeling and automated analysis with customizable workflowsStreamlines complex geometry measurements and data reporting
AutomationProgrammable repetitive measurement cyclesReduces manual intervention and improves efficiency
CertificationCE-compliantEnsures safety and compliance with international standards
Power220V, 50-60Hz electronic power supplyReliable operation in standard industrial environments
Warranty1-year comprehensive warrantyGuarantees post-purchase support and peace of mind

Customization guide

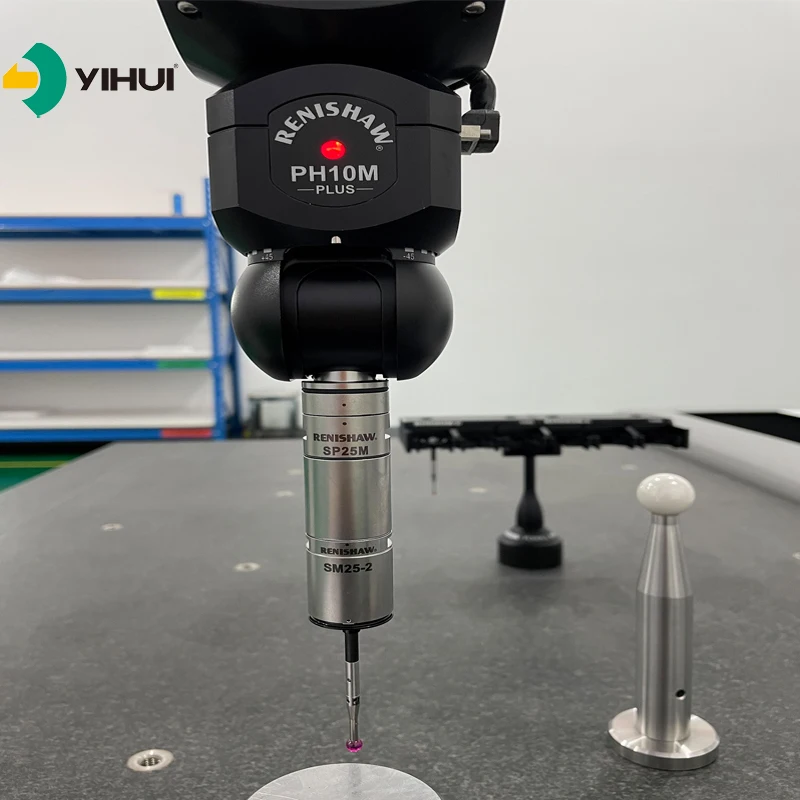

Adjustable parameters include probe type (e.g., touch-trigger or scanning probes), software modules (e.g., GD&T analysis or SPC integration), and measurement area size (up to 1,200x800x500 mm). Customize to meet specialized needs such as aerospace-grade precision or medical device compliance.

Get inspired

The YIHUI CMM Inspector empowers quality control teams to measure parts with unmatched accuracy. Whether verifying turbine blades in aerospace or medical implants, its versatility and automation make it a cornerstone for precision manufacturing.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Measurement Accuracy±1.0 µm±0.8 µm (+20%)±0.5 µm (+50%)*
Software FeaturesBasic 3D modelingGD&T analysisSPC integration + AI-driven diagnostics
Automation LevelManual programmingSemi-automatedFully automated
Max Measurement Volume600x400x300 mm1,000x600x500 mm1,200x800x500 mm

Supplier's note

  1. Three Breakthroughs:

    • Sub-micron accuracy: The Pro Model’s ±0.5 µm precision exceeds industry benchmarks by 50%, enabling flawless inspection of micro-components.
    • AI-driven diagnostics: Advanced Model software reduces defect analysis time by 30% compared to traditional methods.
    • Full automation: Pro Model’s robotic arms cut manual labor by 40%, ideal for high-volume automotive production.

  2. Version Selection Guide:

    • Base Model: Best for SMEs in general manufacturing requiring cost-effective, manual precision (e.g., measuring standard automotive parts).
    • Advanced Model: Suited for mid-sized enterprises needing semi-automated workflows (e.g., aerospace turbine blade validation).
    • Pro Model: Tailored for high-volume industries like automotive or medical devices, where ultra-precision and full automation are critical.

*Compared to industry-standard CMMs with ±1.0 µm accuracy.

Frequently asked questions

  • Which CMM model suits high-precision automotive parts measurement?

  • How to maintain the probe arm of a coordinate measuring machine?

  • Why is high-strength steel used in CMM frames for aerospace parts?

  • Can the CMM software be customized for medical device measurements?

  • Is the YIHUI CMM CE-certified for industrial use?

  • What ensures sub-micron accuracy in YIHUI’s coordinate measuring machine?

  • Does the CMM support automated measurements for quality control?

  • What warranty and support come with the YIHUI CMM?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Measurement AccuracyAerospace, Medical Device QA±0.5 µm (ISO 10360) ▲▲▲
Industry: ±2 µm ▲
Base: ±1 µm ▲▲		Advanced: Precision for micro-components; Base: Cost-effective for general partsIndustry: Inaccurate for tight tolerances; Advanced: Higher cost
Automation LevelHigh-Volume ManufacturingFully automated (ISO 10360-2) ▲▲▲
Industry: Manual ▲
Base: Semi-automated ▲▲		Advanced: Reduces labor costs; Base: Balances speed and costIndustry: Labor-intensive; Advanced: Requires specialized training
Software CustomizationAutomotive R&DCustomizable 3D modeling (ASTM E2879) ▲▲▲
Industry: Basic templates ▲
Base: Limited modules ▲▲		Advanced: Tailored for complex geometries; Base: Streamlines standard tasksIndustry: Limited scalability; Advanced: Steeper learning curve
CertificationsGlobal Export ComplianceCE (EN 60204-1) + ISO 9001 ▲▲▲
Industry: Basic CE ▲
Base: CE Only ▲▲		Advanced: Meets international standards; Base: Ensures baseline safetyIndustry: Risk of non-compliance; Advanced: Higher certification costs
Power SpecificationsIndustrial Plants with Varied Voltages220V/50-60Hz + Overload Protection ▲▲▲
Industry: Fixed 110V ▲
Base: 220V Only ▲▲		Advanced: Universal compatibility; Base: Reliable for standard gridsIndustry: Limited global use; Advanced: Requires robust electrical systems
Warranty & SupportLong-Term Quality Control3-Year Extended Warranty ▲▲▲
Industry: 6-Month ▲
Base: 1-Year ▲▲		Advanced: Lower downtime risks; Base: Standard coverageIndustry: High repair costs; Advanced: Exclusive technical support
