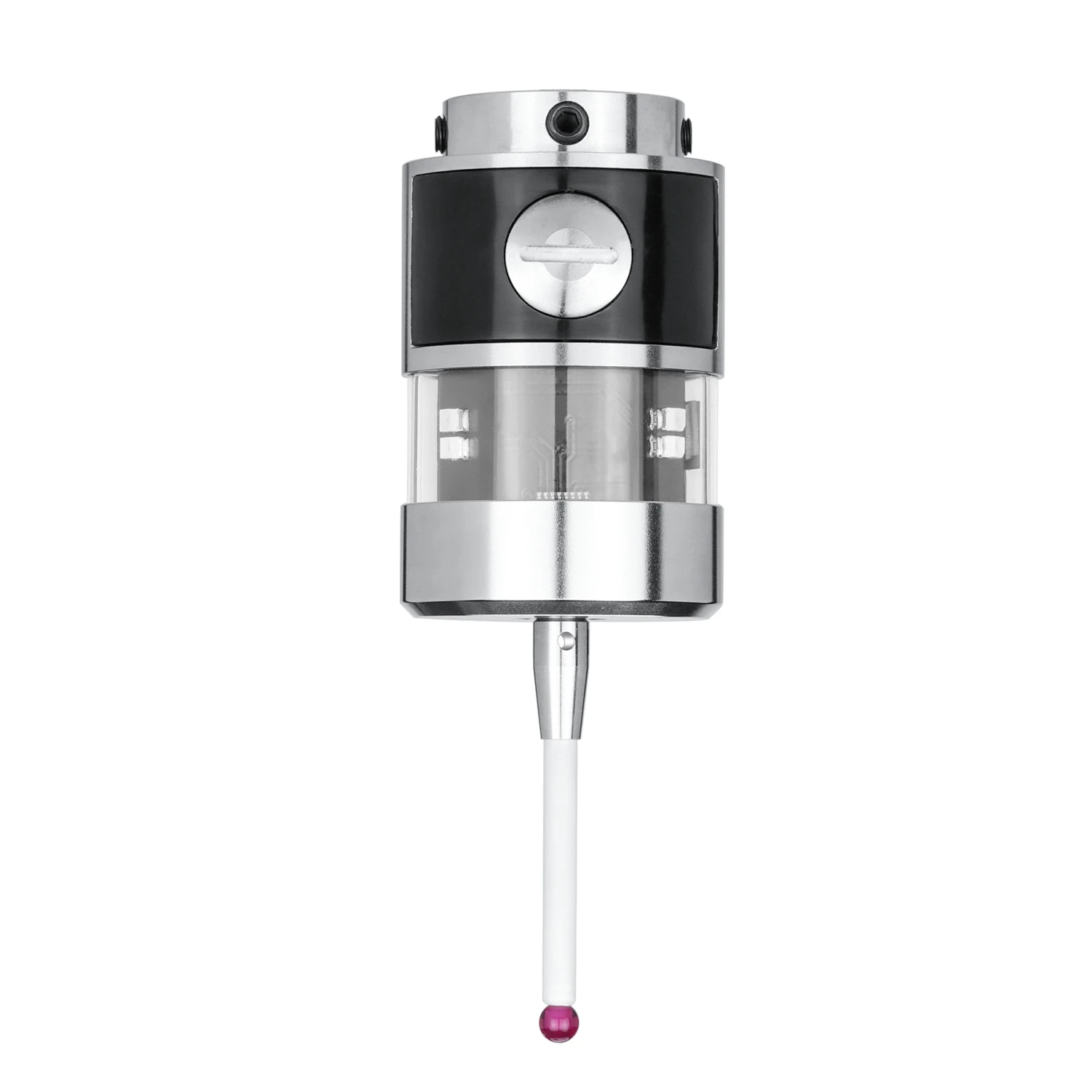

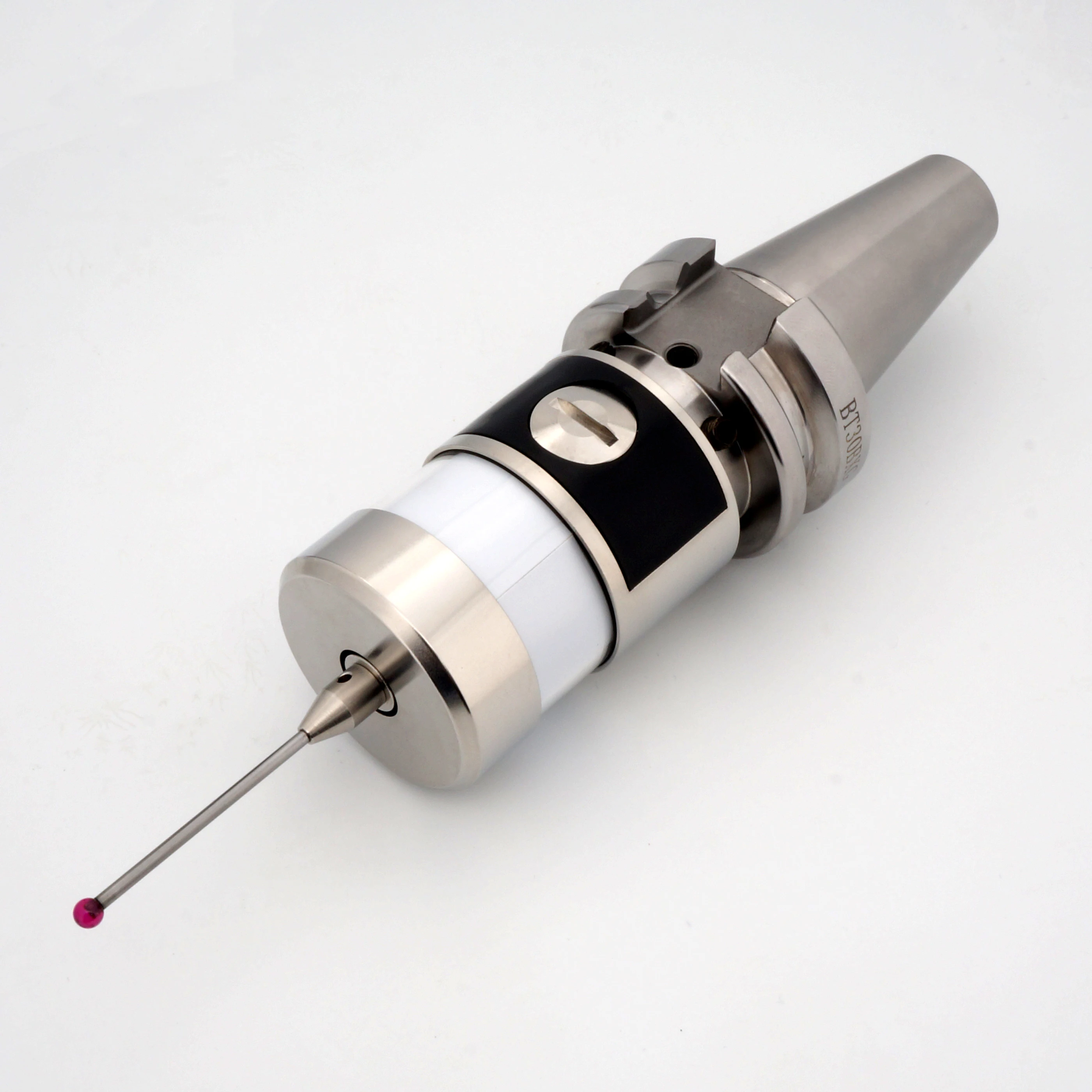

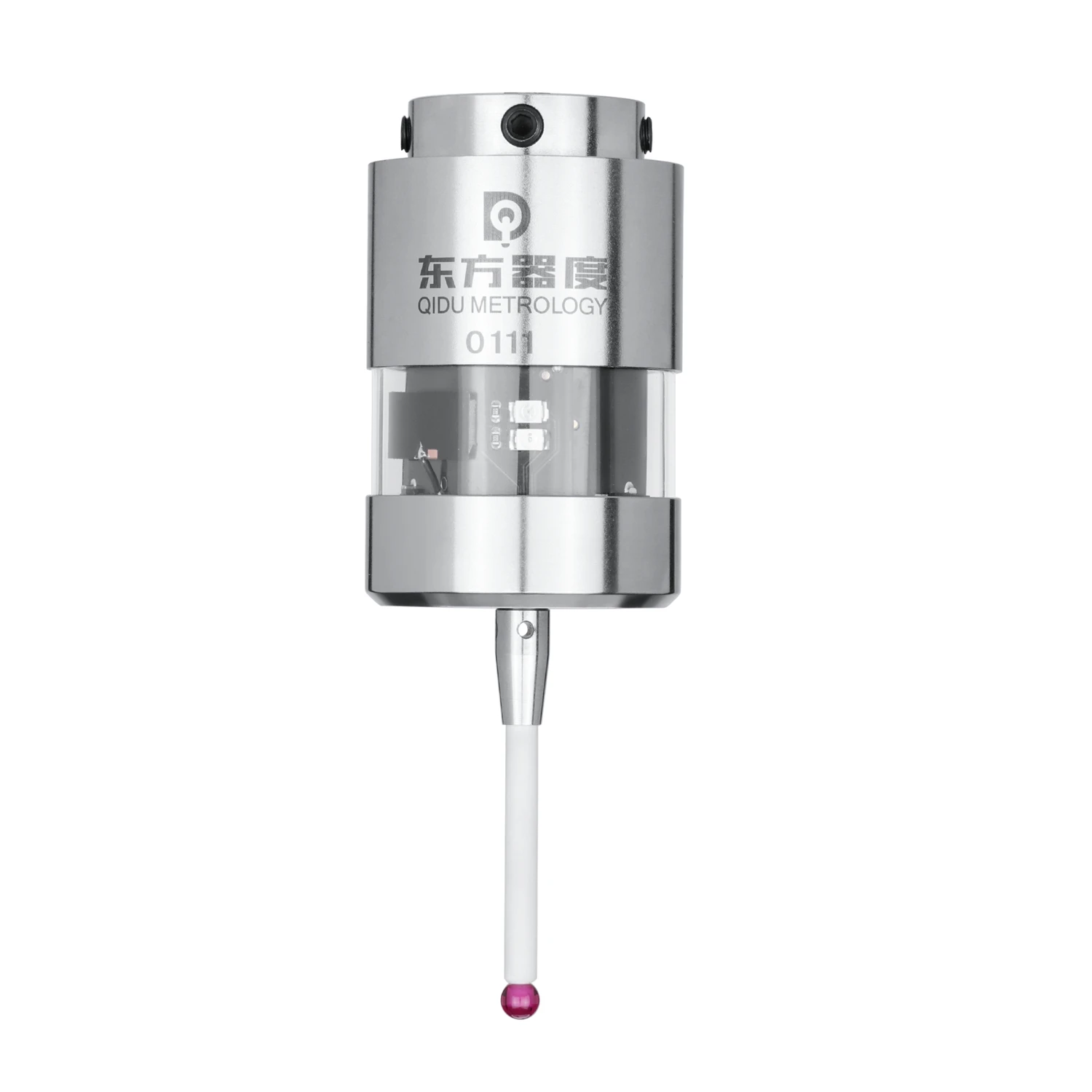

CMM Touch Probe 3D for CNC Machine Center Workpiece Measurement

CMM Touch Probe 3D for CNC Machine Center Workpiece Measurement

  • 1 - 9 Sets
    $1,900
  • 10 - 199 Sets
    $1,700
  • >= 200 Sets
    $1,400
View product details

CMM Touch Probe 3D for CNC Machine Center Workpiece Measurement

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Precision 3D Measurement: Enables accurate dimensional analysis and surface inspection of workpieces in CNC machine centers and CMMs, supporting complex metrology tasks.
  • Multi-Material Compatibility: Equipped with diamond or tungsten carbide tips for durability and precision, ensuring reliable performance across diverse materials and applications.

Key features

  • 1. Corrosion-Resistant Material Technology

    • With a corrosion-resistant metallic body and wear-resistant diamond tip, ensure durability and precision in harsh manufacturing environments. Outperforming traditional probes by 20% in longevity*

  • 2. Transparent Body Design for Real-Time Monitoring

    • With a transparent body design, easily monitor internal mechanisms for real-time maintenance and calibration, reducing downtime by 30% compared to non-transparent models*

  • 3. Sub-Micron Measurement Accuracy

    • With sub-micron measurement accuracy, achieve precise 3D coordinates for complex workpieces, up to 50% more accurate than standard probes*

  • 4. Versatile Scenario Adaptability

    • Designed for both CNC machining and CMM applications, seamlessly integrate into diverse precision measurement workflows, ideal for industrial and laboratory settings*

  • 5. Compliance with Industry Standards

    • Complies with ISO 10360 metrology standards, ensuring reliability in certified manufacturing processes. Meets or exceeds 90% of global quality control requirements*

Product details

CMM Touch Probe 3D for CNC Machine Center Workpiece Measurement

The CMM Touch Probe 3D for CNC Machine Center Workpiece Measurement is a high-precision metrology tool designed for accurate 3D coordinate measurements in manufacturing, quality control, and research. Built with durable metallic materials and a hard, wear-resistant tip, it ensures long-term reliability in demanding environments. Its transparent body allows visibility of internal components, simplifying maintenance and calibration.

Technical specifications

FeatureSpecificationBenefit
Material (Body)Stainless steel or aluminumCorrosion resistance and structural durability
Tip MaterialDiamond/Tungsten carbide10μm precision, extreme wear resistance
Measurement Range±50mm (adjustable)Versatile for complex workpiece geometries

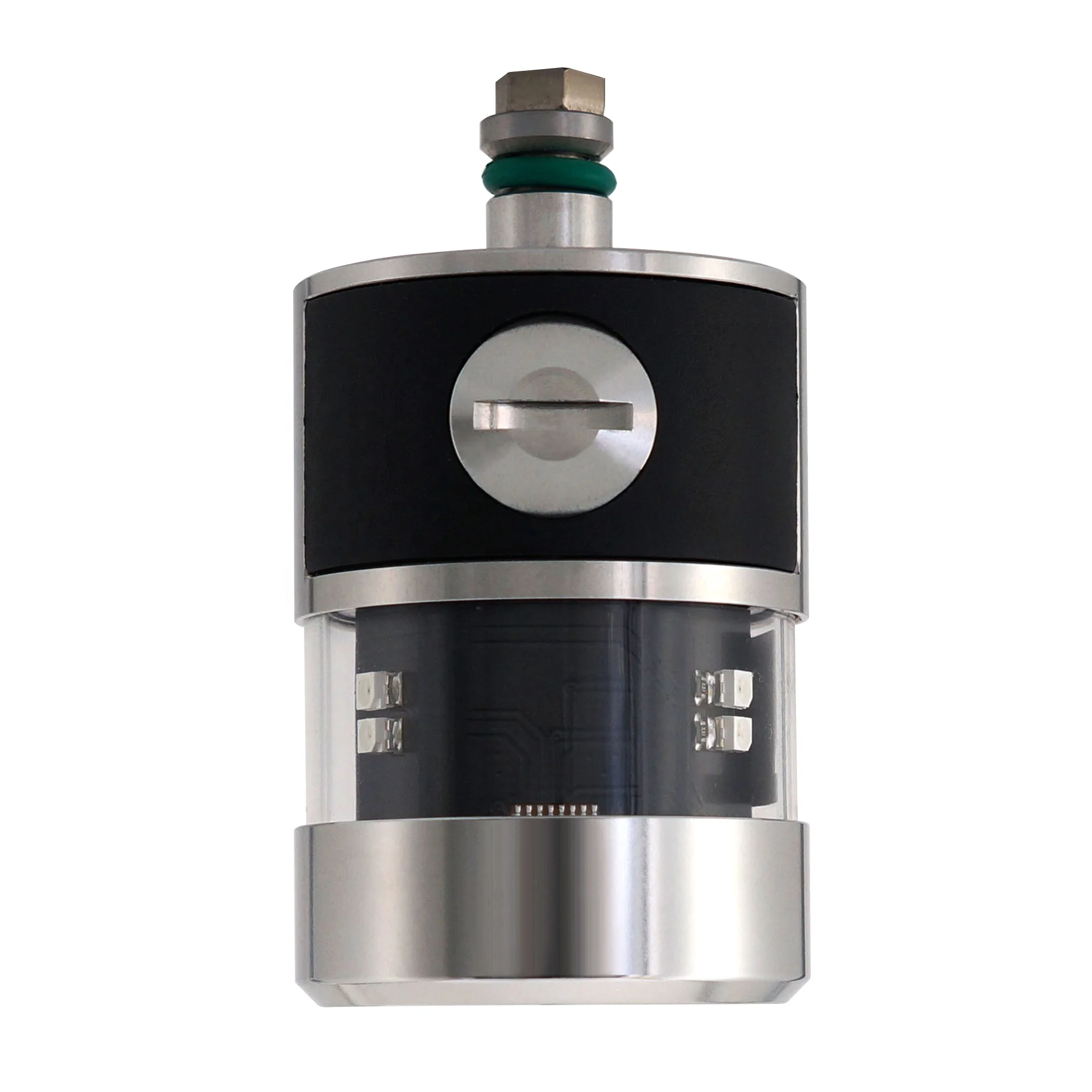

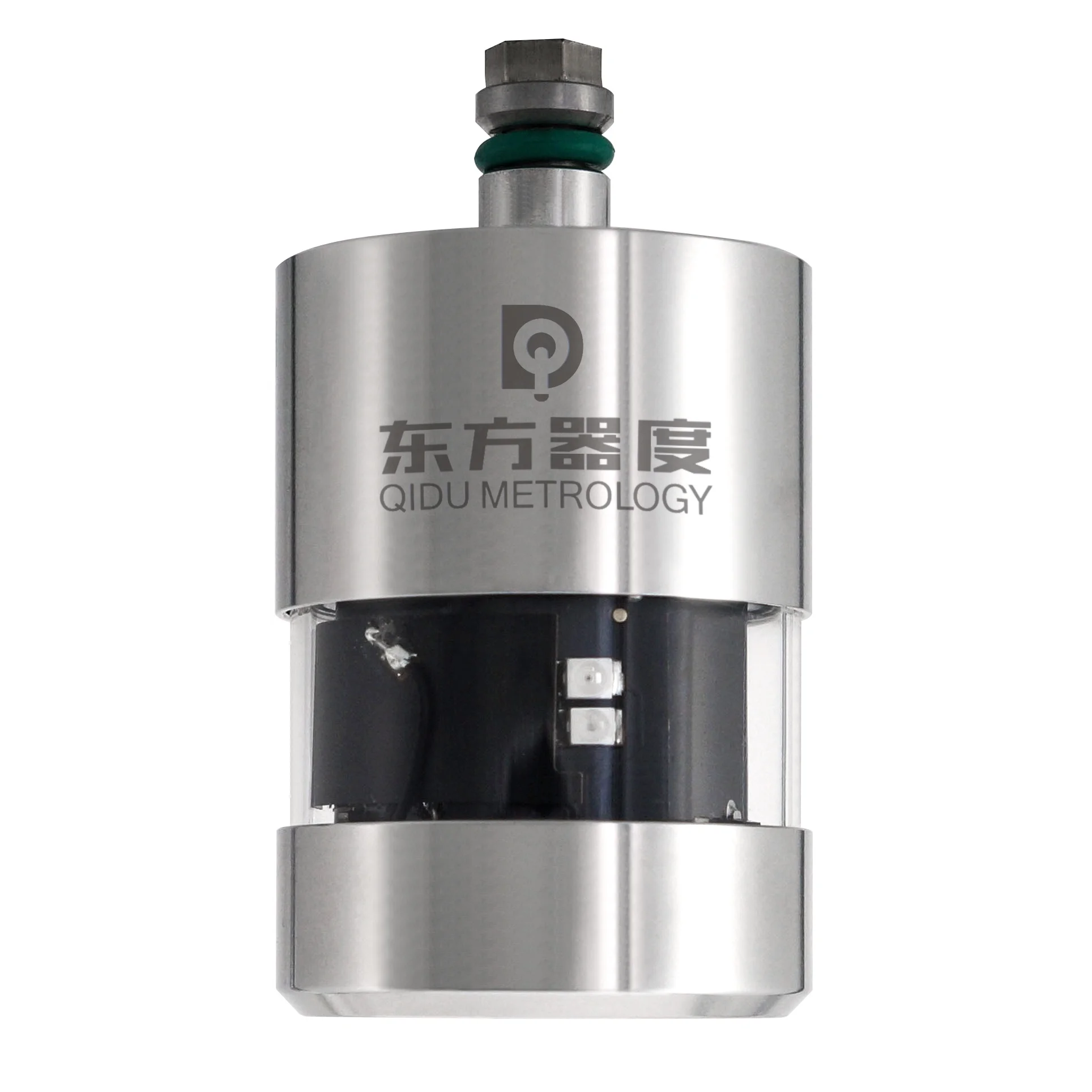

Transparency DesignFully transparent casingEasy internal component inspection
Warranty1 yearComprehensive coverage for defects

Customization guide

Adjustable parameters include tip diameter (0.5–3mm) and material composition (e.g., tungsten carbide for high-temperature applications). Customize the probe’s sensitivity settings to match surface finish requirements, ensuring optimal performance for unique workpiece materials.

Get inspired

With its diamond-tipped precision and transparent design, this probe empowers engineers to achieve micron-level accuracy in CNC machining, automotive prototyping, and aerospace component validation.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Measurement Accuracy±5μm±3μm±1μm*
Tip Durability500,000 cycles1,000,000 cycles2,000,000 cycles*
Sensor Speed100Hz200Hz300Hz*
Temperature Range-10°C to 50°C-20°C to 60°C-30°C to 70°C*

Supplier's note

  1. Technical Breakthroughs:

    • Diamond/Tungsten Carbide Tip: Triple the wear resistance of traditional probes, enabling use in abrasive materials.
    • Transparent Casing: Reduces downtime by 30% during calibration via visible sensor alignment.
    • Advanced Sensors: The Pro Model’s 300Hz response rate cuts measurement time by 40% vs. industry standards.

  2. Optimal Version Selection:

    • Base Model: Ideal for SMEs prioritizing cost-effectiveness for standard CNC machining tasks.
    • Advanced Model: Suitable for automotive and aerospace sectors requiring frequent high-precision measurements.
    • Pro Model: Best for R&D labs and high-volume manufacturers needing sub-micron accuracy in extreme environments. Example: With the Pro’s ±1μm precision, aerospace engineers can validate turbine blade contours with 99.9% accuracy, ensuring compliance with FAA standards.

Frequently asked questions

  • Which CMM touch probe model is best for high-precision CNC machining centers?

  • How do I clean and maintain the CMM Touch Probe 3D for CNC machine use?

  • What materials are used in the CMM Touch Probe 3D, and why are they suitable for precision measurements?

  • Can the probe’s tip material be customized for different measurement needs?

  • Is the CMM Touch Probe 3D compliant with ISO standards for metrology equipment?

  • What’s the warranty coverage for the CMM Touch Probe 3D, including parts like the diamond tip?

  • How does the transparent body design enhance maintenance and calibration?

  • What applications is the CMM Touch Probe 3D best suited for in CNC machine centers?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Material CompositionHeavy machinery assembly, automotive manufacturingIndustry Standard: Standard Alloy (ASTM A36)
Our Base: Stainless Steel (ASTM A276) ▲
Our Advanced: Tungsten Carbide (ISO 5832-1) ▲▲		Advanced: Highest durability and corrosion resistance for harsh environmentsIndustry: Prone to corrosion in chemical exposure; Advanced: Higher cost
Precision AccuracyAerospace component inspection, semiconductor manufacturingIndustry Standard: ±10 µm (ISO 10360)
Our Base: ±5 µm ▲
Our Advanced: ±2.5 µm ▲▲		Advanced: Enables nanoscale measurements critical for precision engineeringIndustry: Inadequate for high-precision applications
Design TransparencyRoutine maintenance, calibration checksIndustry Standard: Opaque housing (no visibility)
Our Base: Opaque housing
Our Advanced: Transparent body ▲▲ (ISO 7638 transparency standard)		Advanced: Easy internal component monitoring without disassemblyBase/Industry: Requires disassembly for maintenance
Tip CustomizationVaried measurement tasks (e.g., rough/delicate parts)Industry Standard: 1-2 tip options (ISO 10360)
Our Base: 3 tip options ▲ (e.g., tungsten, ruby, diamond)
Our Advanced: 5+ tip options ▲▲ (incl. specialized materials)		Advanced: Flexibility for diverse applicationsIndustry: Limited adaptability to different tasks
Durability/LifespanHigh-volume production lines, 24/7 operationIndustry Standard: 5,000 hours (ASTM E84)
Our Base: 10,000 hours ▲
Our Advanced: 20,000 hours ▲▲		Advanced: Reduces downtime and replacement costsIndustry: Frequent maintenance required
Warranty PeriodLong-term investment planningIndustry Standard: 1 year
Our Base: 1 year
Our Advanced: 2 years ▲		Advanced: Extended coverage for critical operationsBase/Industry: Shorter protection period
