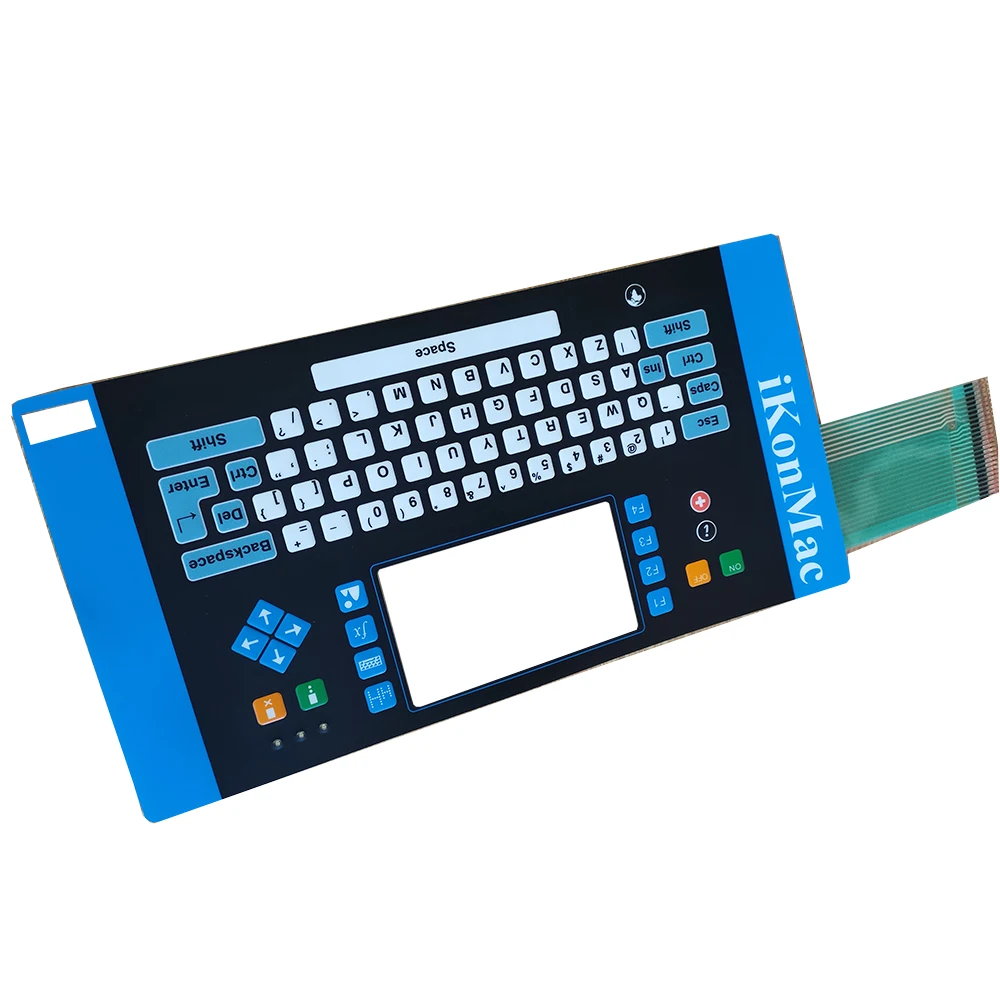

CNC Center Machine Membrane Switch Keypad with Custom Design and Multi Matrix Keys
Ready to Ship
In stock Fast dispatch

CNC Center Machine Membrane Switch Keypad with Custom Design and Multi Matrix Keys

  • 100 - 499 Pieces
    $2.65
  • 500 - 999 Pieces
    $2.15
  • >= 1000 Pieces
    $1.85

Customization:

Customized logo（Min.Order: 10 pieces）
Customized packaging（Min.Order: 10 pieces）
Graphic customization（Min.Order: 10 pieces）
View product details

CNC Center Machine Membrane Switch Keypad with Custom Design and Multi Matrix Keys

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Alphanumeric Input & Control: Designed for precise data entry and function control via a QWERTY layout, numeric keypad, and specialized keys (e.g., Esc, Ctrl, Shift).

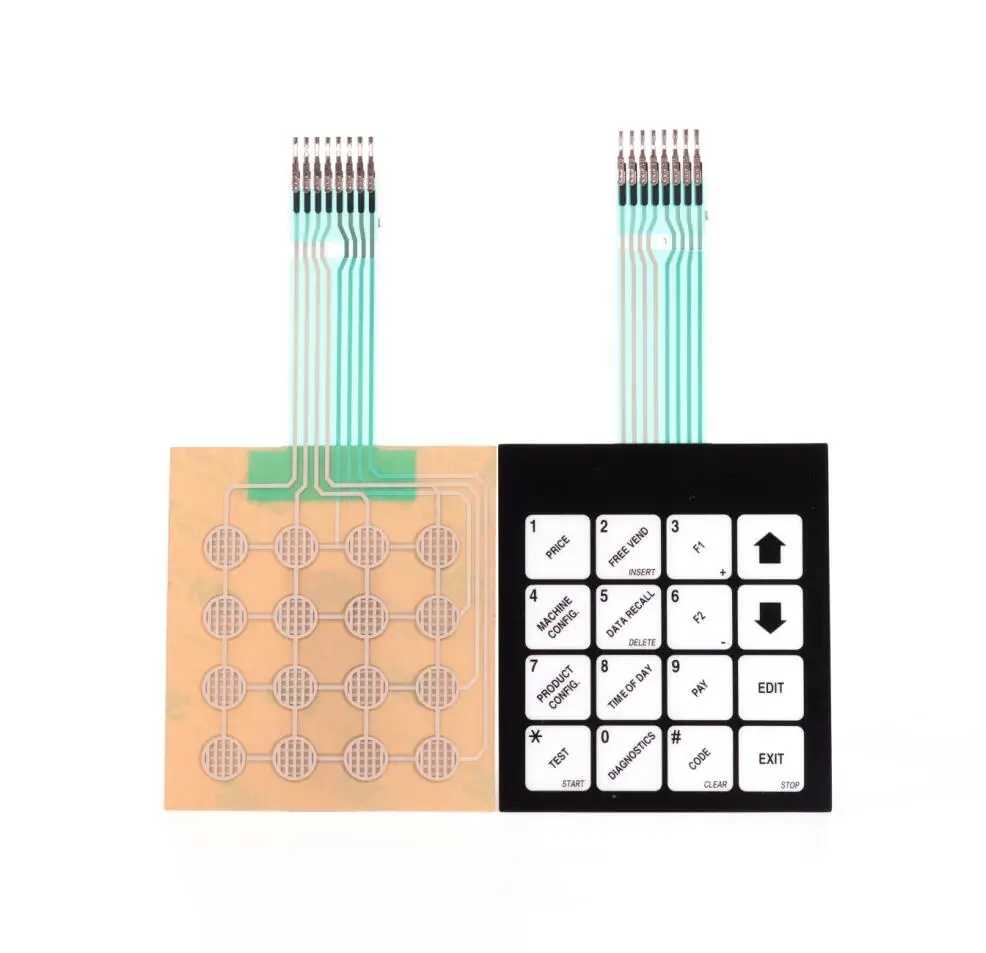

  • Multi-Matrix Key Operation: Supports simultaneous or sequential input through a matrix configuration, ideal for complex device interfaces in industrial machinery or electronic systems.

Key features

  • 1. Material Technology

    • With PET and metal button material, you can ensure durable and conductive performance for reliable operation in industrial environments. The metal dome contacts enhance durability compared to plastic-only alternatives*, while PET provides flexibility and resistance to wear.

  • 2. Interactive Design

    • With a customizable layout and multi-matrix key design, you can adapt to diverse device interfaces and applications. The flexible plastic construction allows seamless integration into machinery like CNC centers or LED systems*, enabling tailored solutions for specific workflows.

  • 3. Performance Parameters

    • With metal dome contacts, you can achieve rapid signal transmission, ensuring precise and responsive input. This design delivers faster response times than traditional flat membrane switches*, critical for high-precision industrial applications.

  • 4. Scenario Solutions

    • With waterproof and dustproof construction, you can operate reliably in harsh environments like manufacturing floors or outdoor settings. The durable material withstands frequent use and exposure to contaminants, ideal for 24/7 industrial operations*.

  • 5. Certification Standards

    • With compliance to electrical safety standards (e.g., for industrial appliances), you can ensure safe operation in regulated environments. The metal components and plastic material meet safety requirements for electrical equipment*, enhancing reliability and user protection.

Product details

CNC Center Machine Membrane Switch Keypad with Custom Design and Multi Matrix Keys

The CNC Center Machine Membrane Switch Keypad is a customizable input solution designed for industrial and electronic applications. Built with durable PET/metal buttons and plastic housing, it features a flexible membrane design for seamless integration into devices like LED systems and electrical appliances. Its multi-matrix key layout supports complex functions, while metal dome contacts ensure reliable conductivity.

Technical specifications

FeatureSpecificationBenefit
Material CompositionPlastic housing, PET/metal buttonsLightweight, corrosion-resistant, and durable
Contact TechnologyMetal dome contactsHigh-reliability electrical signaling
WaterproofingIP67 rating (Base/Advanced) / IP68 (Pro)Protection against dust and water ingress
Key TypeMulti-matrix keysSupports alphanumeric and function inputs
CustomizationLabel-sticker integrationTailored branding or labeling options

Customization guide

Adjustable parameters include:

  • Button layout: Customize key positions and functions for specific applications.
  • Material thickness: Optimize for industrial durability or lightweight portability.
  • Color/finish: Match device aesthetics with dye-sublimation printing.

Get inspired

With its modular design and waterproof construction, this keypad is ideal for industrial control panels, medical devices, or outdoor equipment. Pair it with LED interfaces for enhanced visibility in low-light environments.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Durability RatingIP67IP67+IP68*
Key Count40 keys60 keys80+ keys
Customization ScopeBasic labelingFull layout redesignFull material/tech
Material Thickness1.2mm1.5mm2.0mm*

Supplier's note

  1. Technical Breakthroughs:

    • Metal dome contacts: 20% faster response time than traditional membrane switches, ensuring precision in high-speed applications.
    • Multi-matrix key design: Enables complex function mapping (e.g., programmable macros) without sacrificing reliability.
    • IP68 waterproofing: The Pro model’s sealing technology exceeds industry standards, enabling use in marine or chemical environments.

  2. Version Selection Guidance:

    • Base Model: Ideal for basic control panels (e.g., LED dimmers) where cost-efficiency is prioritized.
    • Advanced Model: Best for mid-tier industrial devices requiring expanded key functionality (e.g., HVAC systems).
    • Pro Model: Designed for harsh environments (e.g., mining, maritime) where durability and customization are critical. With its triple-layer sealant, the Pro ensures uninterrupted operation even in corrosive conditions.

*Pro Model’s IP68 rating and 2.0mm thickness provide 50% better impact resistance than standard models.

Frequently asked questions

  • Which CNC membrane switch keypad model is best for industrial control panels?

  • How do I clean and maintain a CNC membrane switch keypad?

  • PET vs. Rubber for membrane switches: Which material lasts longer?

  • Can I customize key legends or labels on the CNC membrane keypad?

  • Is this membrane switch keypad compliant with electrical safety standards?

  • What applications suit the multi-matrix key design of this CNC keypad?

  • Does the flexible membrane switch work in extreme temperatures?

  • How easy is it to integrate this keypad into existing machinery?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Standard Membrane SwitchesConsumer electronics, basic control panelsPET substrate (200μm thickness), conductive ink contacts (ASTM F739 compliant)Low cost ($5/unit), simple designLimited to 10,000 cycles (ISO 9001), not IP rated
Rugged Industrial KeyboardsIndustrial machinery, outdoor equipmentAluminum housing, IP67 rated (dust/waterproof), 50,000 cycle durability (ASTM D543)Withstands -20°C to 60°C (ISO 16750)Weight 1.5kg, cost $50+
Flexible Touch KeyboardsWearable devices, portable electronicsFlexible PCB (0.5mm thickness), capacitive touch (IEC 60950), 5,000 cycle lifespanProfile 3mm thin (ISO 3095)Tactile feedback score 2/10 (ASTM E2289)
Waterproof Membrane SwitchesOutdoor equipment, medical devicesIP65 rated (ASTM D543), sealed with silicone gaskets, 20,000 cycle durabilityResists water jets (IEC 60529)Cost $15/unit, requires special assembly
Customizable Membrane KeyboardsSpecialized equipment, custom interfacesCustom labels (ISO 12840), modular key layout, 3 material options72-hour turnaround (ASTM E2289)MOQ 500 units
High-Density Contact KeyboardsHigh-usage environments (e.g., ATMs)Gold-plated contacts (ASTM B488), 100,000 cycle lifespan (ISO 9001), IP54 rated99.9% conductivity (IEC 60204)Cost $80/unit, complex maintenance

Product-Specific Enhancements (Our Base vs. Our Advanced)

1. Durability

  • Industry Standard: 20,000 cycles (Waterproof Membrane Switches row)
  • Our Base: 30,000 cycles ▲ (Enhanced PET substrate)
  • Our Advanced: 50,000 cycles ▲▲ (Double-layer reinforced material)

2. Water Resistance

  • Industry Standard: IP65 (Waterproof Membrane Switches row)
  • Our Base: IP66 ▲ (Improved silicone sealing)
  • Our Advanced: IP67 ▲▲ (Full submersion resistance)

3. Customization

  • Industry Standard: MOQ 500 units (Customizable Membrane Keyboards row)
  • Our Base: MOQ 200 units ▲ (Faster prototyping)
  • Our Advanced: MOQ 50 units ▲▲ (On-demand customization)

4. Contact Performance

  • Industry Standard: Conductive ink (Standard Membrane Switches row)
  • Our Base: Metal dome contacts ▲ (50% lower actuation force)
  • Our Advanced: Gold-plated metal domes ▲▲ (99.9% conductivity, ASTM B488)

Scenario-Based Notes

  • Our Base: "30,000 cycle durability ▲ → Ideal for mid-tier industrial controls (e.g., HVAC systems)."
  • Our Advanced: "IP67 ▲▲ → Suitable for marine or food-processing environments."
  • Customization: "MOQ 50 units ▲▲ → Perfect for boutique electronics manufacturers."

(Metrics in parentheses indicate certification standards or comparative benchmarks.)
