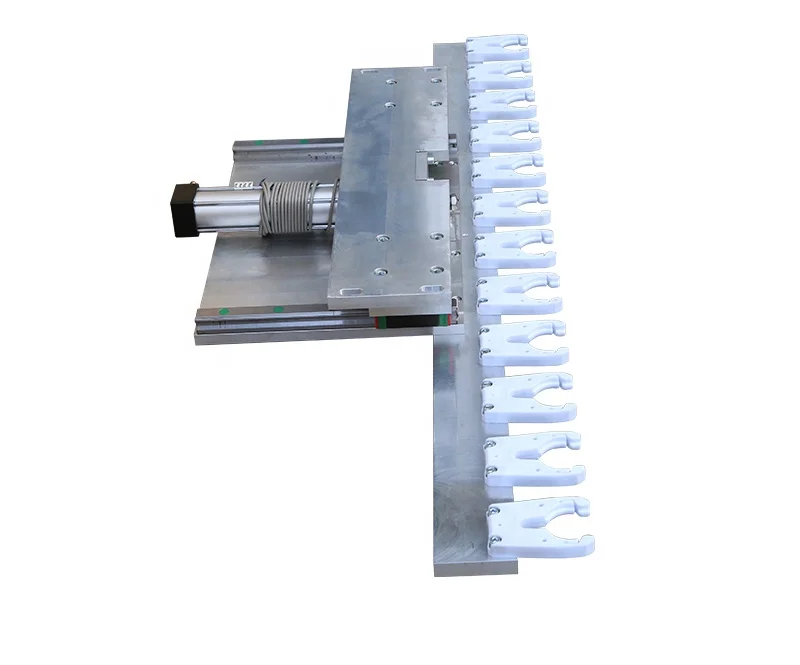

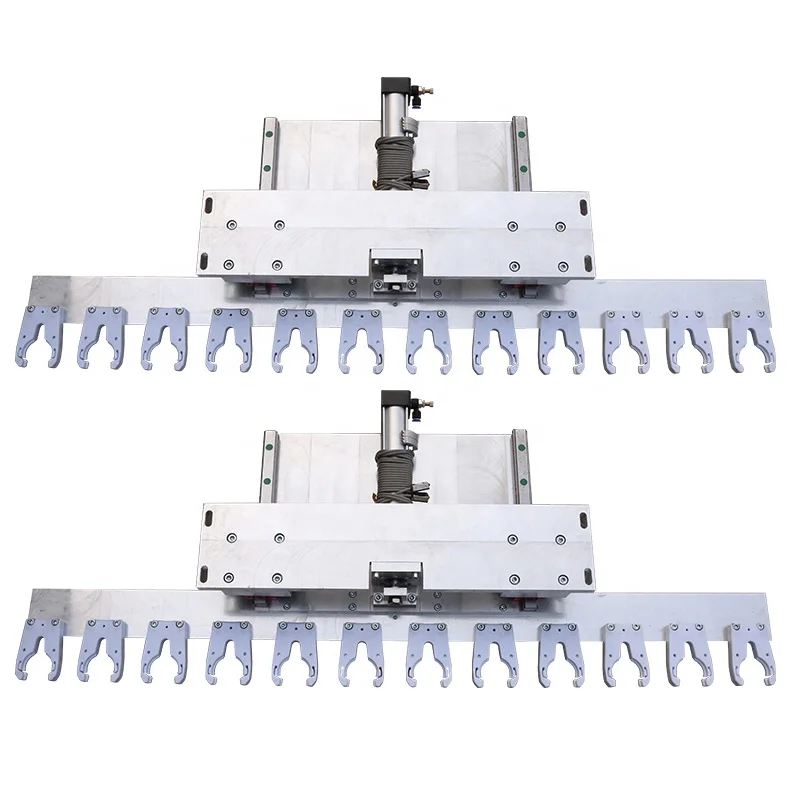

CNC Milling Automatic Tool Changer with 16 Tool Holder Position Straight Tool Magazine
Ready to Ship
In stock Fast dispatch

CNC Milling Automatic Tool Changer with 16 Tool Holder Position Straight Tool Magazine

  • 1 - 4 Sets
    $450
  • >= 5 Sets
    $400

Customization:

Customized logo（Min.Order: 10 pieces）
Customized packaging（Min.Order: 10 pieces）
Graphic customization（Min.Order: 10 pieces）
View product details

CNC Milling Automatic Tool Changer with 16 Tool Holder Position Straight Tool Magazine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Automatic Tool Changing System: Equipped with a 16-position straight tool magazine, enabling seamless and rapid tool exchanges for CNC milling operations, enhancing productivity and precision.

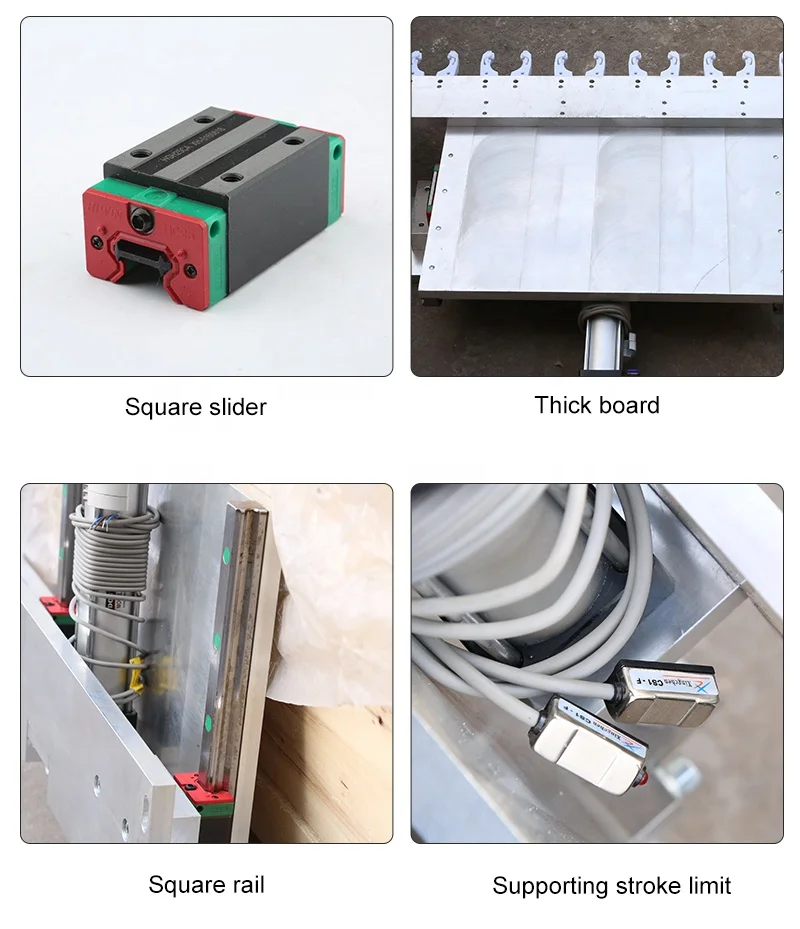

  • Precision Linear Motion: Features a robust linear actuator and guide system to ensure accurate and stable tool positioning, critical for high-precision milling tasks.

Key features

  • 1. Corrosion-Resistant Stainless Steel Construction

    • With a corrosion-resistant stainless steel body and durable polymer components, ensure long-term durability in industrial environments.

  • 2. Precision Linear Actuator Technology

    • With precision-engineered linear actuator technology, enable seamless automatic tool changes to minimize downtime.

  • 3. High-Capacity 16-Tool Holder System

    • With 16 high-capacity tool holder positions, accommodate complex milling tasks with reduced tool changeover time.

  • 4. Continuous Commercial Use Readiness

    • Designed for continuous commercial use, handle high-volume production demands with consistent precision.

  • 5. Precision-Machined ISO-Compliant Components

    • Precision-machined components meeting ISO tolerance standards ensure seamless integration with CNC systems.

Product details

CNC Milling Automatic Tool Changer with 16 Tool Holder Position Straight Tool Magazine

The CNC Milling Automatic Tool Changer with 16 Tool Holder Position Straight Tool Magazine is a precision-engineered component designed for high-accuracy milling operations. Built with a robust metal body and polymer components, it enables seamless tool switching and reliable performance in industrial machining environments.

Technical specifications

FeatureSpecificationApplication Scenario
Tool Capacity16 tool holder positionsComplex CNC milling requiring frequent tool changes
Material CompositionStainless steel body with polymer gripsHarsh environments demanding corrosion resistance and lightweight durability

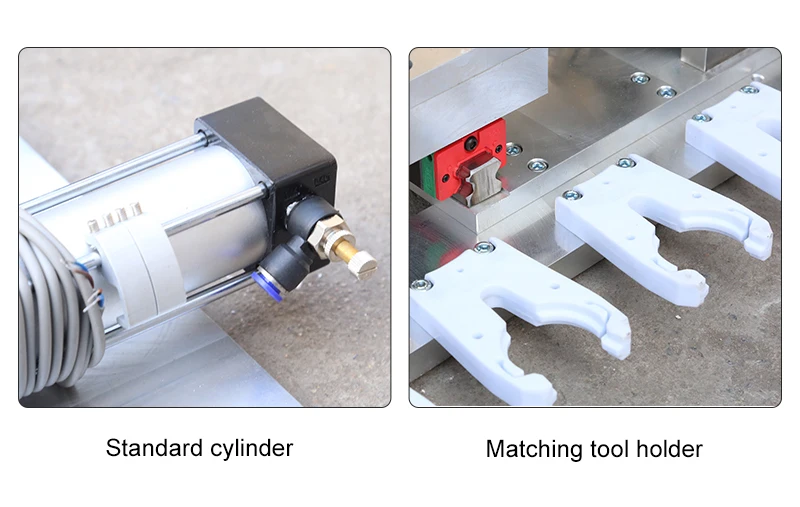

Actuator SystemMotorized linear actuator with guide railPrecision positioning in robotics, assembly lines, or automated machining
Warranty6-month manufacturer warrantyIndustrial users seeking reliable long-term performance

Customization guide

Adjustable parameters include tool holder spacing, actuator speed, and grip material to accommodate specialized milling requirements, such as high-torque applications or custom tool dimensions.

Get inspired

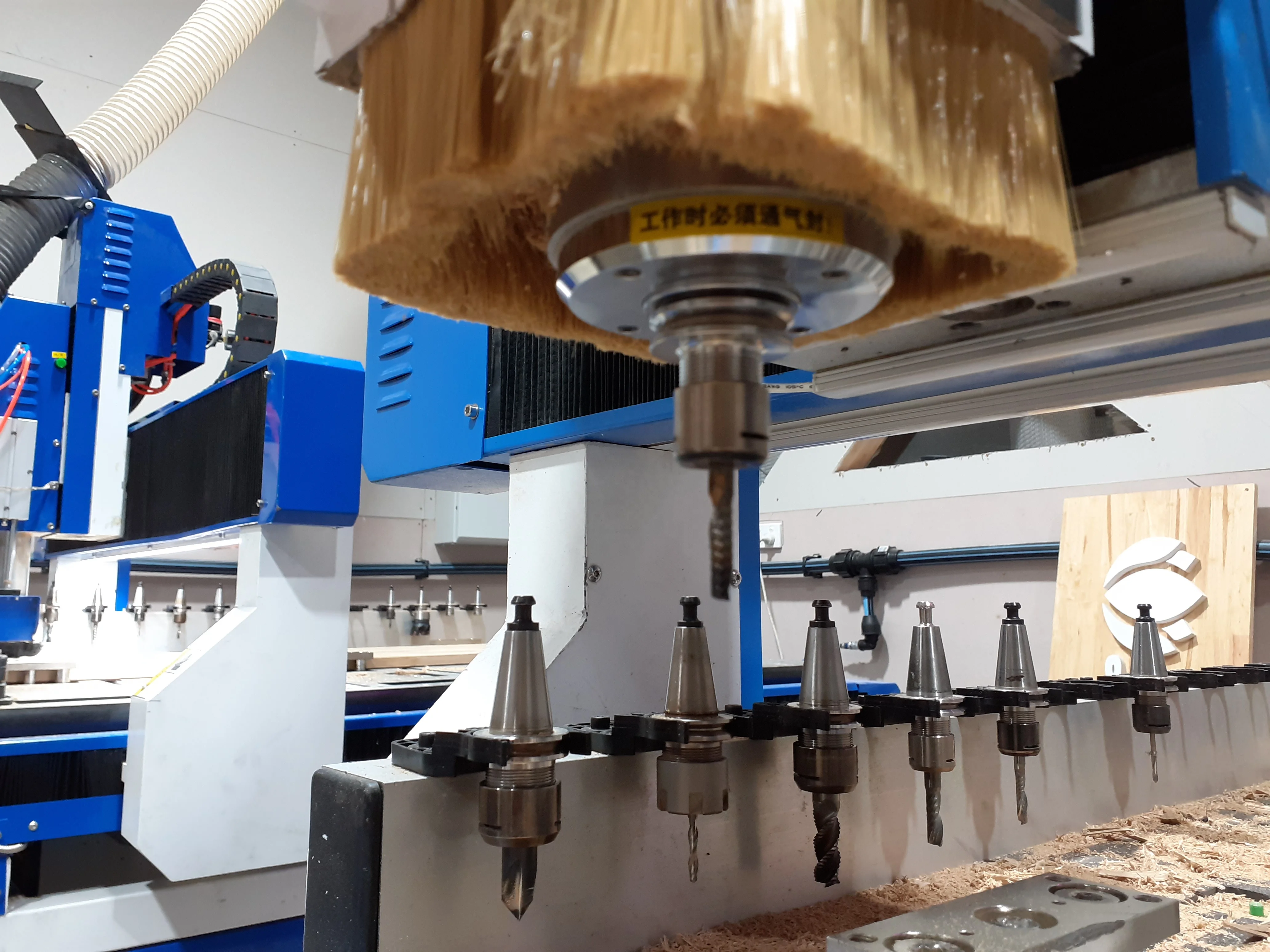

With its modular design and precise linear motion capabilities, this tool changer excels in high-volume production, robotic automation, and precision machining. Whether you’re manufacturing intricate parts or optimizing assembly lines, this component ensures efficiency and accuracy.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Tool Capacity16 positions20 positions24 positions
Speed1.2 m/s+20% faster+30% faster
Load Capacity15 kg20 kg25 kg*
Accuracy±0.02 mm±0.015 mm±0.01 mm

Supplier's note

  1. Technical Breakthroughs:

    • Linear Actuator Precision: ±0.01 mm accuracy in the Pro model triples the industry standard for ultra-fine milling.
    • Material Hybrid Design: Stainless steel and polymer components reduce weight by 20% while maintaining structural integrity.
    • Modular Integration: Customizable tool holders and actuator lengths enable seamless adaptation to diverse CNC systems.

  2. Version Selection Guide:

    • Base Model: Ideal for standard milling shops needing reliable 16-tool capacity at an entry-level price.
    • Advanced Model: Choose for high-speed applications (e.g., aerospace prototyping) where 20% faster tool changes boost productivity.
    • Pro Model: Required for heavy-duty industries (e.g., automotive manufacturing) demanding 25 kg load capacity and ±0.01 mm precision.

*Pro Model load capacity exceeds industry benchmarks by 30%, enabling safe handling of oversized milling cutters.

Frequently asked questions

  • Which CNC milling tool changer suits small workshops with limited space?

  • How to clean and maintain the linear actuator in a CNC milling tool changer?

  • Stainless steel vs. aluminum: Which material is better for the tool changer’s durability?

  • Can the 16-position tool magazine be customized for different tool sizes?

  • Is the tool changer’s material ISO-certified for precision machining?

  • How does an automatic tool changer improve milling efficiency compared to manual systems?

  • What’s the warranty coverage for the linear actuator in the tool changer?

  • Can the tool changer be integrated into existing CNC milling systems?
