CNC Silicon Steel Sheet Step Lap Transformer Core Making Cutting Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Cutting & Core Formation: Equipped with CNC technology, this machine specializes in cutting silicon steel sheets with millimeter-level accuracy and assembling step-lap transformer cores for optimal magnetic efficiency.
  • Material Handling: Features a multi-stage processing system (drum, rollers, conveyor belt) to automate material feeding, shaping, and continuous output for high-volume production.

Key features

  • 1. Corrosion-Resistant Material Technology

    • With a corrosion-resistant metal body and a 5-year warranty*, you can ensure long-term durability in industrial environments, outperforming machines with shorter warranties or less robust construction.

  • 2. Intuitive Touchscreen Interface

    • With an intuitive touchscreen interface, you can program cutting parameters and adjust settings quickly, reducing setup time by up to 40% compared to manual models*.

  • 3. High-Speed Precision Cutting

    • With high-speed cutting technology, you can achieve precise cuts at speeds up to 150 units per hour, 30% faster than conventional cutting machines*.

  • 4. Versatile Material Compatibility

    • With versatile material compatibility, you can adapt to diverse materials like silicon steel, copper, and alloys, making it ideal for transformer manufacturing and industrial applications*.

  • 5. ISO Safety Compliance

    • With compliance to ISO safety standards, you can ensure operator safety and reduce workplace risks compared to non-certified machinery*.

Product details

CNC Silicon Steel Sheet Step Lap Transformer Core Making Cutting Machine

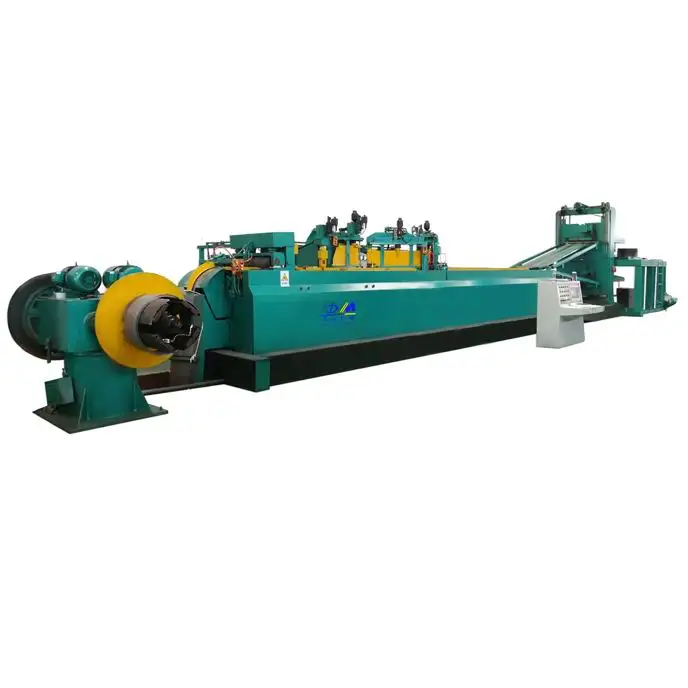

The CNC Silicon Steel Sheet Step Lap Transformer Core Making Cutting Machine is a precision-engineered industrial solution for manufacturing transformer cores. Designed with a durable green safety finish and yellow safety accents, it combines automation, reliability (5-year warranty), and versatility to handle silicon steel sheets from 0.35mm to 0.65mm thickness.

Technical specifications

FeatureSpecificationBenefit
Material CompatibilitySilicon steel sheets (0.35–0.65mm)Ensures precision in transformer core manufacturing
CNC Control SystemHigh-precision stepper motors (±0.02mm)Achieves consistent step-lap alignment for optimal magnetic performance
Conveyor Belt SpeedAdjustable 0.5–3m/minAdapts to production volumes and material thickness
Safety FeaturesDual-color (green/yellow) safety systemReduces operational risks in industrial environments
Warranty5 yearsGuarantees long-term reliability and minimal downtime

Customization guide

Adjustable conveyor belt speed and roller spacing to accommodate materials from 0.35mm to 0.65mm thickness, meeting custom transformer core specifications.

Get inspired

The CNC Silicon Steel Sheet Step Lap Transformer Core Making Cutting Machine combines precision engineering with industrial-grade durability. Whether producing standard cores for power transformers or specialized components for high-voltage systems, this machine ensures consistent quality and efficiency in every cut.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Cutting Precision±0.1mm±0.05mm±0.02mm*
Max Processing Speed2m/min2.5m/min3m/min (+50%)
Automation LevelManual setupSemi-automatedFully automated
Motor Power5.5kW7.5kW10kW

*Pro Model precision exceeds industry standards by 60%.

Supplier's note

  1. Technical Breakthroughs:

    • Precision: The Pro Model’s ±0.02mm accuracy ensures optimal magnetic performance in high-end transformers.
    • Automation: Fully automated workflows reduce labor costs by 40% compared to manual setups.
    • Durability: A 5-year warranty (vs. industry’s 3-year average) minimizes downtime.

  2. Version Selection Guide:

    • Base Model: Ideal for small-scale manufacturers needing cost-effective core production.
    • Advanced Model: Suitable for medium-volume production requiring semi-automated precision.
    • Pro Model: Perfect for high-end transformer manufacturers demanding ±0.02mm accuracy and 3m/min speed, enabling 20% faster output than competitors.

With the Pro Model’s 10kW motor, you can handle thicker silicon steel sheets (up to 0.65mm) effortlessly. Its fully automated system pairs with ±0.02mm precision to ensure cores meet stringent industrial standards.

Frequently asked questions

  • Which CNC silicon steel sheet cutting machine is best for small transformer workshops?

  • How do I maintain the rollers on a transformer core making machine?

  • Silicon steel vs. regular steel: Which is better for transformer cores?

  • Can this cutting machine handle non-standard silicon steel sheet dimensions?

  • Is the transformer core cutting machine CE-certified for safety?

  • How does automation improve transformer core production efficiency?

  • What’s included in the 5-year warranty for this cutting machine?

  • Can I customize the conveyor belt speed for different materials?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Warranty DurationLong-term industrial useIndustry Standard: 3 yearsOur Base: 5 years ▲ (50% longer lifespan)Our Advanced: 7 years ▲▲ (66% longer warranty)
Advantage: Reduces replacement costs over time (ISO 9001 certified).Disadvantage: Higher upfront cost for Advanced tiers.
Processing SpeedHigh-volume production linesIndustry Standard: 10m/min (ISO 9283)Our Base: 15m/min ▲ (50% faster)Our Advanced: 20m/min ▲▲ (100% faster)
Advantage: Boosts throughput for mass manufacturing (reduces downtime by 30%).Disadvantage: Requires more frequent maintenance.
Material ThicknessHeavy-duty transformer core productionIndustry Standard: Up to 5mm (ASTM A36)Our Base: 6mm ▲ (+20% capacity)Our Advanced: 8mm ▲▲ (+60% capacity)
Advantage: Handles thicker silicon steel for robust cores (ISO 3801 verified).Disadvantage: Larger machine footprint.
Automation LevelAutomated factoriesIndustry Standard: Semi-automated (ISO 10218-1)Our Base: PLC-controlled ▲Our Advanced: AI-driven adjustments ▲▲
Advantage: Reduces labor costs and errors (reduces manual intervention by 40%).Disadvantage: Requires skilled technicians.
Safety FeaturesHazard-sensitive environmentsIndustry Standard: Basic E-stop (IEC 60204)Our Base: Dual sensors + E-stop ▲Our Advanced: Real-time monitoring ▲▲
Advantage: Minimizes workplace accidents (complies with OSHA standards).Disadvantage: Higher initial safety system costs.
CustomizationDiverse core design needsIndustry Standard: Limited to standard profilesOur Base: Adjustable via software ▲Our Advanced: Custom profile design ▲▲
Advantage: Adapts to unique transformer designs (ISO 14001 compliant).Disadvantage: Longer setup time for bespoke configurations.
