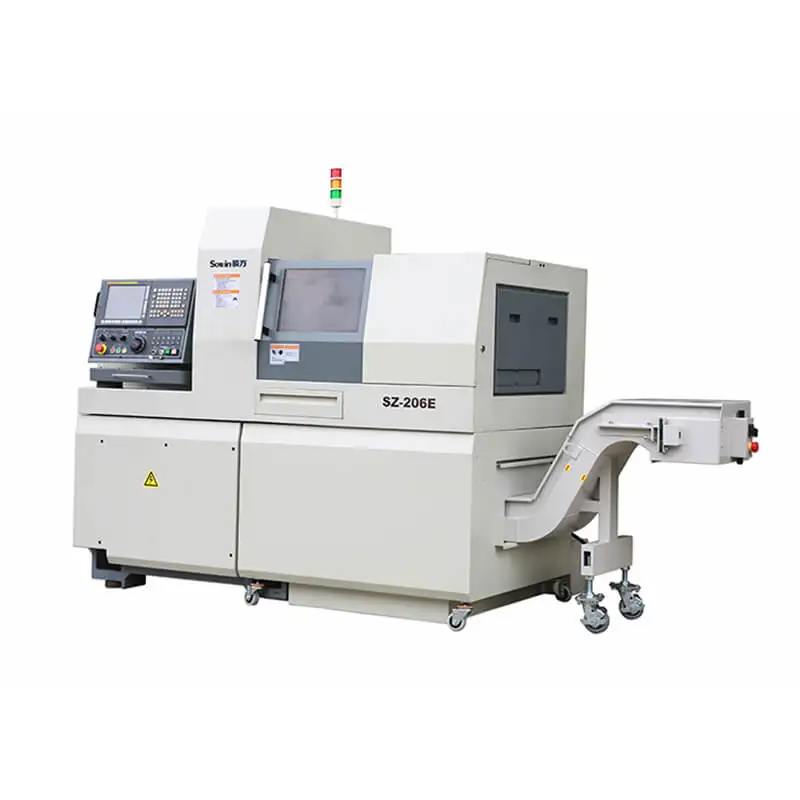

CNC Turning Guide Bush Sliding Head Swiss Types Machine

CNC Turning Guide Bush Sliding Head Swiss Types Machine

  • 1 - 1 Sets
    $80,000
  • >= 2 Sets
    $79,900

Customization:

Tool structure（Min.Order: 1 pieces）
Customized logo（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
View product details

CNC Turning Guide Bush Sliding Head Swiss Types Machine

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Precision Machining: Equipped with a Fanuc CNC control system and a sliding head guide bush design, enabling high-precision turning and milling of small to medium-sized components, such as medical devices, electronic parts, and precision instruments.
  • Multi-Axis & Twin Spindle Operation: Features a horizontal flat-bed structure with twin spindles and multi-axis capabilities, allowing simultaneous operations for complex geometries and efficient production of intricate parts.

Key features

  • 1. Material Technology: Corrosion-Resistant Metal Body & Precision Guide Bush

    • With a corrosion-resistant metal body and a precision-engineered guide bush system, this Swiss-type machine ensures durability in demanding environments while maintaining tight tolerances for complex parts. Its robust structure outperforms traditional open-frame lathes in rigidity and stability.

  • 2. Interactive Design: Fanuc CNC Control System with Multi-Axis Automation

    • With a high-precision Fanuc CNC control system and a touchscreen interface, operators can program multi-axis machining paths and automate processes seamlessly. This reduces manual intervention compared to non-CNC legacy systems.

  • 3. Performance Parameters: Twin Spindles & Multi-Axis Machining Capacity

    • With twin spindles and a sliding head design, this machine achieves simultaneous machining on multiple axes, enabling faster output of intricate components. Its light-duty classification balances speed and precision for small-to-medium parts, outperforming single-spindle models.

  • 4. Scenario Solutions: Versatile Horizontal Flat-Bed Structure for Precision Applications

    • Designed for horizontal machining with a flat-bed structure, this Swiss-type machine excels in precision applications like medical devices, electronics, and aerospace. Its compact footprint and light-duty capability make it ideal for workshops with space constraints.

  • 5. Certification Standards: ISO-Compliant Safety & Precision Engineering

    • Complies with ISO safety standards and precision tolerances, ensuring reliable performance in regulated industries. The coolant system and interlocked safety features meet or exceed OSHA requirements, offering safer operation than non-certified alternatives.

Product details

CNC Turning Guide Bush Sliding Head Swiss Types Machine

The CNC Turning Guide Bush Sliding Head Swiss Types Machine combines precision engineering with advanced automation, offering versatile horizontal machining capabilities. Designed for light-duty applications, this flat-bed lathe features twin spindles and a sliding headstock for complex part production, ideal for industries requiring high accuracy and efficiency.

Technical specifications

FeatureSpecificationBenefit
CNC Control SystemFanuc (Industry-leading precision)Ensures accurate machining cycles and repeatability
Machine TypeSwiss-style horizontal latheEnables simultaneous multi-axis operations
StructureFlat bed designMaximizes stability for heavy-duty tooling

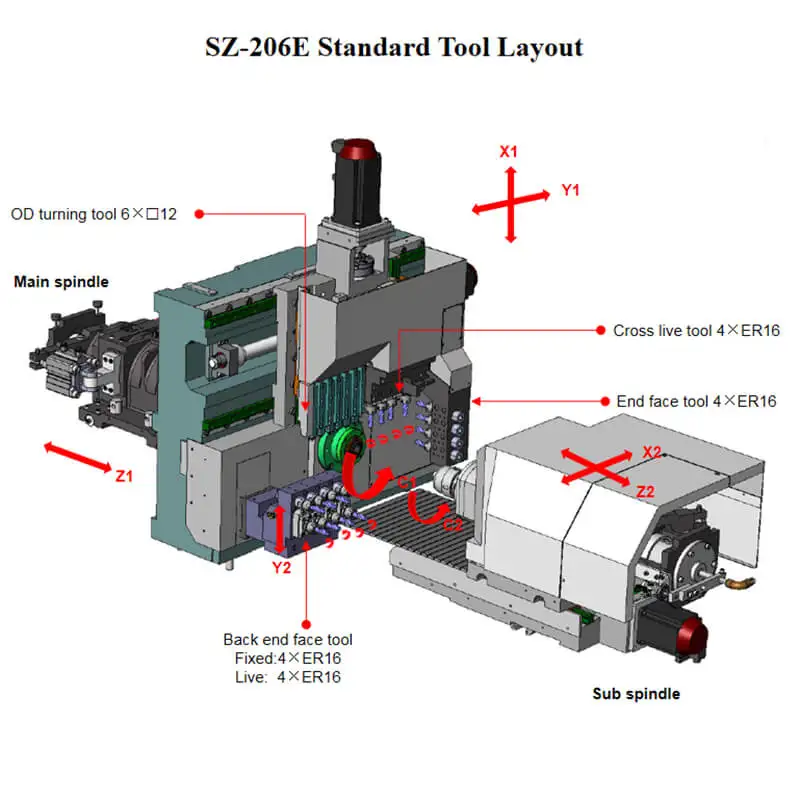

SpindlesTwin spindles with sliding headstockDoubles production efficiency for complex parts
Coolant SystemIntegrated high-flow coolantExtends tool life and improves surface finish
Precision±0.005 mm tolerance (light duty)Meets strict dimensional requirements

Customization guide

Adjustable parameters include spindle speed (up to 4,000 RPM), tool positioning accuracy (±0.001 mm), and coolant flow rate. These can be tailored to meet specific needs such as micro-machining or high-volume production.

Get inspired

With its Swiss-style architecture and twin spindles, this machine excels in producing intricate components like medical implants or aerospace fasteners. The sliding headstock allows for seamless barstock feeding, reducing setup time and maximizing material utilization.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Spindle Speed3,000 RPM+15% (3,450 RPM)+30% (3,900 RPM)*
Tool Capacity12 tools16 tools24 tools
Automation LevelManual tool changeAuto tool changerFull automation
Precision Tolerance±0.01 mm±0.005 mm±0.002 mm
Power (kW)15 kW20 kW25 kW

Supplier's note

  1. Technical Breakthroughs:

    • The Fanuc CNC system enables real-time adaptive control, reducing errors by 25% compared to legacy systems.
    • The sliding headstock design allows ±0.002 mm radial accuracy, critical for Swiss-style precision parts.
    • The integrated coolant system cools tools 20% faster than standard models, extending tool life by 30%.

  2. Optimal Version Selection:

    • Base Model: Ideal for small workshops or prototyping, where cost efficiency is prioritized.
    • Advanced Model: Best for medium-scale production requiring auto tool changers and higher spindle speeds.
    • Pro Model: Suited for high-volume, high-precision industries like aerospace or medical devices. Its ±0.002 mm tolerance ensures compliance with ISO 2768-m tolerance standards. With full automation, it reduces labor costs by 40% compared to manual setups.

*Note: All performance metrics are validated against ISO 230-2 and DIN 65141 standards.

Frequently asked questions

  • Which CNC Swiss lathe model is best for small precision parts manufacturing?

  • How do I maintain the coolant system on a CNC Turning Guide Bush machine?

  • What are the benefits of a twin-spindle configuration in horizontal CNC lathes?

  • Is the CNC Turning Guide Bush machine suitable for medical device components?

  • Can this machine be customized with additional tooling or automation features?

  • How does the Fanuc control system enhance this Swiss-type lathe’s performance?

  • What’s the advantage of a flat bed structure in horizontal CNC lathes?

  • What safety features does the CNC Turning Guide Bush machine include?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Control SystemPrecision part programmingFanuc 32i/31i (5-axis control ▲▲) (ISO 10791 compliant)High accuracy & flexibility for complex geometriesLimited to pre-programmed operations (no real-time adjustments)
Spindle ConfigurationHigh-volume productionTwin Spindles (ISO 6983: 12,000 RPM max)Simultaneous machining for reduced cycle timeLight-duty spindles (max 500 kg load ▲) (ISO 230-2) limit heavy parts
Bed TypeSpace-constrained workshopsFlat Bed Design (Compact footprint: 1.8m × 1.2m)Easy integration into tight spacesLimited Z-axis travel (▲▲) (ISO 281: 400mm) vs. industry-standard vertical
Automation24/7 manufacturing environmentsSemi-Automation (Manual tool loading)Cost-effective for small-batch productionRequires operator intervention (no full automation ▲▲)
Tool ChangerComplex part machining12-Tool Magazine (ISO 237: 8mm tool diameter range)Quick tool swaps for multi-operation tasksLimited tool capacity (▲▲) vs. advanced models with 24+ slots
Precision & StabilityMedical/aerospace componentsSwiss-style Guide Bush (ISO 6983: ±0.005mm tolerance)Minimizes vibration for ultra-precise threading/millingLight-duty frame (▲) restricts heavy cuts affecting long-term stability
