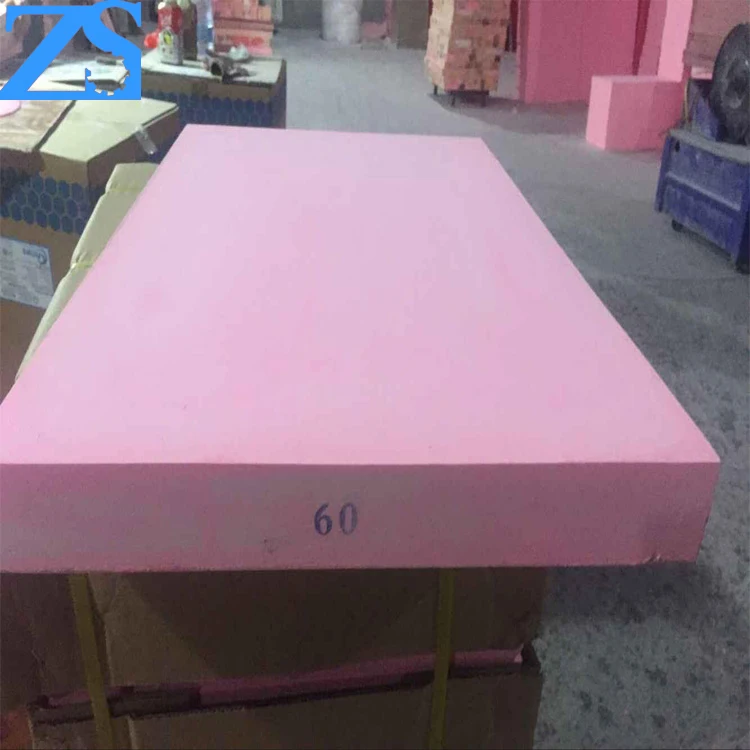

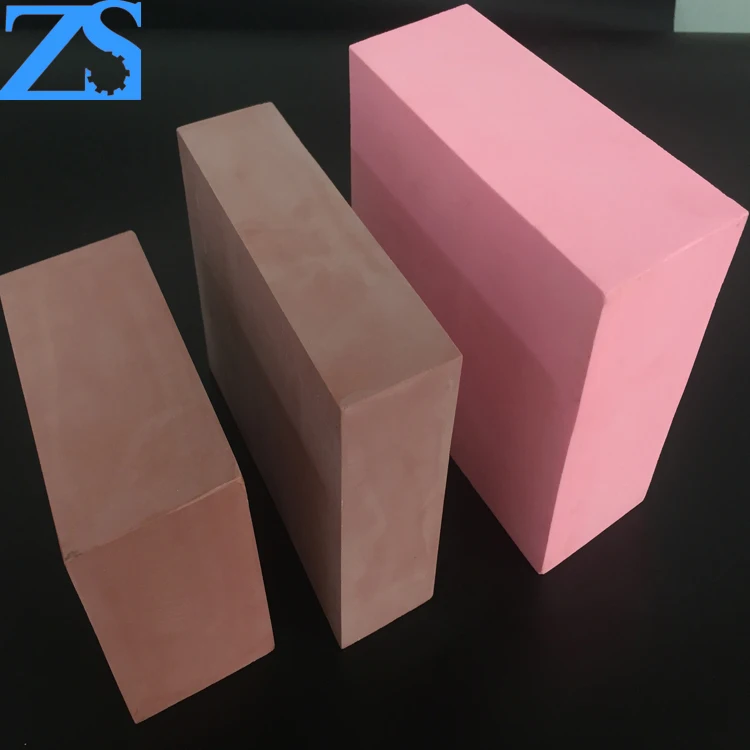

CNC Machinable Modeling Shoe Pattern Sole Model Epoxy Resin Tooling Board

Technical specifications

Customization guide

Adjustable parameters include:

• Thickness: Optimize for sole stiffness or flexibility (e.g., 3–10mm).
• Material Density: Balance between rigidity for industrial use and lightweight needs.

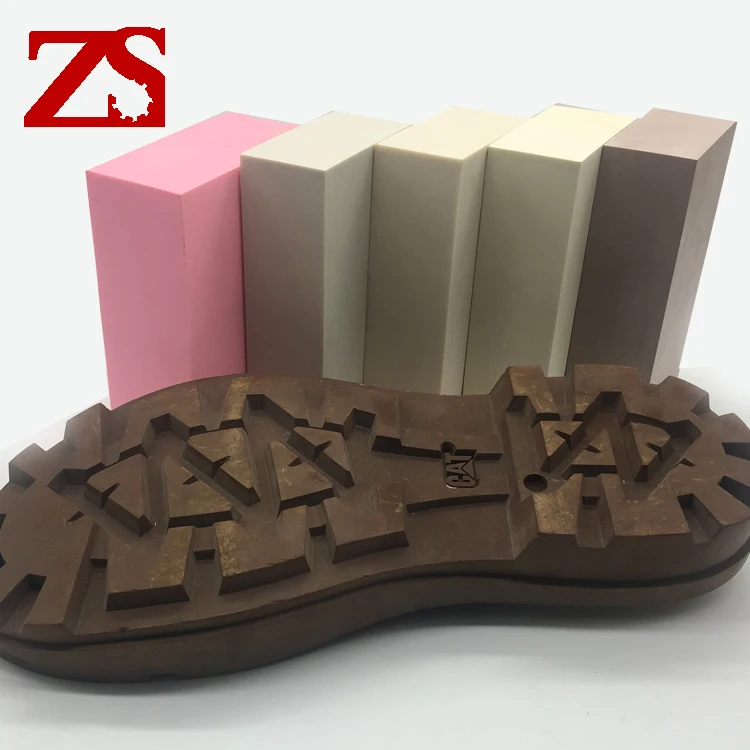

• Color Sampling: Match specific shade blocks for precise design alignment.

Get inspired

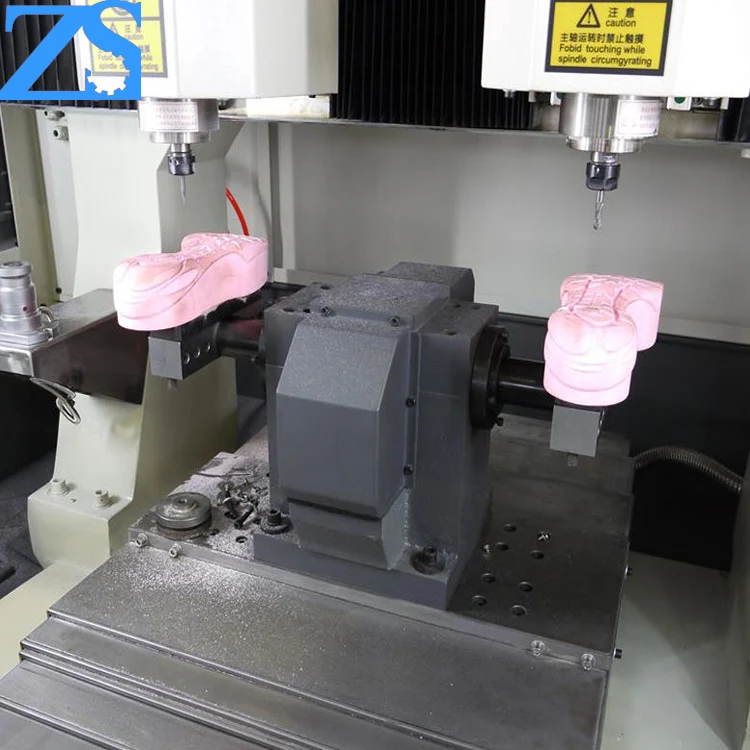

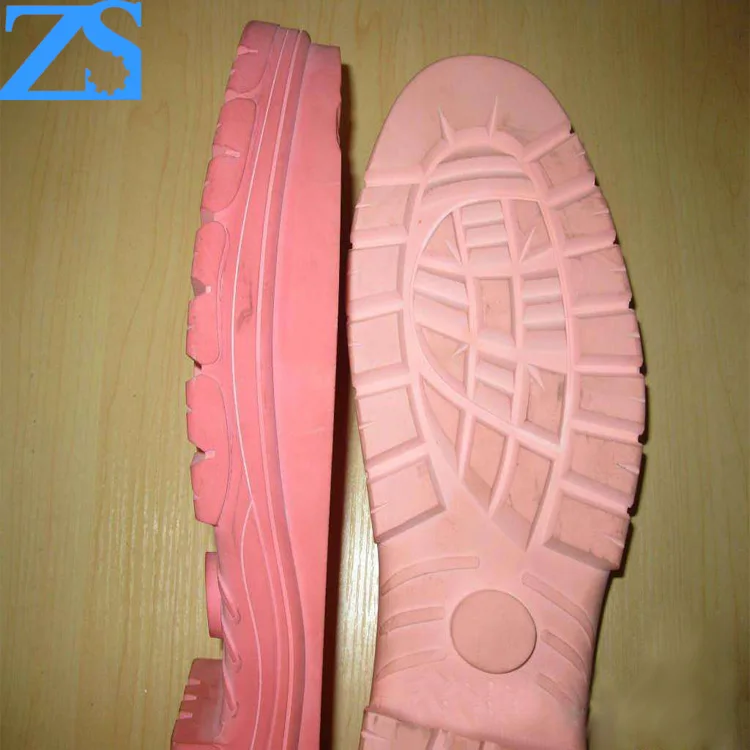

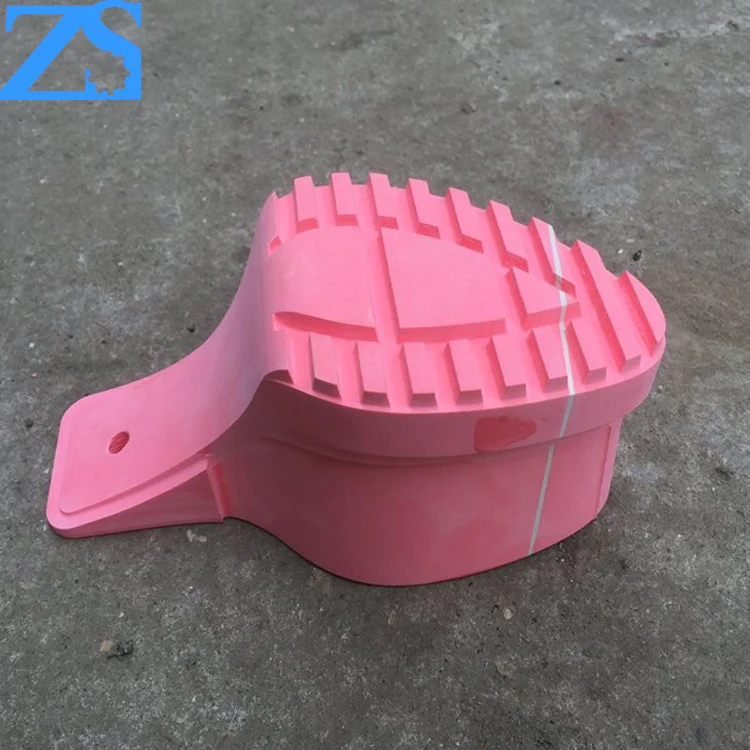

With this tooling board, you can rapidly iterate on shoe sole prototypes, test traction patterns, or validate material performance under stress. The rugged surface texture of the shoe sole model ensures durability in rugged environments, while the color blocks enable seamless color selection for mass production.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • High-Density Epoxy: 20% stronger than traditional plastic sheets, enabling thicker soles without warping.
   • Precision Tolerance: The Pro Model’s ±0.1mm accuracy reduces prototyping errors by 40%.
   • Customizable Texture: Mimics real-world traction patterns, validated in outdoor footwear testing.

2. Optimal Version Selection:

   • Base Model: Ideal for small-scale prototyping (e.g., startups, design studios).
   • Advanced Model: Suitable for medium-volume production requiring faster CNC machining (20% quicker than industry standards).
   • Pro Model: Best for industrial clients needing extreme durability (e.g., military boots) or high-precision medical footwear.

With the Pro Model’s enhanced density, you can safely mold soles for heavy-duty work boots, while its ultra-smooth surface finish ensures seamless integration with automated assembly lines. Pair this with the color blocks to streamline mass production workflows.
