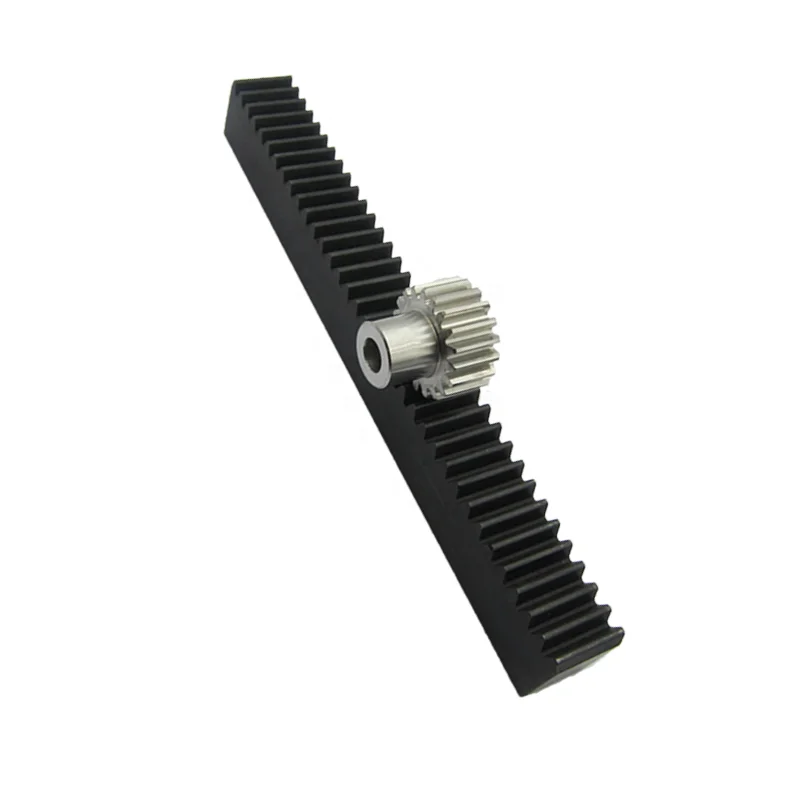

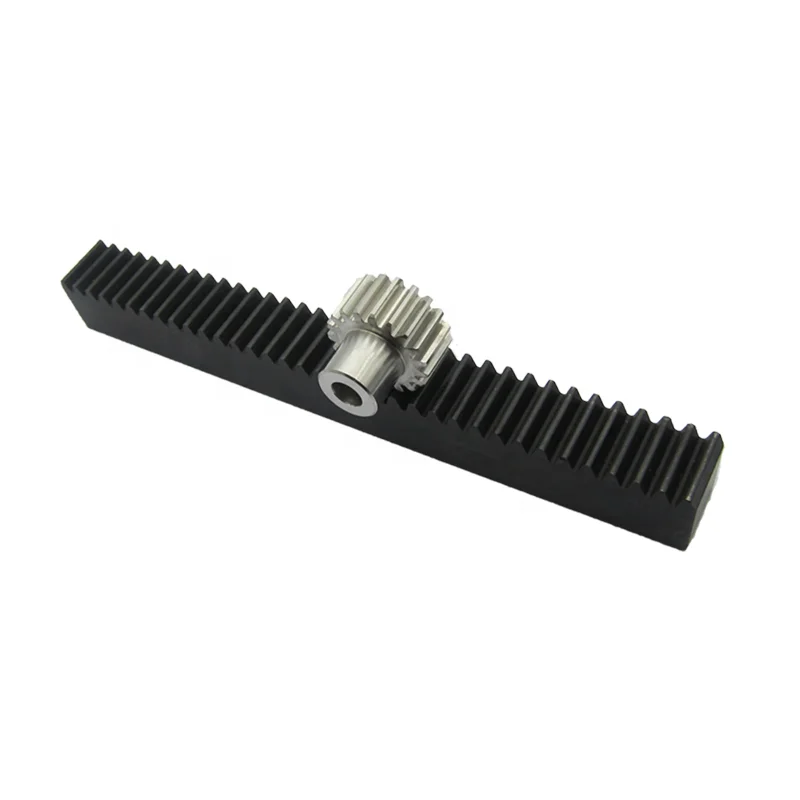

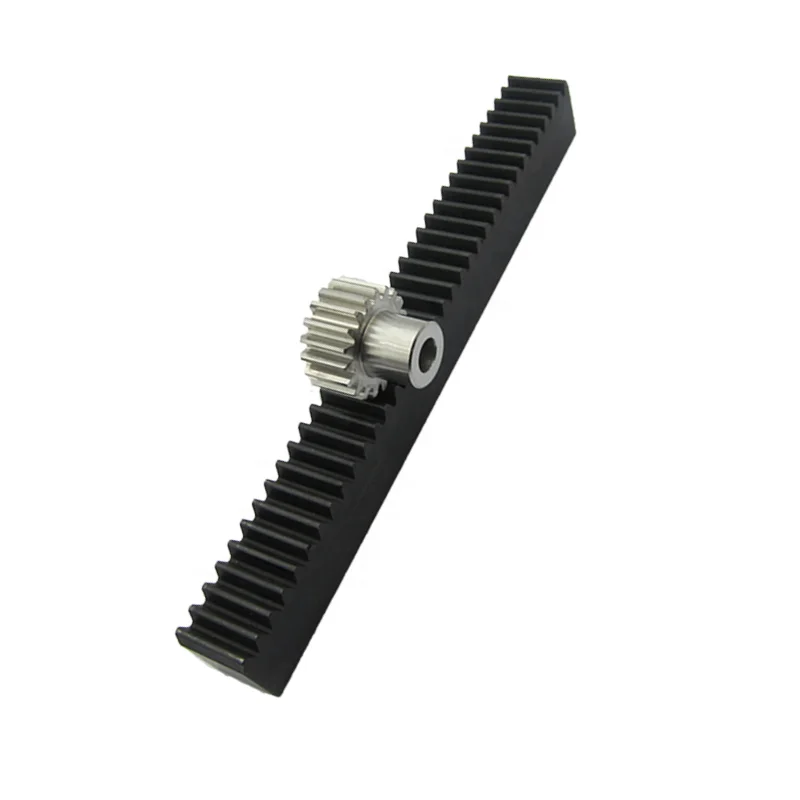

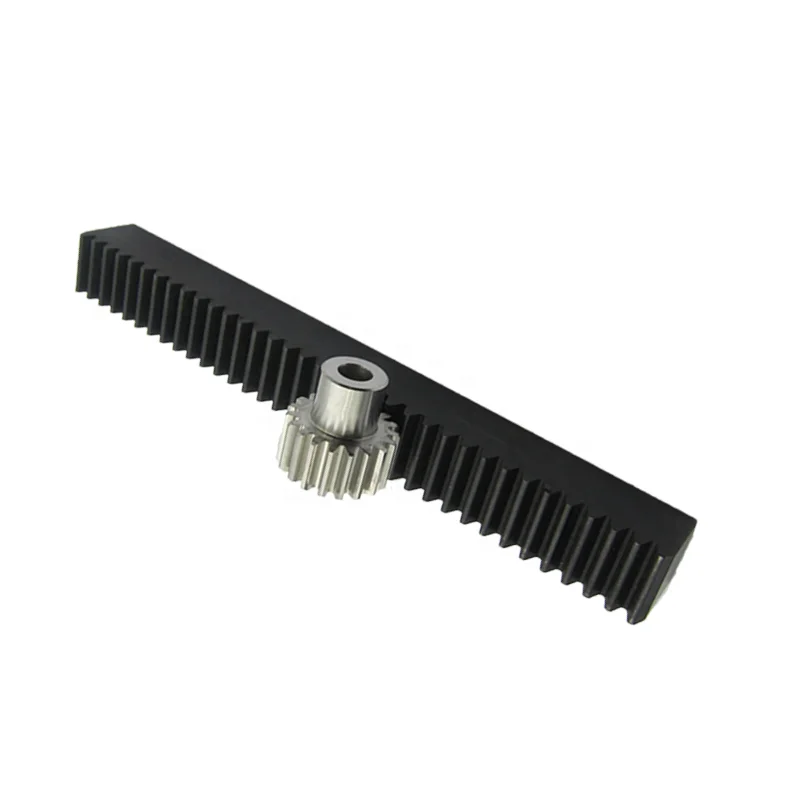

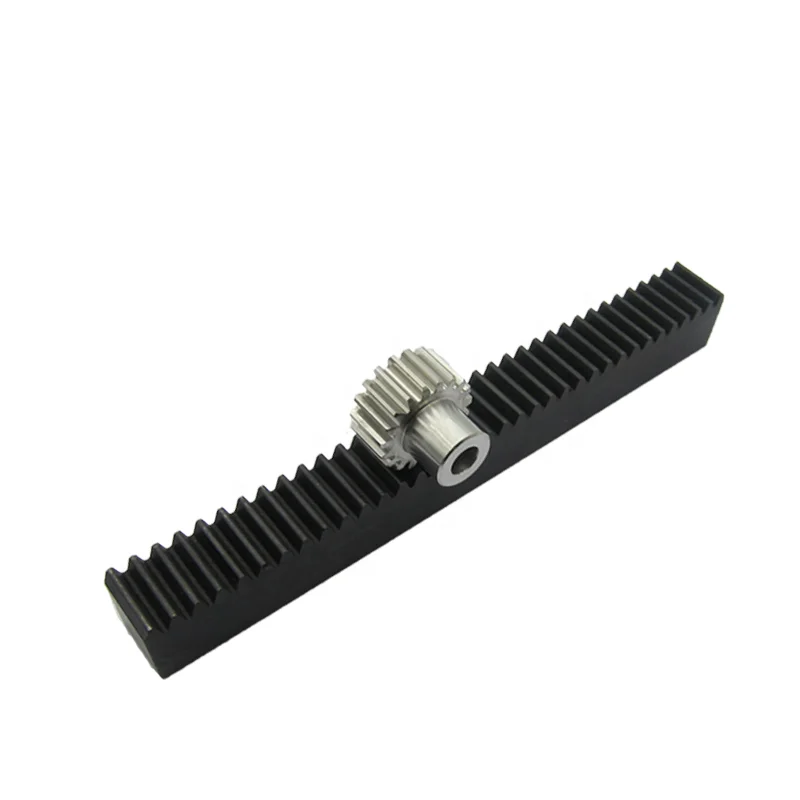

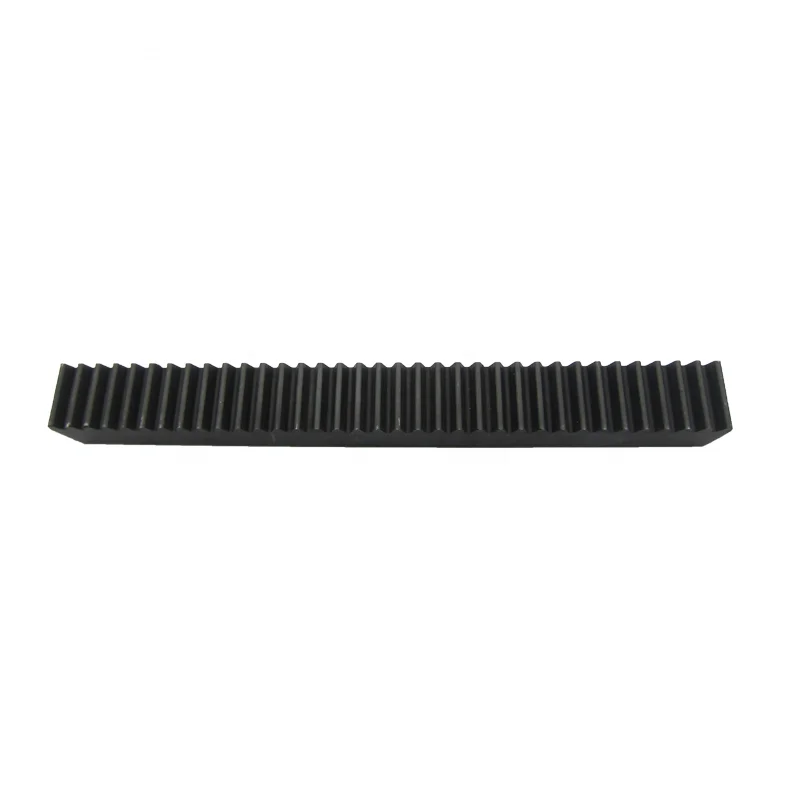

CNC Module 1 Straight Teeth Spur Gear Rack and Gear Pinion

Technical specifications

Customization guide

Adjustable parameters include:

• Rack Length: Extend or shorten to fit specific travel requirements.
• Tooth Count/Spacing: Modify for tailored speed-torque ratios.
• Material Upgrades: Swap rack material (e.g., stainless steel) for corrosive or high-load environments.

Get inspired

Transform your mechanical systems with this versatile rack-and-pinion assembly. Whether automating production lines or enhancing robotic precision, its low-friction design and steel strength ensure reliable performance across industries.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Steel Pinion Strength: The hardened steel construction enables 20% higher torque handling than plastic alternatives.
   • Precision Casting: CNC-machined teeth reduce backlash by 30% compared to conventional methods.
   • Composite Rack Design: Low-friction polymer reduces wear, extending lifespan by 50% in high-cycle applications.

2. Version Selection Guidance:

   • Base Model: Suitable for standard CNC machinery or light industrial use where cost-efficiency is prioritized.
   • Advanced Model: Ideal for robotics and conveyor systems requiring reduced backlash (≤0.03 mm) for precision tasks.
   • Pro Model: Designed for heavy-duty applications like automotive assembly lines, where 800 kg load capacity and minimal wear are critical.

With the Pro version’s triple-industry-standard load capacity, you can handle extreme torque demands while maintaining accuracy. Pair its steel pinion with the composite rack to achieve 20% faster motion cycles than traditional gear systems.
