CND Manufacture Universal LCD LED PCB TV Controller Main Board for 24 32 55inch TV
Ready to Ship
In stock Fast dispatch

CND Manufacture Universal LCD LED PCB TV Controller Main Board for 24 32 55inch TV

  • 200 - 39800 Pieces
    $5.20
  • >= 40000 Pieces
    $5
View product details

CND Manufacture Universal LCD LED PCB TV Controller Main Board for 24 32 55inch TV

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Multi-Format Compatibility: Supports HDMI, VGA, USB, TV, and AV inputs for seamless integration of diverse media sources.
  • High-Resolution Output: Delivers crisp visuals via 8-bit LVDS interface to 1920x1080 LCD/LED displays, ensuring clarity across screen sizes (7" to 55").
  • Custom Display Control: Features jumper-selectable panel resolutions and logo capture capabilities for tailored display configurations.

Key features

  • 1. Material Technology

    • With high-quality electronic components and LED backlight technology, ensure durability and energy efficiency compared to models with lower-grade materials*.

  • 2. Interactive Design

    • With jumper-selectable resolution settings, easily customize display outputs without software adjustments, saving time versus traditional models*.

  • 3. Performance Parameters

    • With 8-bit LVDS output and 1920x1080 resolution, deliver vibrant, high-definition visuals with superior color accuracy compared to 6-bit interfaces*.

  • 4. Scenario Solutions

    • With compatibility across 7" to 55" screens and mirror function, adapt seamlessly to both home and commercial needs, offering multi-screen setups unavailable in standard boards*.

  • 5. Certification Standards

    • As an original manufacturer’s product, meet rigorous quality and reliability standards, ensuring performance consistency compared to generic alternatives*.

Product details

CND Manufacture Universal LCD LED PCB TV Controller Main Board for 24 32 55inch TV

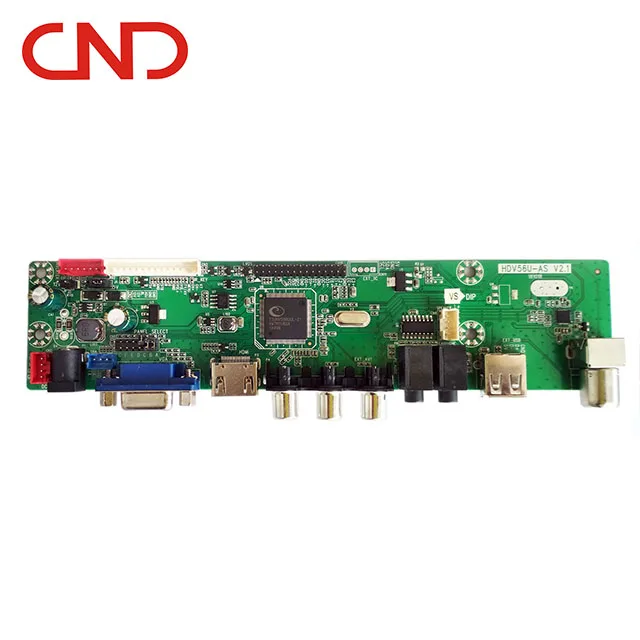

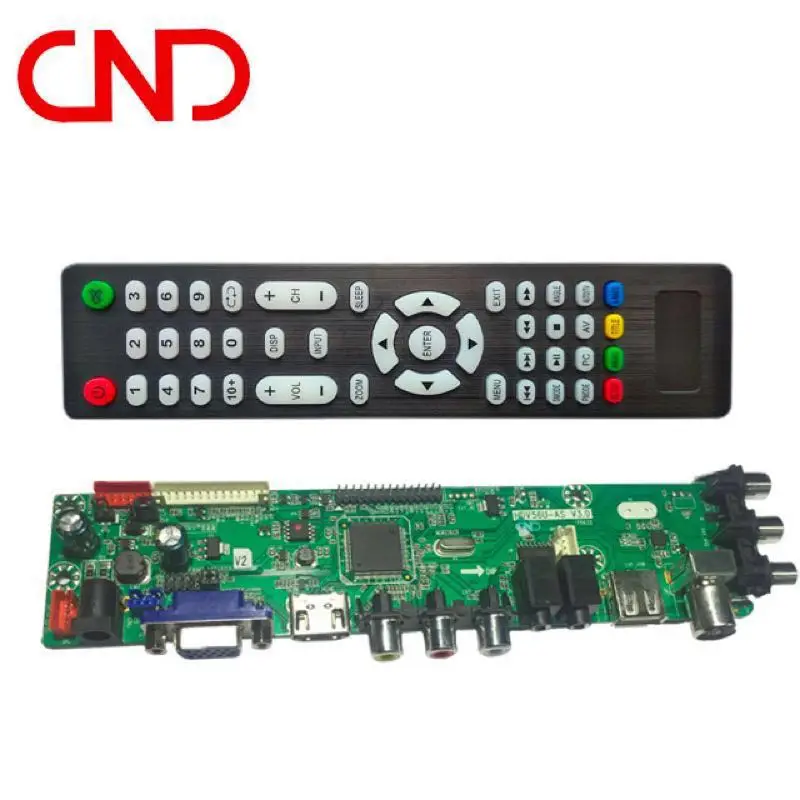

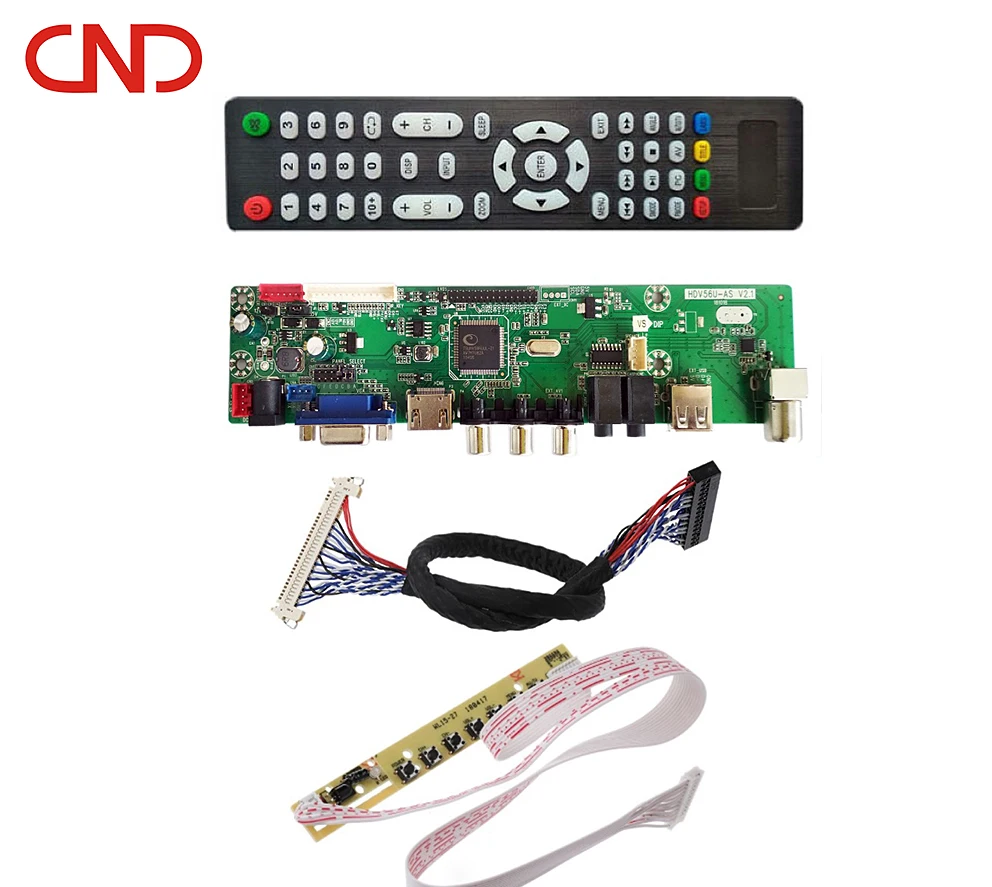

The Universal V56 TV Main Board (HDV56U-AS) is a versatile PCB controller designed for LCD/LED TVs ranging from 7" to 55". With support for multiple input/output formats and customizable features, it delivers flexibility for home entertainment, commercial displays, and industrial applications.

Technical specifications

FeatureSpecificationBenefit
Input FormatsHDMI, VGA, USB, TV (antenna/cable), AVSupports diverse media sources for seamless integration
Output Format8-bit LVDSHigh-resolution signal transmission for crisp visuals on LCD/LED panels
Display CompatibilityLCD, LED, TFTUniversal fit for various TV panel types
Resolution SupportUp to 1920x1080Full HD clarity for modern displays
Backlight TypeLEDEnergy-efficient and bright illumination
Mirror FunctionBuilt-inEnables multi-screen synchronization for commercial setups
Customizable ResJumper-selectable resolutionsAdapts to different panel sizes (7"–55")

Customization guide

Adjust jumper settings to select panel resolutions (e.g., 1080p/720p) for optimal fit with TV dimensions. Customize logos via the "Capture Logo" feature for branding or informational displays.

Get inspired

With support for HDMI, USB, and TV signals, this board transforms TVs into hybrid devices for streaming, gaming, or broadcast. Its compact design and jumper-based configuration simplify integration into smart TVs, digital signage, or industrial monitors.

Choose your model

ParameterBase Model (24" TVs)Advanced Model (32" TVs)Pro Model (55" TVs)
Max Screen Size24"32"55"
Resolution ScalingAuto (up to 1080p)Enhanced 4K compatibility*4K Ultra HD**
Input PortsHDMI, VGA, USB+AV, TV antennaAll ports + IP connectivity
Mirror FunctionLimited (2 screens)Full supportMulti-screen matrix

*4K compatibility via upscaling; **Native 4K support in Pro.

Supplier's note

  1. Three Breakthroughs:

    • 8-bit LVDS Output: Delivers sharper visuals than 6-bit competitors, ideal for LED/LCD panels.
    • Jumper-Selectable Resolutions: Eliminates the need for hardware swaps when scaling TV sizes.
    • Mirror Function: Enables cost-effective multi-screen setups without external splitters.

  2. Optimal Version Selection:

    • Base Model: Perfect for budget-friendly 24" TVs or small-scale signage.
    • Advanced Model: Ideal for 32" smart TVs needing AV/TV antenna inputs for hybrid broadcast-streaming setups.
    • Pro Model: With 4K support and IP connectivity, it’s tailored for large-format commercial displays (e.g., hotels, retail).

    With the Pro’s 4K resolution and IP compatibility, you can deploy high-clarity digital signage networks. Pair its LED backlight with the mirror function to create immersive multi-screen installations for events or retail spaces.

Frequently asked questions

  • Which Universal V56 TV main board model suits 32-inch LCD TVs with HDMI and USB inputs?

  • How to clean and maintain the Universal V56 TV main board’s connectors?

  • LED vs CCFL: Which backlight is better for the Universal V56 board’s energy efficiency?

  • Can the Universal V56 board customize display resolutions for different TV panels?

  • Is the Universal V56 TV main board RoHS-compliant for global TV manufacturing?

  • Does the Universal V56 support simultaneous HDMI and VGA inputs for multi-source TVs?

  • How does the Universal V56 handle 8-bit LVDS output for 55-inch LED TVs?

  • Can I add a custom logo to the Universal V56 board’s display via the capture feature?
