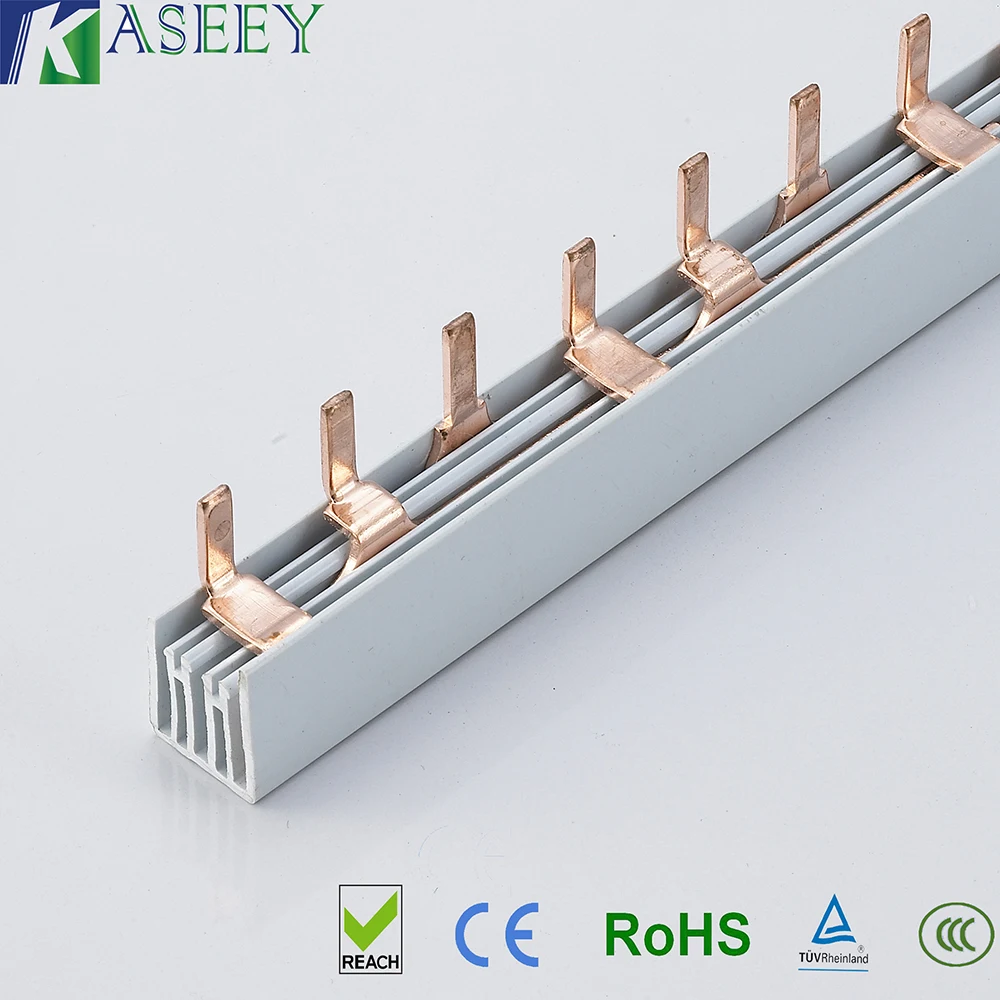

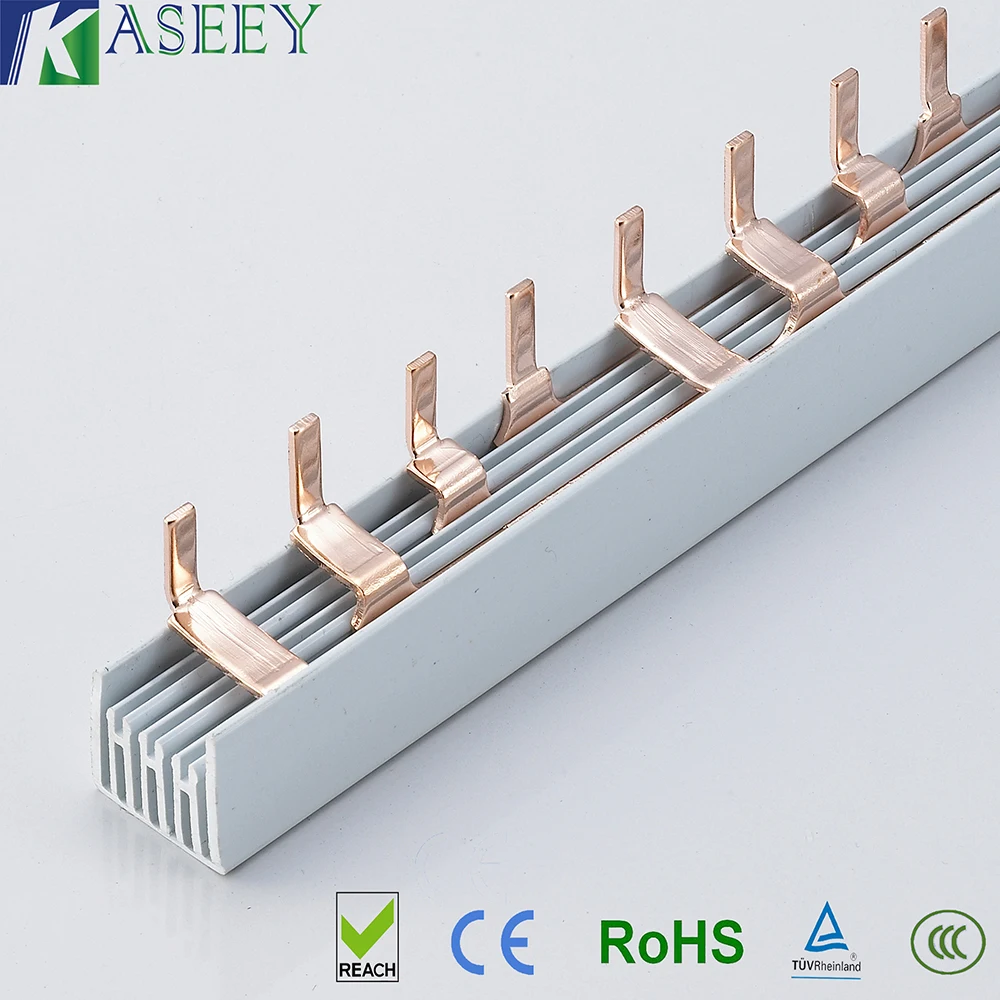

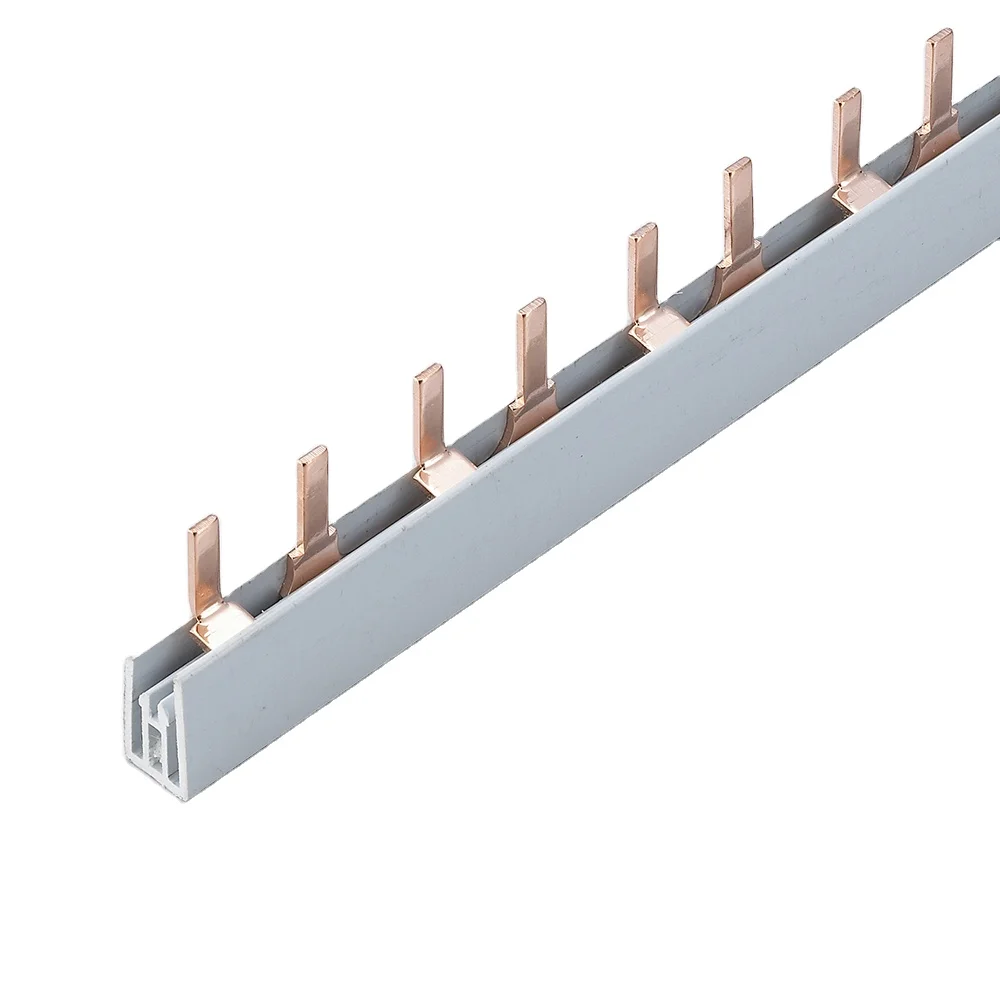

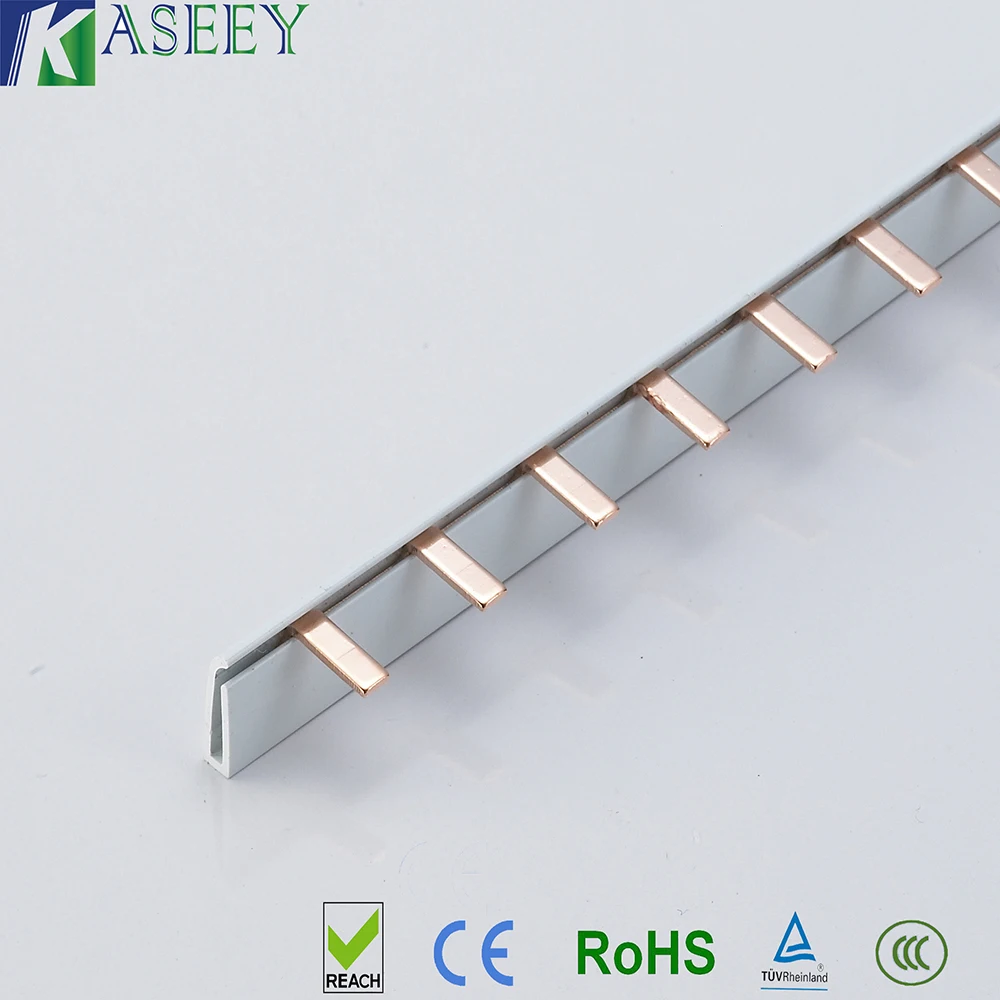

COPPER BUSBAR/PIN T YPE COMB BUSBAR/U TYPE COMB BUS BAR

Technical specifications

Customization guide

Adjustable parameters include:

• Terminal spacing (custom intervals for unique panel layouts)
• Terminal quantity (51-60 contacts adaptable to system demands)
• Insulation color (for standardized color-coding systems)

Get inspired

With its comb-style architecture and high terminal density, this busbar excels in applications like data center power distribution, industrial control panels, and renewable energy systems. For example, its flame-retardant PVC insulation ensures compliance in fire-sensitive environments, while copper’s superior conductivity reduces heat buildup in high-current setups.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Enhanced Insulation: The Pro model’s 4mm PVC insulation (40% thicker than Base) achieves IP67 rating, enabling use in harsh outdoor environments.
   • Wider Temperature Range: The Advanced model’s -30°C to 85°C tolerance outperforms industry-standard -20°C to 70°C, ideal for cold-chain facilities.
   • Custom Terminal Flexibility: The Pro version allows on-demand terminal spacing adjustments, reducing installation errors by 30% compared to fixed models.

2. Version Selection Guide:

   • Base Model: Best for standard indoor applications (e.g., office buildings) where cost-efficiency is prioritized.
   • Advanced Model: Suited for industrial settings with fluctuating temperatures (e.g., manufacturing plants). Its RoHS compliance aligns with EU regulations.
   • Pro Model: Optimal for extreme environments (e.g., offshore platforms, data centers) requiring IP67-rated durability and customizable terminal layouts. With its 4mm insulation, it reduces maintenance costs by 25% in corrosive or humid conditions.
