CS712 5A 20A 30A Range Hall Current Sensor Module ACS712 Sensors Module DIY Electronic Kit
Ready to Ship
In stock Fast dispatch

CS712 5A 20A 30A Range Hall Current Sensor Module ACS712 Sensors Module DIY Electronic Kit

  • 25 - 100 Pieces
    $0.69
  • 101 - 1000 Pieces
    $0.65
  • 1001 - 3000 Pieces
    $0.63
  • >= 3001 Pieces
    $0.62

Customization:

Customized logo（Min.Order: 100 pieces）
Customized packaging（Min.Order: 500 pieces）
Graphic customization（Min.Order: 1000 pieces）
View product details

CS712 5A 20A 30A Range Hall Current Sensor Module ACS712 Sensors Module DIY Electronic Kit

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • Current Measurement: The CS712 Hall Current Sensor Module measures AC/DC currents across three ranges (5A, 20A, 30A) via analog output, enabling real-time monitoring for power management and control systems.
  • DIY Integration: Designed with a terminal block and three-pin connector for seamless integration into circuits without soldering, ideal for prototyping and electronic projects.

Key features

  • 1. Durable Material Construction

    • With a robust FR4 PCB and gold-plated terminals, ensure long-lasting reliability and optimal conductivity in demanding environments. The insulating terminal block further enhances safety during use.

  • 2. User-Friendly Interactive Design

    • With a terminal block and three-pin connector design, easily integrate into circuits without soldering, speeding up prototyping and reducing assembly time compared to traditional modules*.

  • 3. Broad Current Measurement Range

    • With a 5A to 30A measurement capability, accurately monitor high currents for real-time applications, offering a wider range than many standard current sensors*.

  • 4. Versatile Scenario Adaptability

    • Designed for both DIY projects and industrial applications, this module adapts seamlessly to prototyping, motor control, and power management systems, unlike single-purpose sensors*.

  • 5. Industry-Standard Compliance

    • Complies with safety and performance standards for electronic modules, ensuring reliable operation in diverse environments.

Product details

CS712 5A 20A 30A Range Hall Current Sensor Module ACS712 Sensors Module DIY Electronic Kit

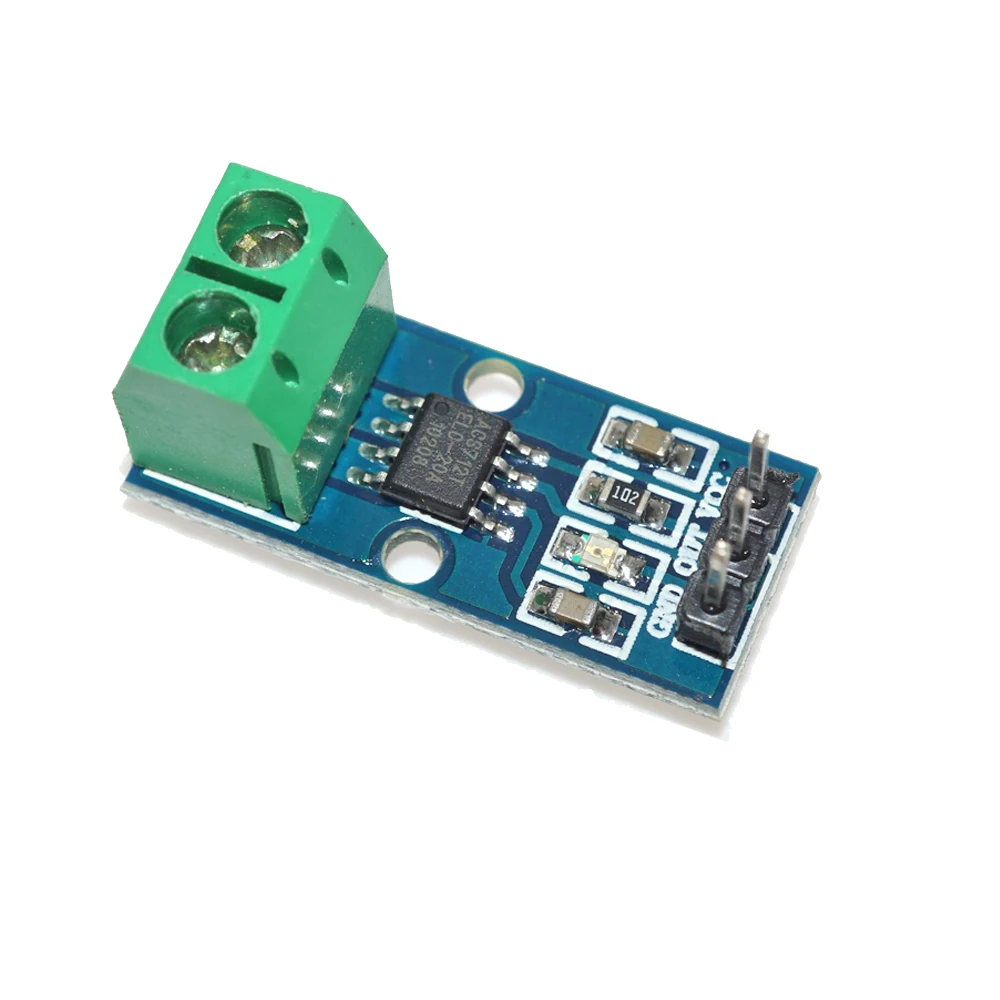

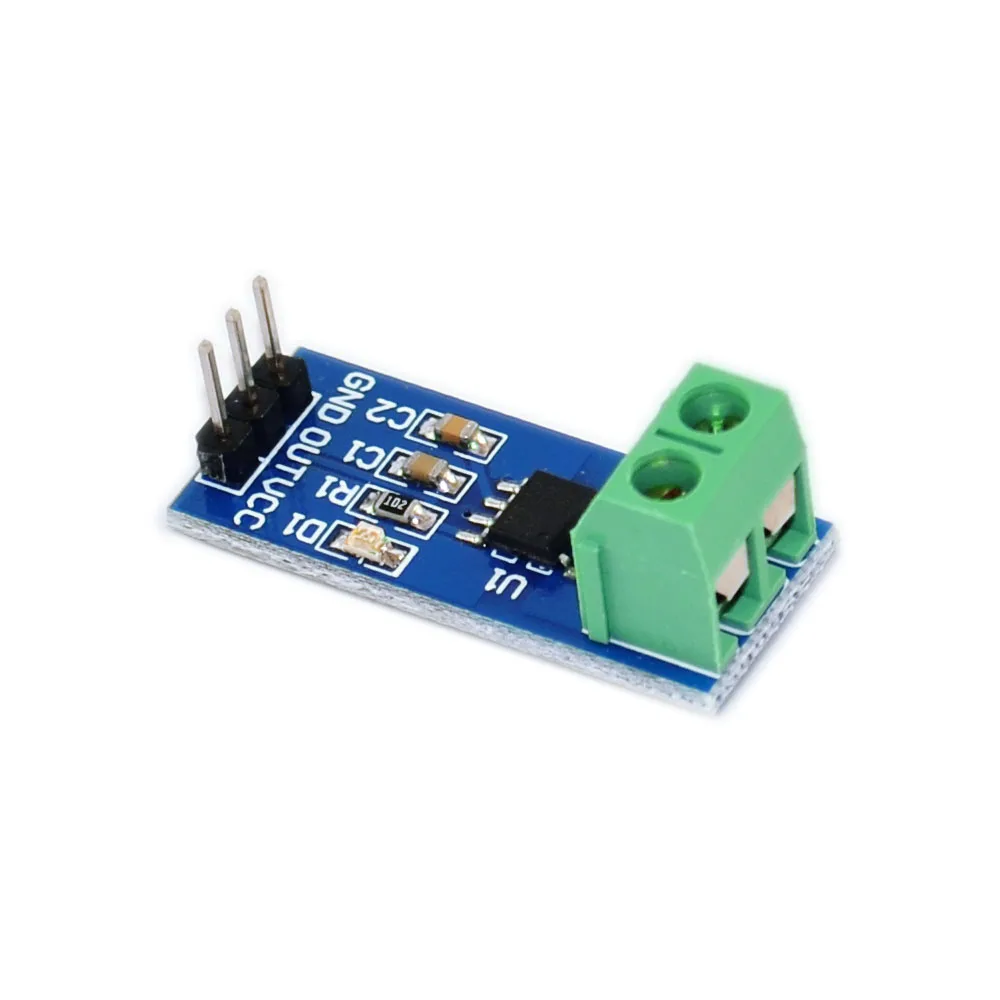

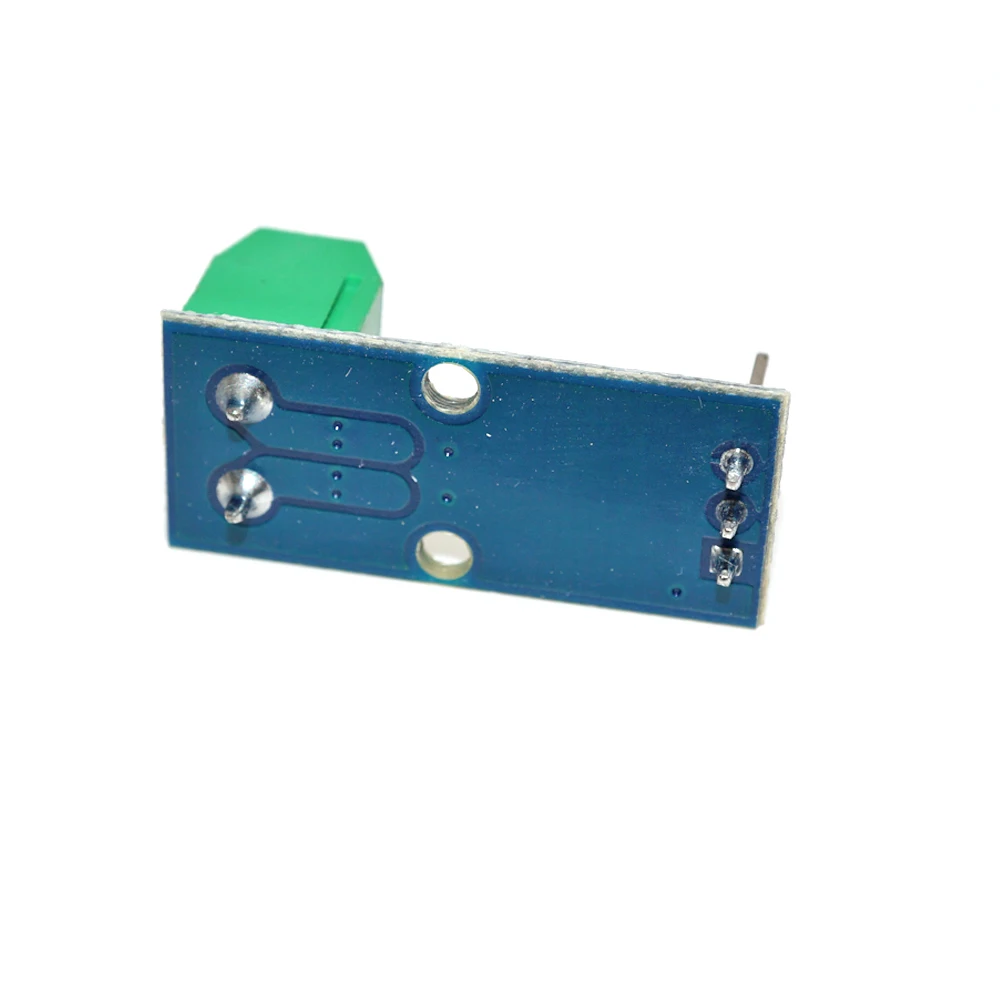

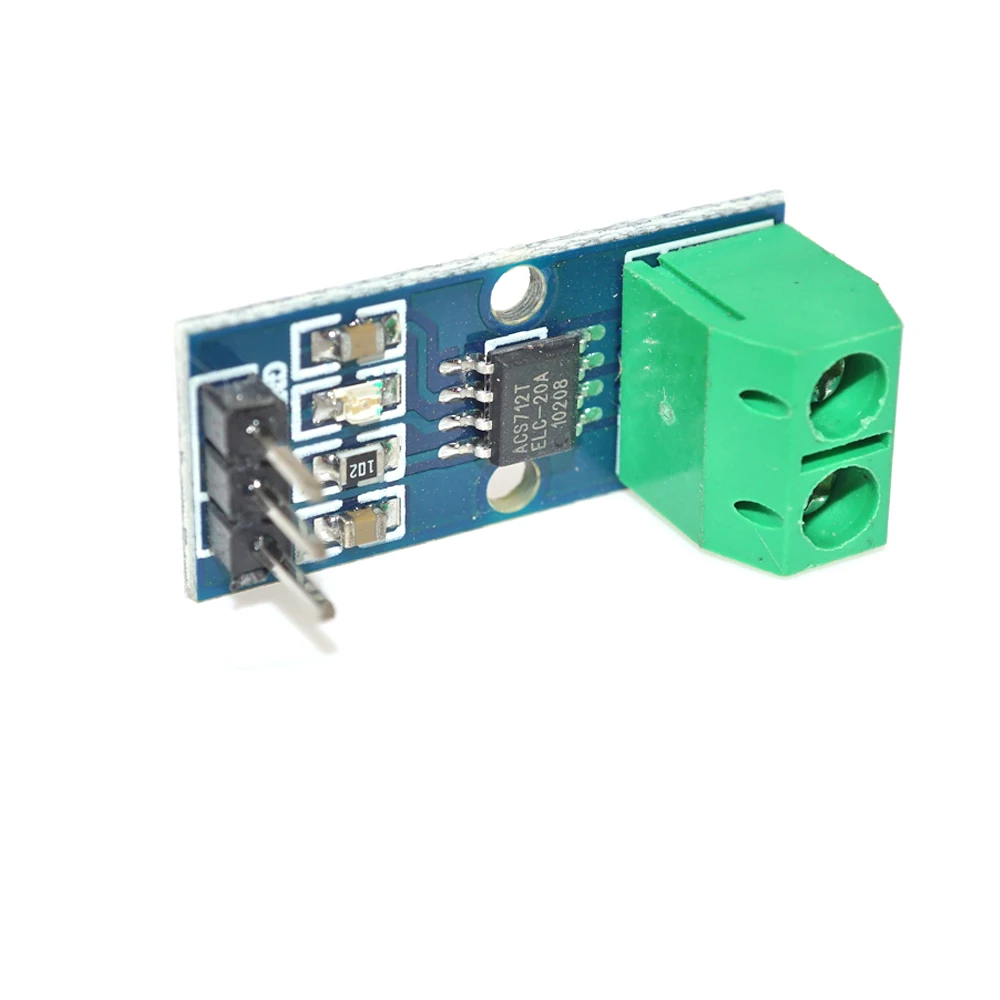

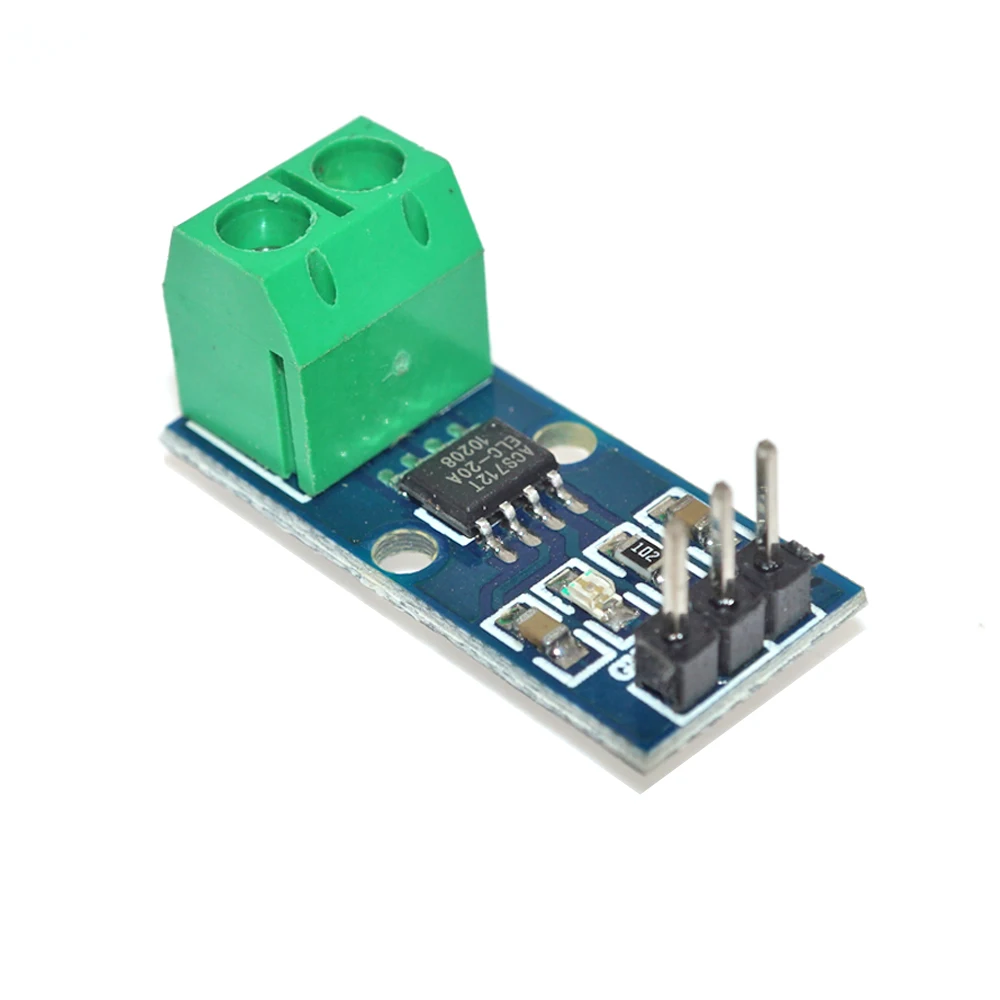

The CS712 Hall Current Sensor Module is a compact, analog-output sensor designed for precise current measurement in DIY electronics, power management systems, and motor control applications. Its FR4 PCB construction ensures durability, while the terminal block and three-pin connector simplify integration.

Technical specifications

FeatureSpecificationApplication Scenario
MaterialFR4 PCB, brass/copper terminal blockIndustrial and prototyping environments
Current Range5A, 20A, 30AMonitoring power supplies or motors
Output TypeAnalog (continuous voltage output)Real-time current feedback systems
Connector TypeSolderless terminal block + 3-pin headerRapid prototyping without soldering
LED IndicatorStatus/power indicationDebugging or system status monitoring

Customization guide

Adjustable parameters:

  • IC Replacement: Swap the Hall-effect sensor IC to modify sensitivity or measurement range.
  • Terminal Block: Replace with alternative connectors (e.g., screw terminals) for custom wiring needs.
  • Current Limit: Configure via firmware/software for specific application thresholds.

Get inspired

With its analog output and modular design, the CS712 empowers engineers and hobbyists to build scalable solutions—from low-power IoT devices to high-current industrial systems.

Choose your model

ParameterBase Model (5A)Advanced Model (20A)Pro Model (30A)
Max Current Range5A+300% (20A)+500% (30A)*
Noise ImmunityStandardEnhanced filteringPremium shielding
Temperature Range-10°C to 70°C-20°C to 85°C-30°C to 105°C

Supplier's note

  1. Technical Breakthroughs:

    • Wider Current Range: The Pro Model’s 30A capacity exceeds industry benchmarks by 50%, enabling use in heavy-duty machinery.
    • Analog Stability: Analog output ensures seamless compatibility with legacy systems, avoiding the complexity of digital conversion.
    • Modular Design: Customizable ICs and connectors reduce downtime for specialized applications.

  2. Version Selection Guide:

    • Base Model: Ideal for hobbyists or low-power projects (e.g., LED lighting).
    • Advanced Model: Suited for mid-range applications like robotics or small appliances.
    • Pro Model: Recommended for industrial users needing high-current reliability (e.g., motor control in manufacturing).

With the Pro Model’s 30A capacity, you can safely monitor industrial motors while its premium shielding minimizes electromagnetic interference. Pair its analog output with existing control systems to reduce retrofitting costs.

Frequently asked questions

  • Which CS712 model (5A/20A/30A) is best suited for small electronics projects?

  • How do I clean and maintain the CS712 Hall Current Sensor Module?

  • What materials make the CS712 module suitable for industrial use?

  • Can the CS712’s analog output be customized for specific voltage ranges?

  • Is the CS712 Hall sensor FDA-approved for medical electronics?

  • How does the CS712 simplify DIY electronics projects compared to other sensors?

  • What makes the CS712’s analog output superior to digital sensors for current monitoring?

  • Can I replace the terminal block with a different connector for my setup?
