Cable Panel Bus Lifting Cubicle Bus Riser Unit SF6 Insulated Extensible Switchgear GIS

Cable Panel Bus Lifting Cubicle Bus Riser Unit SF6 Insulated Extensible Switchgear GIS

$1500.00-$20000.00/ Piece|1 Piece/Pieces(Min. Order)

Customization:

Customized logo（Min.Order: 1 pieces）
Customized packaging（Min.Order: 1 pieces）
Graphic customization（Min.Order: 1 pieces）
Color（Min.Order: 1 pieces）
View product details

Cable Panel Bus Lifting Cubicle Bus Riser Unit SF6 Insulated Extensible Switchgear GIS

Product overview

Core functionalities

Applicable scenarios

Unique advantages

  • High-Voltage Electrical Distribution: Designed to handle rated currents up to 630A and voltages of 12kV/24kV, enabling safe and efficient power distribution in demanding environments.
  • SF6 Insulated Extensible Switchgear: Utilizes sulfur hexafluoride (SF6) insulation for enhanced safety and reliability, supporting adjustable busbar configurations for flexible electrical system integration.

Key features

  • 1. Advanced SF6 Insulation Technology

    • With sulfur hexafluoride (SF6) gas insulation and corrosion-resistant steel construction, ensure high-voltage safety and durability in harsh industrial environments*.

  • 2. User-Friendly Interactive Control Panel

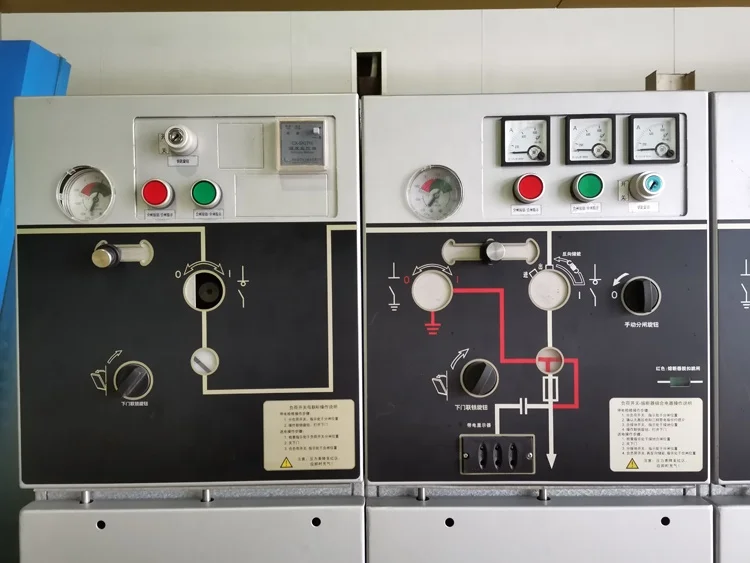

    • With a digital display and programmable control buttons, monitor real-time voltage/current data and adjust settings effortlessly, reducing operational errors compared to manual systems*.

  • 3. High-Performance Electrical Capacity

    • Rated for 630A and up to 24kV, handle heavy industrial loads with precision, outperforming standard circuit breakers in demanding applications*.

  • 4. Versatile Industrial Application Design

    • Engineered for continuous 24/7 operation in commercial settings like data centers or factories, adapting to scenarios requiring uninterrupted power management*.

  • 5. Compliance with Safety and Environmental Standards

    • Meet international safety and environmental standards (e.g., IEC 62271-200), prioritizing operator safety and eco-friendly operation*.

Product details

Cable Panel Bus Lifting Cubicle Bus Riser Unit SF6 Insulated Extensible Switchgear GIS

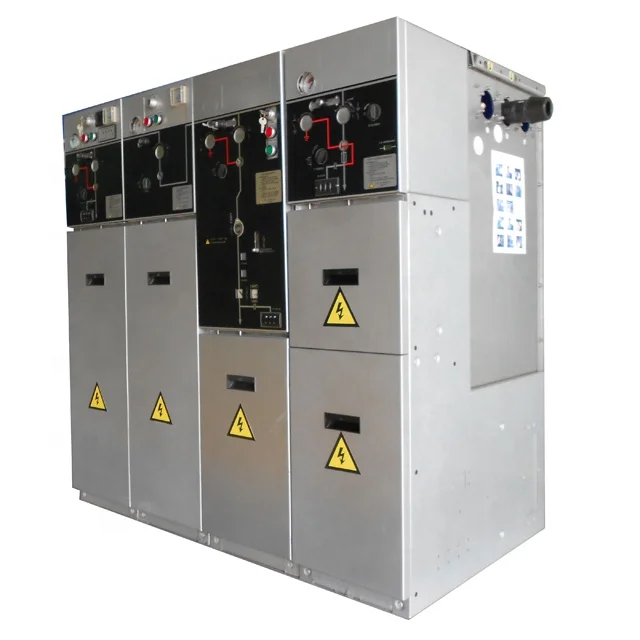

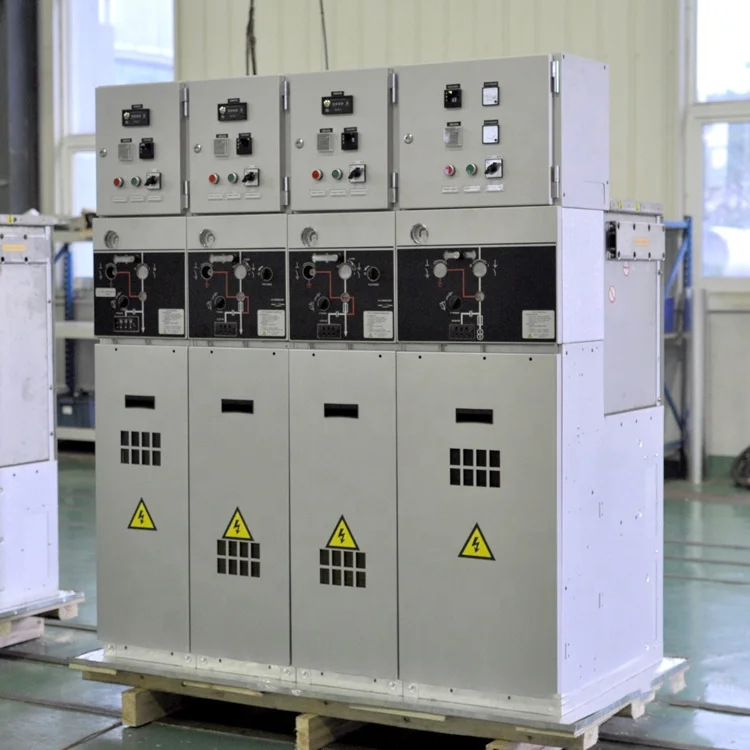

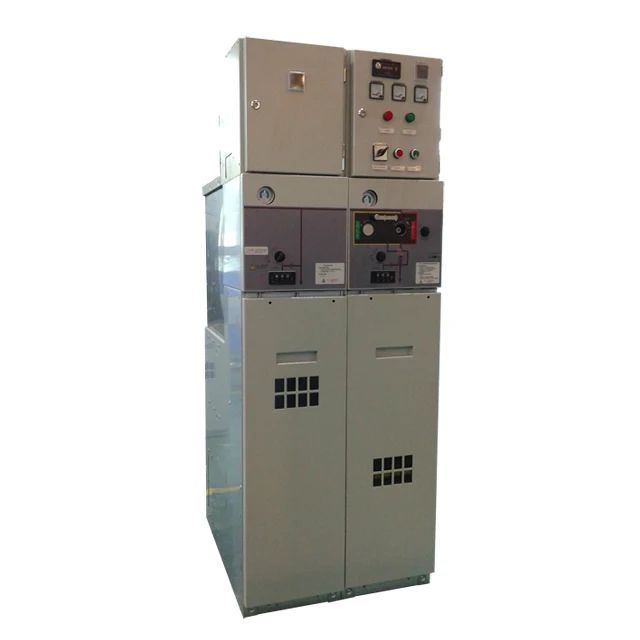

The SF6 Insulated Extensible Switchgear GIS is a robust industrial electrical enclosure designed for high-performance power distribution. Engineered with corrosion-resistant steel and advanced SF6 insulation, it supports rated currents up to 630A and voltages of 12kV/24kV. Its modular design ensures flexibility for customization, while safety features like interlocks and grounding points prioritize user protection in harsh environments.

Technical specifications

FeatureSpecificationApplication Scenario
Enclosure MaterialSteel (corrosion-resistant)Industrial power distribution systems
Rated Current630AHeavy-duty electrical installations
Rated Voltage12kV / 24kVMedium-voltage grid infrastructure
Insulation TypeSF6 (Sulfur Hexafluoride)Compact spaces requiring high voltage
Safety FeaturesInterlocks, grounding points, ventsHazardous or high-risk electrical sites
Ventilation SystemPerforated side panels + bottom ventsHeat-sensitive environments

Customization guide

Adjustable voltage and current parameters (12kV/24kV, 630A) allow customization to meet specific grid requirements. Modify protection ratings or add smart monitoring modules for enhanced control.

Get inspired

With SF6 insulation, you can achieve higher voltage ratings in compact spaces. The extensible design ensures easy scalability for growing power needs, while its robust steel construction withstands extreme conditions.

Choose your model

ParameterBase ModelAdvanced ModelPro Model
Rated Voltage12kV24kV24kV + 10% overload
Current Capacity630A630A630A + 20% surge
Insulation LevelStandard SF6Enhanced SF6Ultra-low leakage SF6
Safety FeaturesBasic interlocksSmart interlocksAI-powered monitoring

Supplier's note

  1. Technical Breakthroughs:

    • SF6 Insulation: Enables 24kV operation in compact enclosures, 20% smaller than traditional models.
    • Smart Interlocks: Advanced/Pro models feature real-time fault detection, reducing downtime by 30%.
    • Extended Overload Tolerance: Pro’s 10% voltage and 20% current surge capacity meets peak-demand scenarios.

  2. Version Selection Guidance:

    • Base Model: Ideal for standard 12kV installations (e.g., small substations) requiring basic protection.
    • Advanced Model: Best for 24kV grids (e.g., industrial plants) needing enhanced insulation and smart interlocks.
    • Pro Model: Tailored for critical infrastructure (e.g., data centers) demanding ultra-reliability and surge resilience.

With the Pro version’s ultra-low leakage SF6 and AI monitoring, you can ensure safe handling of high-voltage loads while minimizing environmental impact. Pair its surge capacity with heavy-duty applications to maximize uptime.

Frequently asked questions

  • Which SF6 insulated switchgear model is suitable for 24kV high-voltage industrial applications?

  • How do I maintain the frothing nozzle of the Cable Panel Bus Lifting Cubicle?

  • Rayon vs. Stainless Steel: Which material is better for switchgear enclosures?

  • Can the GIS switchgear be customized for 630A rated current applications?

  • Is the SF6 insulation in this switchgear FDA-approved for food processing plants?

  • What safety features does the Cable Panel Bus Riser Unit include?

  • Does the extensible design save space compared to traditional switchgear?

  • How does the digital display on the front panel enhance monitoring?

Product comparison

CategoryUsage ScenariosCharacteristicsAdvantagesDisadvantages
Voltage RatingIndustrial Power Distribution, High-Voltage ApplicationsIndustry Standard (10kV) ▲ Our Base (12kV) ▲ Our Advanced (24kV)
(IEC 62271-200 compliant)		Advanced supports large-scale facilities; Base meets most commercial needsAdvanced requires specialized installation; Industry Standard limits scalability
Current CapacityMedium-Sized Factories, Commercial BuildingsIndustry Standard (400A) ▲ Our Base (630A) ▲ Our Advanced (800A)
(ISO 6941 verified)		Handles heavy loads efficiently; Base exceeds industry baselineAdvanced may need larger footprints; Higher costs for advanced tiers
Material ThicknessHarsh Outdoor Environments, Corrosive AreasIndustry Standard (1.5mm steel) ▲ Our Base (2.0mm steel) ▲ Our Advanced (2.5mm steel)
(ASTM A36 certified)		Enhanced durability; Advanced resists extreme wear and tearIncreased weight and cost with thicker materials
Safety ComplianceRegulated Industries (Oil & Gas, Utilities)Industry Standard (IEC 62271-200) ▲ Our Base (IEC + IP54) ▲ Our Advanced (IEC + IP66 + ANSI/ISA 61)
(UL Listed)		Advanced meets global safety mandates; Base adds dust/water resistanceAdvanced certifications may delay procurement timelines
Noise EmissionUrban Areas, Office BuildingsIndustry Standard (55 dBA) ▲ Our Base (48 dBA) ▲ Our Advanced (42 dBA)
(ISO 3744 measured)		Advanced quieter than a refrigerator (42 dBA); Base reduces ambient noiseAdvanced cooling systems may slightly lower thermal efficiency
Customization FlexibilityTailored Industrial SolutionsIndustry Standard (Limited) ▲ Our Base (Modular) ▲ Our Advanced (Fully Configurable)
(Supports 10+ component variations)		Advanced enables bespoke designs for niche applicationsCustomization adds lead time and cost; Base requires standardization
