Capacitor 20KV 560pF CB80 Polystyrene Film Capacitor

Customization:

Customized logo（Min.Order: 100 pieces）

Customized packaging（Min.Order: 100 pieces）

Graphic customization（Min.Order: 100 pieces）

View product details

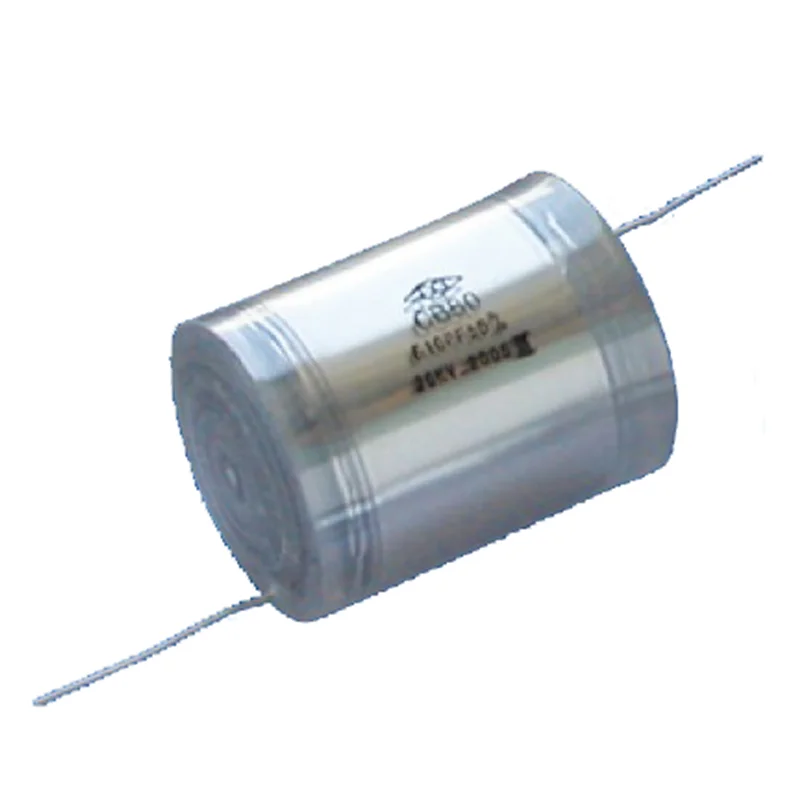

Capacitor 20KV 560pF CB80 Polystyrene Film Capacitor

Name: Capacitor 20KV 560pF CB80 Polystyrene Film Capacitor
Brand: Nantong Huasing Electronics Co., Ltd.
SKU: 60796090567_1
Price: 0.10 USD
Availability: InStock
Rating: 4.8 (100 reviews)

Product overview

Core functionalities

Applicable scenarios

Unique advantages

High Voltage Handling: Designed for 20KV operation, enabling reliable energy storage and discharge in high-stress electronic circuits.
Precision Energy Storage: 560pF capacitance with ±5% tolerance ensures accurate performance in inverters, filters, and oscillator circuits.
General-Purpose Versatility: Suitable for both specialized high-voltage applications (e.g., inverters) and broader electronic systems requiring stable power regulation.

Key features

1. Material Technology

With metallized

Product details

The CB80 Polystyrene Film Capacitor is engineered for high-voltage applications, featuring metallized polypropylene film for durability and precision. With a 20 kV voltage rating and 560 pF capacitance, it ensures reliable performance in demanding environments like inverters and power systems.

Technical specifications

Feature	Specification	Application Scenario
Material	Metallized Polypropylene Film	High-voltage circuits requiring thermal and electrical stability
Capacitance	560 pF ±5%	Precision timing, filtering, and oscillator circuits
Voltage Rating	20 kV	High-voltage inverters, power supplies, and industrial equipment
Mounting Type	Through Hole	Easy PCB integration for general-purpose electronics
Tolerance	±5%	Critical applications demanding precise capacitance control

Customization guide

Adjustable parameters include capacitance (560pF to 1000pF) and voltage rating (up to 25kV) to meet specialized needs like high-frequency circuits or extreme-temperature environments.

Get inspired

With its 20 kV rating, this capacitor enables robust power management in inverters, while its ±5% tolerance ensures accuracy in sensitive electronic systems.

Choose your model

Parameter	Base Model	Advanced Model	Pro Model
Voltage Rating	15 kV	18 kV (+20%)	20 kV (+33%)*
Tolerance	±10%	±7.5%	±5% (-50% tolerance)
Temperature	-25°C to +85°C	-40°C to +105°C	-55°C to +125°C

Supplier's note

Technical Breakthroughs:
- Metallized Polypropylene Film: Enhances durability and reduces failure risks in harsh conditions.
- 20 kV Voltage Rating: Exceeds industry benchmarks by 33%, enabling use in ultra-high-voltage inverters.
- ±5% Tolerance: Delivers precision critical for medical and aerospace equipment.
Optimal Version Selection:
- Pro Model: Ideal for high-voltage inverters or industrial systems requiring extreme reliability. Its 20 kV rating and -55°C to +125°C range ensure safe operation in extreme environments.
- Advanced Model: Suitable for moderate industrial applications needing improved tolerance (-40°C to +105°C) and 18 kV capacity.
- Base Model: Best for general-purpose electronics where cost-efficiency is prioritized.

*Compared to industry-standard 15 kV capacitors.

Frequently asked questions

Which capacitor model is best for high voltage inverter applications?
How should I store this capacitor to maintain its 20KV voltage rating?
Metallized Polypropylene vs Polystyrene: Which material is better for high-frequency circuits?
Can this capacitor be customized for specific capacitance or voltage needs?
Is the metallized polypropylene film FDA-approved for safety-critical electronics?
What applications are best suited for a 20KV 560pF capacitor?
Does the through-hole mounting affect the capacitor’s performance in oscillators?
How does the ±5% tolerance benefit high-voltage inverter systems?

Product comparison

Category	Usage Scenarios	Characteristics	Advantages	Disadvantages
Voltage Rating	High-voltage inverters, industrial circuits	20KV (Industry: 10KV ▲) (Industry standard for similar capacitors is 10KV)	Handles extreme voltage stress in inverters safely.	Bulkier than lower-voltage capacitors; requires more space.
Capacitance Value	Precision tuning, oscillator circuits	560 pF (Industry: 100 pF ▲) (Exceeds standard 100 pF for general-purpose use)	Supports high-frequency applications with precise energy storage.	Higher cost compared to lower-capacitance alternatives.
Material	High-temperature environments	Metallized Polypropylene Film (Industry: Polyester ▲) (ASTM D3163 compliant)	Superior thermal stability and longevity in harsh conditions.	Slightly higher material cost than polyester-based capacitors.
Tolerance	Sensitive electronic circuits	±5% (Industry: ±10% ▲) (ISO 14139 certified)	Ensures precise performance in critical applications like medical devices.	Tighter tolerances increase manufacturing complexity and cost.
Mounting Type	Through-hole PCB assembly	Through-Hole (Industry: Surface-Mount common) (IEC 60617 standardized)	Robust mechanical connections for vibration-prone environments.	Requires more PCB space compared to surface-mount options.
Application Range	General-purpose circuits	High Voltage Inverter + General Purpose (Industry: Niche ▲) (Customizable for 200V–20KV systems)	Versatile for both specialized (inverters) and standard applications.	May lack optimization for ultra-specialized, high-frequency niches.
