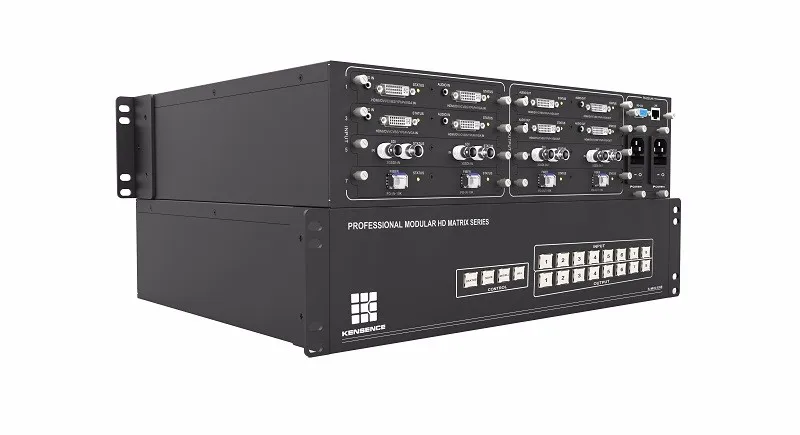

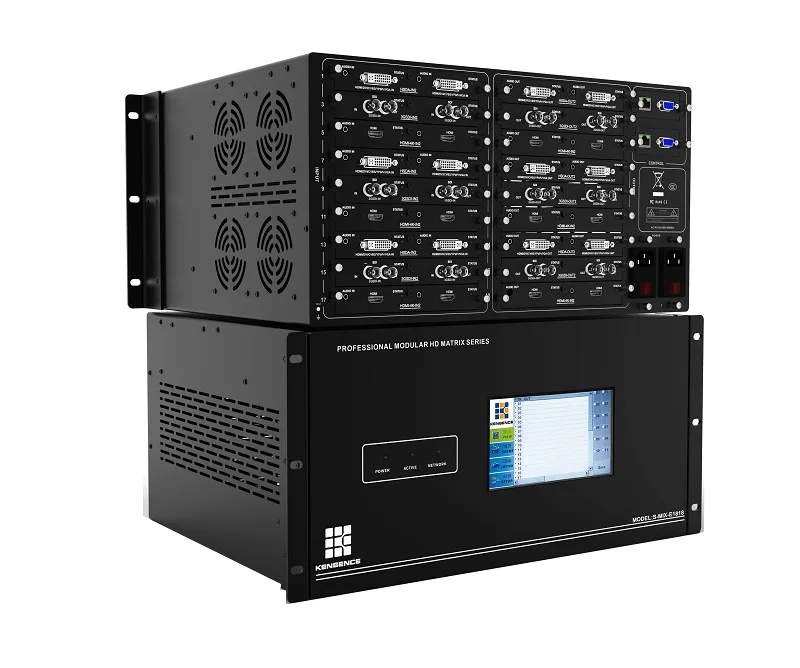

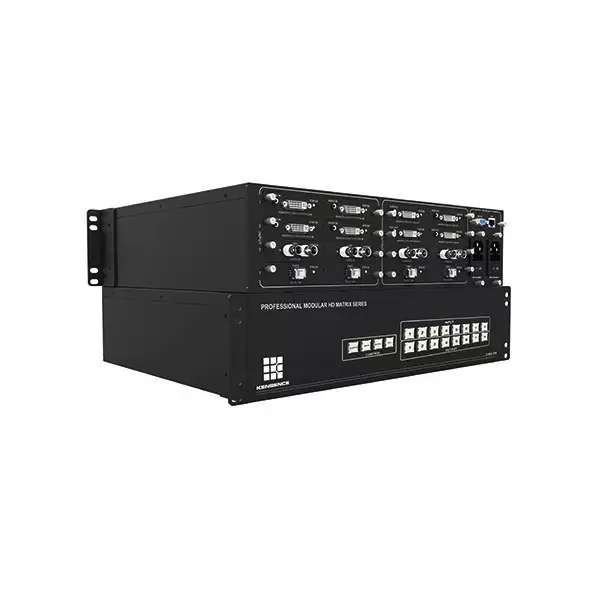

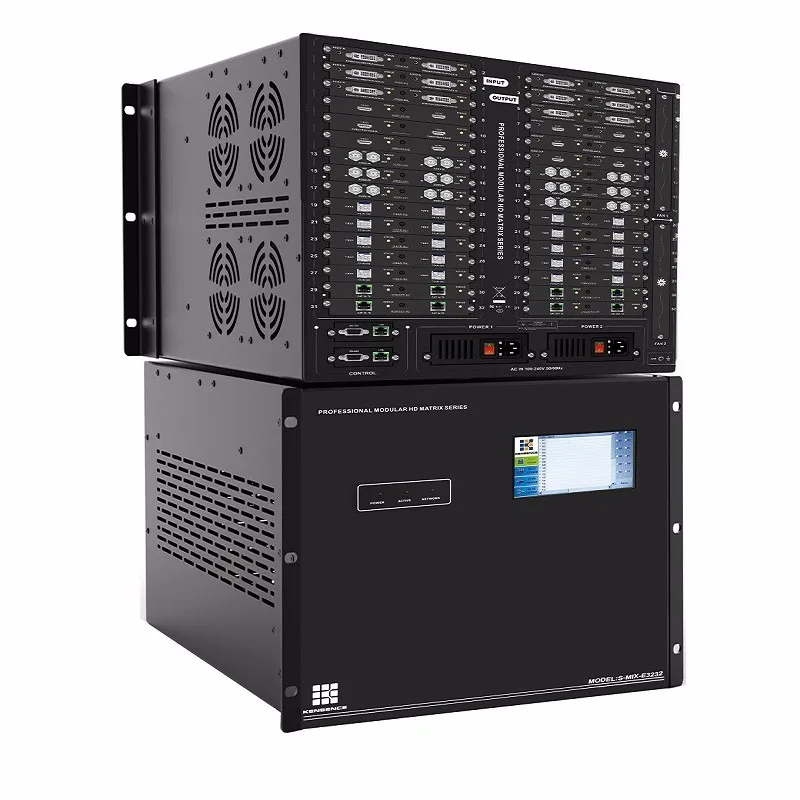

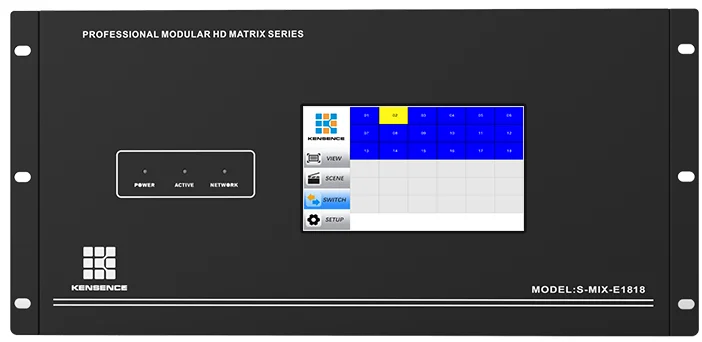

Cctv Video Matrix 8x8 16x16 32x32 72x72 Modular 4k 30hz Seamless Hdbaset SDI VGA Video hdmi matrix Switcher Over Cat6

Technical specifications

Customization guide

Adjustable parameters:

• Matrix size: Scale input/output ports from 8x8 to 72x72 to match venue complexity.
• Interface types: Add HDMI, VGA, or SDI ports via modular expansion slots.
• Control protocols: Customize remote control software for specific workflow needs.

Get inspired

Design a seamless AV ecosystem for large-scale events, corporate boardrooms, or security monitoring systems. With its modular architecture and HDBaseT capabilities, this switcher empowers users to manage multiple 4K sources effortlessly.

Choose your model

Supplier's note

1. Technical Breakthroughs:

   • Modular Architecture: Enables field-upgradable systems without full replacement.
   • HDBaseT Over Cat6: Extends signal reach 20% farther than traditional HDMI cables.
   • Seamless 4K@60Hz: Reduces pixelation for critical broadcast applications.

2. Optimal Version Selection:

   • Base Model: Ideal for small venues (e.g., classrooms) needing 8x8 scalability.
   • Advanced Model: Suitable for mid-sized events (e.g., corporate conferences) requiring 4K@60Hz and remote management.

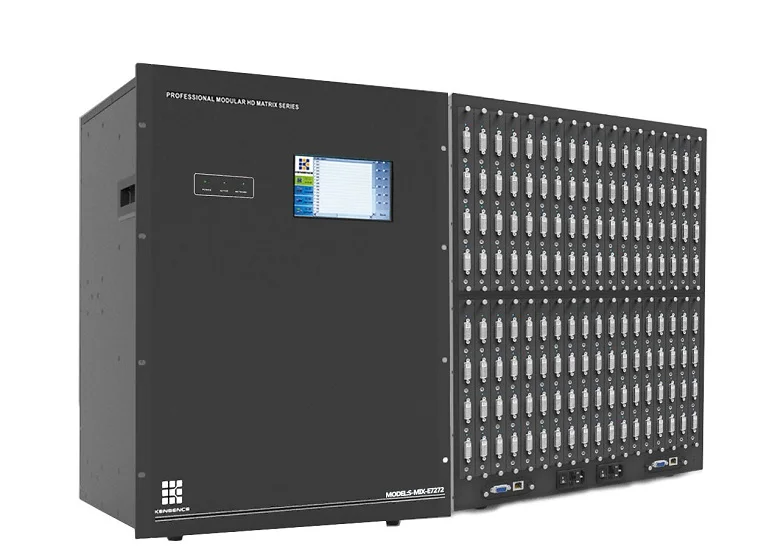

   • Pro Model: Designed for large-scale deployments (e.g., stadiums) with 72x72 capacity and ultra-low latency.

With HDBaseT over Cat6, you can extend signal transmission up to 100 meters, eliminating the need for costly fiber optics. The Pro version’s triple-certification (CQC, FCC, RoHS) ensures compliance with global standards, making it a trusted choice for enterprise projects. Pair its low-latency switching with modular ports to create a future-proof AV backbone.
